Description
- Brand Name: LanYuXuan
- Origin: CN(Origin)
- DIY Supplies: ELECTRICAL
- Certification: CE
- Warranty: 1 years
- Type: UV Spectrum Analyzer
- Certification: CE ISO UV Spectrum Analyzer
- Customized support: OEM, ODM, OBM
- Place of Origin: China
- Brand Name: Ysenmed
- Model Number: YSTE-UV5600
- Product name: UV Visible Spectrum Analyzer
- Application: Health Center
- Optical System: Single beam, Grating 1200 lines/mm
- Wavelength Range: 190-1000nm
- Bandwidth: 2nm
- Wavelength Accuracy: ±1nm
- Stray Light: ≤0.05%T
- Data Output Port: USB
- Printer Port: Parallel Port
- Display: 128*64 Dots LCD

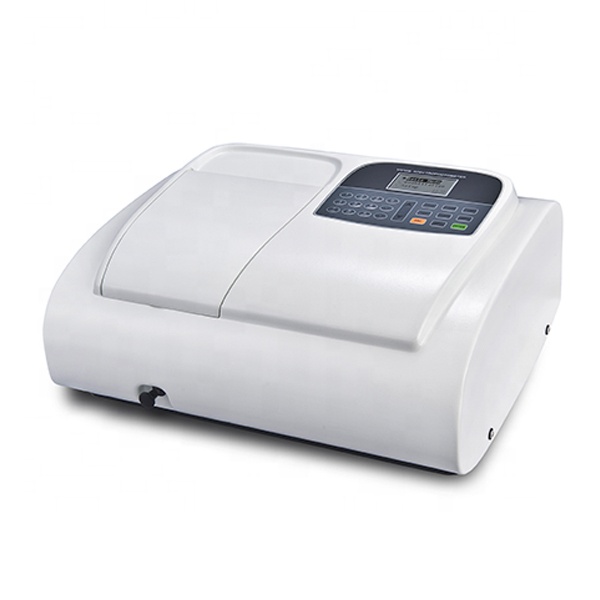

Ultraviolet and Visible Spectrophotometer UV VIS Spectrophotometer UV Spectrum Analyzer YSTE-UV5600
Ultraviolet and Visible Spectrophotometer UV VIS Spectrophotometer UV Spectrum Analyzer YSTE-UV5600
Features
Lead screw structure
The instrument uses a lead screw structure so that the instrument wavelength accuracy and wavelength resolution can be greatly improved.
Auto setting wavelength
Users set wavelength automatically through arrow keys to avoid operation errors.
Numerical Keys
With microprocessor controlled, all parameters of the instrument can be easily set by numerical keys.
Date output
Equipped with USB port to connect with a PC to display spectrum scanning, kinetics and multi wavelength testing results on the screen through the optional software.
8mm thick optical base
The instrument use a rigid die-cast aluminum base as its optical mount to ensure instrument stability and reliability.
Imported high quality deuterium lamp
The UV instruments use imported flanged deuterium lamp with low stray light, pohotmetric accuracy and easy replacing.
Standard curve
instruments can set up various standard curves according to customer’s solutions and find the concentration of unknown solutions.
Technical Specification
Model |
YSTE-UV5600 |
Wavelength Range |
190-1100nm |
Bandwidth |
2nm |
Wavelength Accuracy |
±0.8nm |
Wavelength Repeatability |
0.3nm |
Wavelength Setting |
Auto |
Photometric Accuracy |
±0.3%T |
Photometric Repeatability |
0.2%T |
Photometric Range |
-0.3-3A 0-200%T 0-9999C |
Stability |
± 0.002A/h @ 500nm |
Baseline Flatness |
± 0.002A/h |
Stray Light |
≤0.05%T |
Data Output Port |
USB |
Printer Port |
Parallel Port |
Display |
128*64 Dots LCD |
Lamps |
D2&W Lamp |
Detector |
Silicon Photodiode |
Power Requirements |
AC 220V/50Hz or 110V/60Hz |
Dimension |
460*360*225mm |
Weight |
18kg |
