Description
- Brand Name: Cloudray
- Certification: NONE
- Origin: CN(Origin)
- Model Number: Raycus Welding Fiber Laser FLS01RC1000H/FLS01RC1500H
- Name: Original Raycus Welding Fiber Laser Source
- Laser Source Power Range: 1000W/1500W
- Power Supply: 220±10% V AC 50/60Hz
- Operation Modes: CW/Modulated
- Polarization State: Random
- Control Mode: RS-232/AD/Ethernet
- CW Fiber Lasers Version: Overseas Edition
- Laser Source Power: 1KW/1.5KW
- Emission Wavelength: 1080±5nm(1064nm)
- Fiber Core Diameter: 50μm
- Modulation Frequency(Hz): 50-50000
- Laser Source Application: Fiber Laser Welding Cutting Machine
- Delivery Cable Length: 10m
- Operating Ambient Temperature(℃): 10℃~40℃
- Storage temperature: -10℃-60℃
- Humidity(%): <70
- Red Guide Laser Power(mW): 0.1-1
- Beam Quality(mmxmrad): BPP<1.5

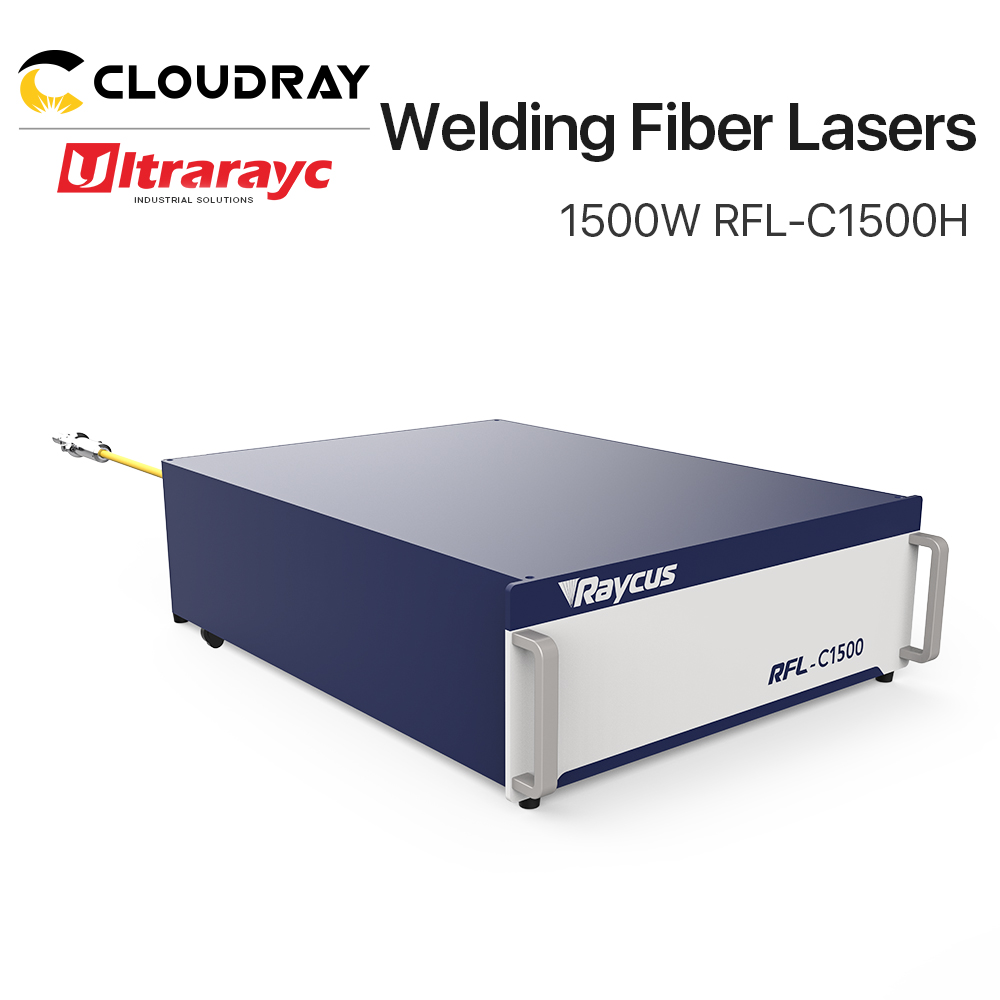

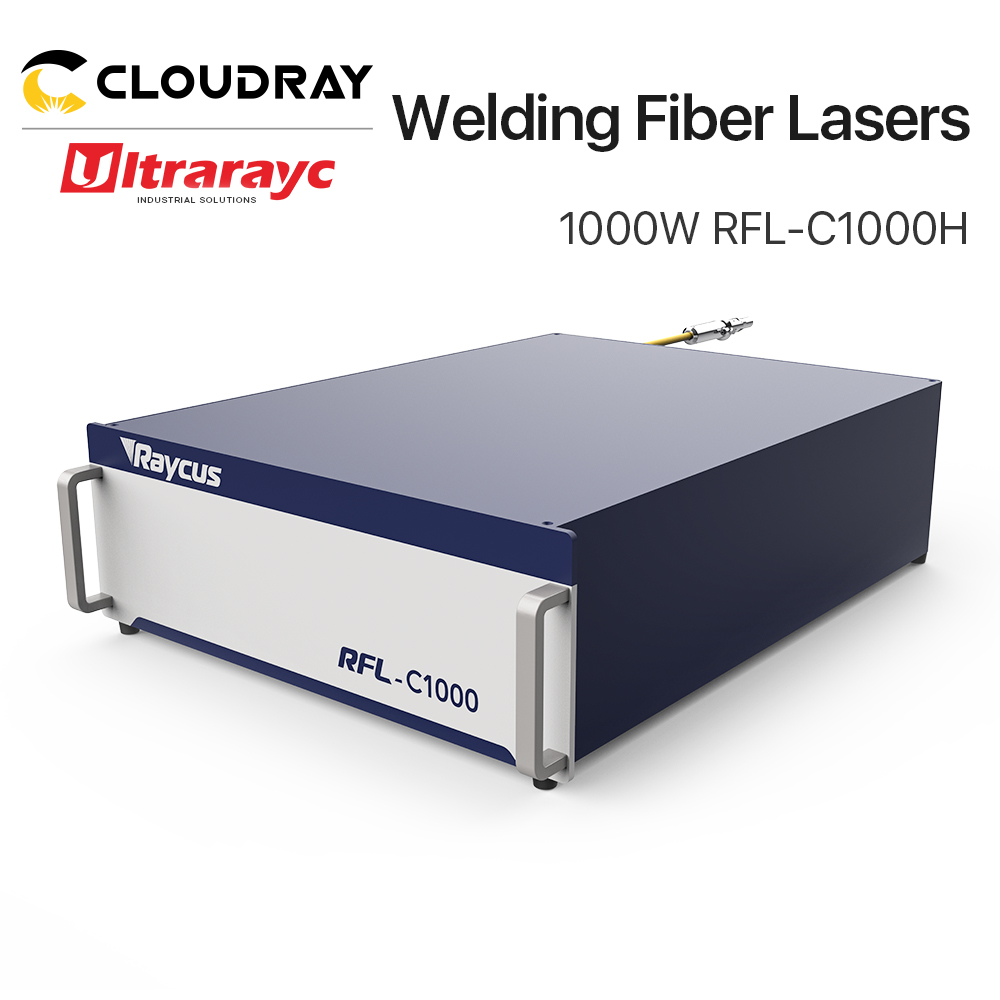

Original Raycus Welding Fiber Lasers
Brand: Original Raycus Single Module
Model:
RFL-C1000H 1000W
RFL-C1500H 1500W
Wavelength: 1064nm
Application: For Fiber Laser Cutting Welding Machine
Prodcut Introduction
Compared with traditional lasers, Raycus CW fiber laser has higher efficiency
electric-optical conversion, lower power consumption and excellent beam quality.
The fiber laser is compact and ready to use. It can be used as a stand-alone unit
or easily inserted into user’s apparatus.
