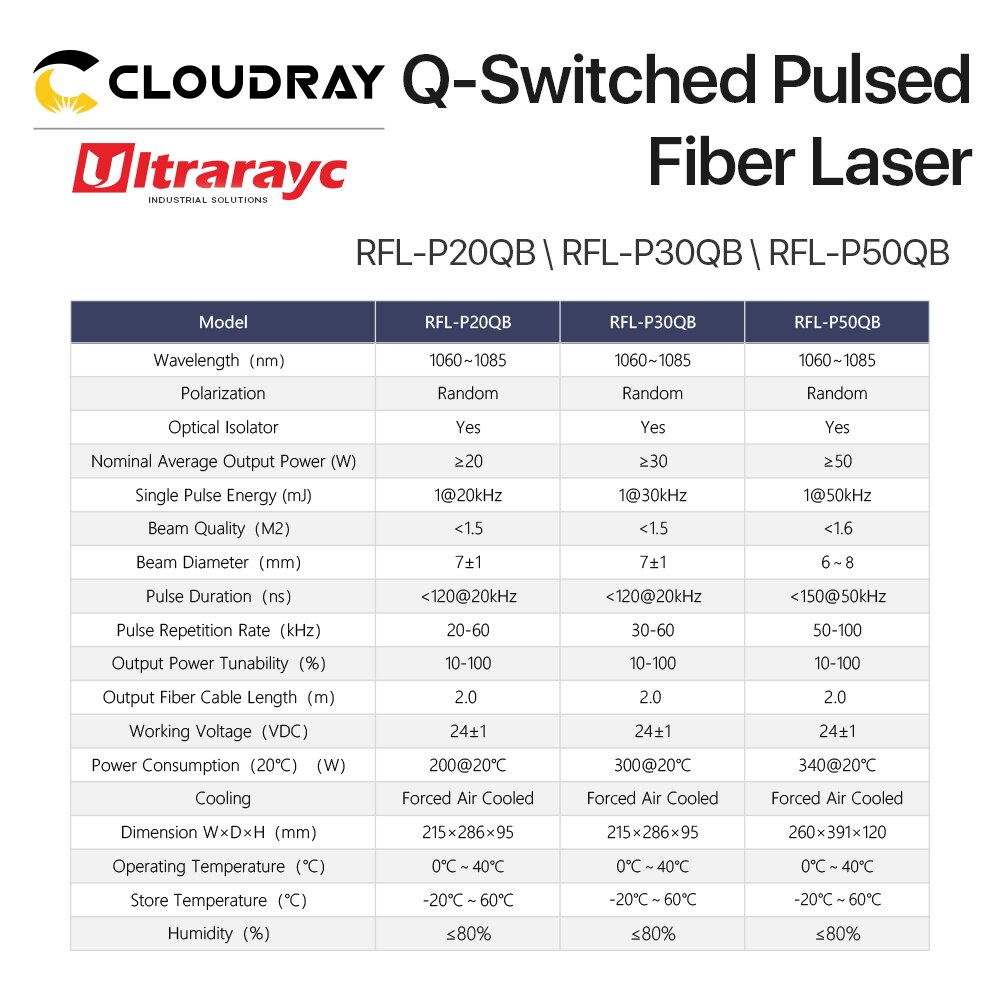

Description
- Brand Name: Cloudray
- Certification: CE
- Certification: RoHS
- Origin: CN(Origin)

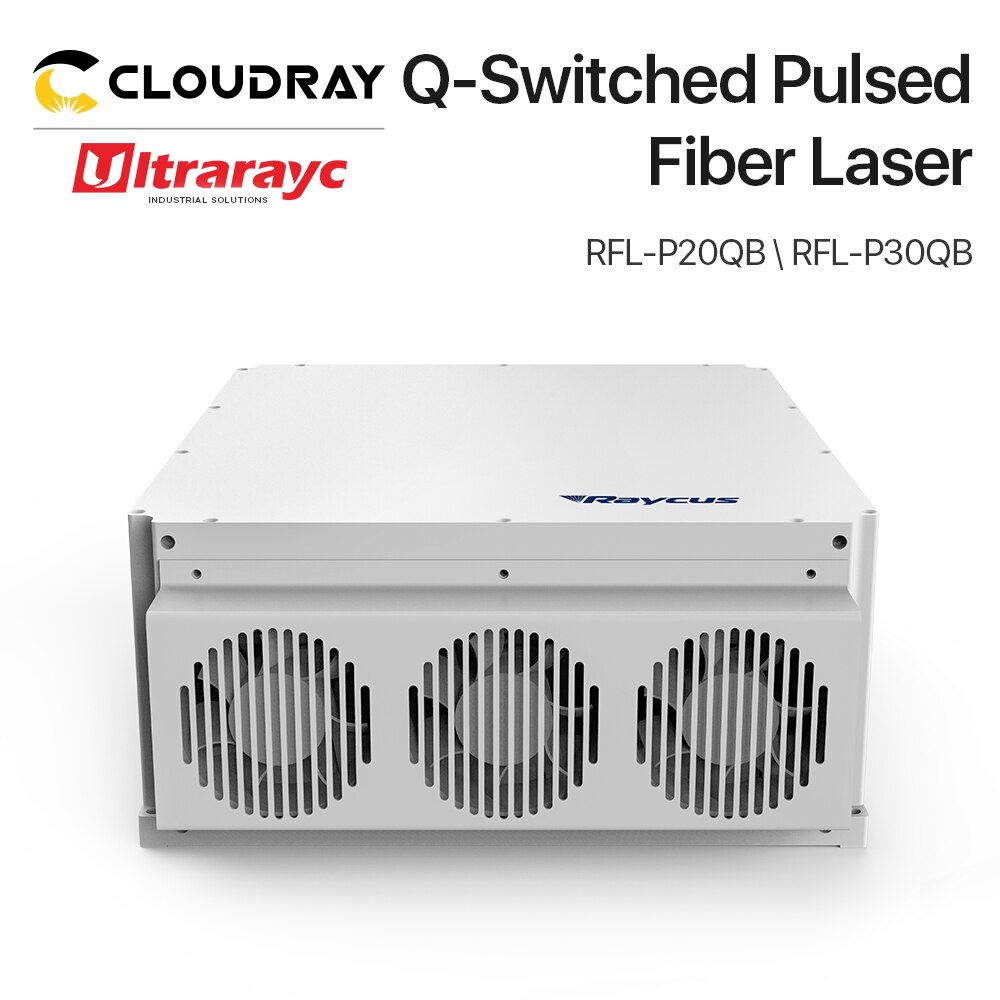

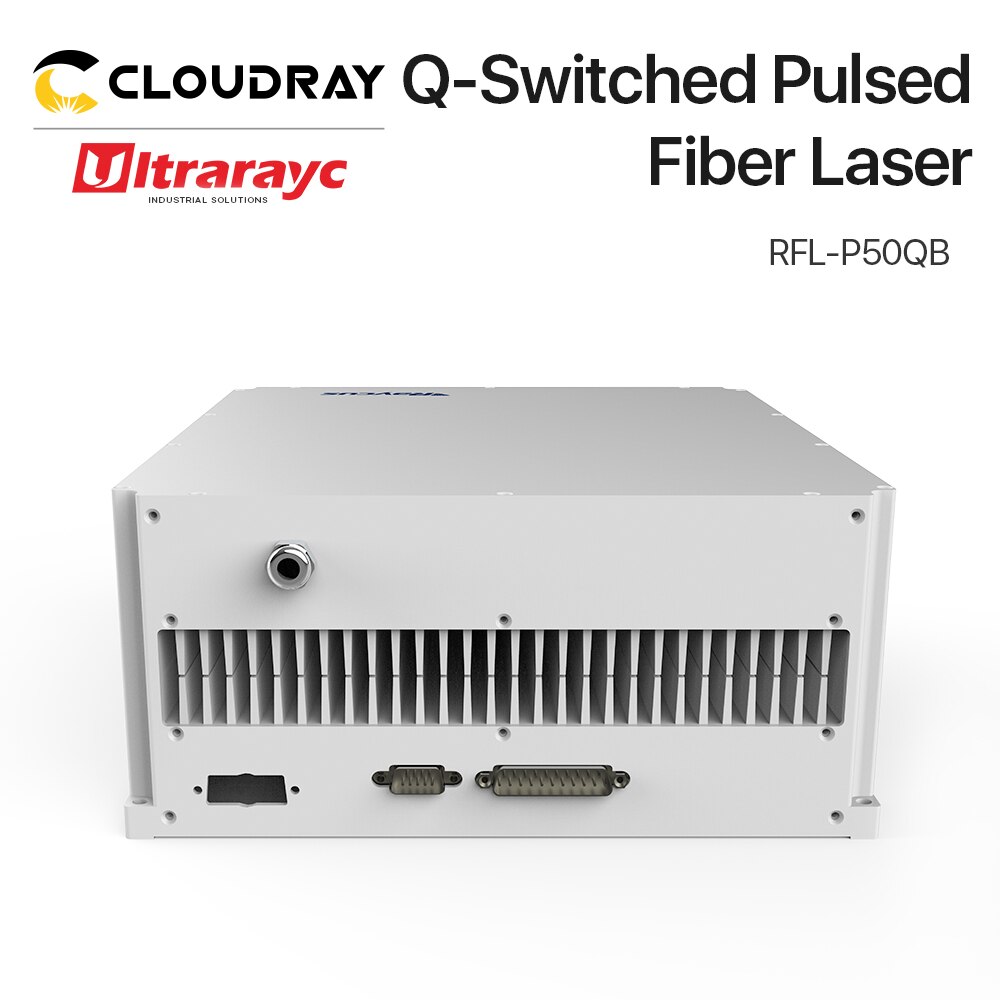

- Model Number: RFL-P20QB/P30QB/P50QB

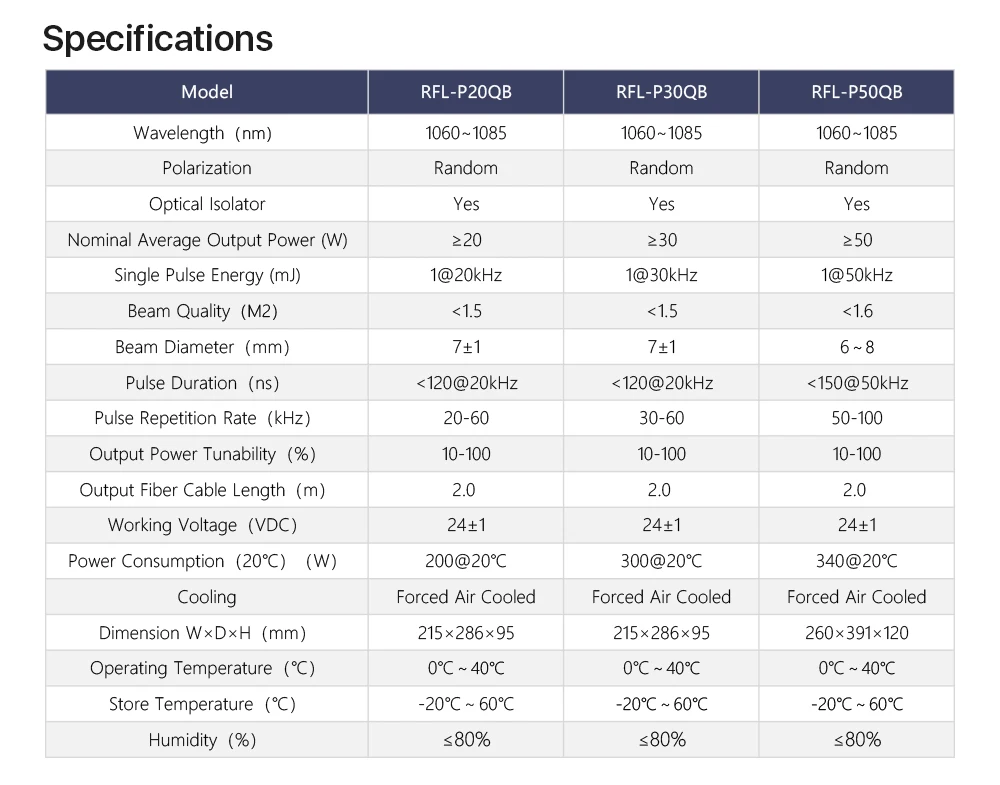

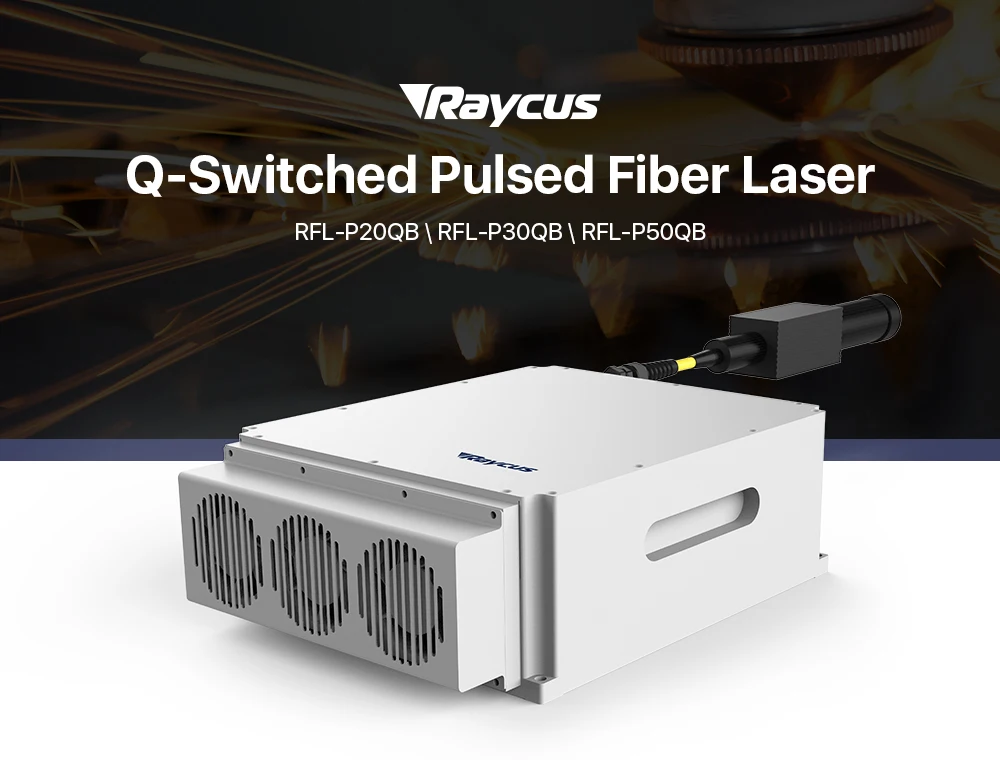

- Name: Original Raycus Q-switched Pulse Fiber Laser Source
- Wavelength(nm): 1060~1085
- Polarization: Random
- Optical Isolator: Yes
- Nominal Average Output Power(W)1: RFL-P20QB>=20
- Nominal Average Output Power(W)2: RFL-P30QB>=30
- Nominal Average Output Power(W)3: RFL-P50QB>=50
- Single Pulse Energy(mJ)-1: RFL-P20QB:1@20kHZ
- Single Pulse Energy(mJ)-2: RFL-P30QB:1@20kHZ
- Single Pulse Energy(mJ)-3: RFL-P50QB:1@20kHZ
- Beam Quality(M2)-1: (RFL-P20QB&RFL-P30QB):<1.6
- Beam Quality(M2)-2: RFL-P50QB:<1.6

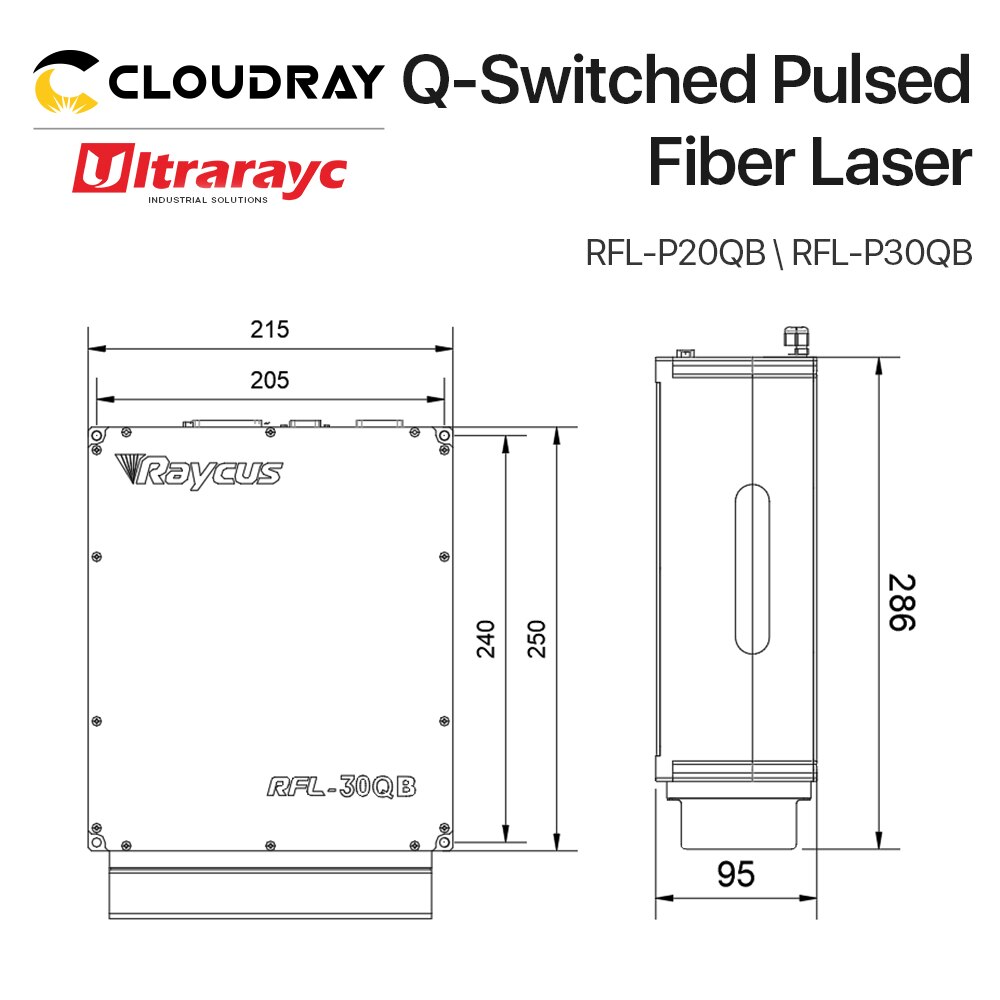

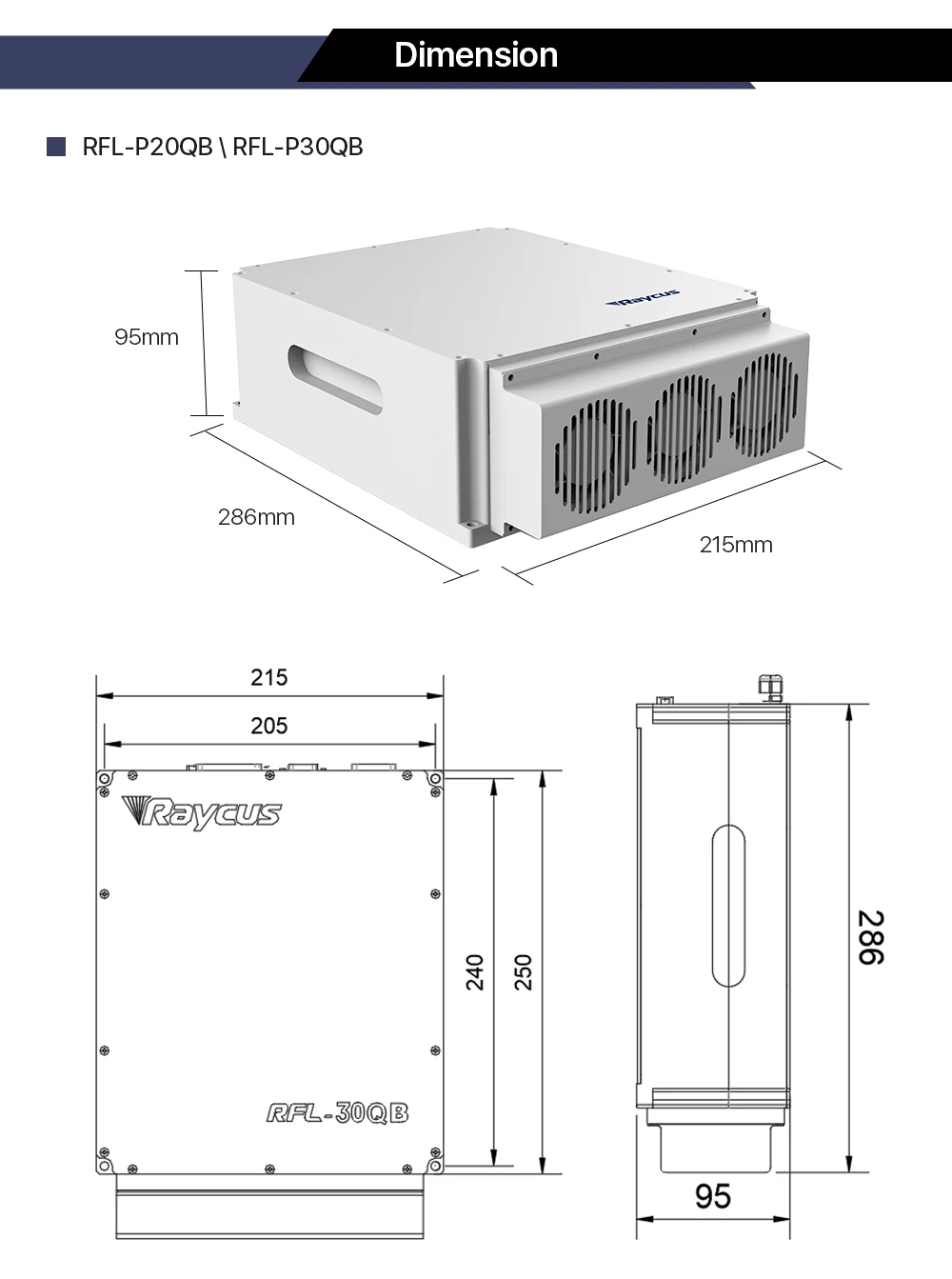

- Beam Diameter(mm)-1: (RFL-P20QB&RFL-P30QB):7±1

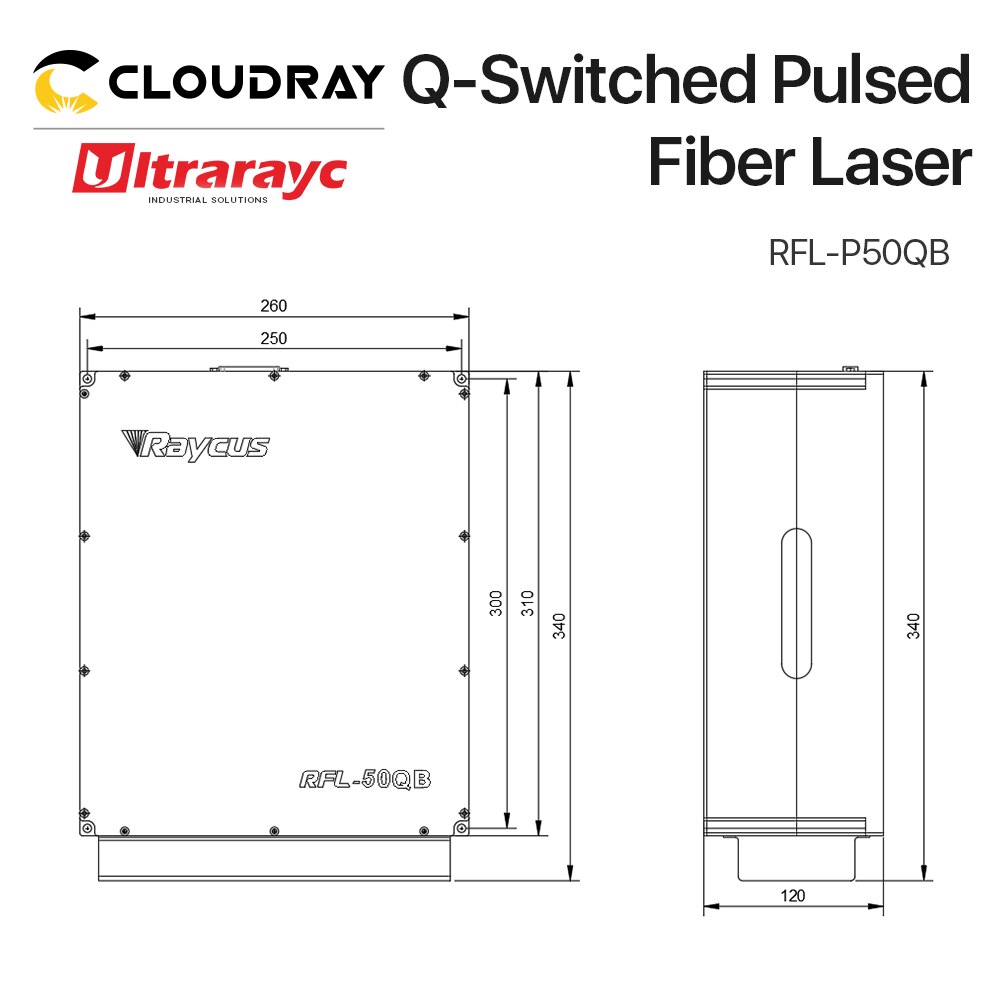

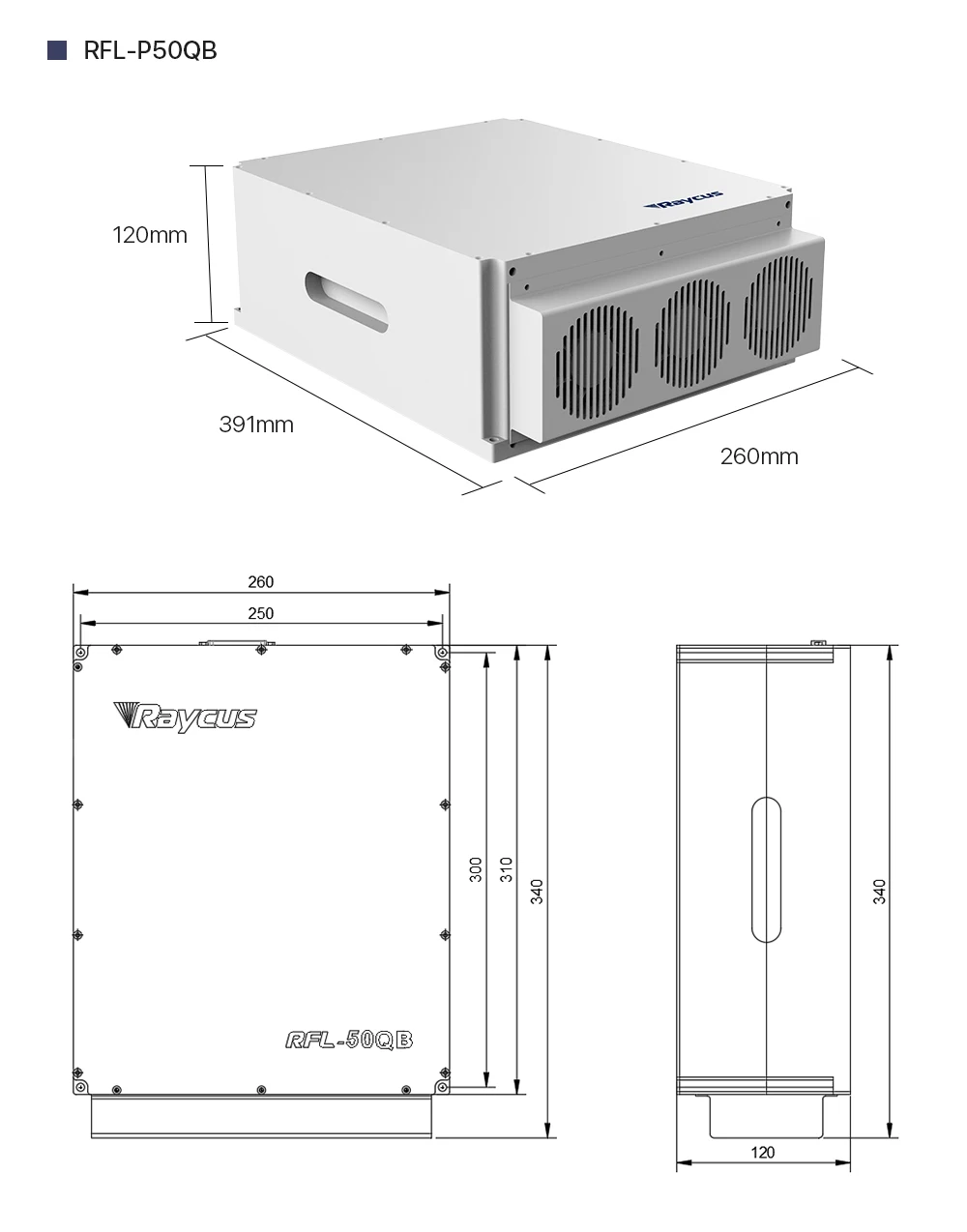

- Beam Diameter(mm)-2: RFL-P50QB:6~8
- Pluse Duration(ns) 1: (RFL-P20QB&RFL-P30QB):<120@20kHZ
- Pluse Duration(ns) 2: RFL-P50QB:<150@50kHZ
