Description
- Brand Name: TWO TREES
- Origin: CN(Origin)
- Certification: ce
- Model Number: TT-5.5S
- Certification: CE
- Is Smart Device: NO

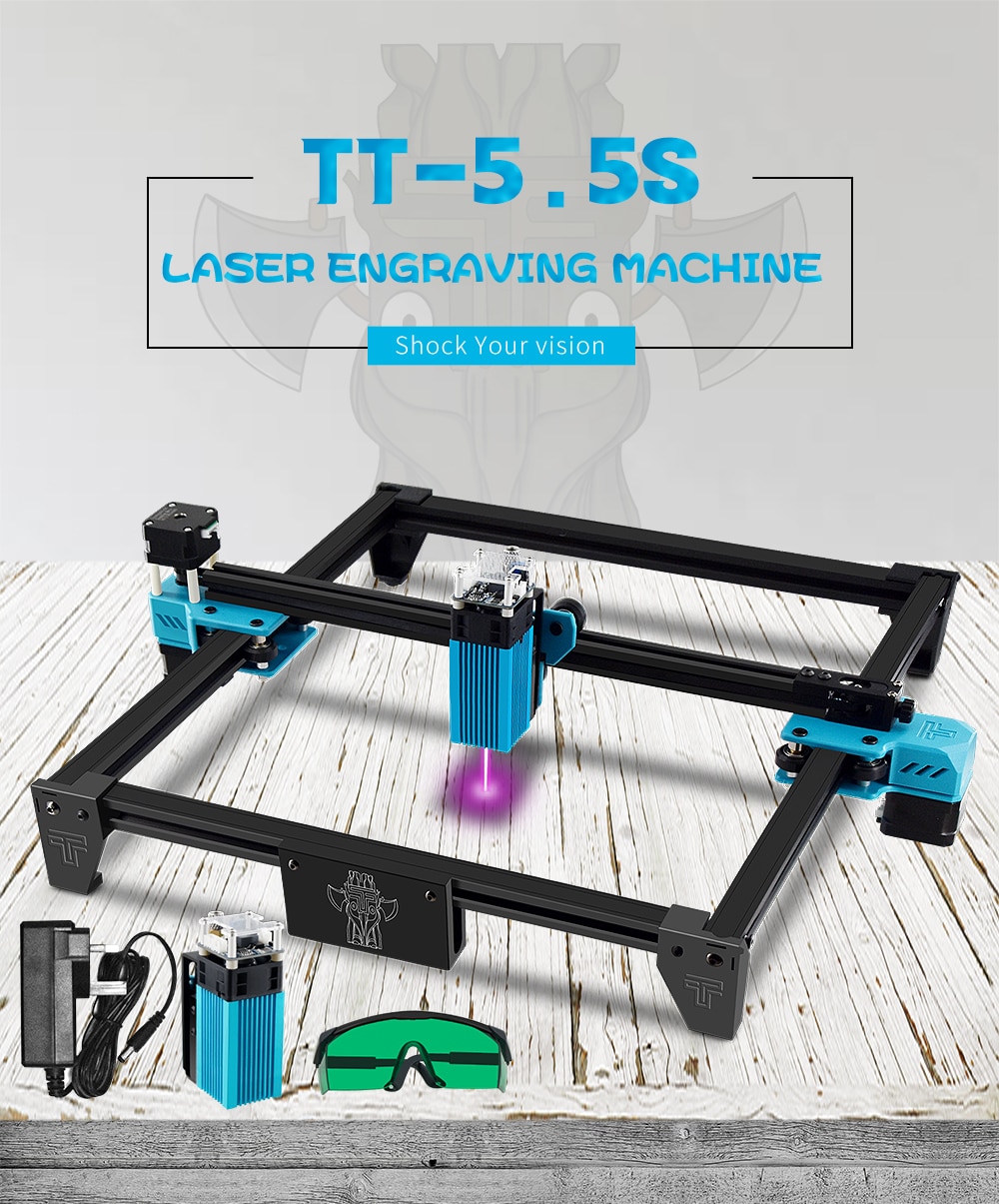

With a 300*300mm large worktable and a 40W fixed focus laser module, this professional desktop laser engraver is easy to assemble and capable of delivering 5.5W 450nm laser for high-accuracy and high-efficiency engraving and cutting of various materials such as stainless steel, plastic, wood, paper and so on, which will never disappoint you.
Features:

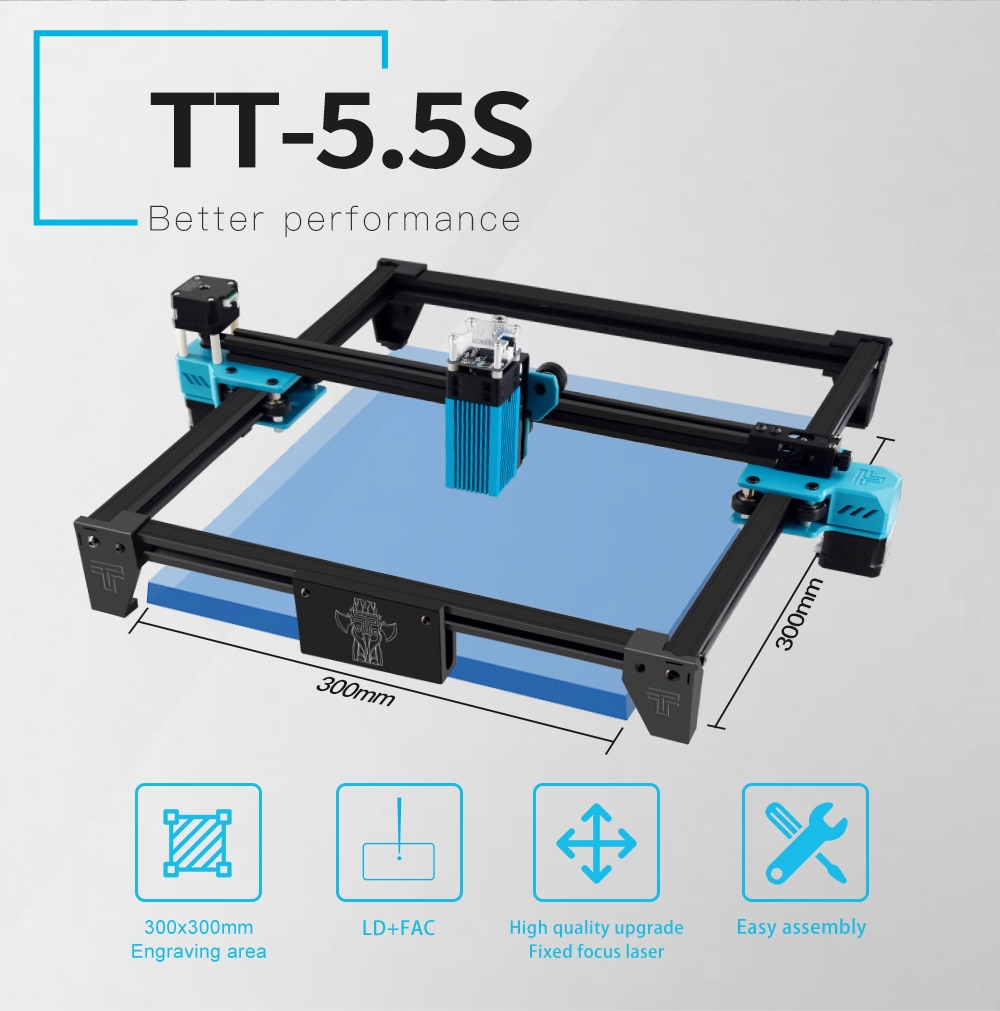

[300*300mm Engraving Range] Large carving area, no limit of carving height, so you can carve as you like.

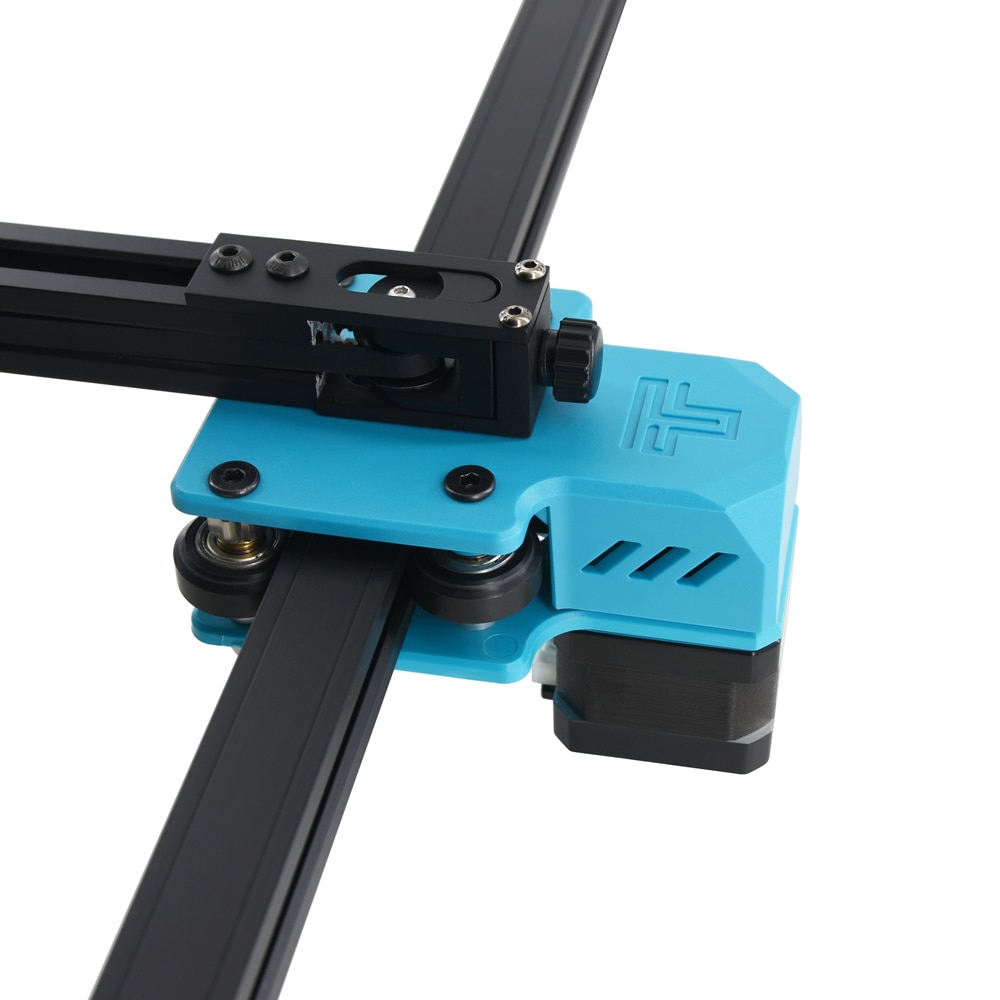

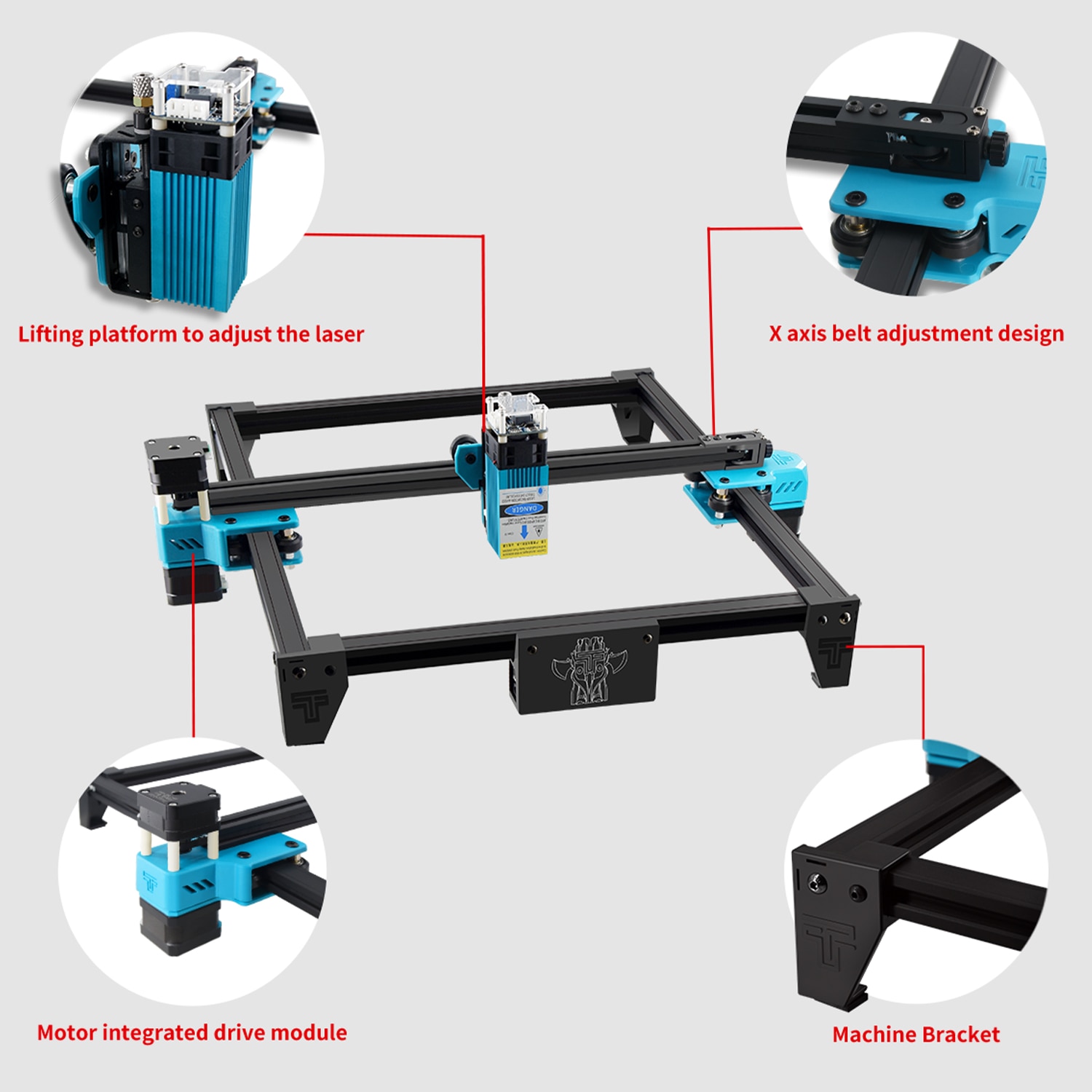

[Lifting Platform & X-axis Belt Adjustment Design] The upgraded lifting device and X-axis belt design are convenient for moving up and down (0~40mm) and better control of carving accuracy.
[Bracket Support] Anti-slip foot pad design, more stable body, and free your hands at the same time.

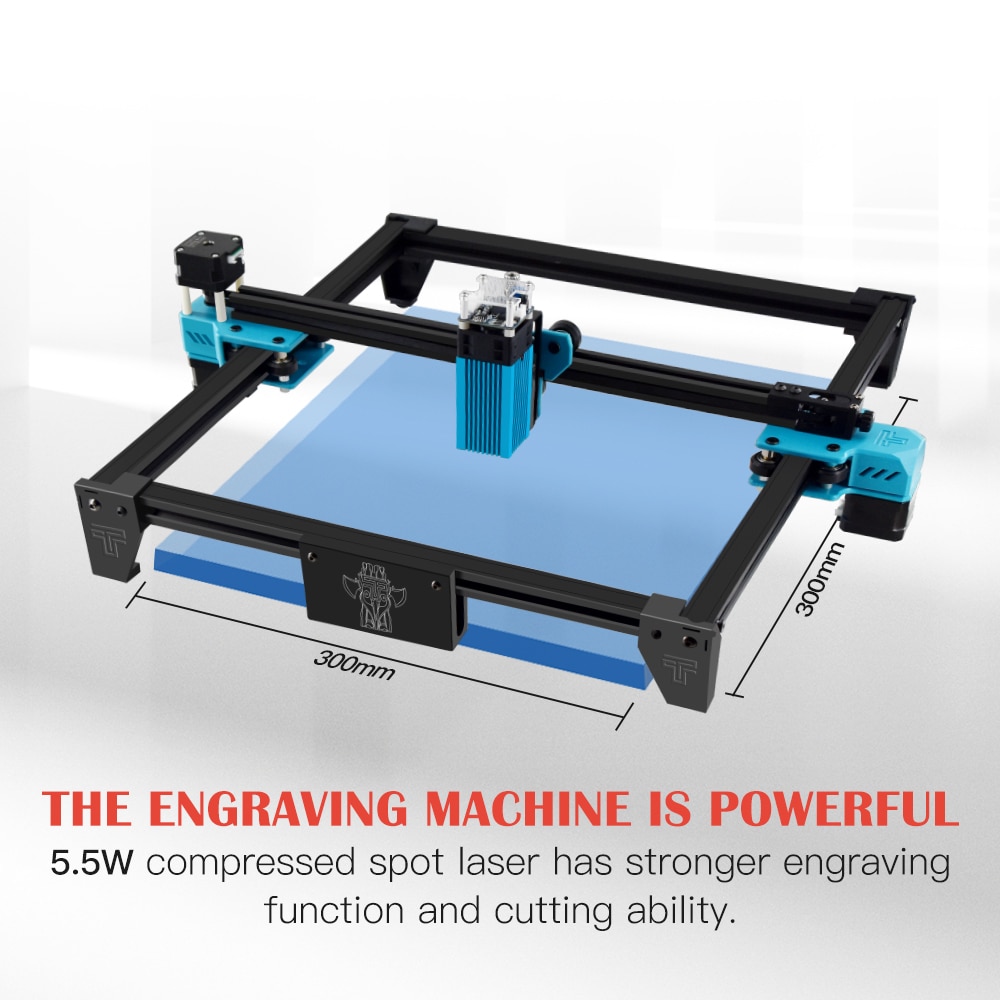

[5.5W Laser Module] 5.5W laser module with heat sink, high-efficiency laser engraving.
[Motor Integrated Drive Module] Modular design, more stable performance, and the three stepper motor drivers can provide faster moving speed, completing high efficiency engraving.

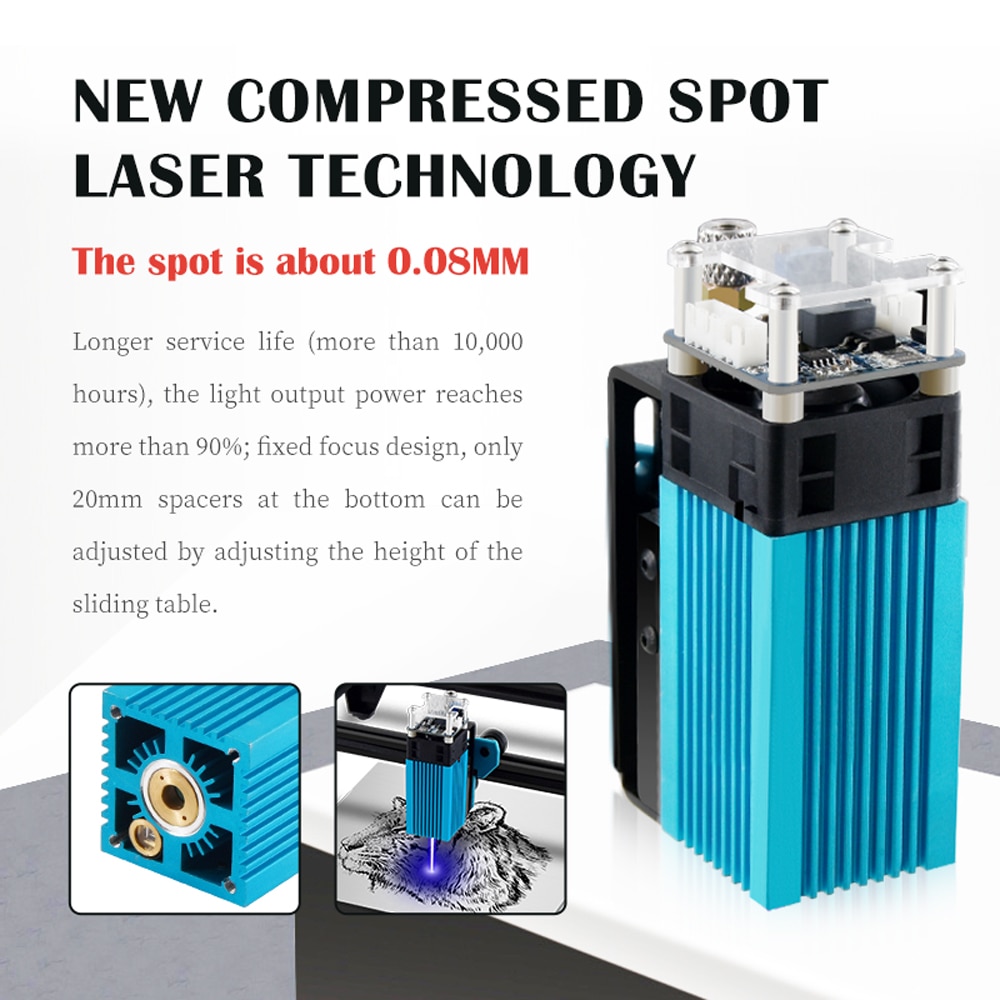

[Fixed Focus Laser] Adopting spot compression and aggregation technology, which makes the energy of light source more concentrated, high accuracy & high efficiency.
[Engraving Mode] Photo, text, scanning, outline, pixel laser engraving.
[Professional Software Control] Benbox, GrblController, LiteFire, Laser GRBL, etc.

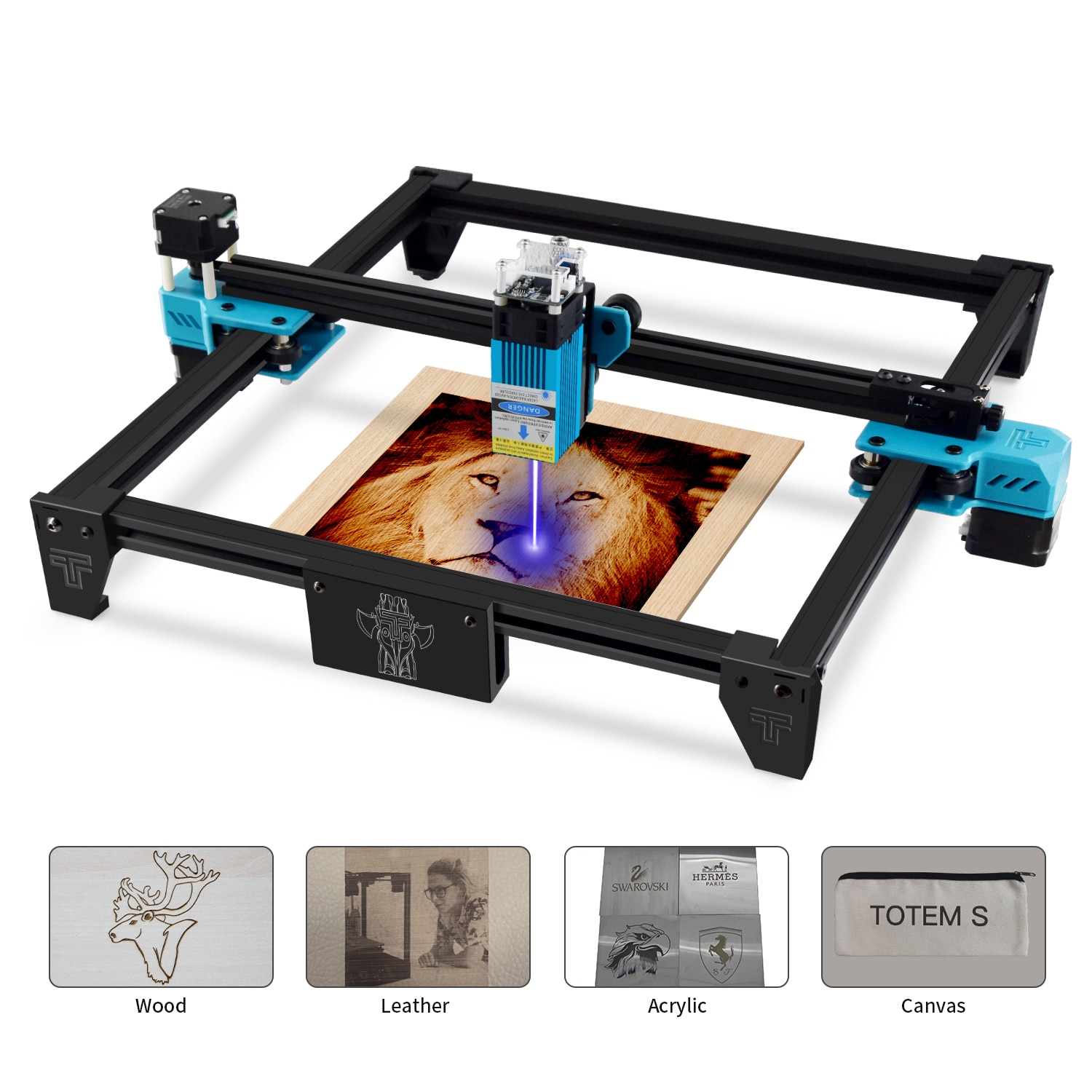

[Support Engraving Multiple Materials] Stainless steel, aluminum material, plastic, ceramics, wood, bamboo, paper, leather, rubber, sponge paper, etc. (NOT support engraving metal, stone, glass, reflective or transparent materials.)
Specifications:
Material: Aluminium alloy
Color: Blue
Plug: EU / US (Optional)
Communication Port: Micro USB
Power Input: AC 100~240V
Input Power:35~40W
Laser Power: 5000~5500mw
Laser Wavelength: 445±5nm
Engraving Area: 30*30cm/11.81*11.81in
Engraving Accuracy: 0.01mm
System Support: Win XP/7/8/10
Control Board: LKS main board
Item Size: Approx. 56.8*48.5*5.6cm / 22.36*19.09*2.2in
Package Size: Approx. 52.7*23.5*18.8cm / 20.75*9.25*7.4in
Package Weight: Approx. 4050g / 142.86oz
Note:
1. Please read the Users Manual before use.
2. The laser engraving machine cannot directly act on any specular object. This can cause injury to the operator or burn the laser.
3. The product has a high engraving speed and is not recommended for industrial cutting.
4. Please wear laser goggles during usage and avoid touching the laser directly with your eyes and skin! Also do not operate the laser head directly with your hands. To ensure personal safety, fireproof and away from the children’s environment.
5. Turn off the power when not use.
The shelf life is 12 months from the date of purchase
1. Missing/damaged/defective parts
a. Within 7 days after the delivery date, we will replace any parts for free, including shipping
b. After 7 days from the delivery date, we will replace any parts free of charge. But customers need to pay for shipping
2. Customer damaged parts: The customer should pay for the cost of the parts and transportation costs
3. Lost, missing, damaged and defective parts by the courier company
1.Claims for lost or damaged goods must be reported to the carrier within the carrier’s claim window,
and the customer needs to notify us within 7 days after the delivery date
2. For any parts lost or damaged during transportation, the customer should take photos or videos and send the information to us
3. Once the carrier’s dispute is resolved, please provide us with all communications with the carrier.
The customer is responsible for keeping us informed of all communications with the carrier in time
4. For missing parts, customers should contact customer service.
5. For damaged parts, customers should contact customer service and send photos or videos to us
