Description
- Brand Name: ZBAITU
- Certification: CE
- Certification: FCC
- Certification: RoHS
- Origin: CN(Origin)
- Model Number: LASER 80W
- Output Optical power: 10W
- Wavelength: 450nm
- Size: 4*4*15cm
- Material: Aluminum alloy
- Spot size: 0.08*0.08mm
- Focal length: 45mm
- Service life: 10000hours

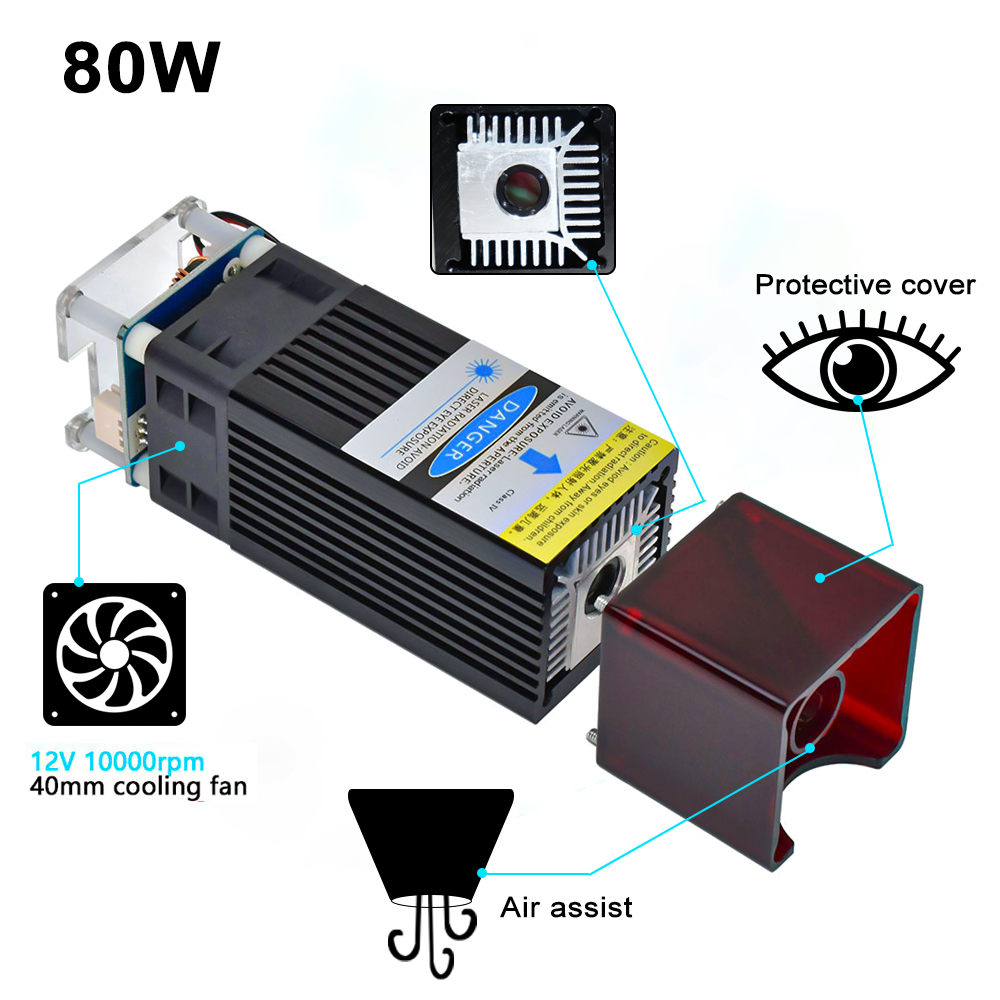

Professional laser module, suitable for cutting and engraving DIY, can be installed on the engraving machine. More precision, more power, faster efficiency

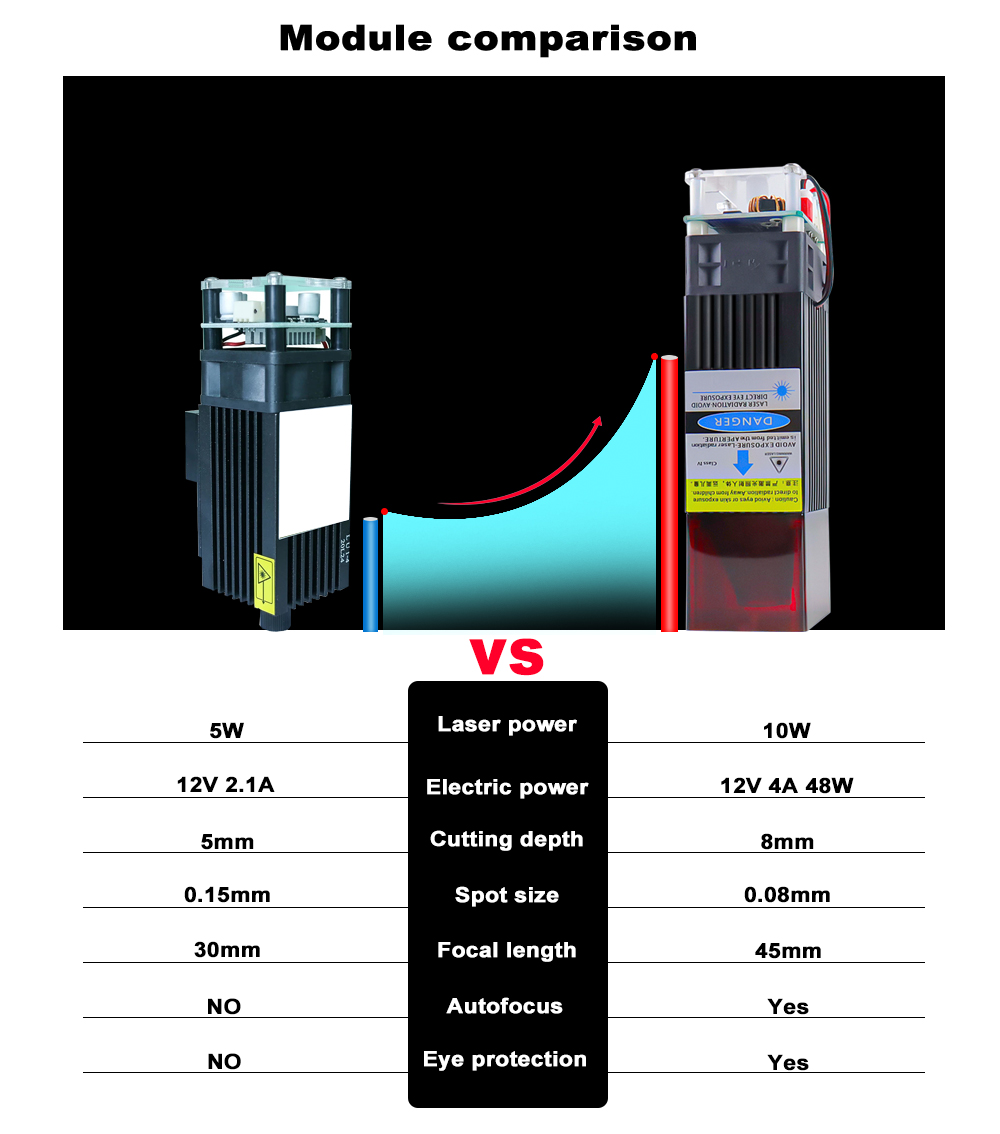

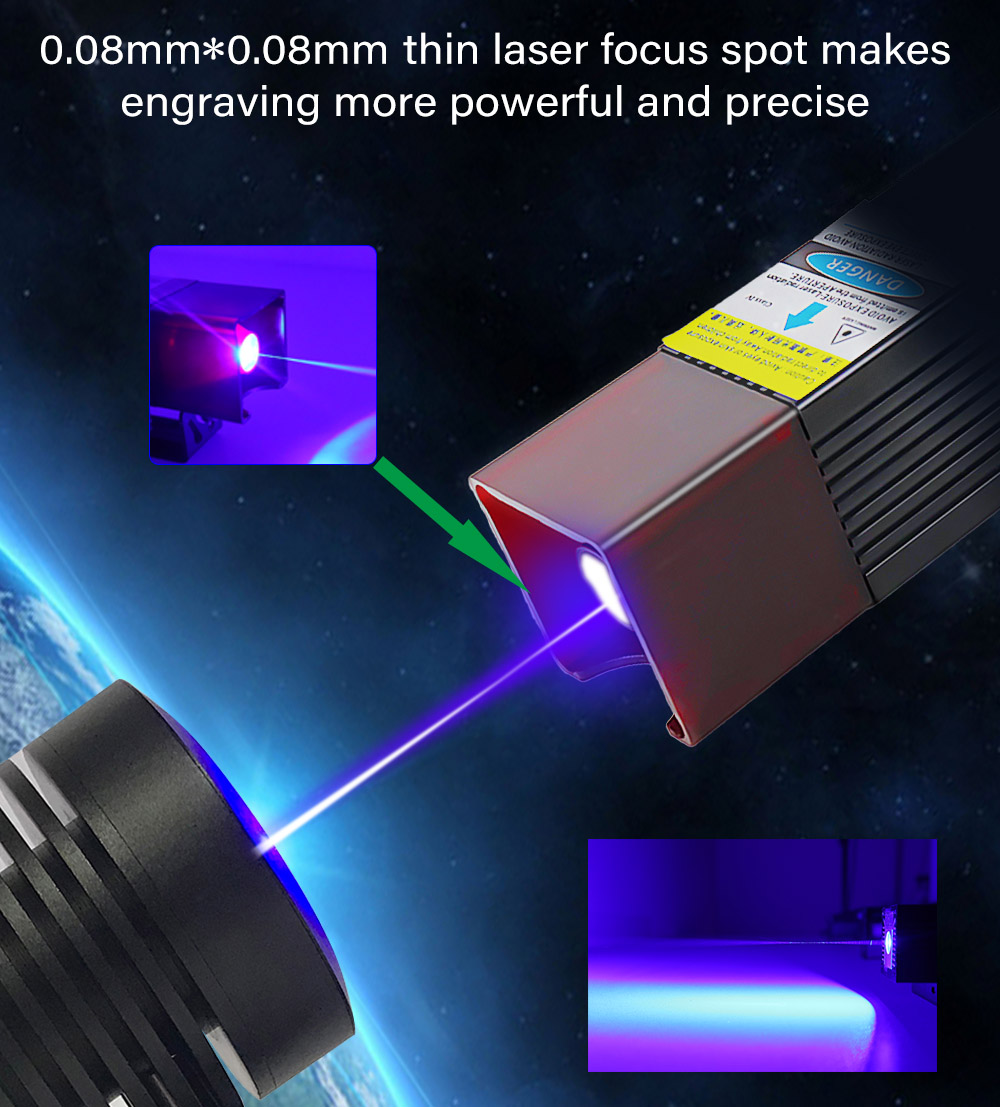

With the FAC technology the spot size is 0.08mm, which is high efficiency & precision than normal module

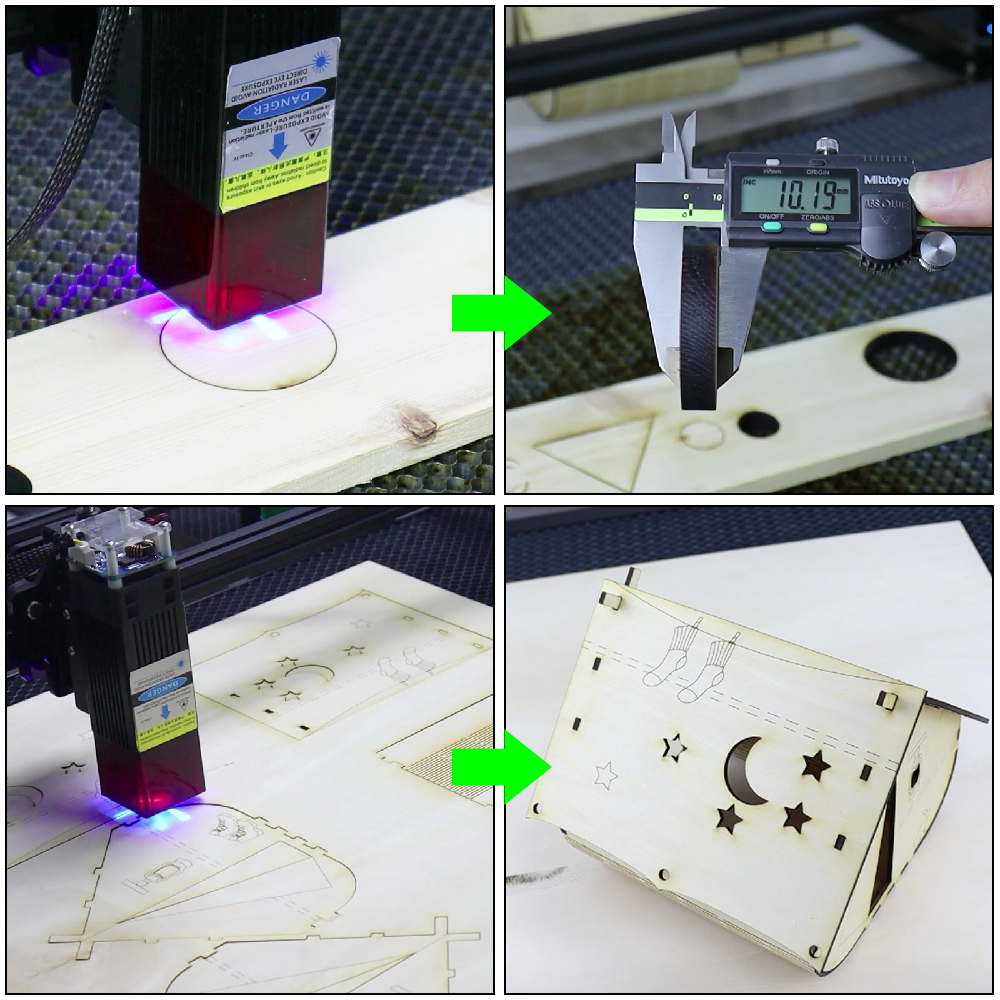

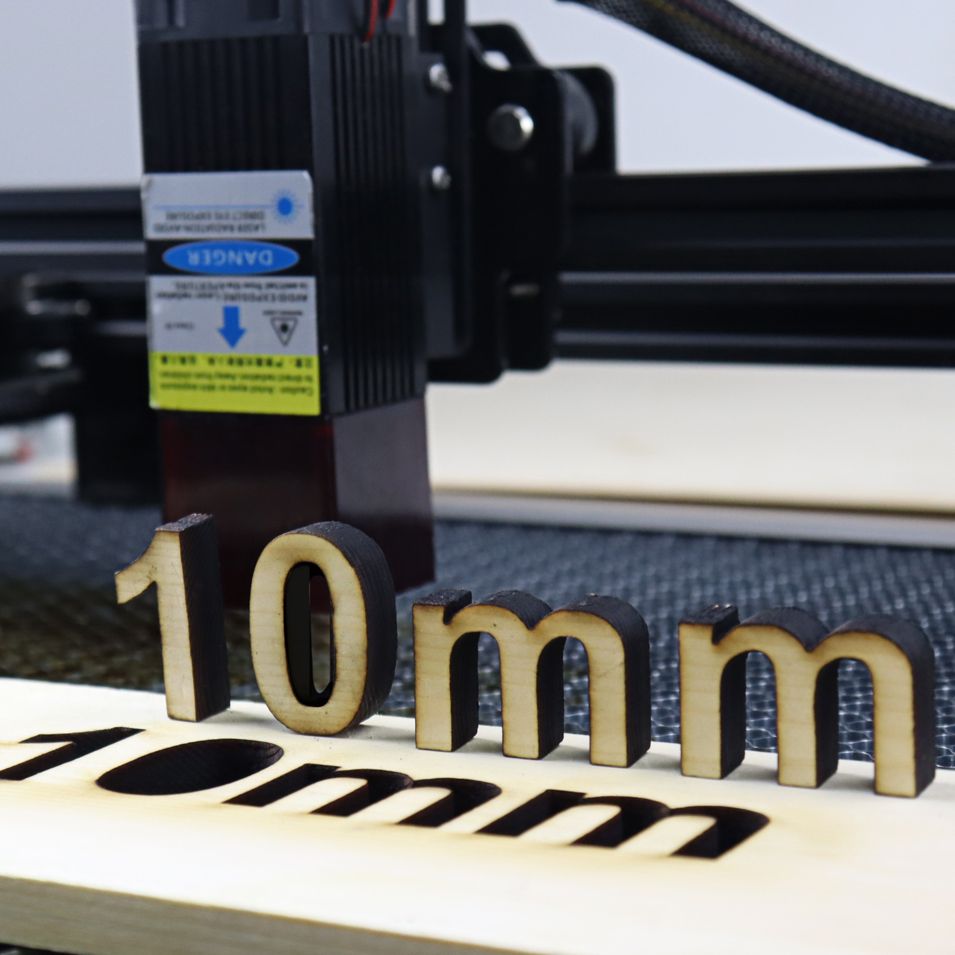

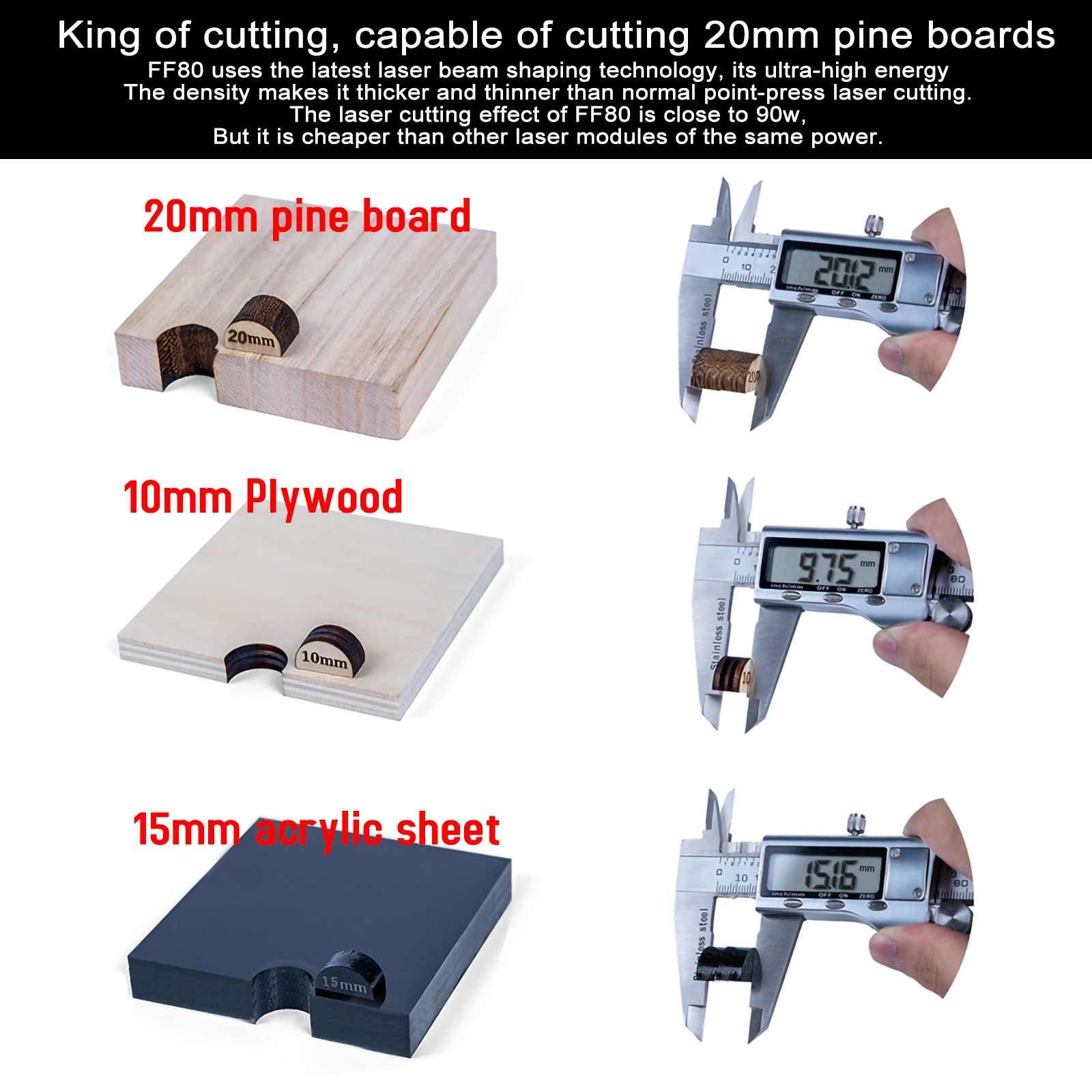

●Cutting Thought 8mm Plywood By One Pass!!
Welcome To ZBAITU Store, Please Note:
a. Freeshipping is not means free duty from china. As we all known, import high value goods would be charged import tax in each country; AND NOT included the remote area charge too
b. Usually, we shipping out your order within 48 hours by AliExpress Standard Shipping
c. Seller’s shipping methods are shipping by express company, such as Stander Shipment/DHL/FedEx/ UPS/ TNT; Please contact us!
Laser Introduction:
●ZBAITU AF30 blue light laser module, standard laser head, designed for engraving machine, CNC machine, support cutting and engraving
●ZBAITU AF40 blue light laser module, with the second-generation FAC compression spot technology, specially designed for engraving machines and CNC machines, and supports faster cutting and engraving
ZBAITU FF80 Laser Parameters |
||||
Parameter |
Unit |
Minimum |
Average |
Maximum |
Wavelength |
nm |
450 |
455 |
460 |

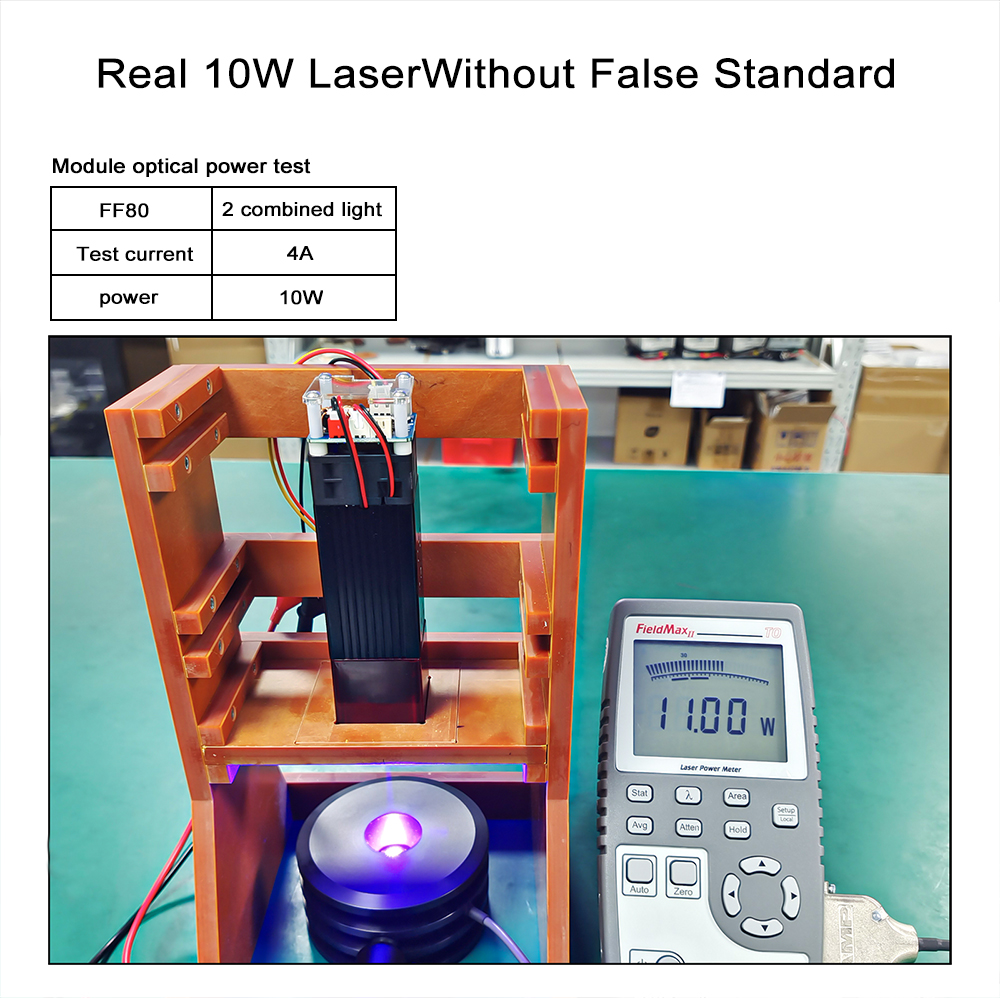

Output optical power |
W |
8 |
9 |
10 |
Focal length |
mm |
– |
45 |
– |
Focal spot size |
μm |
80 |
90 |
100 |
Operating temperature |
℃ |
0 |
– |
60 |
Storage temperature |
℃ |
-45 |
– |
85 |
Input voltage (DC) |
V |
9 |
12 |
15 |
Input current (12V CW) |
A |
– |
3 |
3.5 |
Adjustment method |
5V PWM |
|||
Warranty period |
1 year |
FF80 |
|||
Items |
Parameter |
Items |
Parameter |

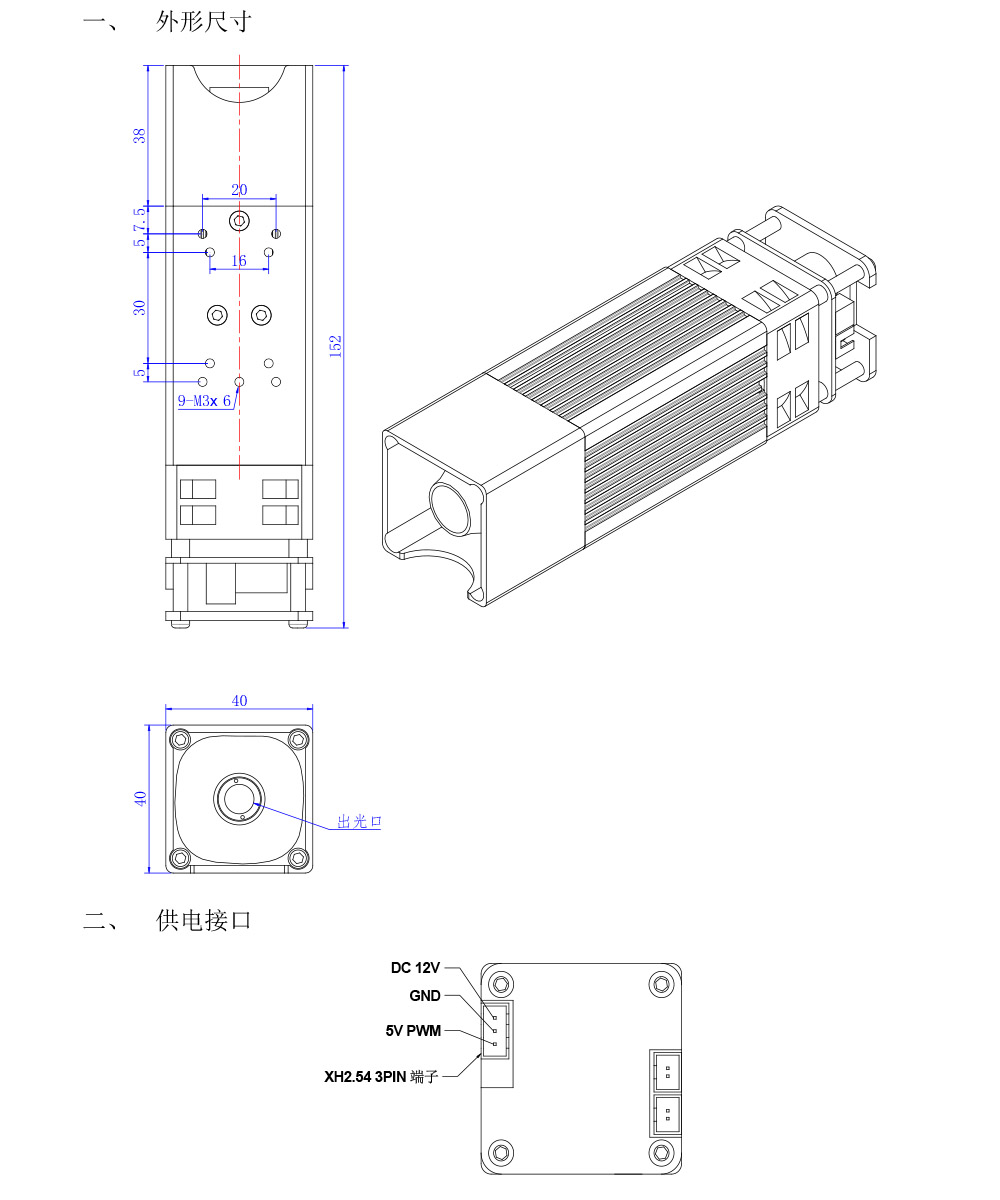

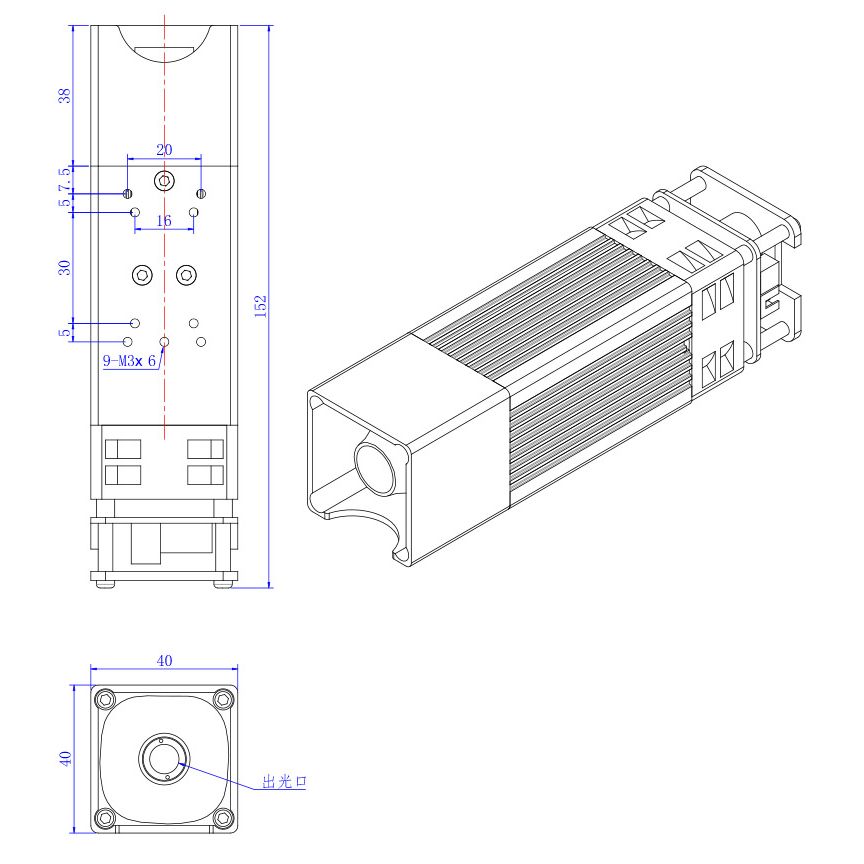

Module size |
40*40*152mm |
Optical Lens |
φ6/glass |
Circuit Board Size |
40*40mm |
Fan |
9000rpm |
Circuit Board |
5V PWM |
Product Material |
Aluminum 6061 anode |
input port |
XH2.54-3pin socket |
Product Net Weight |
0.3kg |
Package size |
18*7*7mm |
Package weight |
0.35kg |
