Description
- Brand Name: MLHJ
- Origin: CN(Origin)
- DIY Supplies: ELECTRICAL
- Certification: CE
- Warranty: 1years
- Customized support: OEM, ODM
- Place of Origin: Anhui, China
- Brand Name: JUJIE
- Model Number: GTLWGY

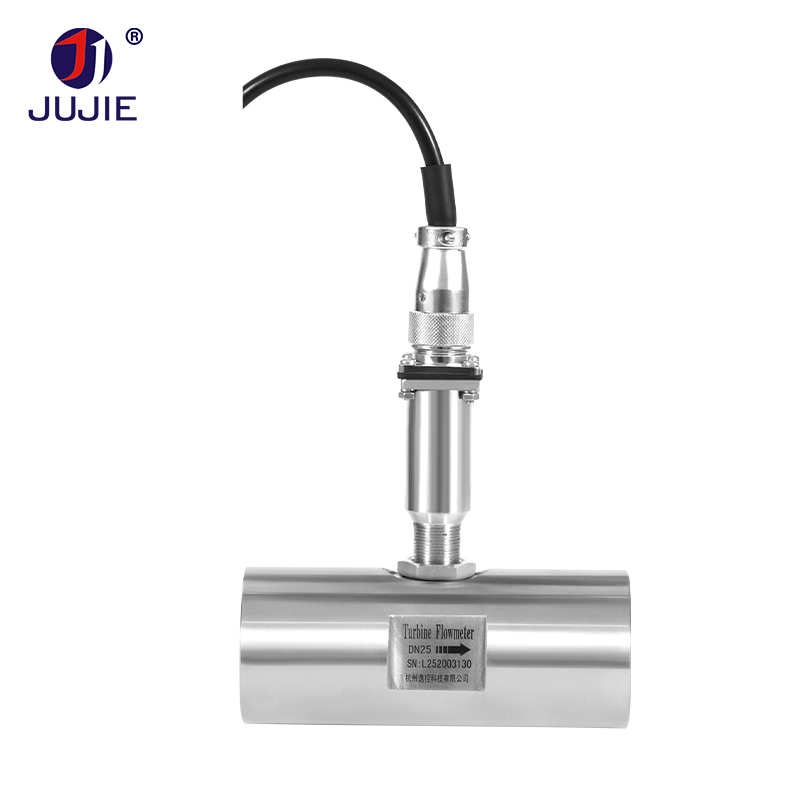

- Type: Variable Area Water Flowmeters

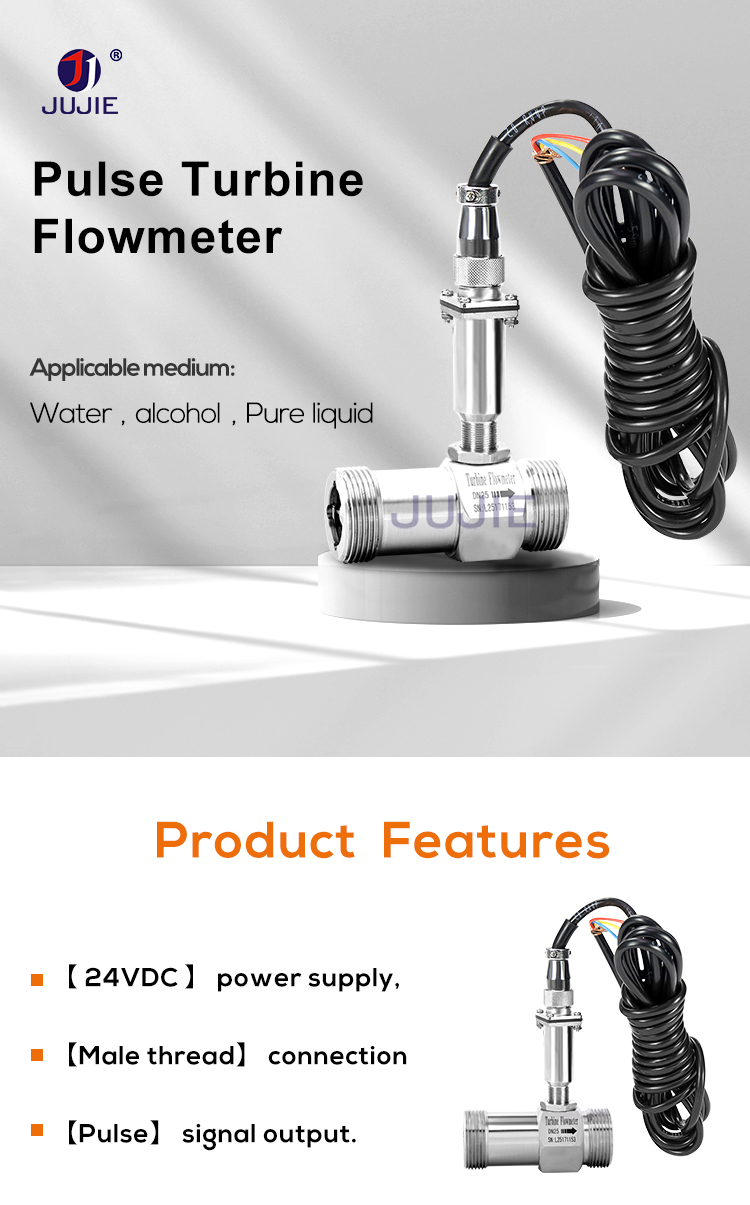

- Output: Pulse
- material: SS304
- Power supply: 24VDC

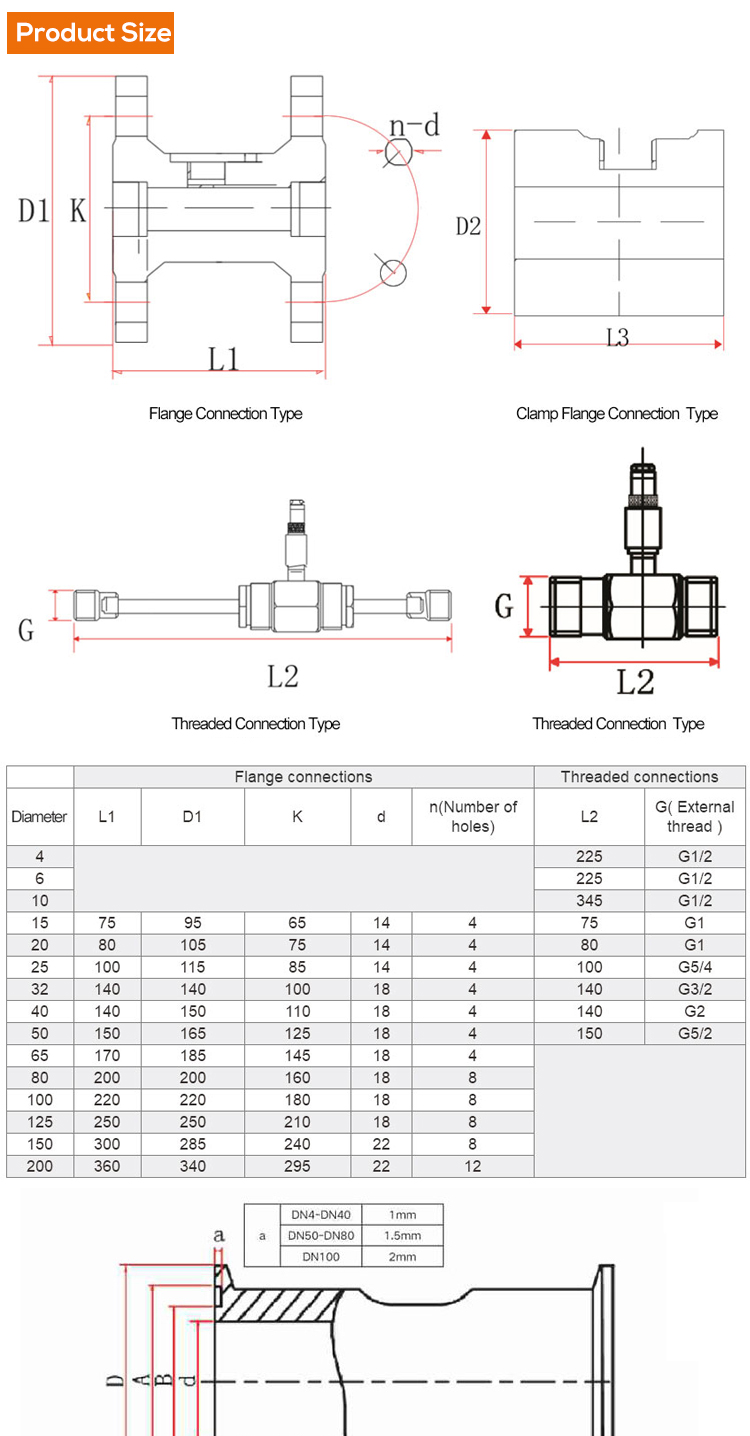

- Connection: Flange Clamp Thread
- Accuracy: 0.5%
- Output signal: Pulse
- Pressure: 6.3Mpa
#detail_decorate_root .magic-0{border-bottom-style:solid;border-bottom-color:#53647a;font-family:Roboto;font-size:24px;color:#53647a;font-style:normal;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-1{width:750px}#detail_decorate_root .magic-2{overflow:hidden;width:750px;height:1205px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-3{margin-top:0;margin-left:0;width:750px;height:1205px}#detail_decorate_root .magic-4{width:750px;border-collapse:collapse}#detail_decorate_root .magic-5{min-height:18px;padding:5px 10px;width:726px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-6{display:none}#detail_decorate_root .magic-7{min-height:18px;padding:5px 10px;width:114px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-8{min-height:18px;padding:5px 10px;width:147px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-9{min-height:18px;padding:5px 10px;width:226px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-10{min-height:18px;padding:5px 10px;width:179px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-11{min-height:18px;padding:5px 10px;width:527px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-12{min-height:18px;padding:5px 10px;width:146px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-13{min-height:18px;padding:5px 10px;width:178px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-14{text-align:left}#detail_decorate_root .magic-15{margin-bottom:10px;line-height:0}#detail_decorate_root .magic-16{margin-bottom:0}#detail_decorate_root .magic-17{position:relative;width:100%}#detail_decorate_root .magic-18{overflow:hidden;width:750px;height:1431px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-19{margin-top:0;margin-left:0;width:750px;height:1431px}#detail_decorate_root .magic-20{overflow:hidden;width:750px;height:1410px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-21{margin-top:0;margin-left:0;width:750px;height:1410px}#detail_decorate_root .magic-22{overflow:hidden;width:750px;height:954px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-23{margin-top:0;margin-left:0;width:750px;height:954px}#detail_decorate_root .magic-24{vertical-align:top}#detail_decorate_root .magic-25{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-26{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-27{padding:0;margin:0;white-space:pre-wrap;font-size:14px}
Product Description
Specification
|
Product Parameters
|
||||||
|
Precision
|
DN4-DN10: ±1.0%R ; DN15-DN100: ±0.5%R ; DN125-DN200: ±1.0%R
|
|||||
|
Ratio of Measuring Range
|
1：10
|
|||||
|
Instrument Material
|

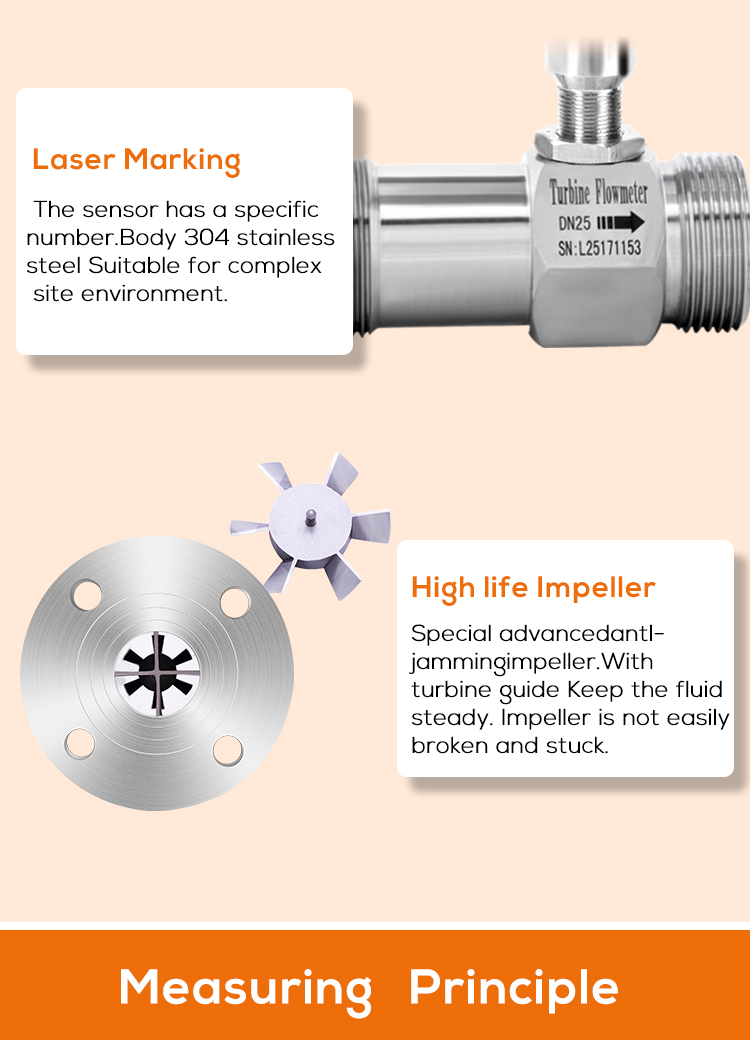

Sensor:SS304 (SS316) ; Impeller: 2Cr13 ; Guide: SS304 ; Bearing: YS8 Alloy (special
material can be customized)
|
|||||
|
Conditions of use
|
Environment temperature: -30℃—60℃
|
|||||
|
Medium temperature: -100℃—100℃/120℃/150℃
|
||||||
|
Pressure Level
|
Threaded connections:2.5-6.3MPa(High pressure can be customized)
|
|||||
|
Flange connections :1.6-4.0MPa(High pressure can be customized)
|
||||||
|

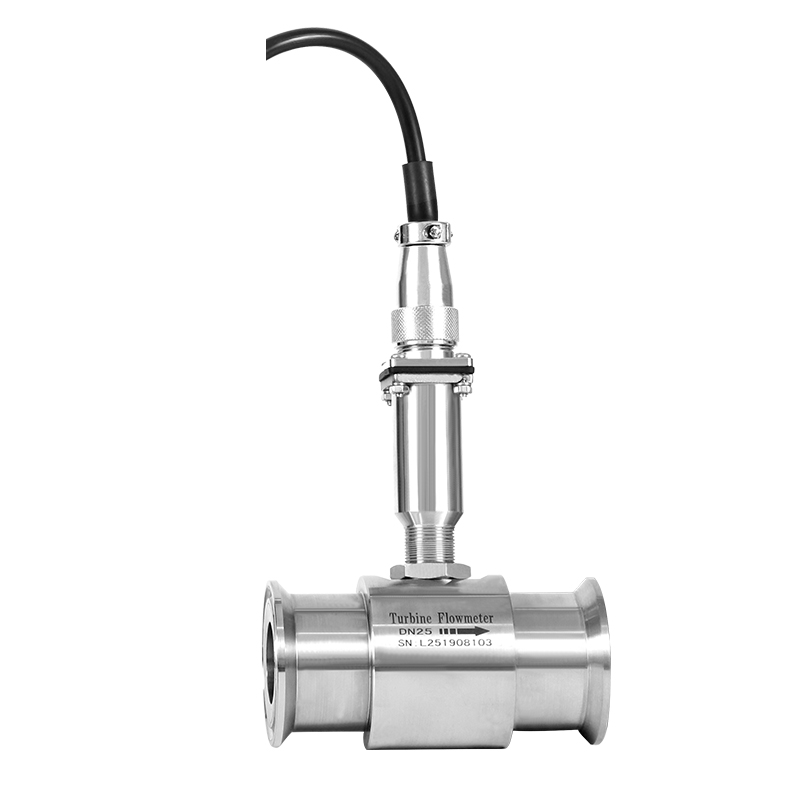

Clamp connections :1.0MPa
|
||||||
|
Power Suppiy
|
3.6V lithium battery (can be used continuonsly for 2 years) /12-24VDC
|
|||||
|
Power Consumption
|
≤1W
|
|||||
|
Signal Output
|
Pulse / 4-20mA / RS485(Modbus-RTU)
|
|||||
|
Signal Interface
|
Internal thread M20*1.5(NPT1/2, etc needs to be customized)
|
|||||
|
Protection Level
|
IP65 (IP68 can be customized)
|
|||||
|
Explosion-proof Level
|
ExdllCT6 Gb
|
|||||
|
Display
|
LCD instantaneous flow , accumulative flow unit( m³/h；L/min；L/h；Kg/h；Kg/min
；GPM) settable
|
|||||
FAQ
1.Are you a manufacturer or a trading company? We are the source manufacturer of flow meters and recording instruments. 2.Can you offer OEM/ODM product? Yes, OEM and ODM are both welcome. 3.What is your minimum order quantity? There are no minimum order quantity, welcome to order according your need. 4.How long about your Warranty? One year warranty and Long-term technical support. 5.How about the quality? We have professional equipment and QC staffs to strict control the quality. 6.What is the standard of package? Export standard package(Cartons or wooden cases)
