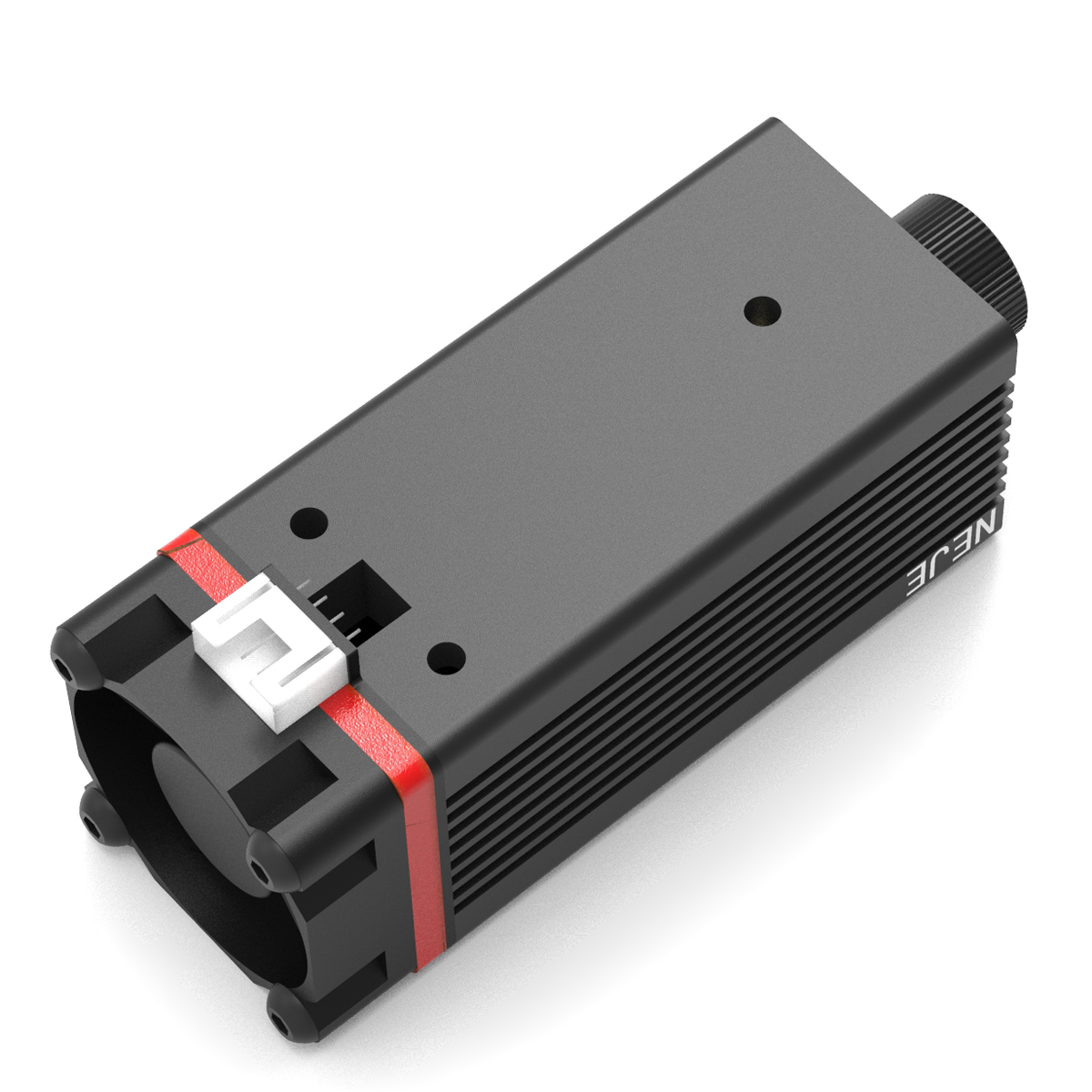

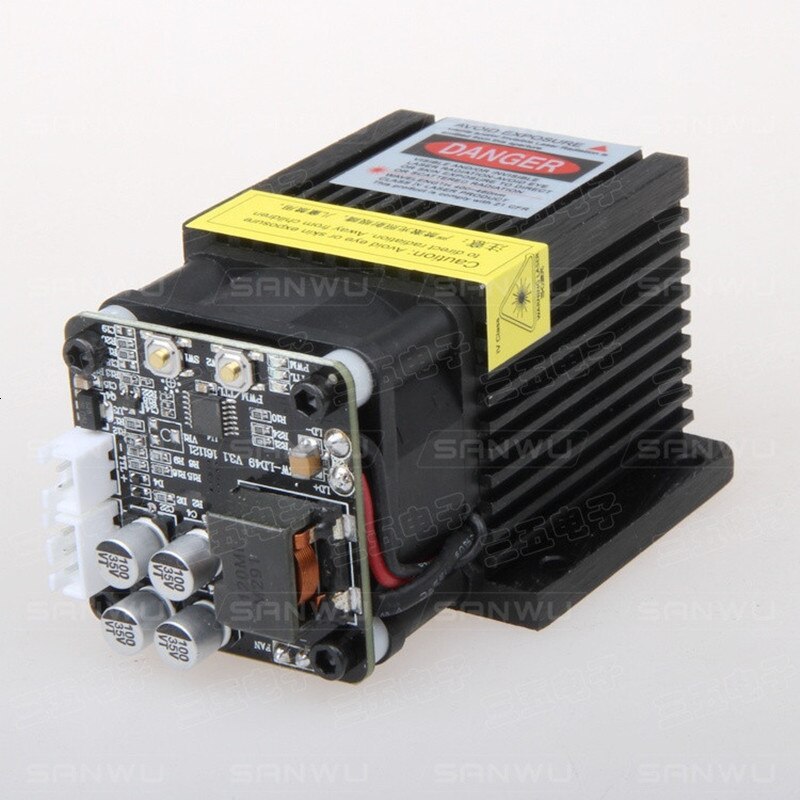

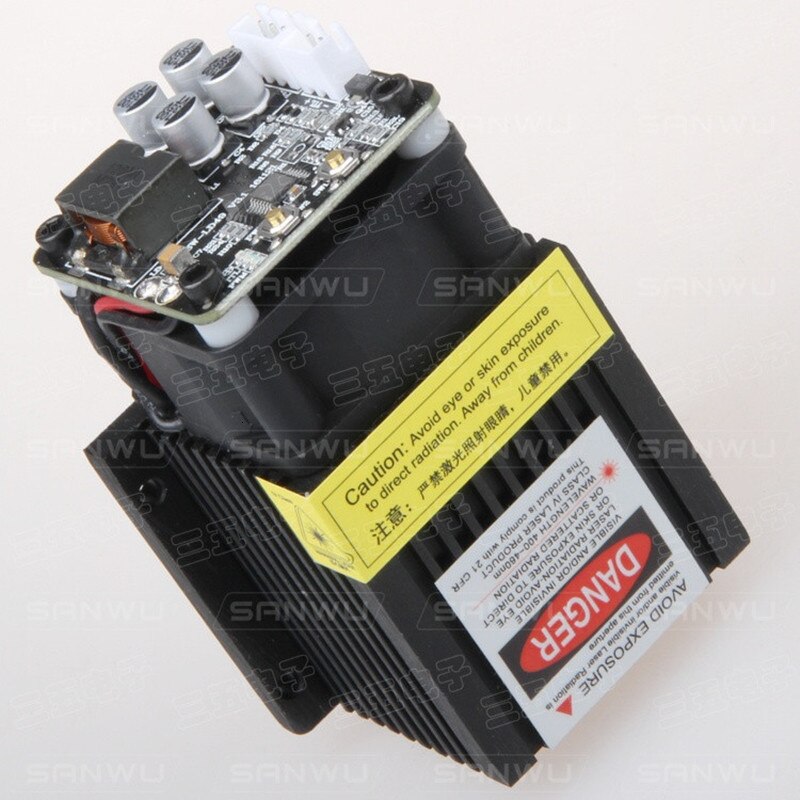

445nm Laser Engraving Module 12V Power Supply TTL PWM

Friendship Tip: This coke fixing product can be engraved on stainless steel surface and anodic non-ferrous aluminum alloy surface.

Product parameters

Laser wavelength: 445 nm (blue light)

Supply voltage: 12VDC (8-15V) constant output power does not vary with voltage.

Please contact customer service if you need to follow the changing style by changing the input voltage and power.

Power Control: PWM/TTL Real-time Control

Power supply current: > 2A

Interface mode: 3*2.54 interface (power supply + PWM), 2*2.54 interface (TTL)

Light output form: point focusing (non-focusing, distribution of focusing measuring column)

Lens Material: High Antireflective Coating on Optical Glass

Shell Material: Module Copper, Shell Aluminum Anode Black

Cooling mode: forced air cooling

Working mode: Continuous light output and long working time.

Other Functional Interfaces: TTL or PWM Interfaces can be selected through keystrokes to be effective
