Description
- Brand Name: LanYuXuan
- Certification: NONE
- Origin: CN(Origin)
- Customized support: OEM, ODM
- Place of Origin: Guangdong, China
- Brand Name: 3NH
- Model Number: TS7600
- Power: Electronic
- Certificate: ISO
- Measuring Aperture: 8mm or 4mm
- Color Space: CIE LAB, XYZ, Yxy, LUV, s-RGB, HunterLab, Munsell(C/2)
- Touch-Screen: Yes
- Product name: color spectrophotometer
- Application: Paint used spectrophotometer
- Wavelength Range: 400-700nm

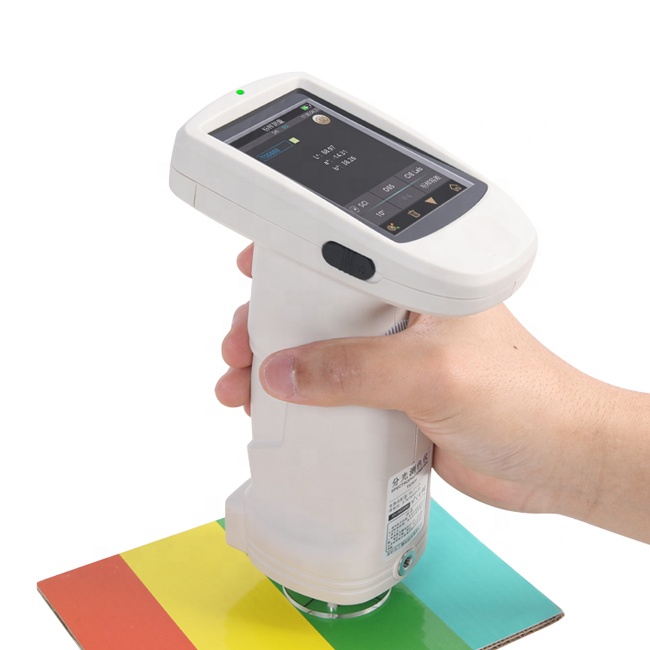

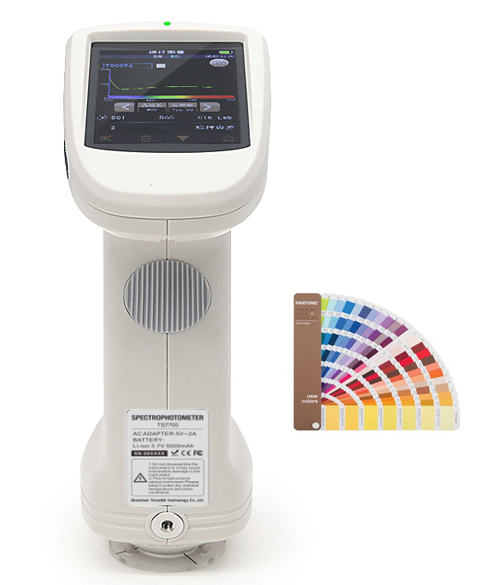

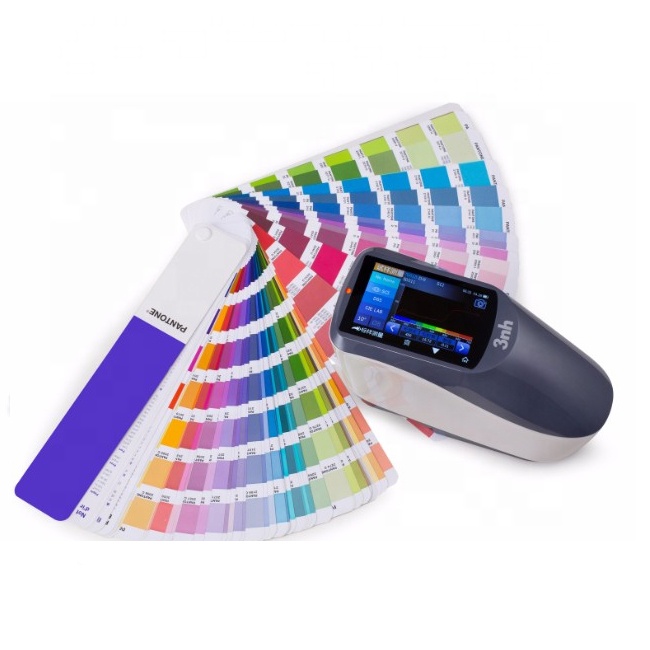

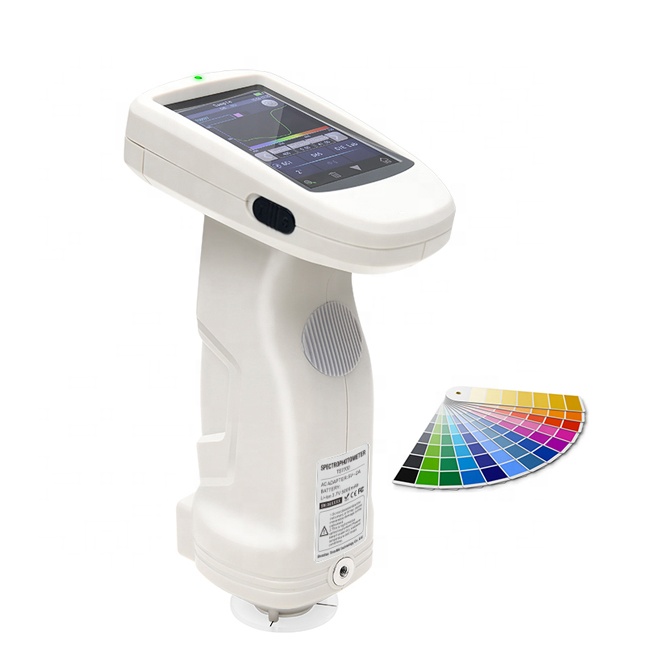

TS7600 Portable Digital Electronic Spectrophotometer
TS7600 handheld spectrophotometer is a high-end precise color measurement instrument for surface color measurement and management, which can be widely applied in all kinds of industries, such as plastics and metals, paint and coating, furniture and wood, ink, printing and packaging, pharmaceuticals, cosmetics, fabrics, textiles and garments, electronics, tiles and decoration industry.
Detailed Specification:
| Technical Parameter Items | TS7600 Handheld Color Measuring Spectrophotometer |
| Product Category | Optical Electronic Digital Color Testing Equipment |
| Product Name | Handheld Color Measurement Spectrophotometer |
| Optical Geometry |
d/8° |
| Measuring Apertures |
Choose One Apertrue from: ∅10mm/∅8mm or ∅5mm/∅4mm |
| Color Spaces | CIE LAB, XYZ, Yxy, LCh, CIE LUV, s-RGB, βxy, Muncell(C/2) |
| Color Difference Formulas | ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*00 |
| Repeatability Error |
ΔE*ab≤0.04 |
| Inter-instrument Error | ΔE*ab≤0.2 |
| Other Colorimetric Index |
WI (ASTM E313, CIE/ISO, AATCC, Hunter), YI (ASTM D1925, ASTM 313), Staining Fastness, Color Fastness, Color Strength, Opacity, 8-degree Glossiness |

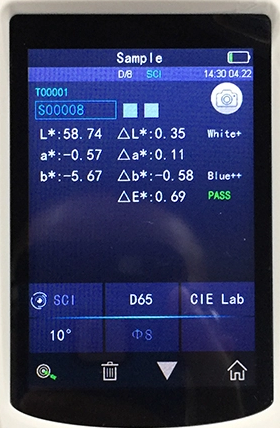

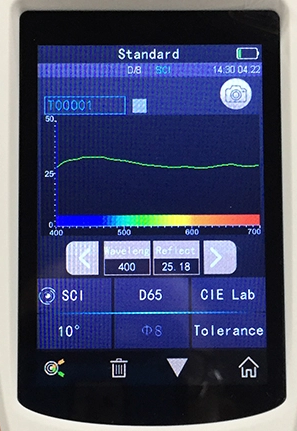

| Information Displayed | Spectrogram/Data, Chromaticity Diagram/Values, Color Difference Values/Graph, Pass/Fail Result, Color Simulation, Color Offset/Deviation Direction |
| SCI/SCE | SCI+SCE (SPIN+SPEX) |
| Viewing Angle | 2° & 10° |
| Illuminating Lamps | Combined Full Spectrum LED Lamps |
| Lamps Life-span | 5 Years, more than 3 Million times of measurements. |
| Integrating Sphere Size | ∅40mm |
| Wavelength Range | 400nm – 700nm |
| Wavelength Pitch | 10nm |
| Semiband Width | 10nm |
| Reflectance Range | 0∼200% |
| Illuminants | D65, A, C, D50, D55, D75, F1, F2(CWF), F3, F4, F5, F6, F7(DLF), F8, F9, F10(TPL5), F11(TL84), F12(TL83/U30) |
| Sensor | Silicon Photodiode Array (Dual Row 40 Groups ) |
| Spectroscope | Flat Grating |
| Measurement Time | 1.5s (About 5s for both SCI and SCE) |
| Data Storage Capacity | 1000 pcs of Standards, 20000 pcs of Samples. (Once piece of data includes both SCI and SCE) |
| Data Transmission Port | USB |

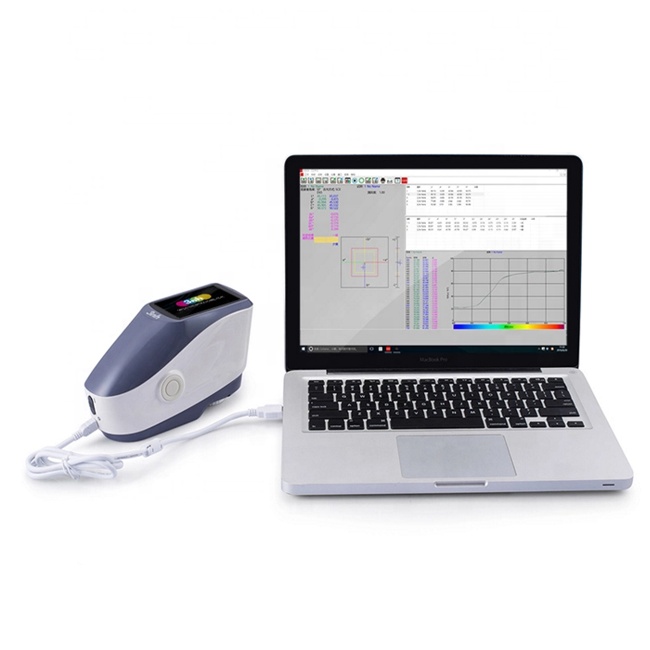

| PC Terminal Software | SQCX (for free) |
| Display Screen | 3.5-inch TFT Capacitance Screen-touch Display |
| Language Built-in | English, Chinese. (If need German, French, Spanish, Italian or Russia, please specify) |
| Built-in Battery | 6000 times measurements in 8 hours. |
| Working Environment | Temperature: 0∼40℃; Humidity: 0∼85% (No Condensation) |
| Storage Environment | Temperature: -20℃∼50℃; Humidity: 0∼85% (No Condensation) |
| Standard Accessories | White and Black Calibration Cavity, Φ4mm or Φ8mm Aperture, Power Adapter, USB Cable, PC Software SQCX, User Guide, Protective Cover, Wrist Strap. |
| Optional Accessories | Mini Thermal Printer, Powder Test Box |
| Weight | 600g |
| Dimension | 129*76*217mm |
1.After an order is placed, when will you send to us?
Generally about 10 days, If we have it on stock, we can arrange shipment within 3 days.
2.What about the warranty with after – sales services?
12 months warranty. Besides, we can help you to repair your problem controller freely.
3.What about the services and product’ quality?
Our products are widely recognized and trusted by users.All the products meet with: ISO, ASTM, AATCC, BS, EN, DIN, JIS and other requireable standards
