Transistor NPN 150V 1.5A 4MHz 1.5W TO-220 C2073 2SC2073

$4.52

SKU: 3582099018651 Category:

Description

Product Description

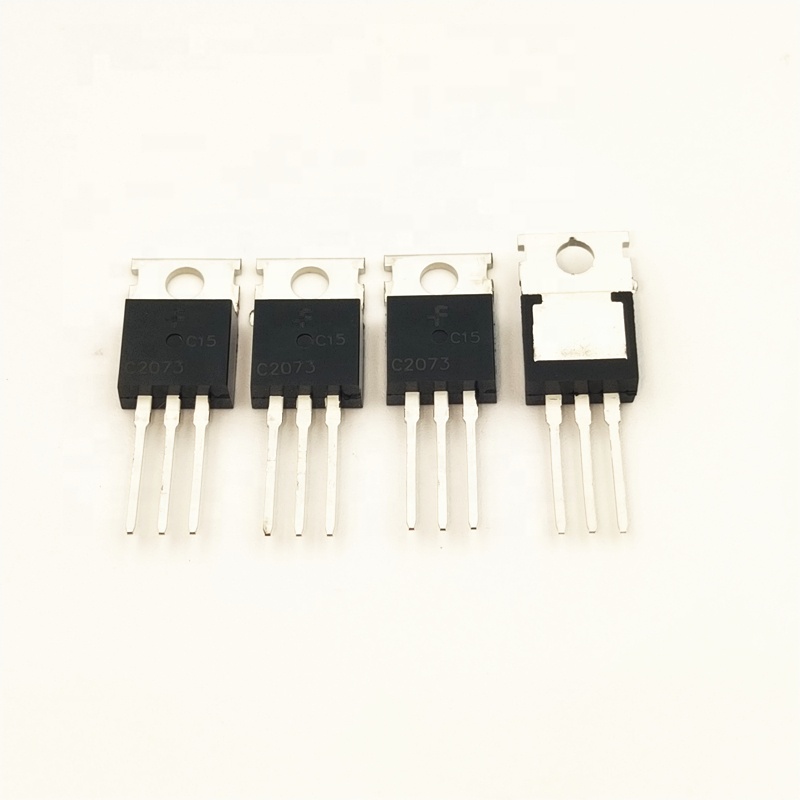

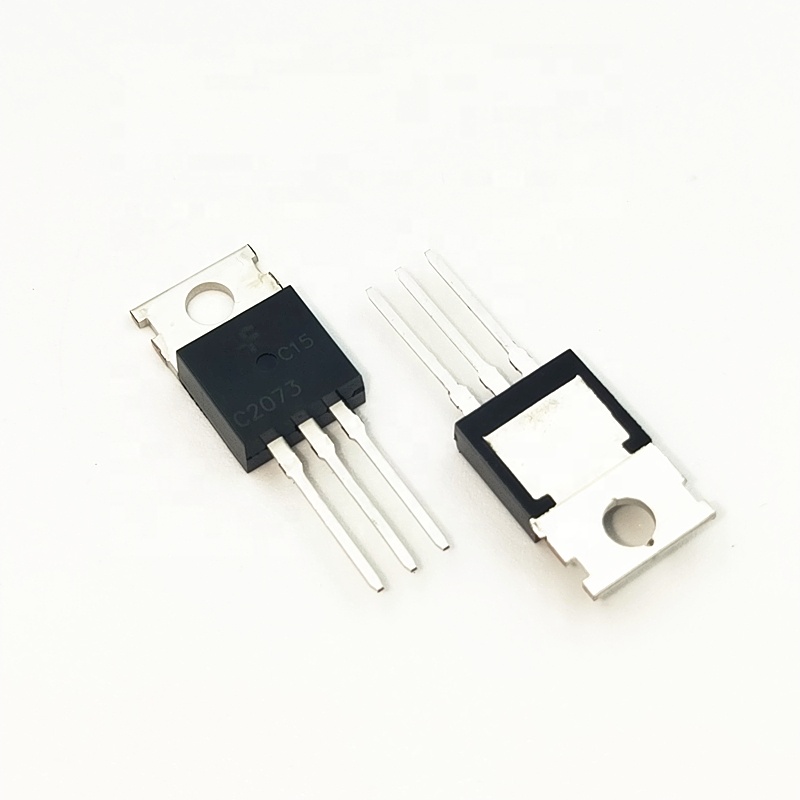

Transistor NPN 150V 1.5A 4MHz 1.5W TO-220 C2073 2SC2073



Part Status
Transistor Type NPN
Current – Collector (Ic) (Max) 1.5A
Voltage – Collector Emitter Breakdown (Max) 150V
Vce Saturation (Max) @ Ib, Ic 1.5V @ 50mA, 500mA
Current – Collector Cutoff (Max) 10µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce 40 @ 500mA, 10V
Power – Max 1.5W
Frequency – Transition 4MHz
Operating Temperature -55°C ~ 150°C (TJ)
Mounting Type Through Hole
Package / Case TO-220-3
Supplier Device Package TO-220
