Top Quality Raycus 2000W 3000W Laser Cutting Welding Continuous Fiber Laser Source

$5,008.86$13,809.96

SKU: 3578245018651 Category:

Description

Product Description

 The third-generation medium-power single-mode continuous fiber laser ranges from 50W to 1,000W, the new laser has higher electro-optical conversion efficiency (>30%), higher and more stable optical quality, stronger altitude stress-resisting capacity and it applies optimized second-generation fiber transmission system to ensure more stable and more sophisticated cutting effect in thick sheet cutting. This machine applies to many application scenarios: cutting, welding, holing, medical device processing, etc., with a narrow seam of the cut sheet and bright section. Compared with same lasers, it has obvious advantages.

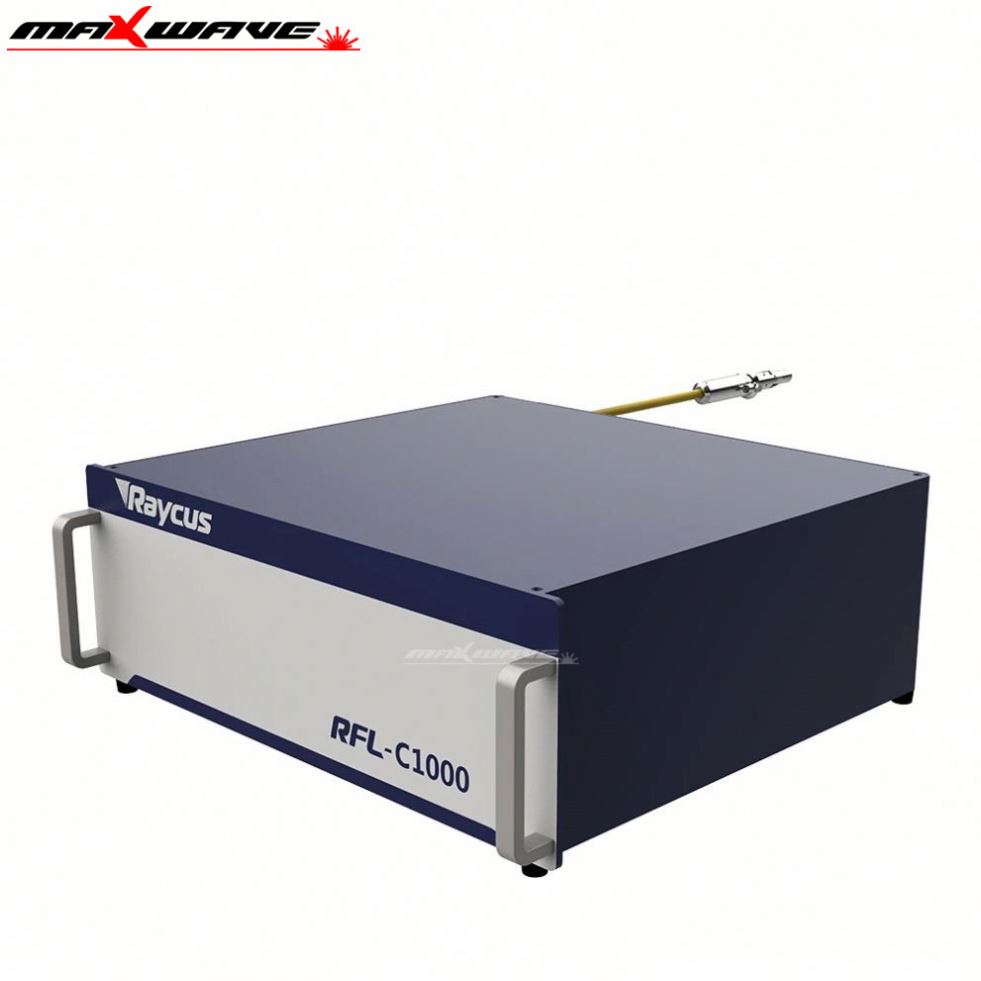

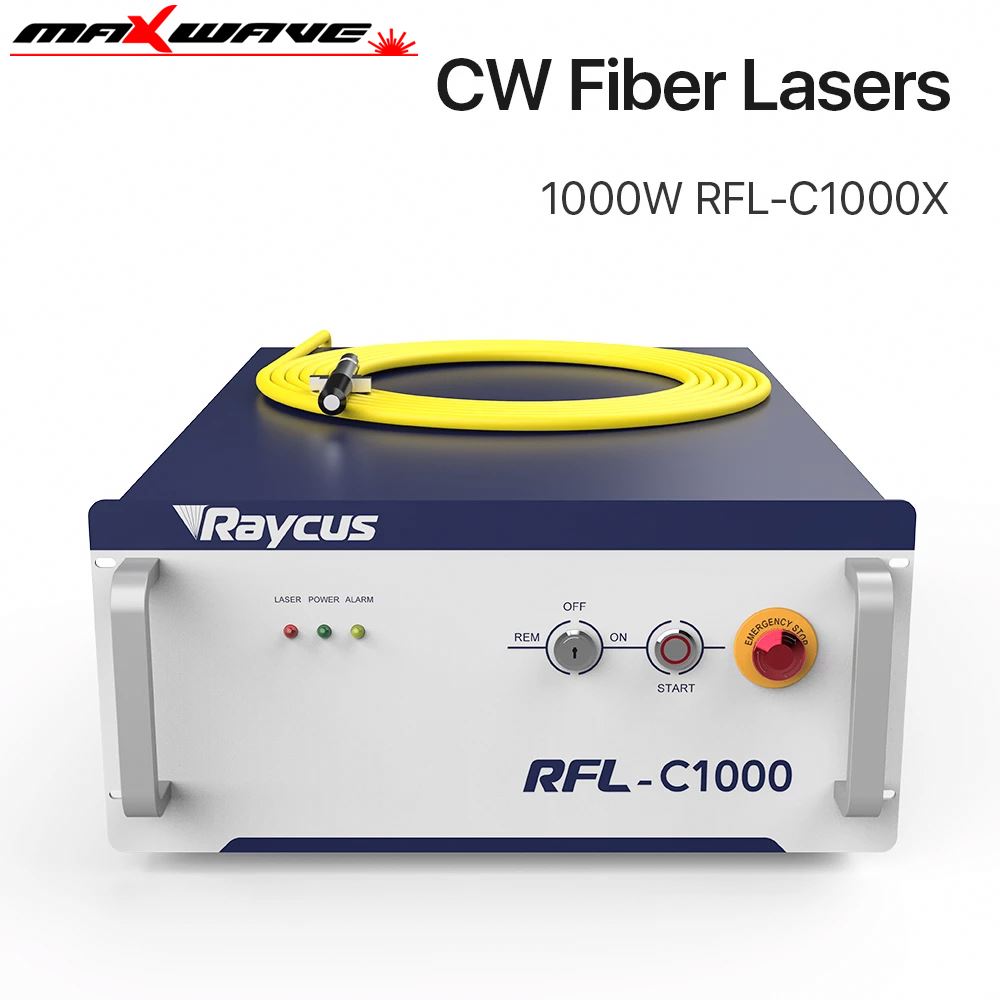

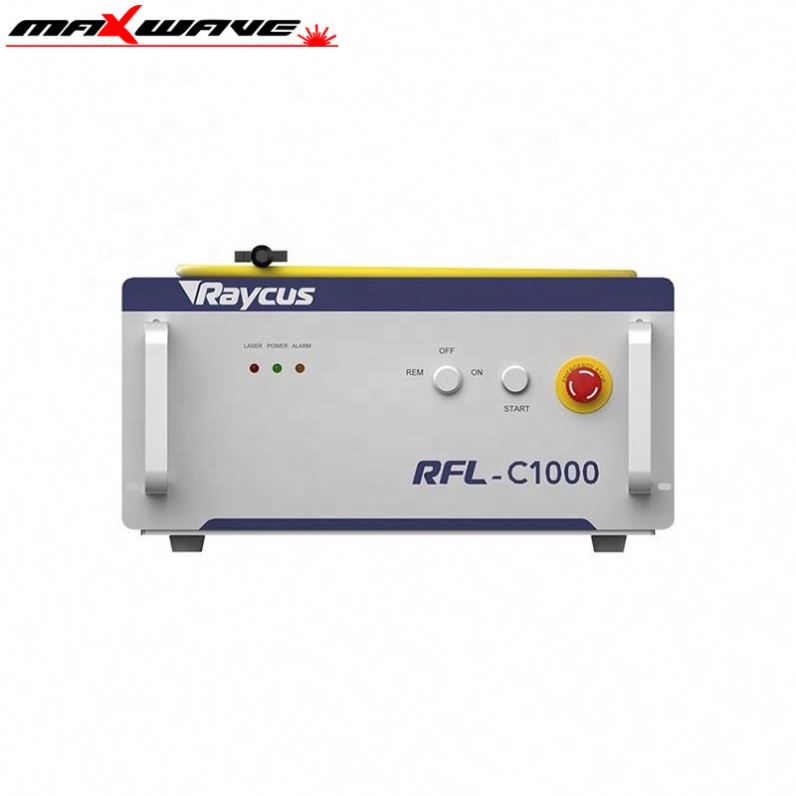

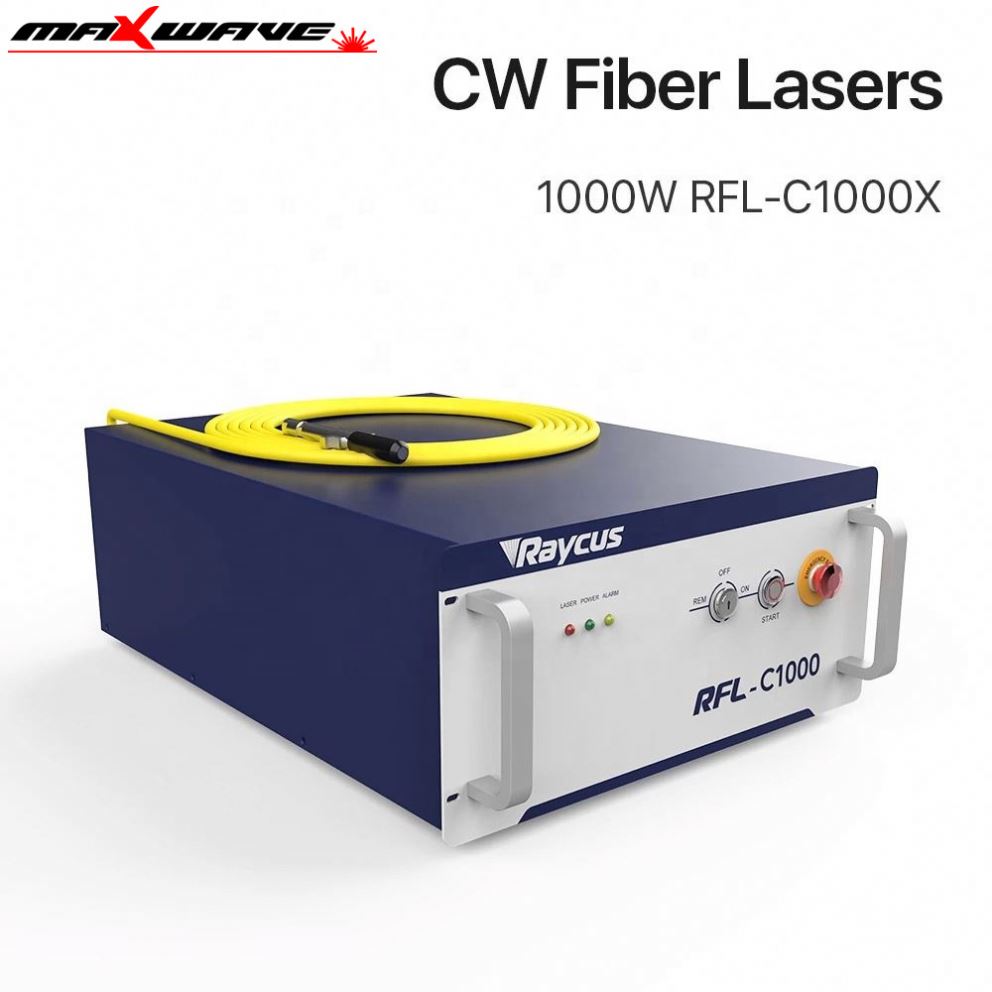

RFL-C1000
RFL-C1500x
RFL-C2000x
RFL-C3000s
Average output Power (w)
1000
1500
2000
3000
Central Wavelength (nm)
1080±5

peration Mode
cw/Modulated

sxicur Modulstior frequrncy oruy
5

output PowerStability (%)
±1.5

Red Laser
Yes

output Connector
QBH(customizable)

Beam Quality (M2)
1.3 (25um)
5-7 (5oum)

Polarization State
Random

output FiberLength (m)
20 (customizable)

Input Power (V AC)
200-240,Single Phase
380±10%,Three Phase-Four Wire Connect

Control Mode
Exterral RS232,Extermal AD, Super Termiral
RS232,AD

Power Adjustment Range(%)
10-100

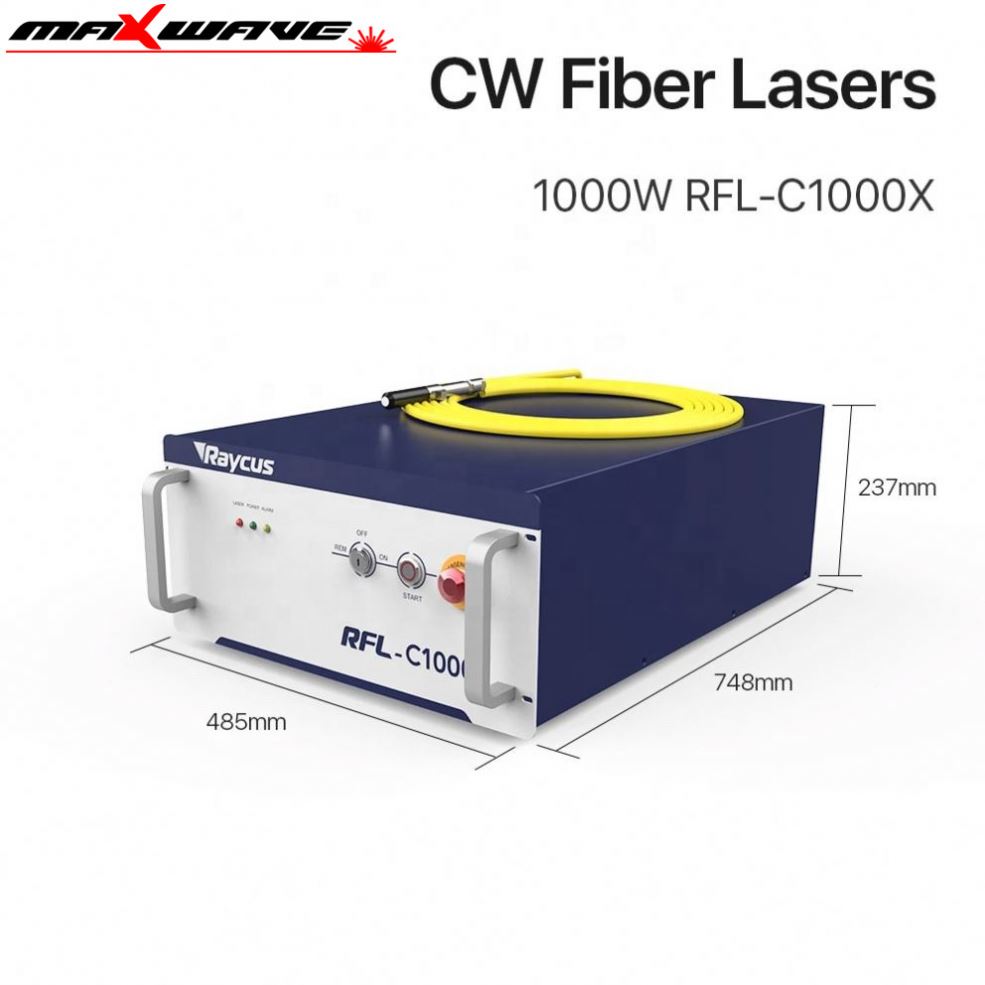

Dimensions (mm)
Exterral RS232,Extermal AD, Super Termiral
900*447*521(handle included)

Weight (kg)
<50
<70 <80

Cooling Method
Water Cooling

Working Temperature ©
10-40




Additional information

Model Number

RFL-C3000x, RFL-C1000, RFL-C2000x, RFL-C1500x
