Top Quality Laser Diode OEM High Power 4W RGB Full Color Laser Module TTL Analog For Stage Light Show Disco Party Laser Light

  • Home
  • Top Quality Laser Diode OEM High Power 4W RGB Full Color Laser Module TTL Analog For Stage Light Show Disco Party Laser Light

Top Quality Laser Diode OEM High Power 4W RGB Full Color Laser Module TTL Analog For Stage Light Show Disco Party Laser Light

$999.00

SKU: 33016452550 Category:

Description

Top Quality Laser Diode OEM High Power 4W RGB Full Color Laser Module TTL Analog For Stage Light Show Disco Party Laser Light

  • Item Type: Stage Lighting Effect
  • Style: DMX Stage Light
  • Occasion: Professional Stage & DJ
  • Model Number: 4W RGB Laser Module
  • Power: 80W
  • Voltage: 90-240V
  • Brand Name: DYUE
  • Laser Name: 4W Laser Module
  • Color: RGB Laser Modules
  • Guaranteed Power: 4W
  • Power Red: about 1W / 635nm
  • Power Green: about 1W / 520nm
  • Power Blue: about 2W / 447nm
  • Beam Specifications: ca. 6.2mm / 1.6mrad
  • Laser Sources: CW Diode, DPSS Laser
  • Laser Class: 4
  • Main Feature: High Power Laser Diode

Top Quality Laser Diode OEM High Power 4W RGB Full Color Laser Module TTL Analog For Stage Light Show Disco Party Laser Light

Main Features:
Color diode laser at 635,520,447nm is made features of long lifetime,low cost and easy operating, which is widely used in ILDA laser show

Specifications:
Wavelength: 635/520/447nm ( error range 5nm)

Operating mode: CW

Output power:4W

Ratio power: Red laser about 1W, Green laser about 1W, Blue laser about 2W

Power stability: less than 1%, less than 3%, less than 5% (rms, over 4 hours)

Beam diameter: 5X4.5, 6.2X5.2, 6.2X5.2 (mm, at the aperture)

Beam divergence: less than 1.6 (full angle, mrad)

Polarization direction: Horizontal + Vertical

Warm-up time: less than 5 minutes

Beam height from base plate: 35mm

Operating temperature: 25 degrees celsius (error range 3)

Power supply: 90-240V AC

Modulaton option: TTL / Analog

Expected liftetime: 10000 hours

Warranty: 1 year

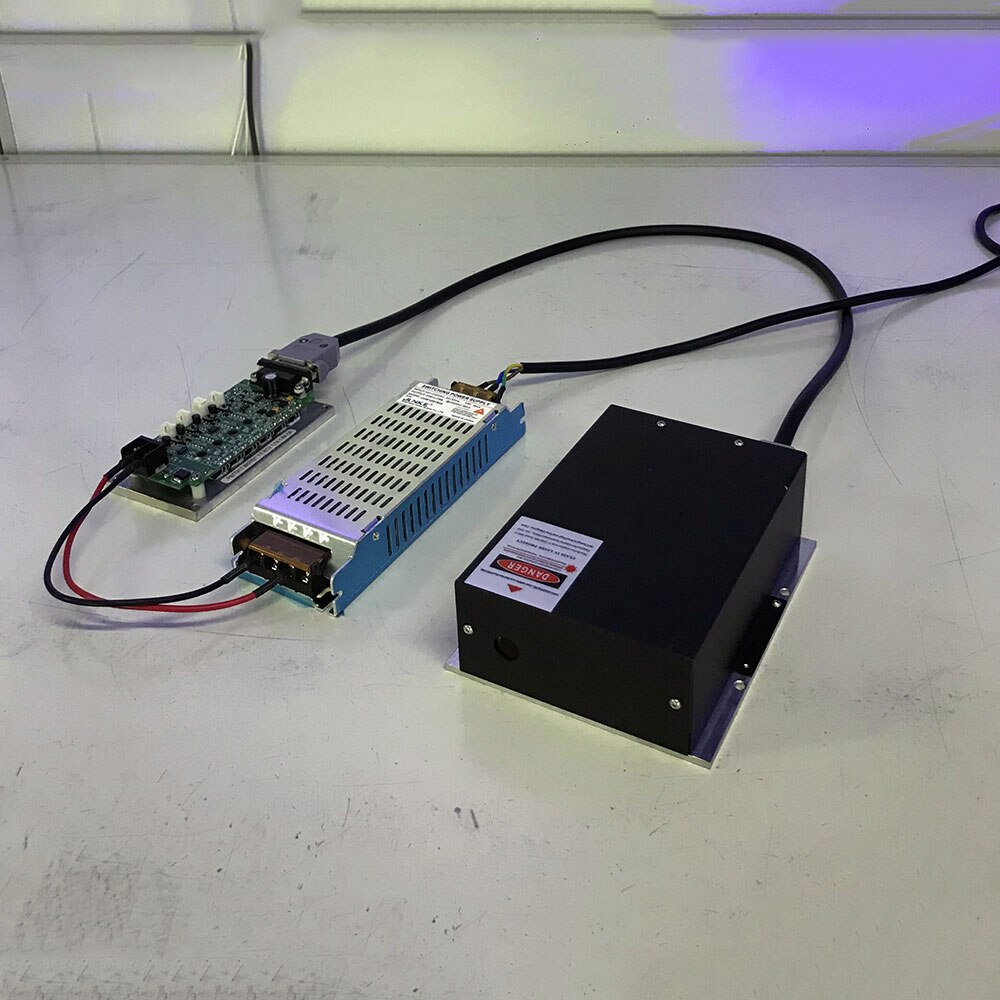

Packing Lists:

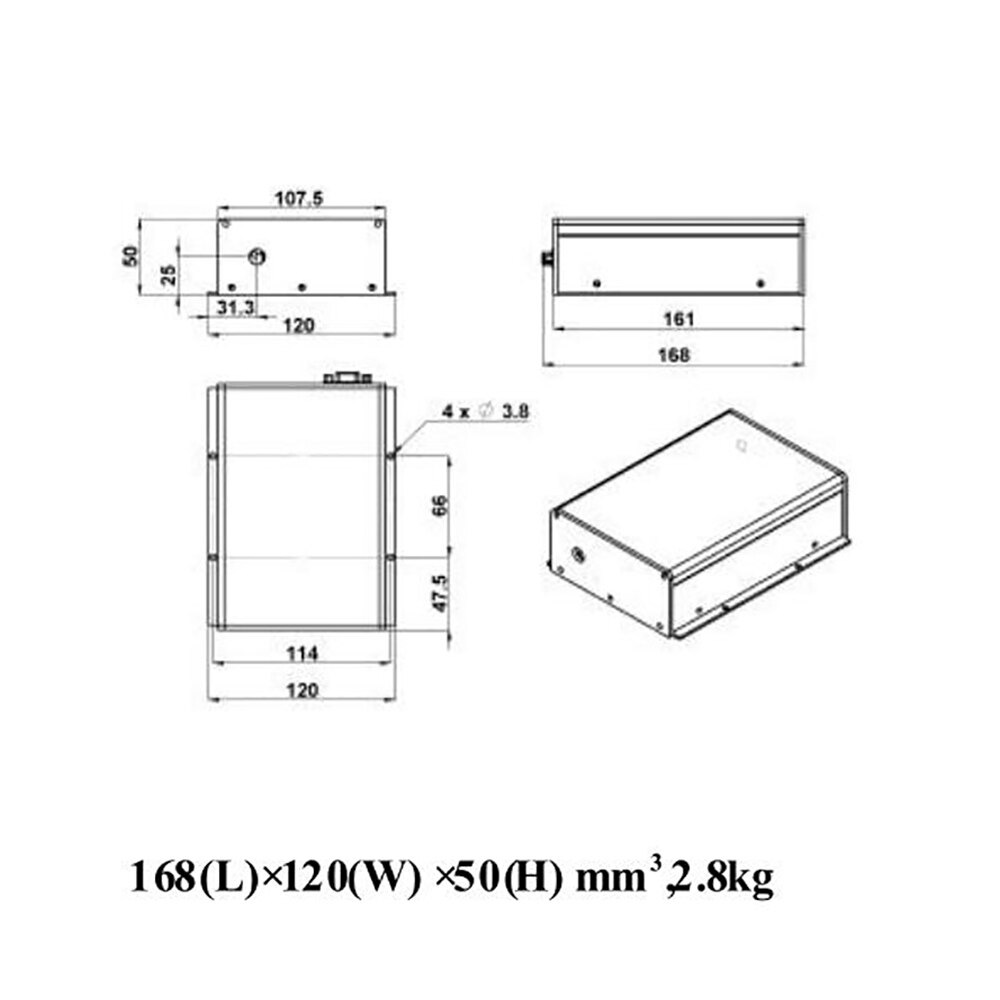

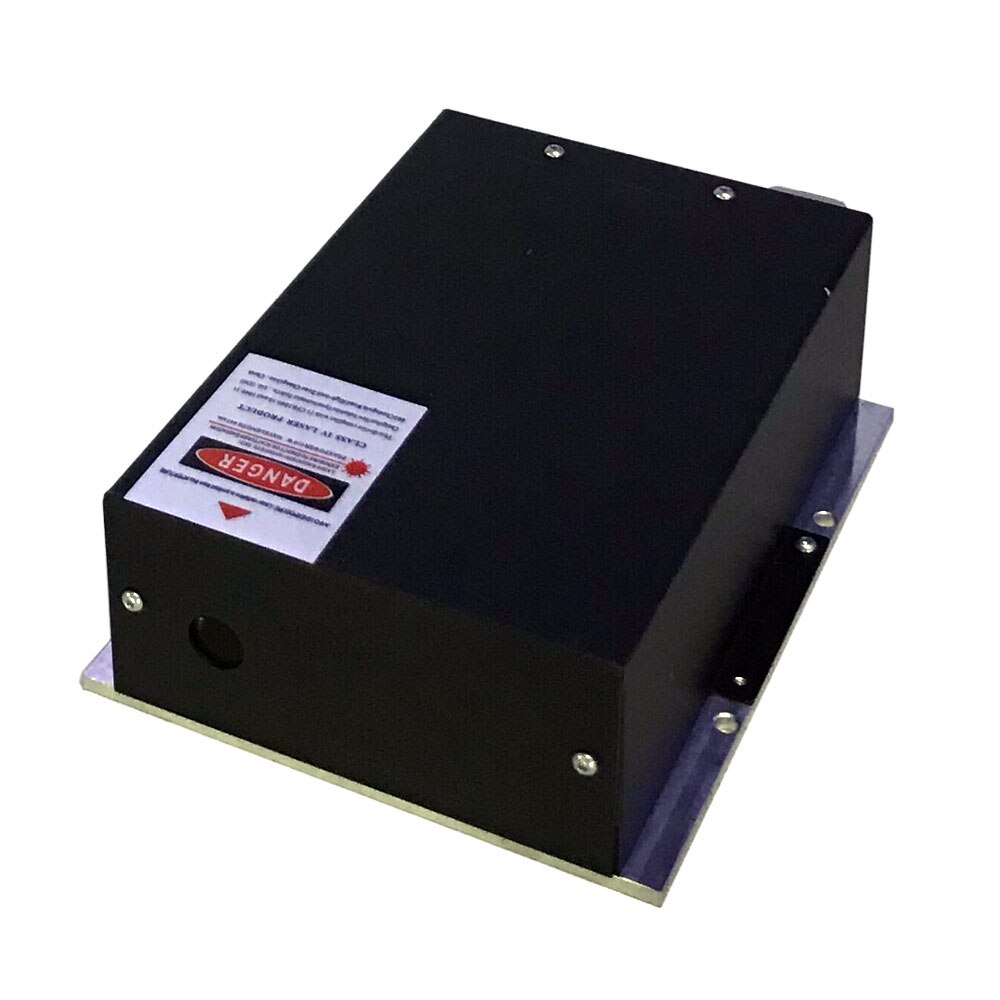

1pcs 4W RGB Laser Module

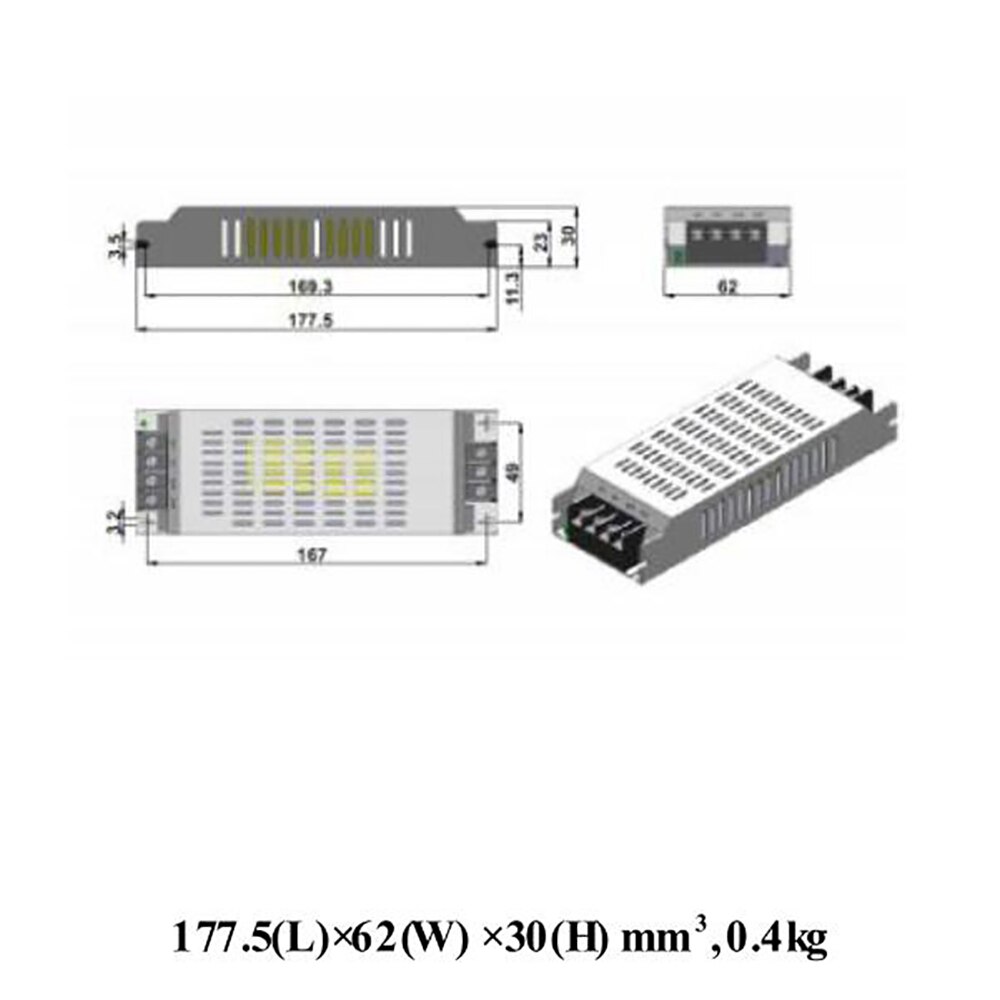

1pcs Power Supply

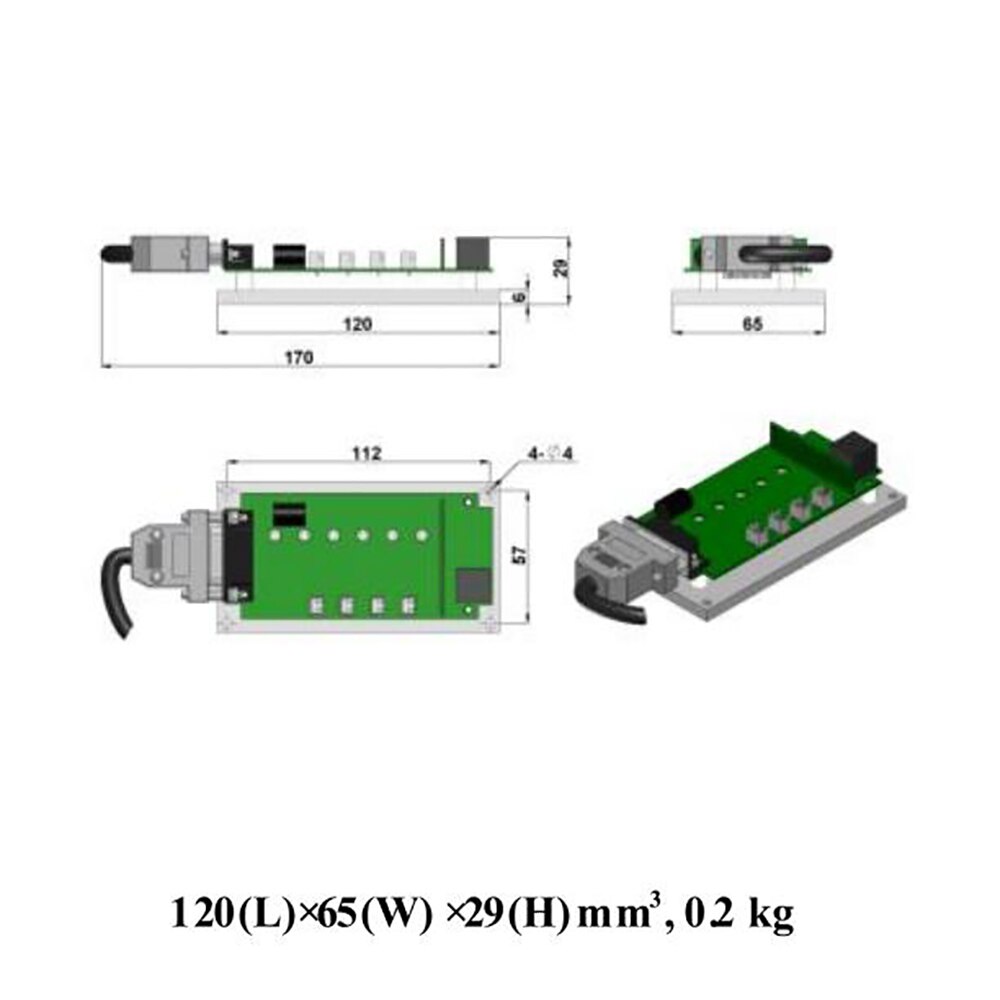

1pcs Driver Board
