Description

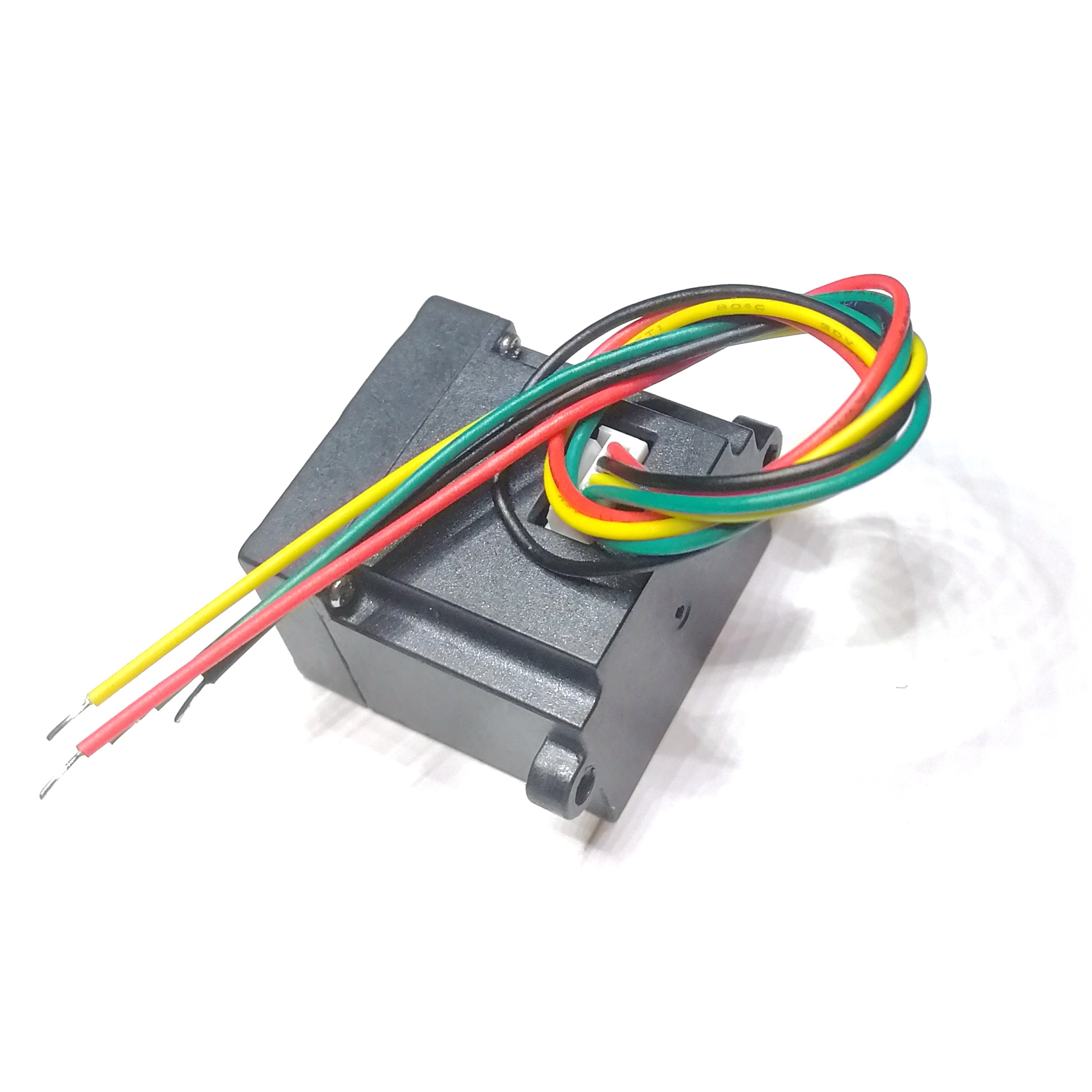

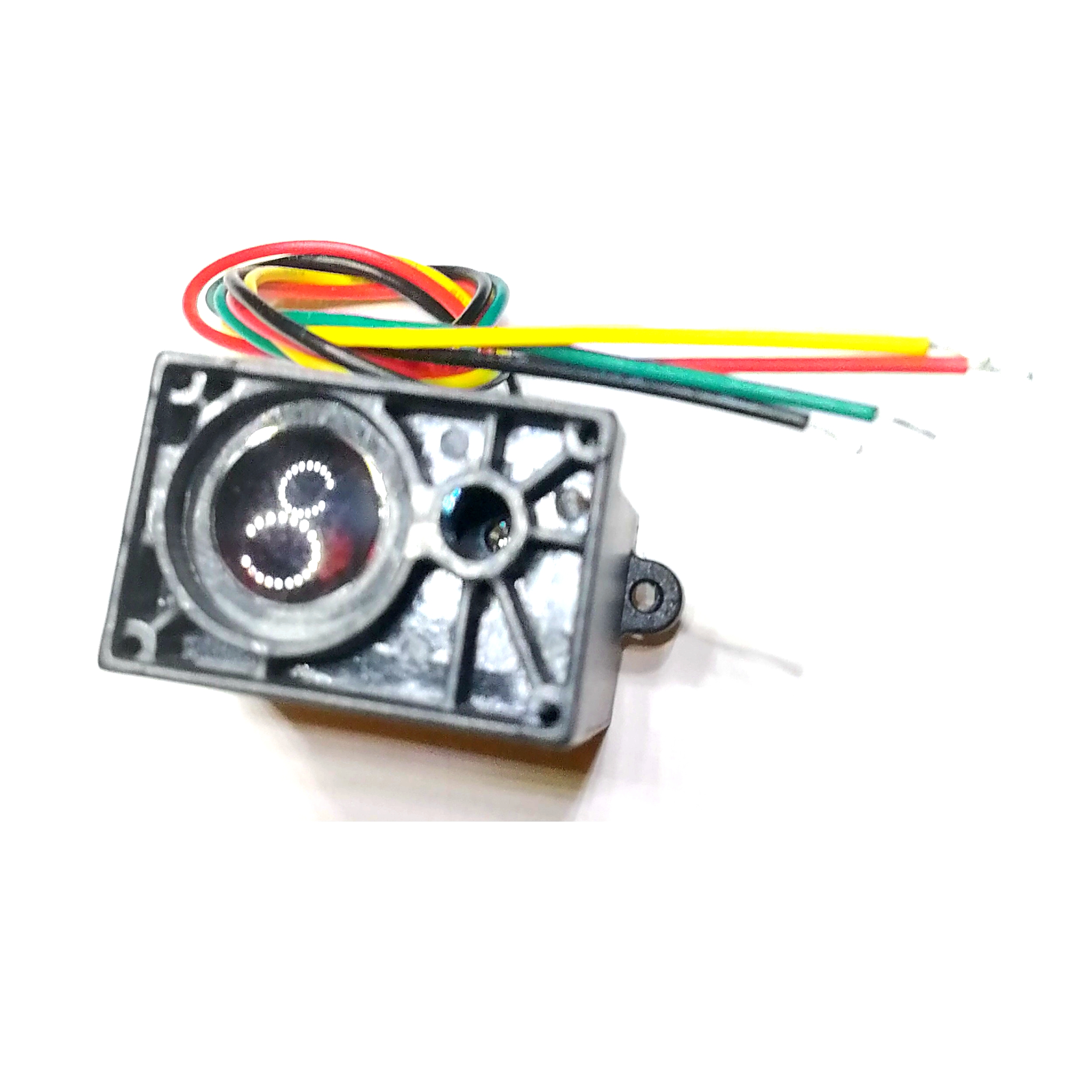

TOF 100Hz 30m Lidar Infrared invisible laser Sensor Ranging Module
L10 Lidar is use for the field of drones, sweeping robots, industrial robots, etc.
A new laser ranging solution. This product is based on the principle of TOF ranging and has a small size.
Low cost, excellent performance, strong resistance to ambient light interference, and can be used as an upgrade substitute for related fields.
Product. The product is based on serial communication distance information, simple to use, flexible to install, and easy to expand.
Laser type:Class IIIA laser
Output frequency: 100Hz
Range: 0.06-30m
Repetition accuracy: +2cm (within 2m) accuracy: 1-10cm
Display unit: 1mm
Light Source: 780 nm Laser Class I Safety

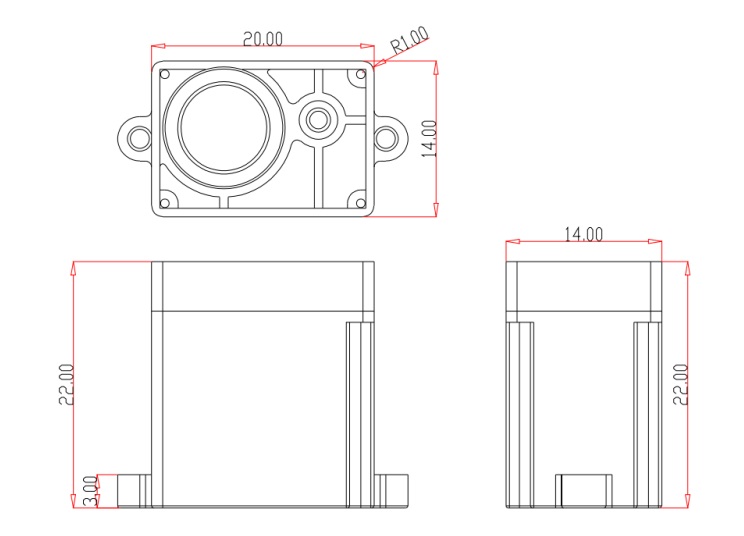

Size: 20*22*14 mm invisible red laser
Weight: 11g
Power supply: DC + 5V
Output Interface: Uart(115200bps)
Level: TTL 3.3V
Working temperature: 0-40 °C
Resistance to ambient light: 100W LUX
Size:22*20*14mm
