Description
- Brand Name: MLHJ
- Origin: CN(Origin)
- Place of Origin: Guangdong, China
- Warranty: 1 year
- Type: Measuring Thickness and Corrosion
- Customized support: OBM
- Brand Name: Graigar
- Model Number: TM8810
- Operating Principle: Ultrasonic
- Sound Velocity: 1000~9000 m/s
- Resolution: 0.1 mm

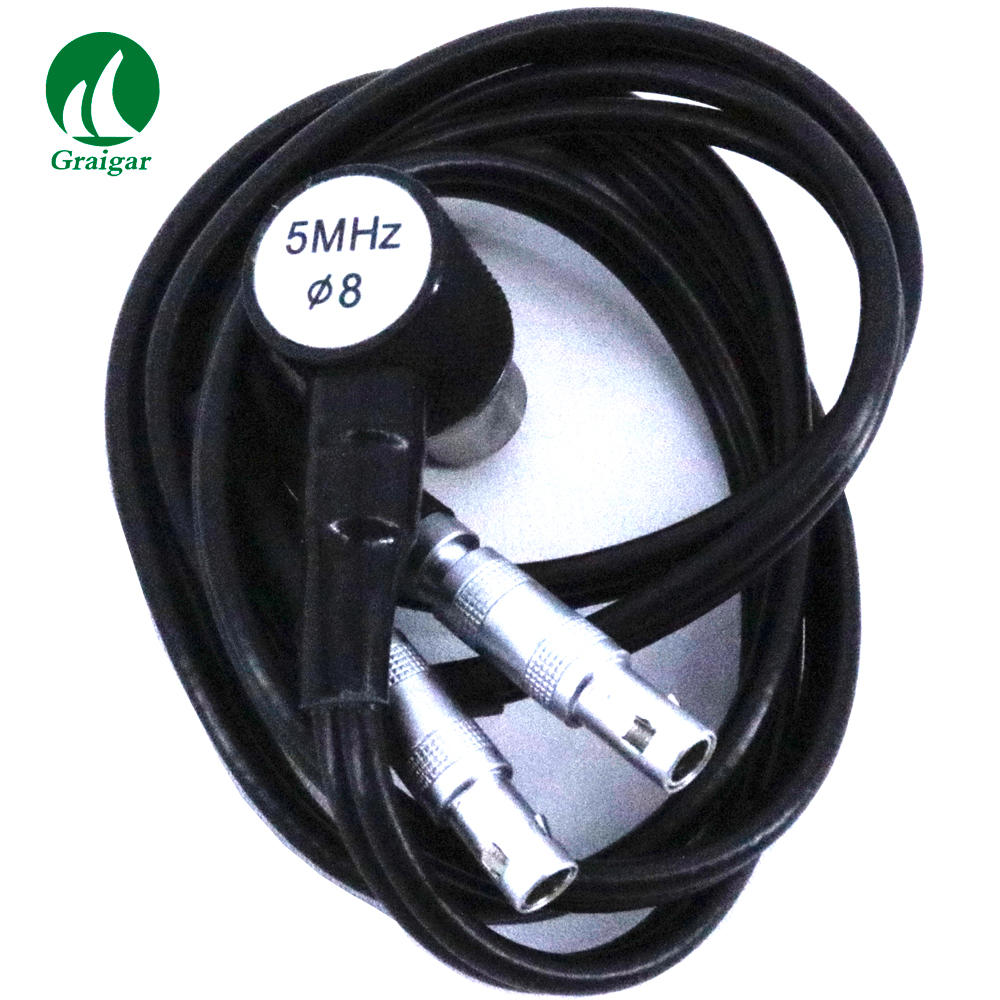

- Sensor: 5M/8 Standard Sensor
TM8810 Ultrasonic Thickness Meter Used for Measuring Thickness and Corrosion
Introdcution:
Used for measuring thickness and corrosion of pressure vessels,chemical equipment, boilers,oil storage tanks,etc.in industries of petroleum, shipbuilding,power station,and machine manufacturing.
Features:
* Wide Measuring Range and high resolution. With high power emission and broad band receiving sensitivity, the gauge can match probes of different frequencies. That makes it easy to measure the rough surface, even cast iron. It is widely used in almost all kinds of industries.
* Applicable to measure the thickness of many materials, e. g. Steel, Cast iron, Aluminum, Red copper, Brass, Zinc, Quartz glass, Polyethylene, PVC, Gray cast iron, Nodular cast iron.
* Used the exclusive Micro-computer LSI circuit and crystal time base to offer high accuracy measurement & fast measuring time.
* Automatic power off to conserve power.
Specifications:
|
Display |
LCD |
|
|
Sensor |
Ultrasonic Probe |
|
|
Measuring Range |
1.5~200mm/0.06~8 inch |
|
|
Resolution |
0.1mm |
|
|
Accuracy |
±(0.5%n+0.2) |
|
|
Sound Velocity |
——– |
|
|
Lower Limit of Pipes |
Φ15×2.0mmΦ20×3.0
Determined By Transducer
|
|
|
Operating
Conditions
|
Temperature |
0~40ºC |
|
Humidity |
<85%RH |
|
|
Power Supply |
4×1.5V AA(UM-3)Battery |
|
|
Dimensions |
160x68x32mm |
|
|
Weight |
208g(Not Including Batteries) |
|

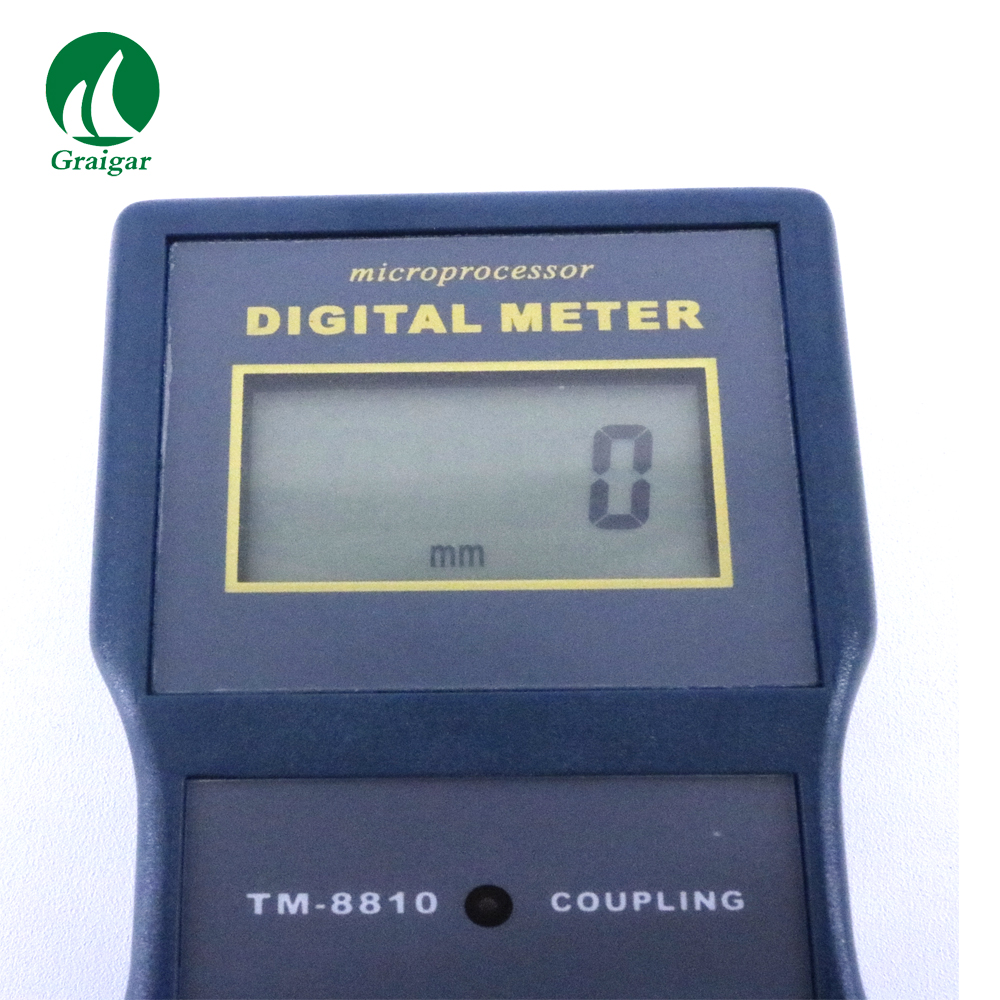

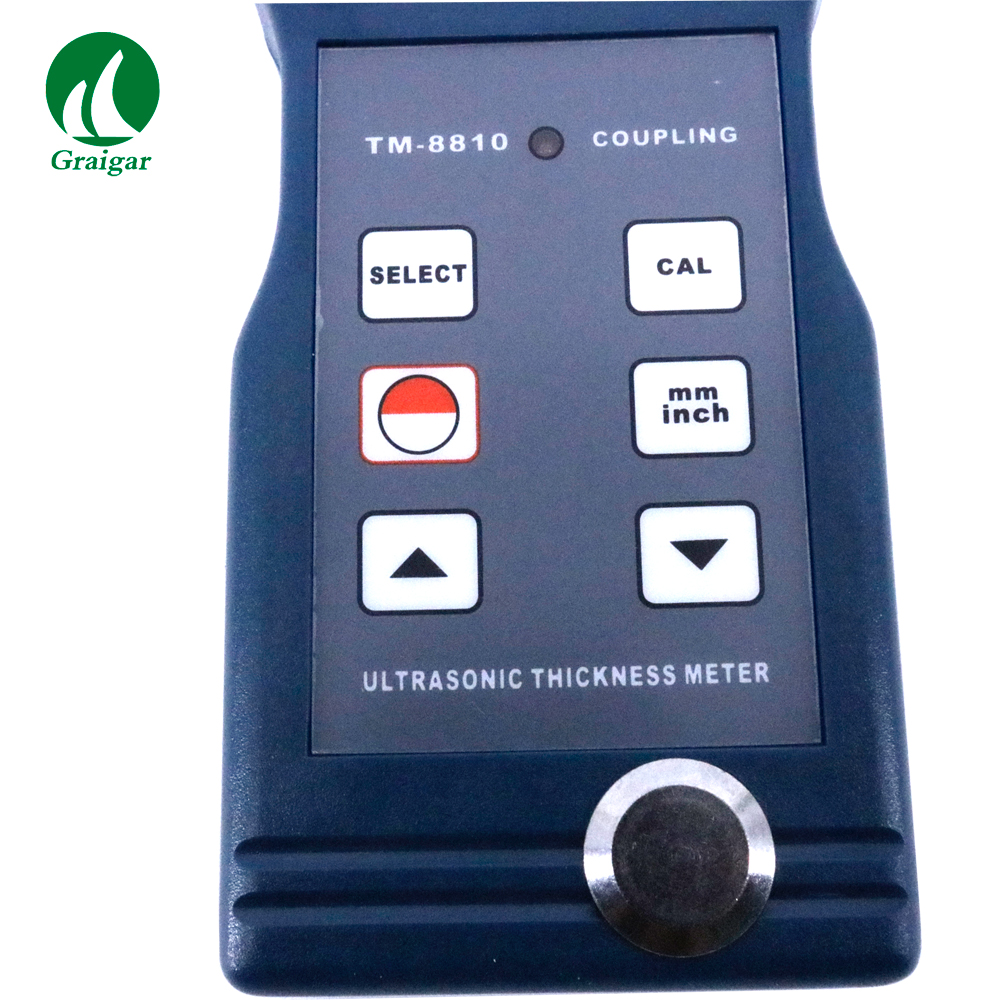

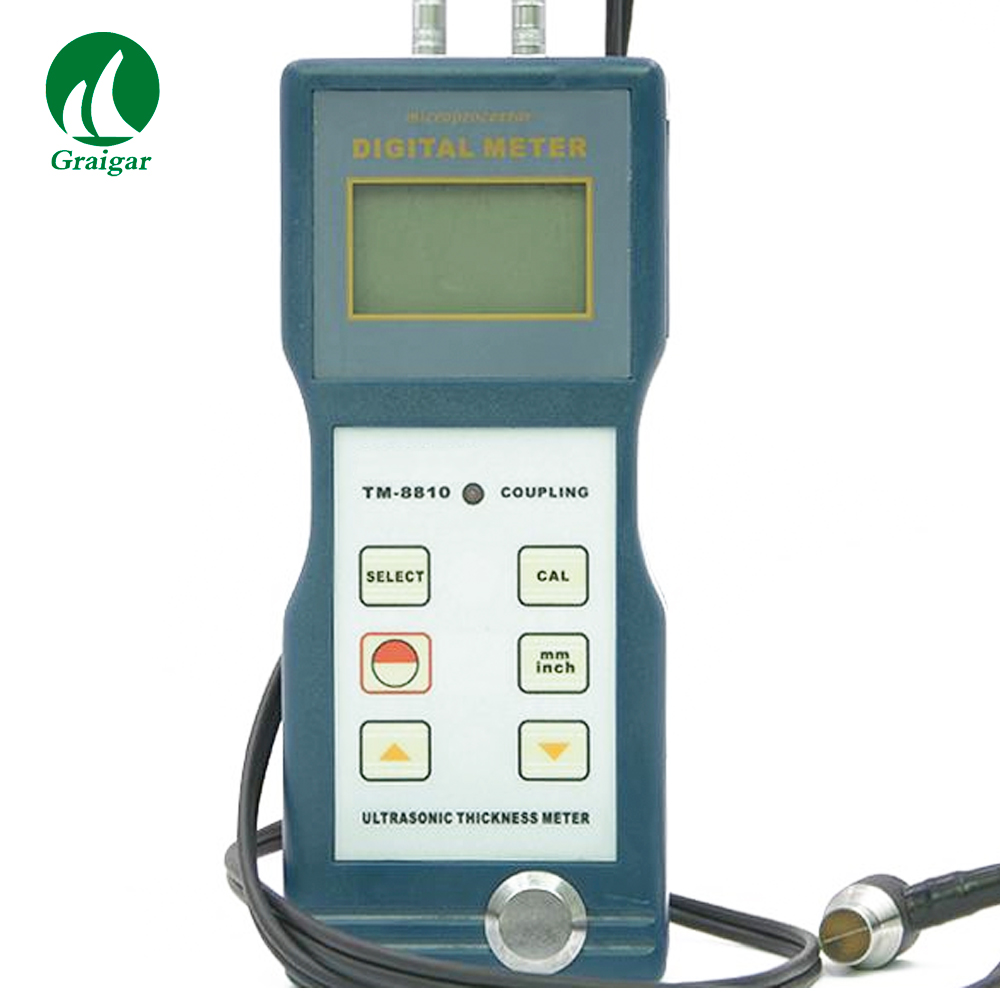

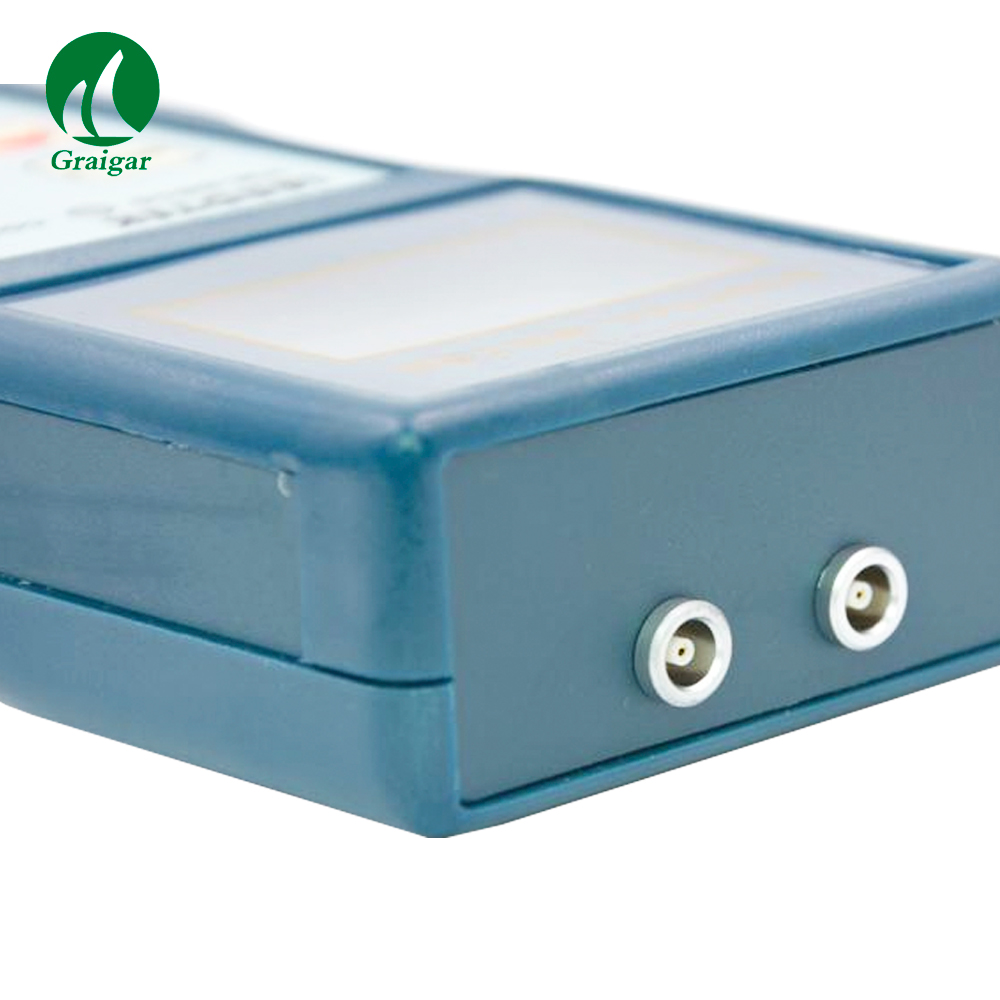

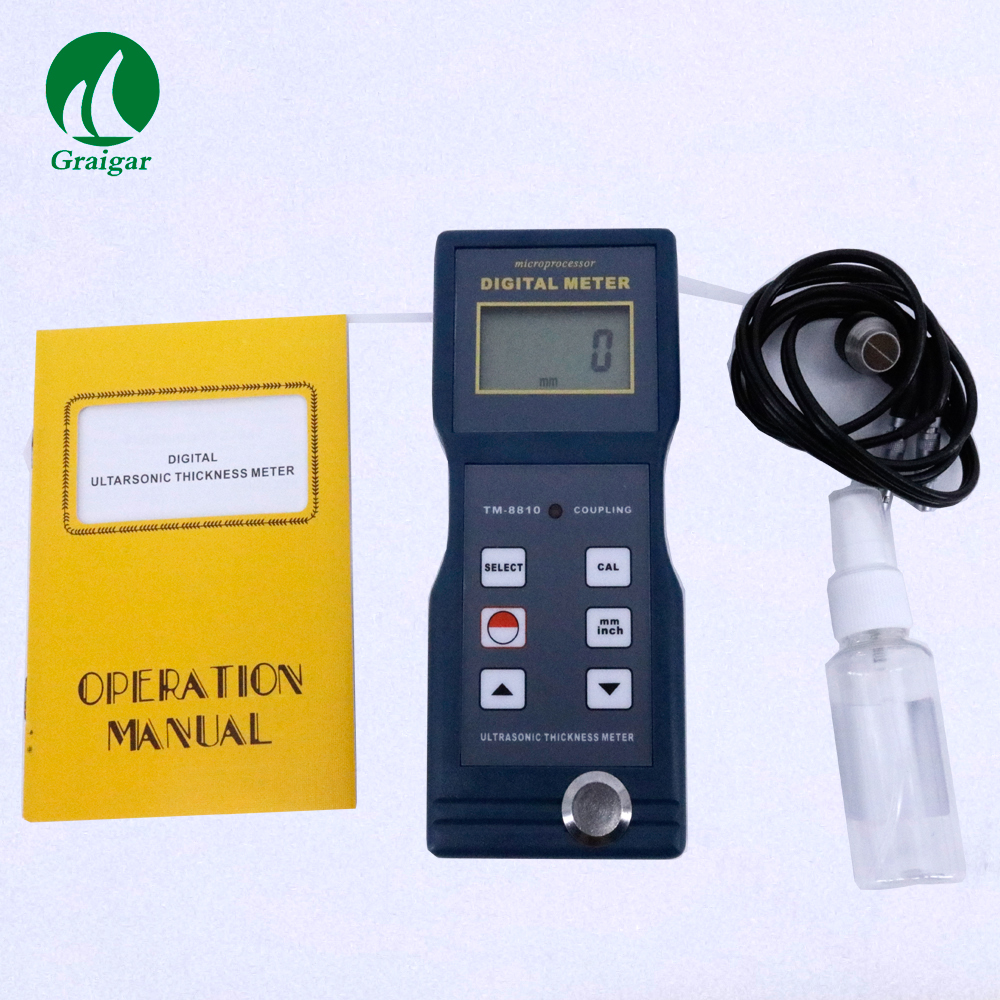

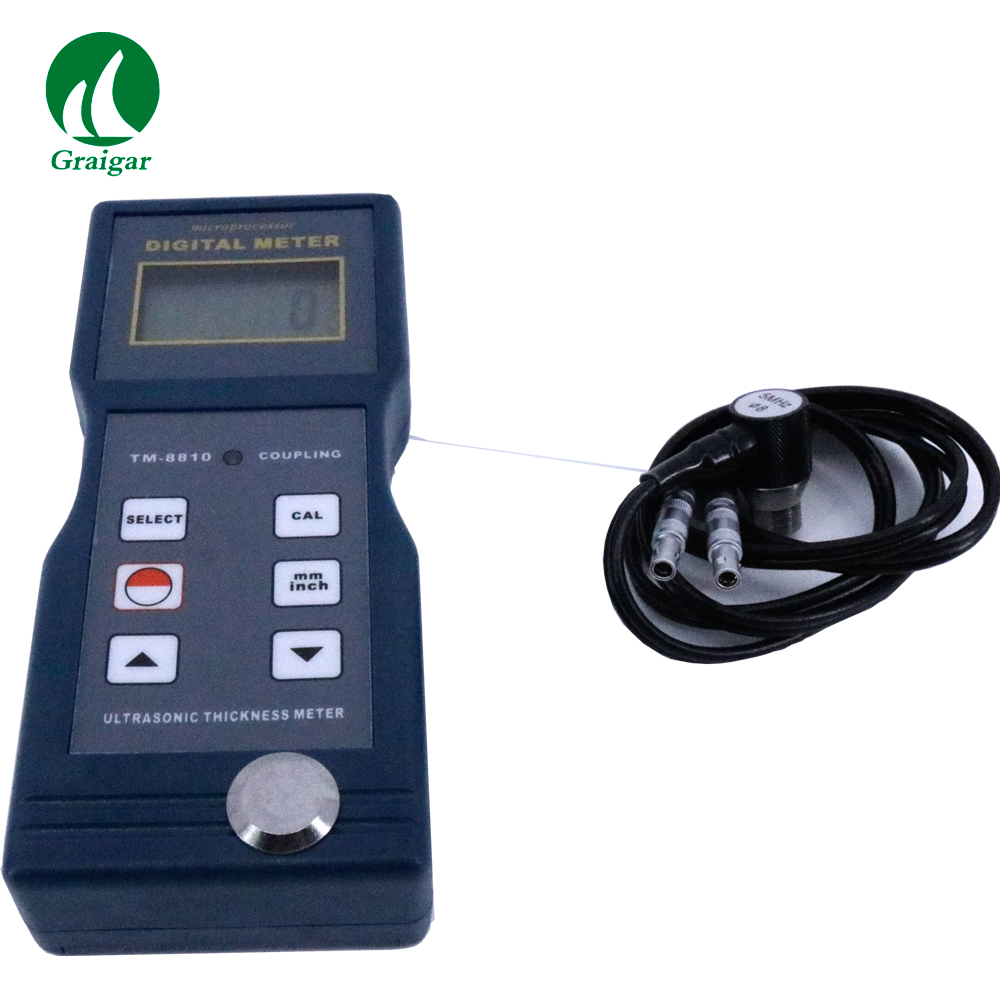

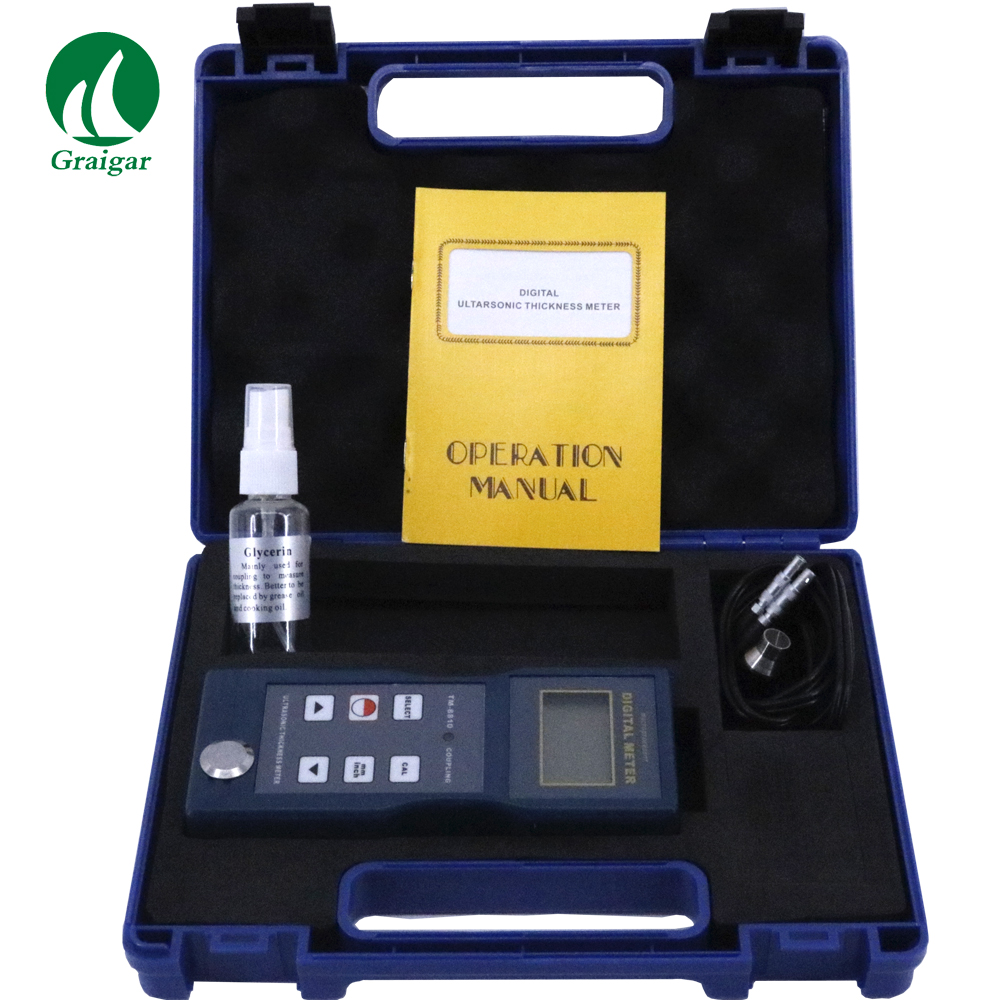

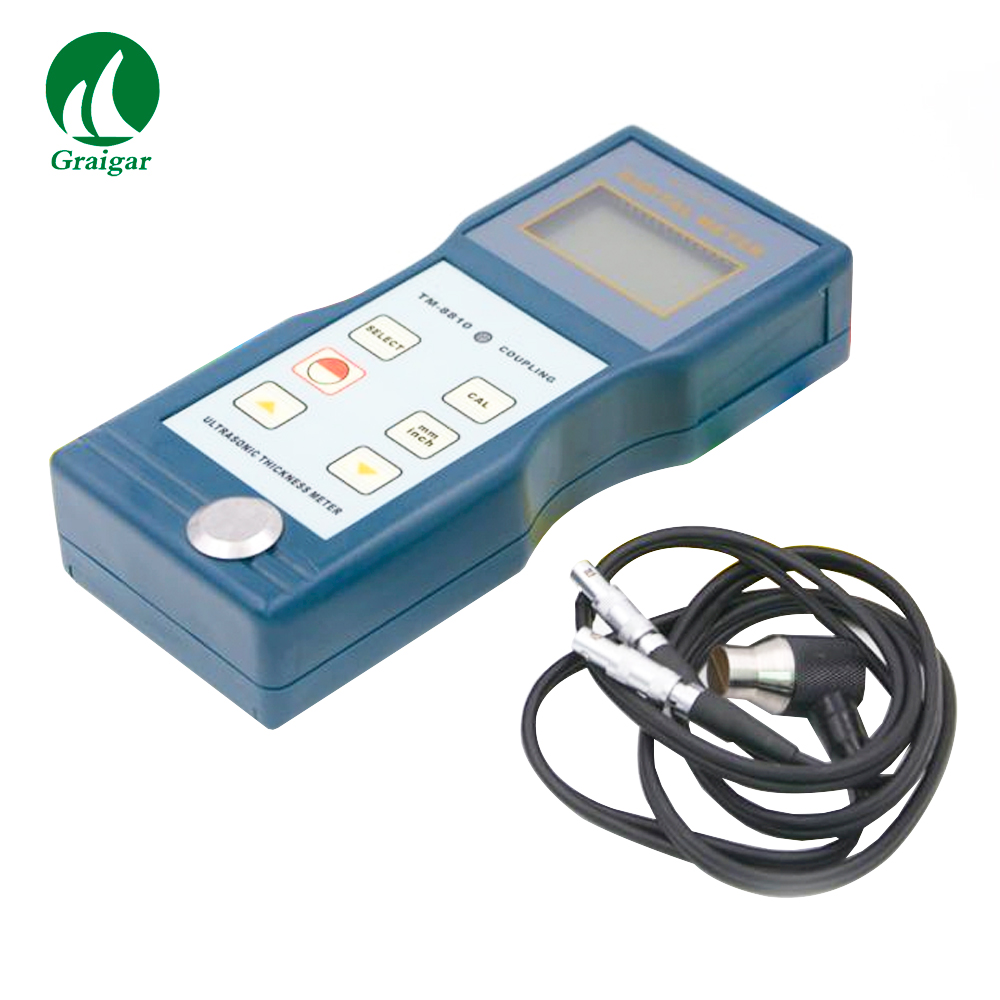

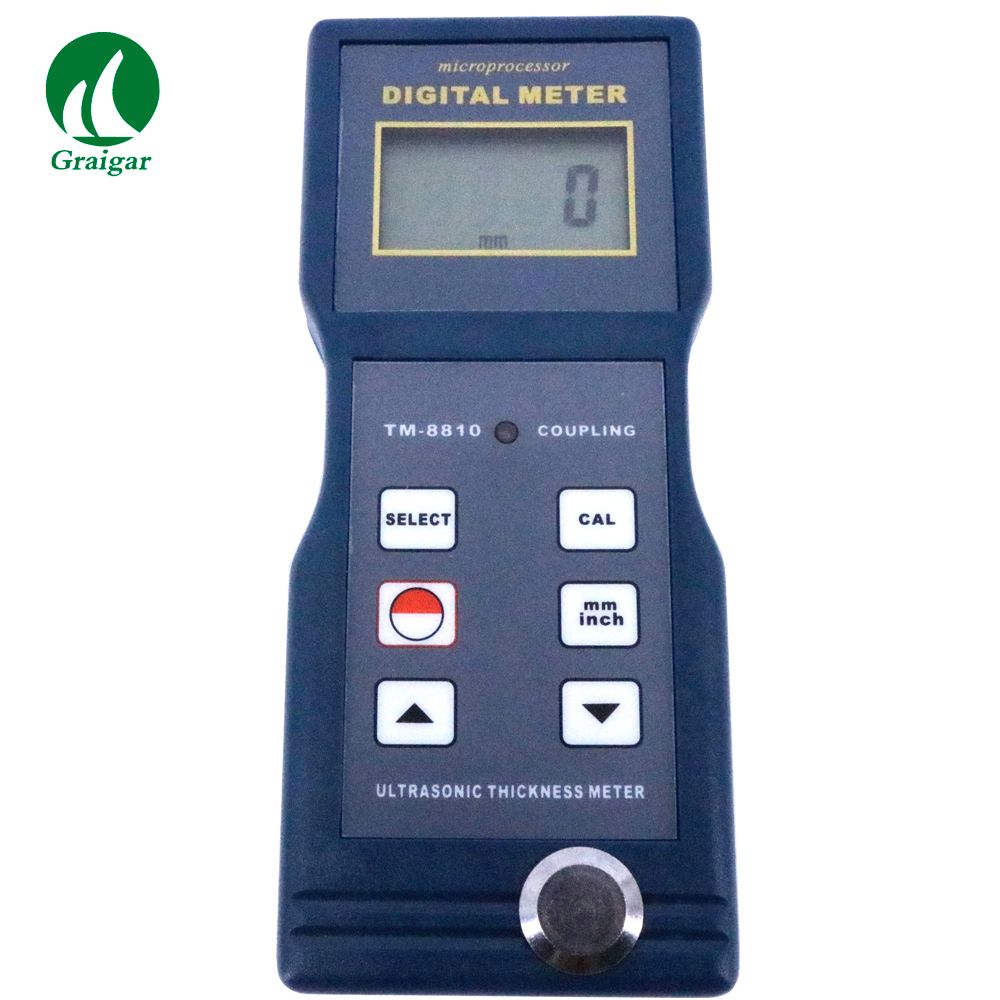

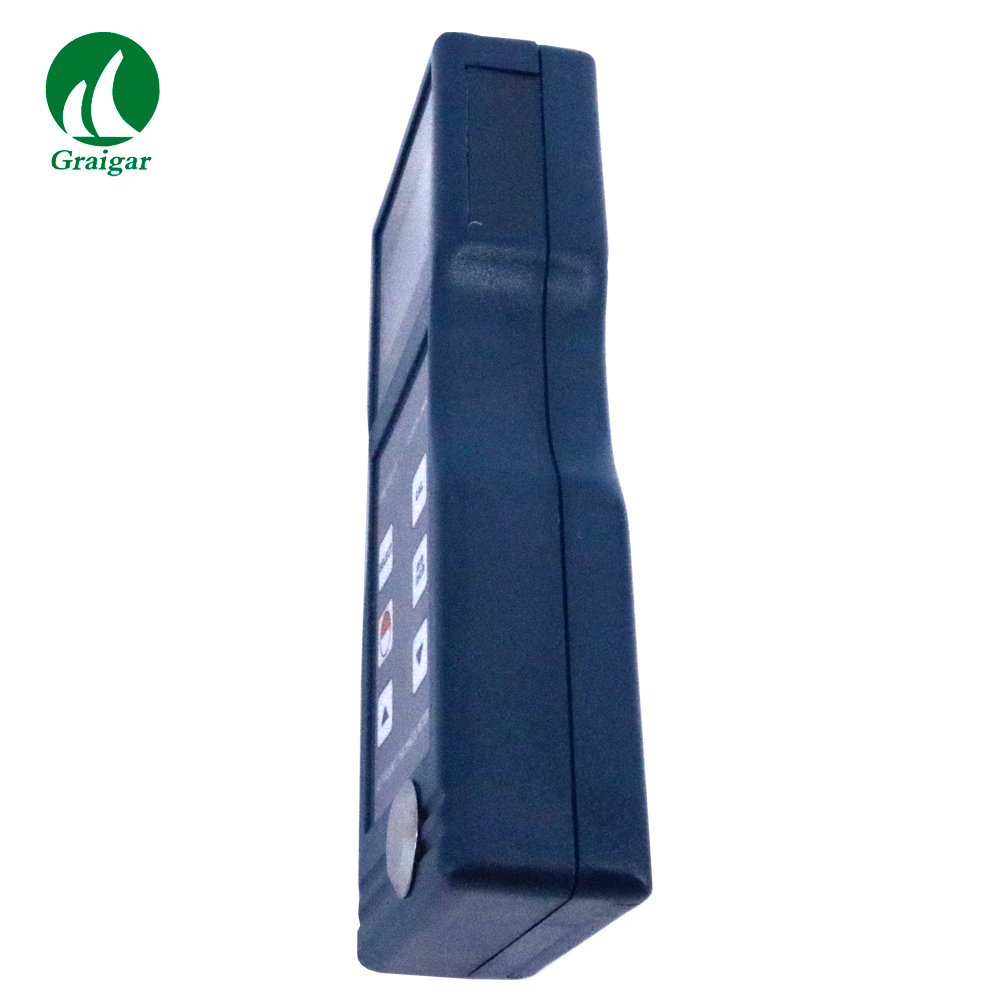

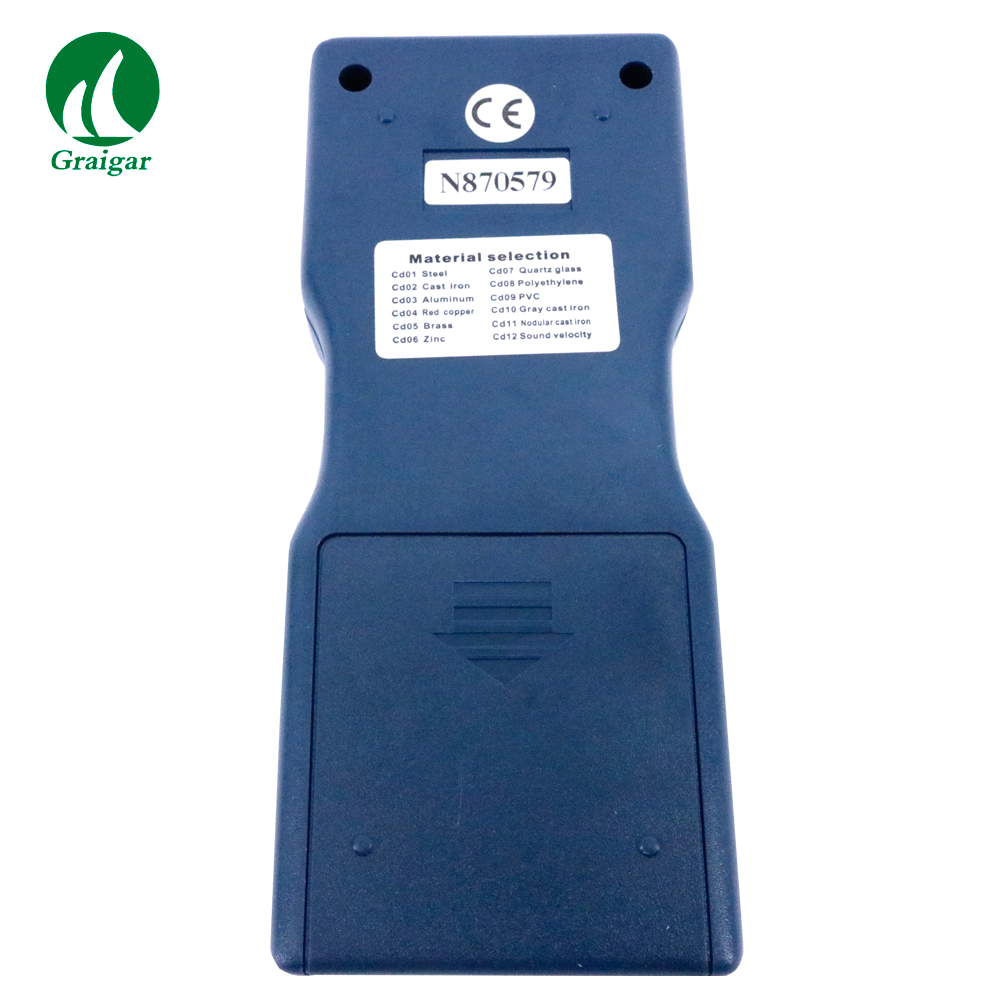

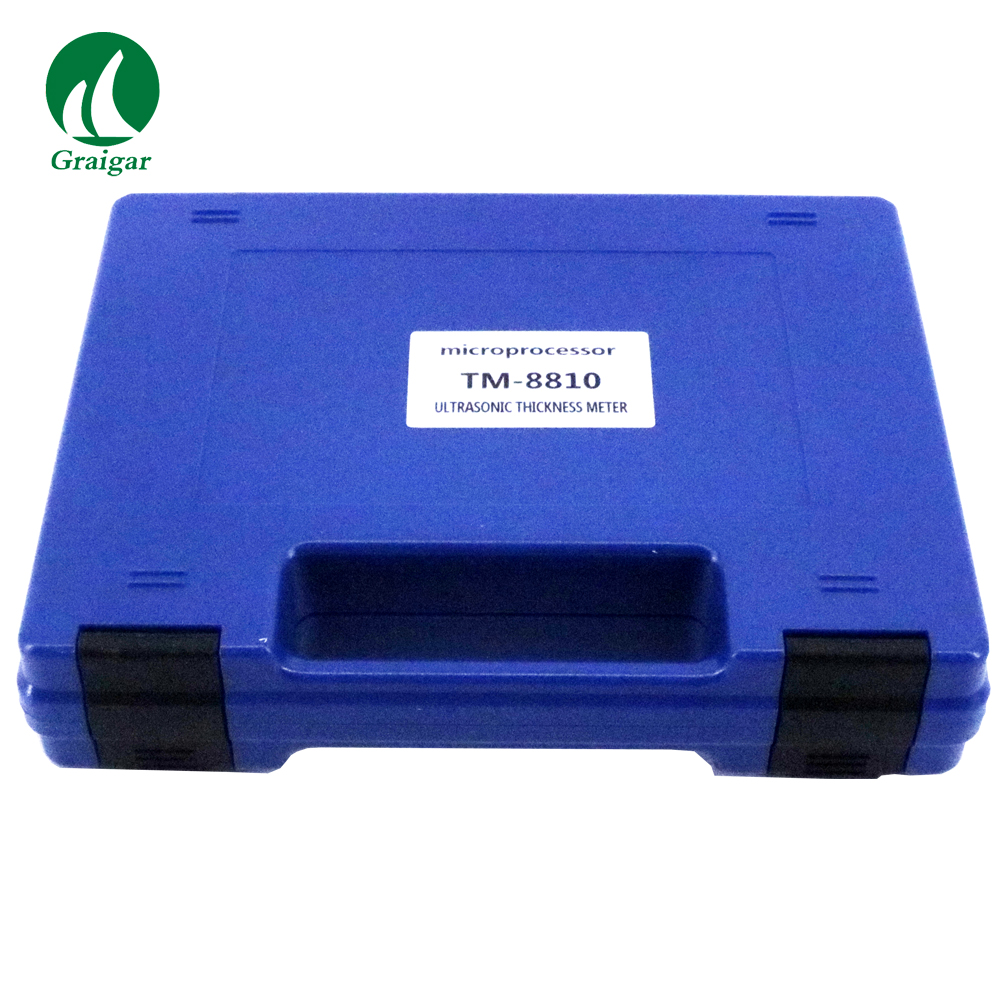

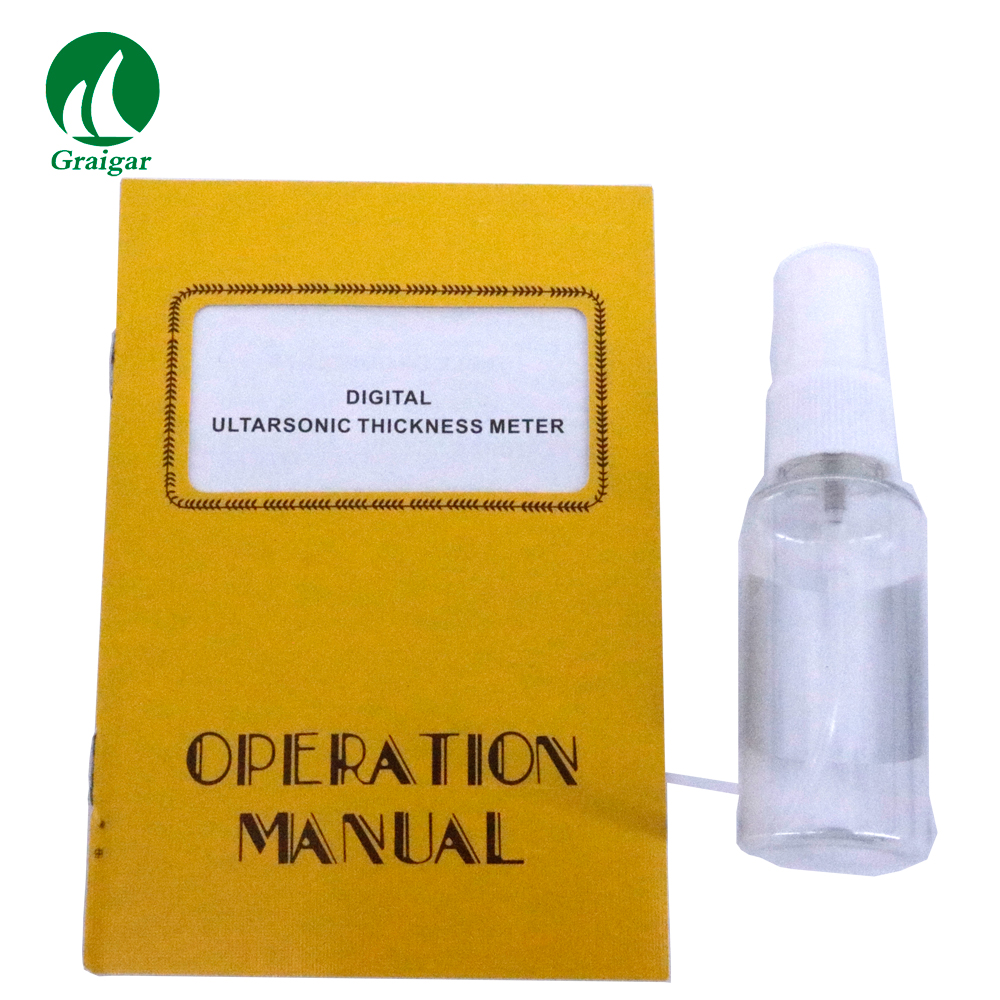

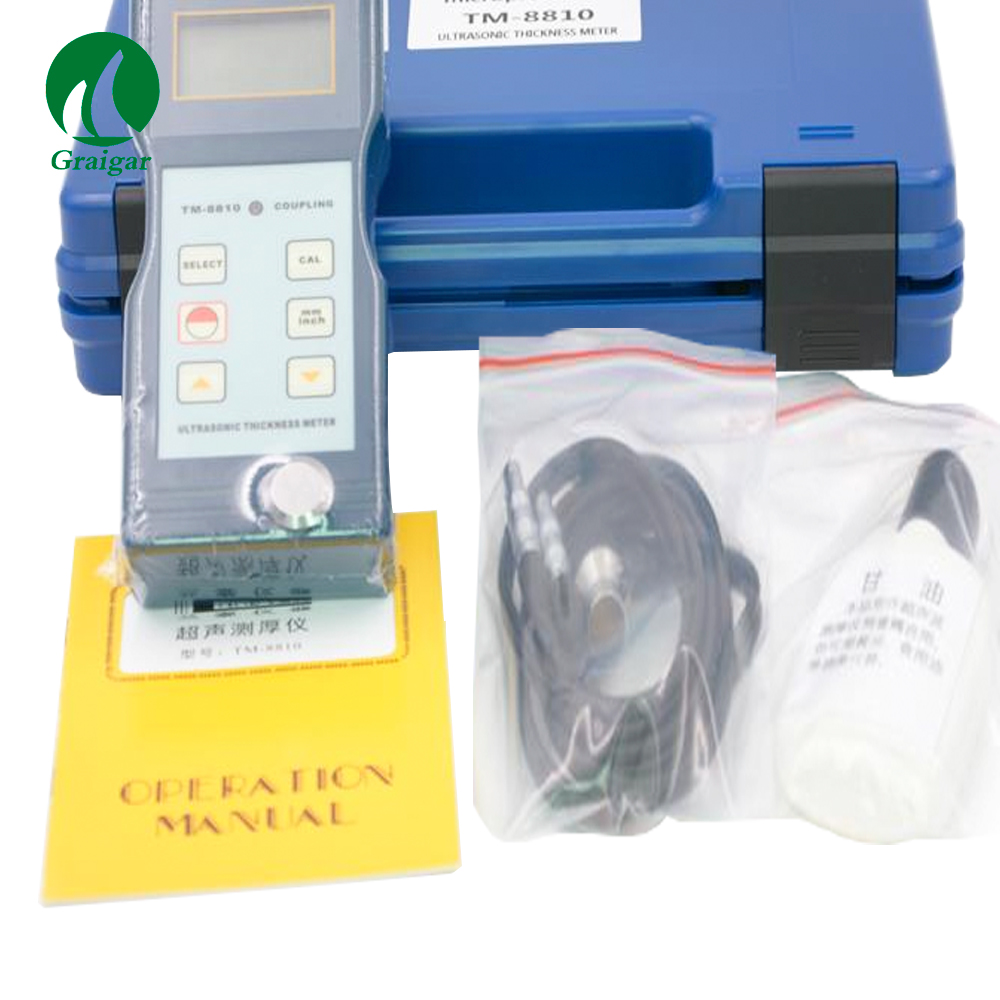

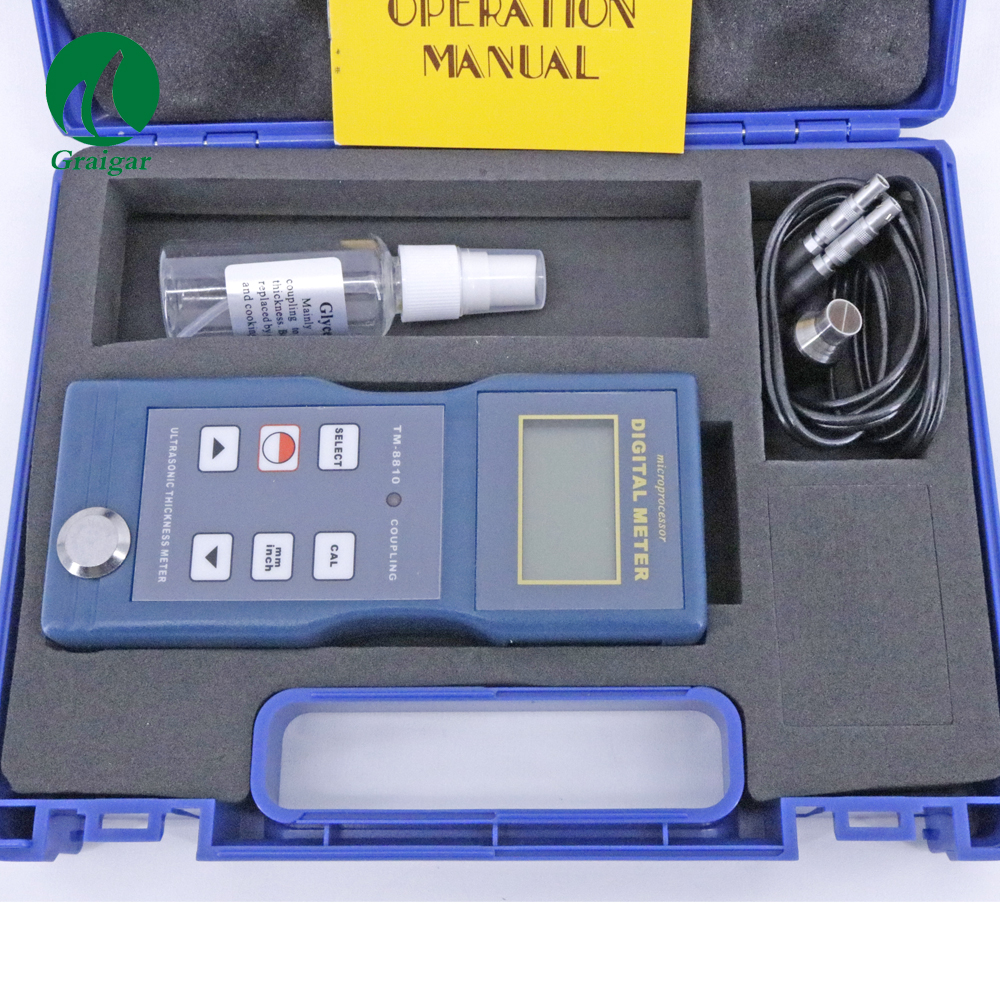

Product Images:
