Description
- Brand Name: Rabotec
- Origin: CN(Origin)
- Certification: CE
- Certification: FDA
- Condition: New
- Model Number: 1390I-afs01
- CNC or Not: CNC
- Is Smart Device: YES
- Item: laser cutting machine
- Laser tube: 100W/150W/180W
- Working size: 1300*900mm
- Metal cutting: Available
- Warranty: 2 years
- Software: RDWORKS V8
- Controller: RUIDA 6445
- Drive: Module drive
This model is our newest design with module transmission, suitable for high accurate work.

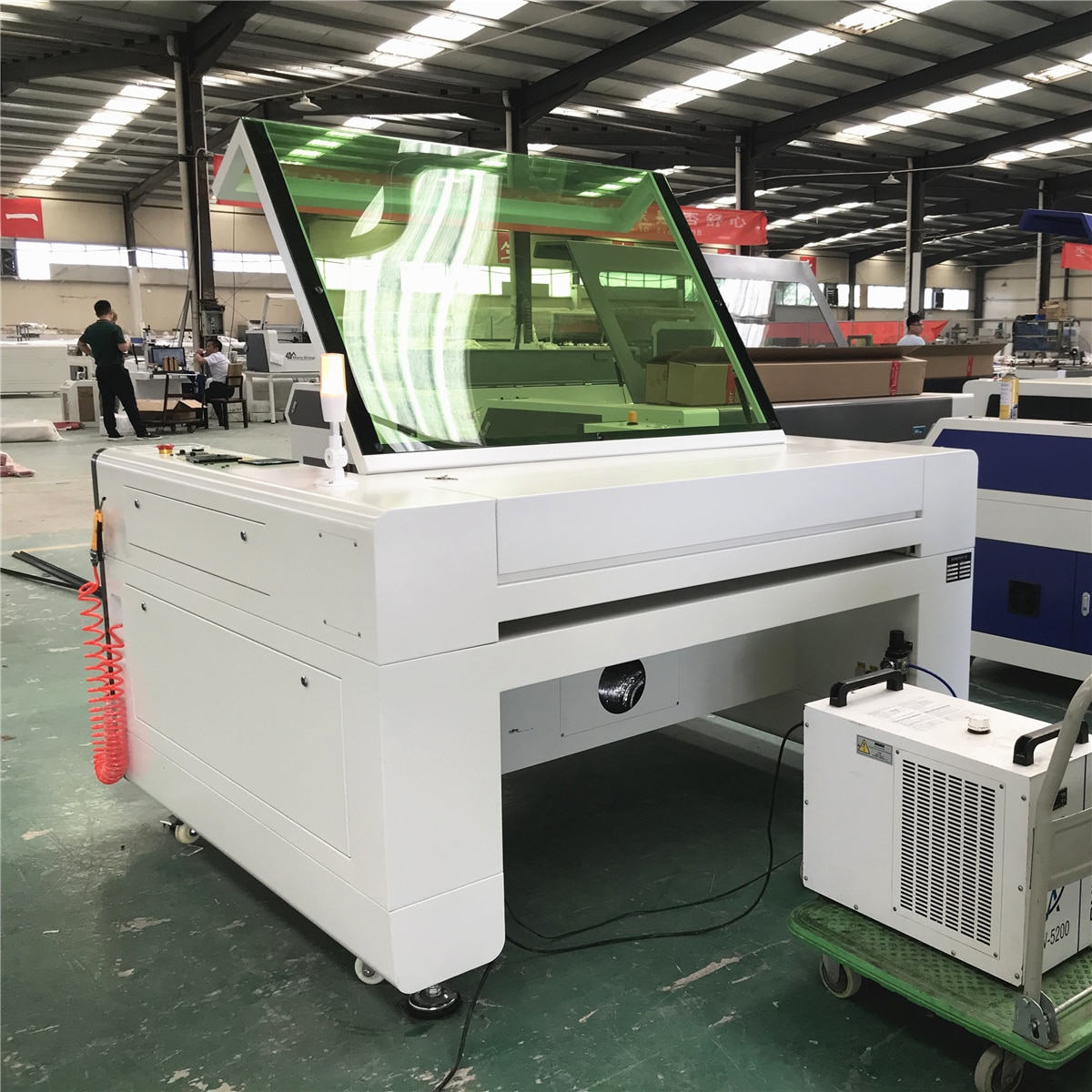

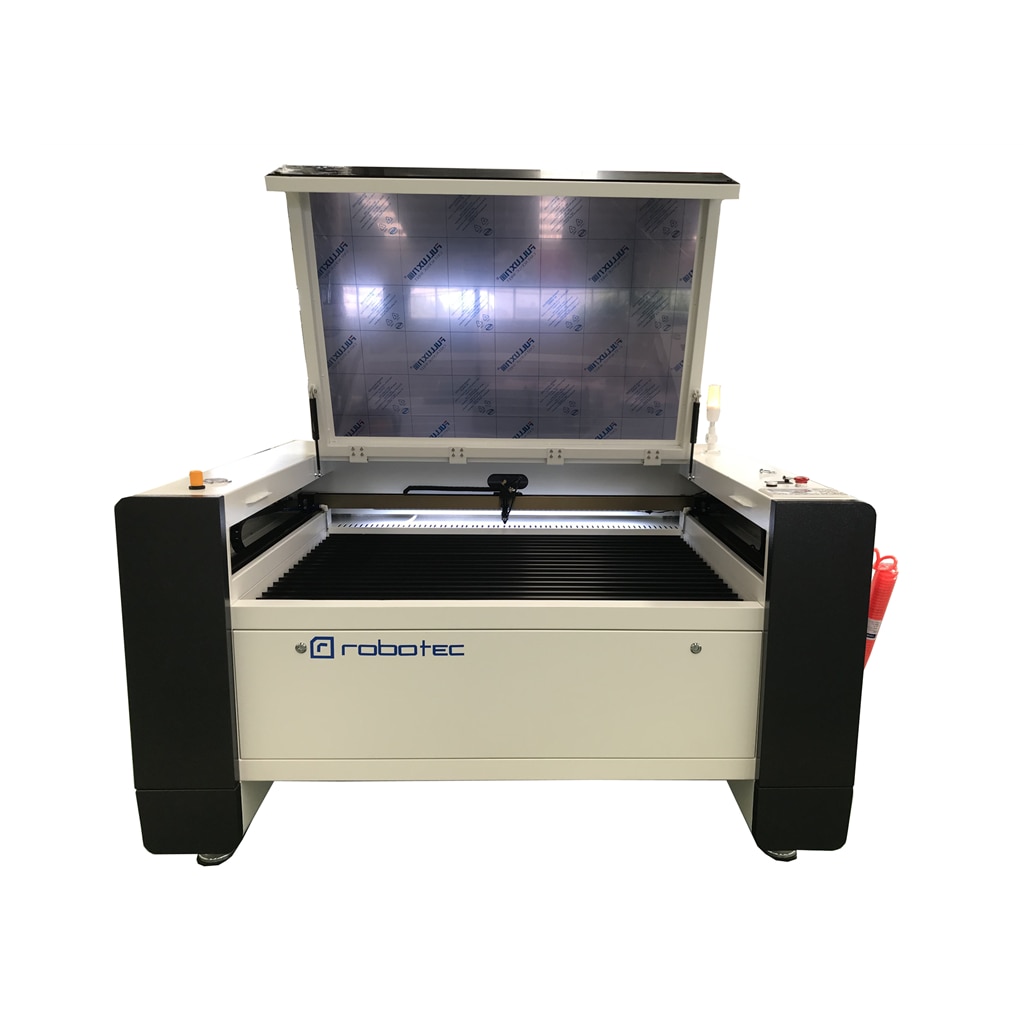

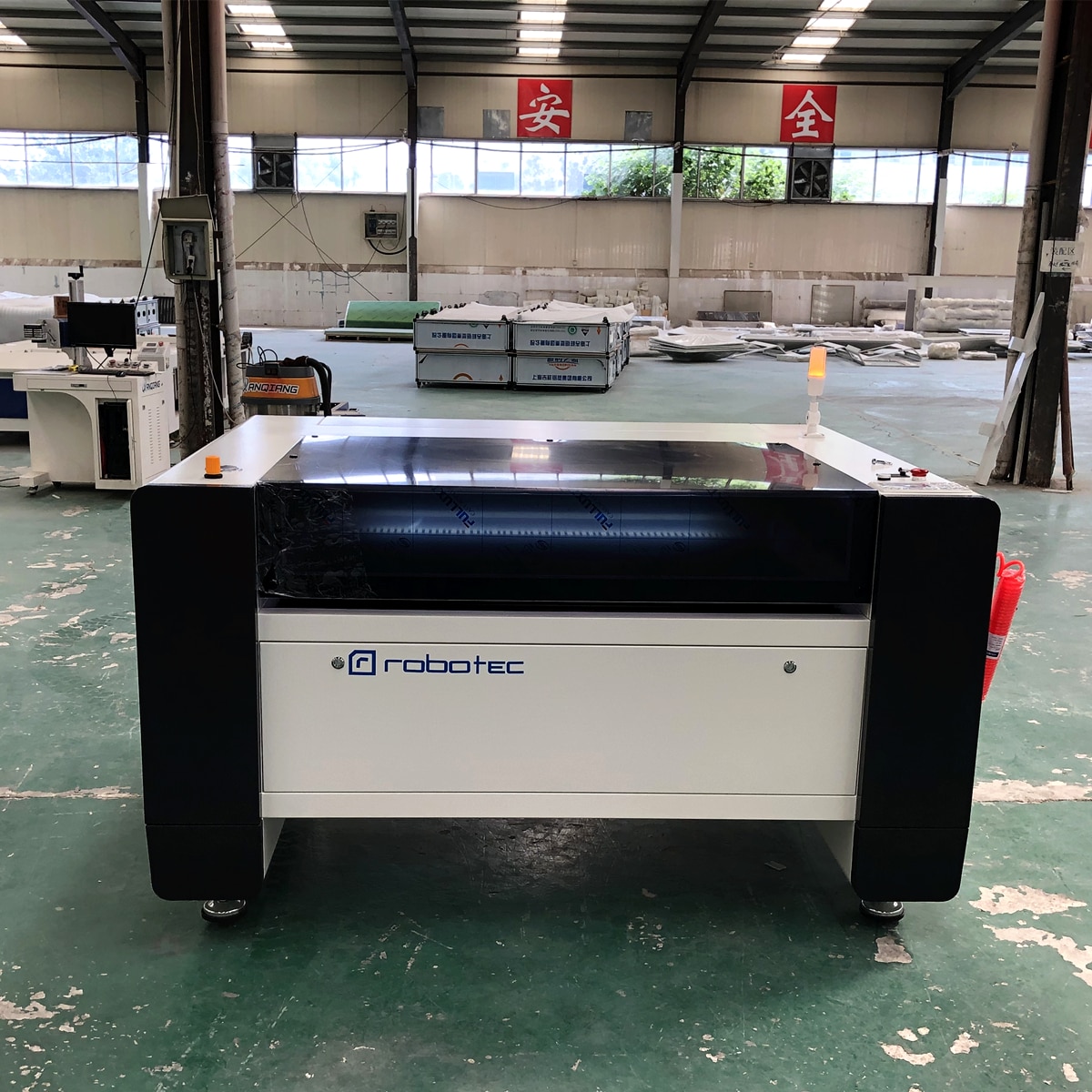

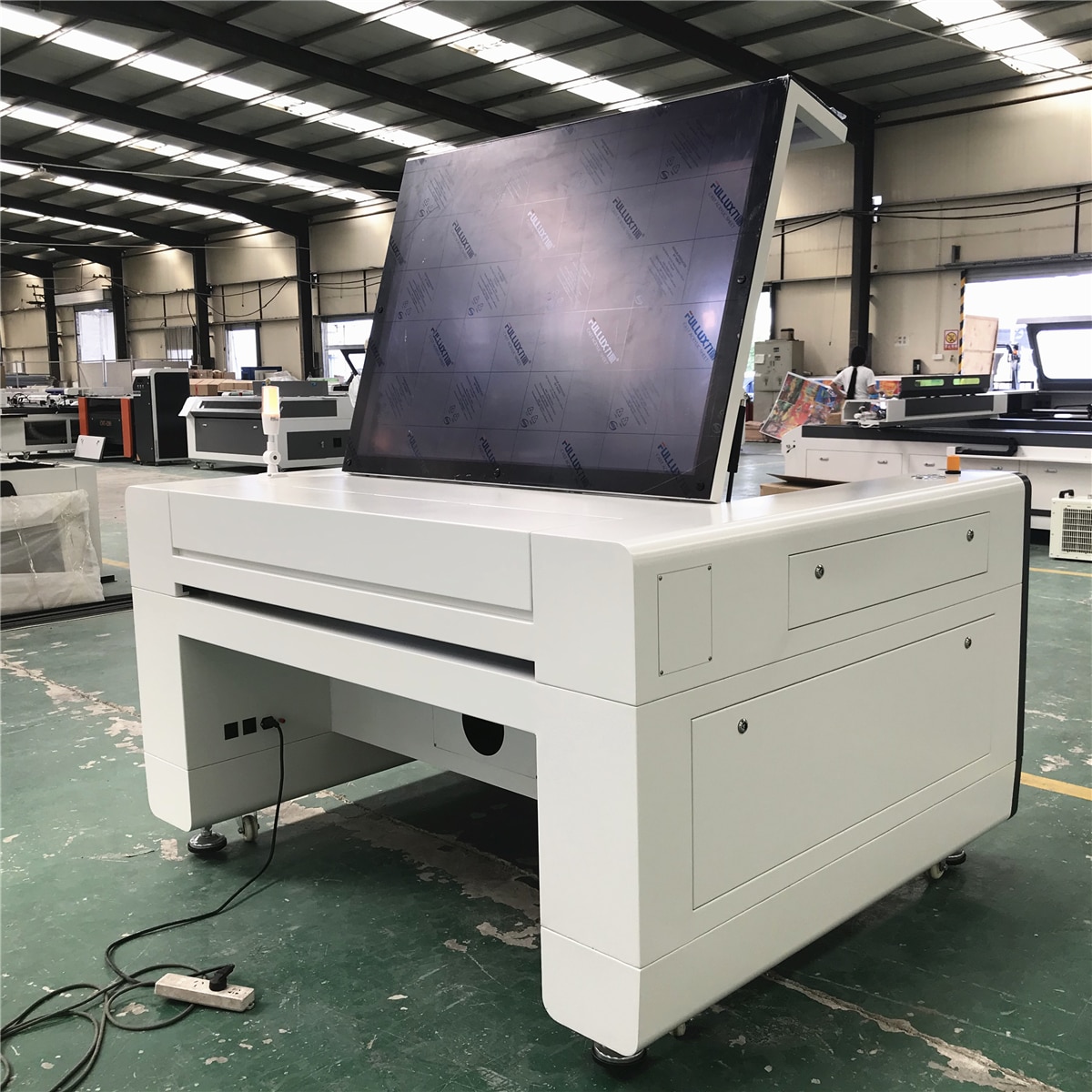

The Best Price 1300*900cm Co2 Laser Engraving And Cutting Machine 100W 130W USB Port RECI Laser Tube Used For Acrylic Wood
laser engraving machine machine description:
Item / Model |
RTJ-1390I laser engraving/cutting machine |
Cutting area |
1300 x 900mm |
Laser power |
80W/100w/150w/180w |
Laser type |
CO2 sealed laser tube,water-cooled,10.6um |
Engraving speed |
0-60000mm/min |
Cutting speed |
0-40000mm/min |
Laser Output |
1-100%software setting |
Resetting positioning accuracy |
≤±0.01mm |
Power supply |
220V/50HZ (Optional 110V/60HZ) |
Operating temperature |
0 – 45°C |
Operating humidity |
5 – 95% |
Min. shaping character |
English 1.0 x 1.0mm |
Graphic format supported |
BMP, PLT, DST, DXF, AI |
Software supported |
TAJIMA, CorelDraw, Photoshop, AutoCAD |
Driving system |
stepper motor |
Cooling mode |
Water-cooling and protection system |
Equipment Dimensions |
1990x1400x1470mm |
Net Weight: |
550kg |
Shipping Dimensions |
2090 x 1500 x 1570mm |
Optional Spare Parts |
Up-down clump, Rotary System, Honeycomb table |
Recommended Spare Parts |
Laser Tube and Lens |

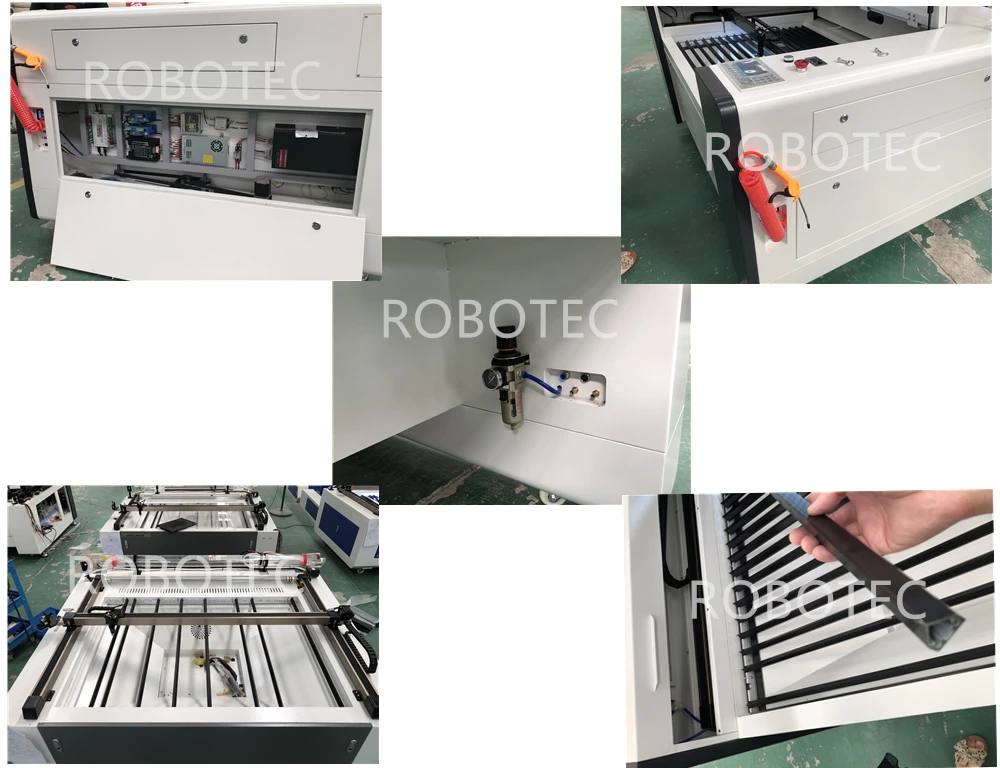

>> Laser cutting engraving machine features:
1.3mm Cold-rolled steel welded machine bed, strong and running stable.
2. Aluminium blade table: to process hard materials like acrylic, wood and so on.
3.Fireproof window,more security.
4.CO2 Glass sealed laser tube China famous brand (EFR, Reci, WG), good beam mode stability, service timeover 8500~10000 working hours.
5. Laser Power40W~180W, good quality and stable output to prolong the laser tube service time.
6.Singapore imported lens and mirrors. High transmittance, good focusing, reflecting effect.
7.Ruida or Leetro ControllerUSB interface, support online/offline working, English language system, adjustable cutting speed and power.
8. High accuracy stepper motors and drivers. Belt transmission.
9. TiwanHiwin Linear square guide rails, higher precision.
10. Laser engraving and cutting or Lasercut 8.0 software, user’s manual.
11. Tool box: A set of wrenches, lens cleaning paper, a pack of screws, a spare limit switch, a lens removaltool, manual, CD, U disk, a focal length of stick.
12.Open style, the front and back of the machine is open which is possible for longer material, breakthroughthe limit of the workpiece length.

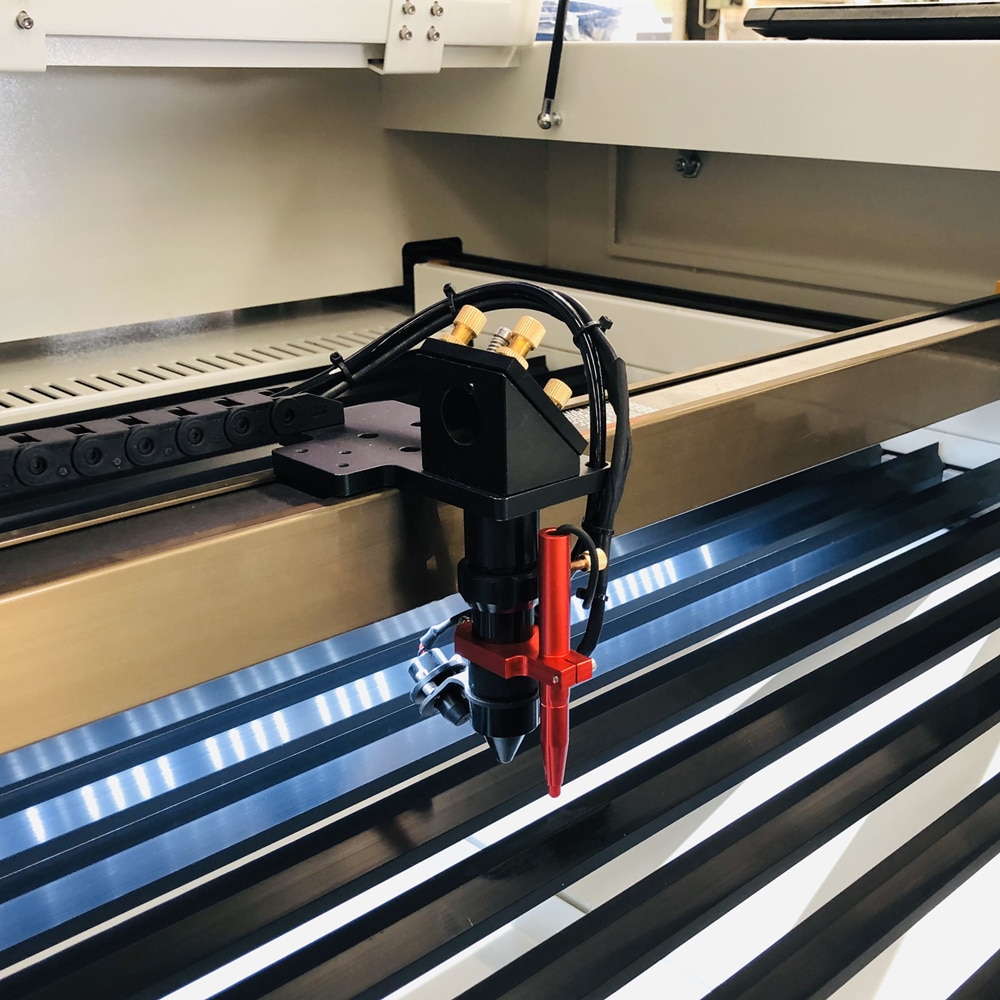

>> Laser cutting machine parts:
>>Laser Cutting Engraving Machine Option Parts:
>>Laser Cutting Engraving Machine Applicable Material:
Non-metal materials such as fabrics, label, rubber, marble, granite, tiles, paper boards, leather,
embroidery, acrylic, glass, plastic, MDF, wooden plates and paper ware etc.
>>Laser Cutting Engraving Machine Applicable Industry:
Advertising, Embroidery, garments, shoemaking, label processing, arts and crafts, etc.
1) Machine has been adjusted before delivery.
2) English software, user manual and detailed installation & training Videos DVD
3) Warranty period: one year on parts from date of shipping date, 3 additional years on free repair. Life-time technical support.
4) Machine spare parts and repair service is offered in lifetime.
5) Free training is offered in the plant and free samples are available.
6) 24 hours technical support by e-mail, calling or door-to-door service.
7) Professional cnc router machine supplier with 10 years experiences.
8) International quality certificate: CE, ISO9001
For offer the most suitable machine with favorable price, would you confirm below questions:
1) What is your reuqested max working area, X:___mm, Y:___mm?
2) What mainly job you do ? Only engrave, cut or both ?
3) What kind are your materials, metal or non-metal, what are they?
