Description

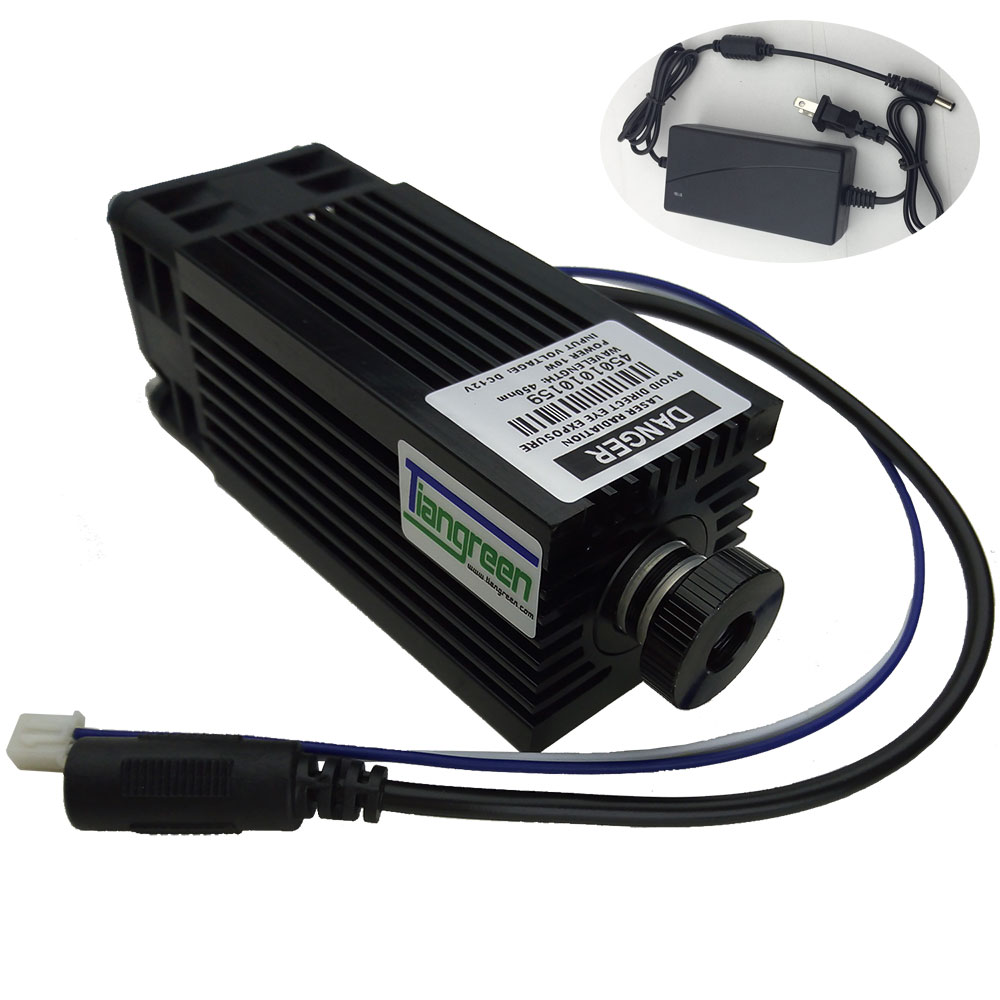

tgleiser high power 10w blue laser diode engraver machine 450nm 10000mw TTL DIY laser tube free power supply

Features

1. DC 12V input voltage

2. Bigger multilayer glass lens

3. Easy to adjust the focus

4. Support TTL modulation

5. The minimum focus is less than 0.2mm

6. Focus range from 15mm to 50mm

7. With M3 screw holes, easy to install



Specifications

Wavelength: 445nm-450nm

Power: Pulse 10W, Average 5-6W

Focusable: Yes

Beam diameter at exit: ≤ 5mm

Working current: < 4A

Working Voltage: DC 12V

Operating temperature: -15 degrees to 45 degrees

Focus diameter: ≤Φ0.12 (mm)

Operation mode: TTL modulation

TTL Frequency: 0-20KHz

Module Size: 99mm+(7-13mm Lens) x 40mm x 40mm (LxWxH)

Material: hard aluminum + brass

Finish: Black anodized + sandblasting

Cooling method: Fan cooling

Can be carved materials: stainless steel, iron, aluminum, ceramics, stone, wood, bamboo, leather, plastics, etc(and depends on material color, transparency, reflectivity, thermal conductivity, etc.)



Package include: 1X laser module

                             1X power supply
