TFmini TF Mini-Plus Lidar Laser Range Sensor Module TOF Distance Ranging Sensor Interface UART I2C IIC For Arduino Obstacle

$54.89

100 in stock

SKU: 1005004639041113 Category:

Description

  • Brand Name: BENEWAKE
  • Origin: Mainland China
TF mini Plus

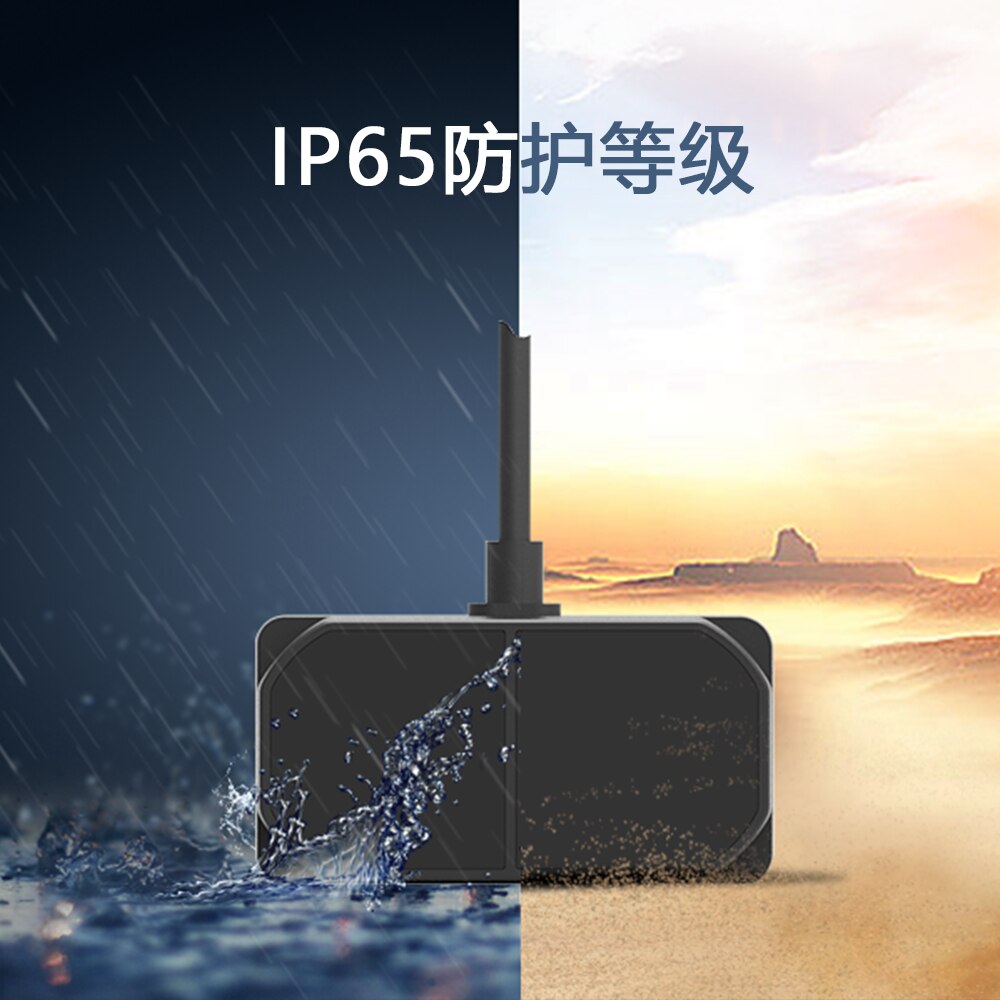

TFmini Plus is an upgraded product based on TFmini, based on the TOF (time of flight) principle, combined with unique optical, electrical, and algorithm design, mainly to achieve stable, accurate, high sensitivity and high-speed distance measurement functions. In addition to the low cost, small size, and low power consumption of TFmini, the product itself also adds IP65 protection, which is more adaptable to different environments such as strong outdoor light, different temperatures, and different reflectances.
Product parameters:
Accuracy: ±5cm@(0.1-6m)/±1% @ (6m-12m)
Measuring range: 0.1m ~ 12m
Distance resolution: 5mm
Frame rate: 1-1000Hz (adjustable)
Ambient light resistance: 70klux
Working temperature: -20 ℃ ~ 60 ℃
Protection level: IP65
Light source: LED
Center wavelength: 850nm
Signal receiving angle: 3.6 °
Input voltage: 5V ± 0.5V
Average current: ≤110mA
Power consumption: 550mW
Peak current: 500mA
Communication level: LVTTL (3.3V)
Shell material: ABS + PC
Storage temperature: -20 ℃ ~ 75 ℃
