TFmini-S / TFmini Plus / TF-luna/ TF02-Pro Laser Lidar Range Finder Sensor TOF Module Single Point Micro Ranging

$27.39$344.51

SKU: 32852024277 Category:

Description

  • Origin: Mainland China
  • Model Number: TF0001 TF0004 FZ3065 FZ3385
  • Item: TF-Luna / TFmini-S / TFmini Plus / TF02 Pro
  • Operating Range of TF-luna: 0.2~8m
  • Operating Range of TFmini-S: 0.1-12m
  • Operating Range of TFmini Plus: 0.1m~12m
  • Operating Range of TF02: 0.4-22m
  • Operating Range of TF02-Pro: 0.1-40m
RCmall TFmini/TF02 / TF-luna Lidar Range Finder Sensor Module Single Point Ranging for Arduino Pixhawk Drone

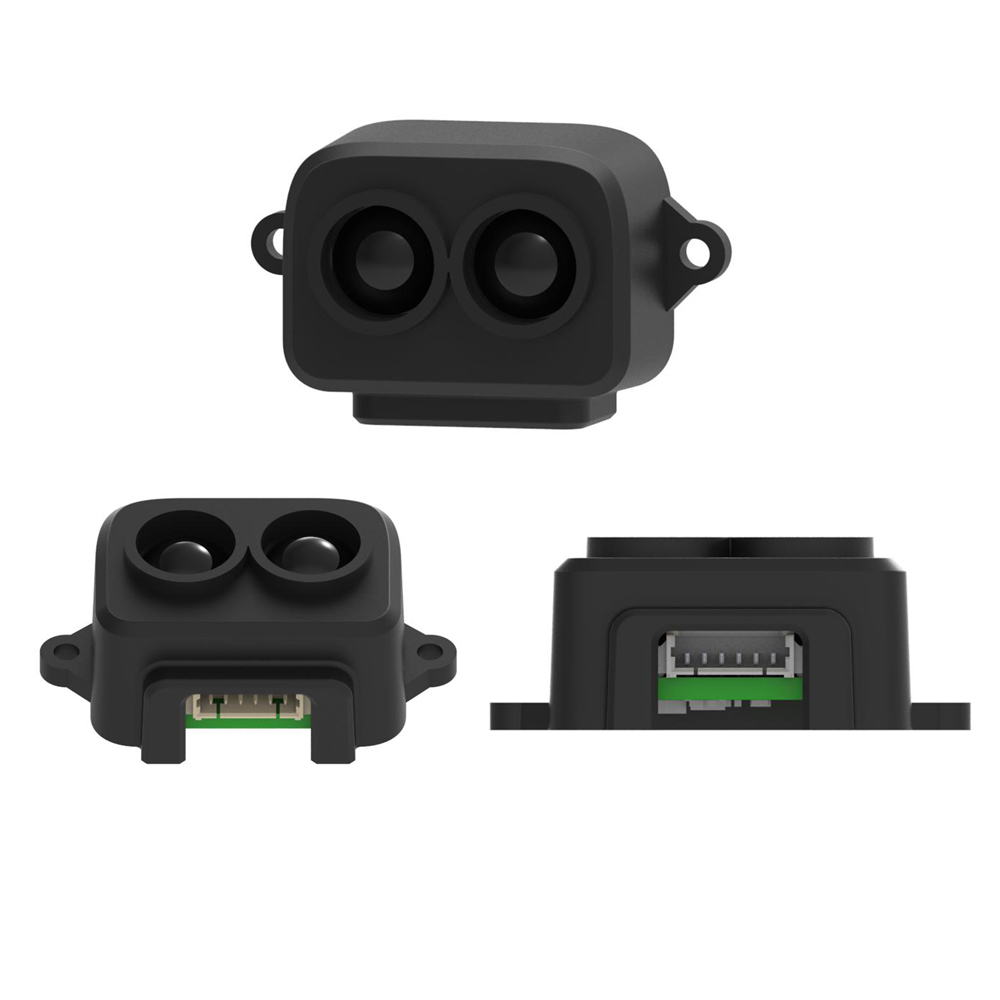

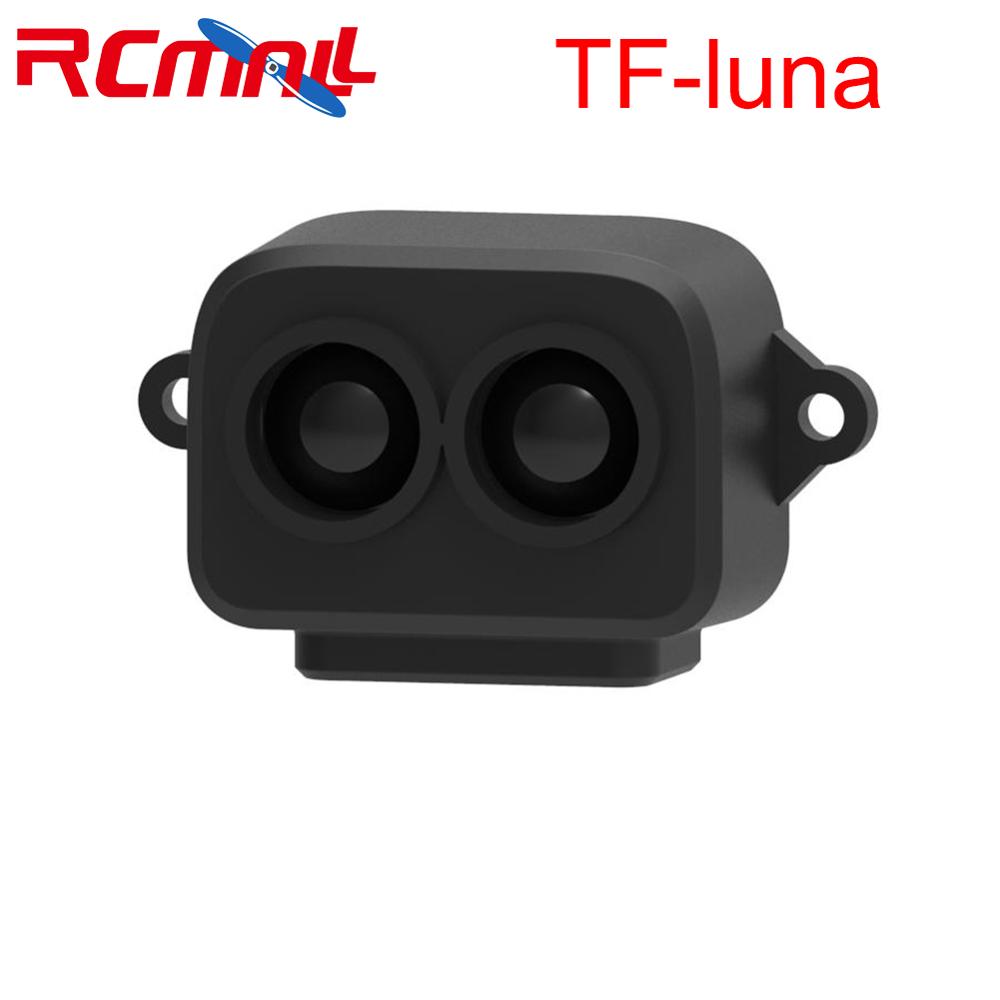

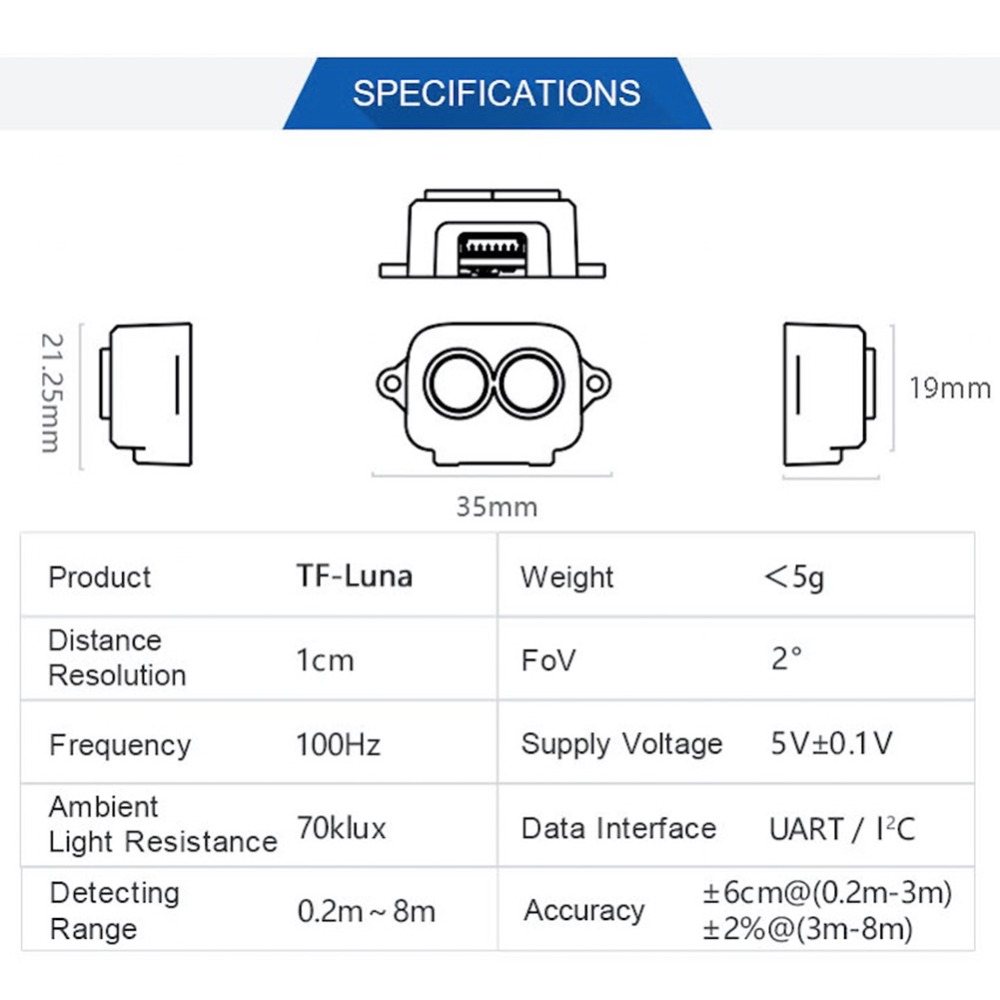

Description of TF-Luna

Description:
Operating range: 0.2m~8m1
Accuracy: ±6cm@(0.2-3m), ±2%@(3m-8m)
Measurement unit:cm
Range resolution: 1cm
FOV: 2°3
Frame rate: 1~250Hz( adjustable )4
Supply voltage: 5V±0.1V
Average current: ≤70mA
Peak current: 150mA
Average power: 350mW
Communication level: LVTTL(3.3V)
Communication interface: UART/IIC
Default baud rate: 115200
Data bit: 8
Stop bit: 1
Parity check: None
Light source:VCSEL
Wavelength:850nm
Operating temperature : -20°C~75°C
Certification:CE,FCC,ROHS

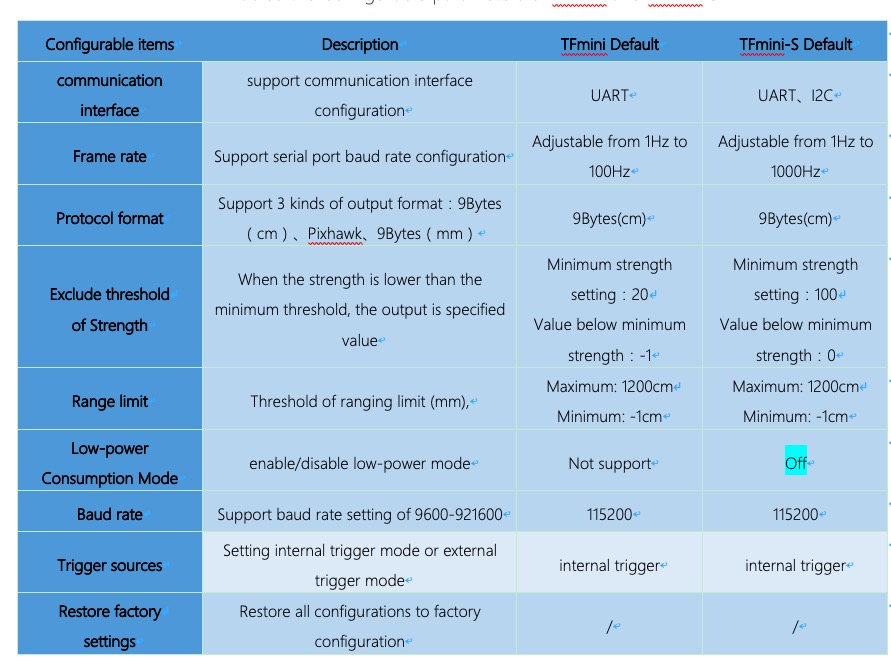

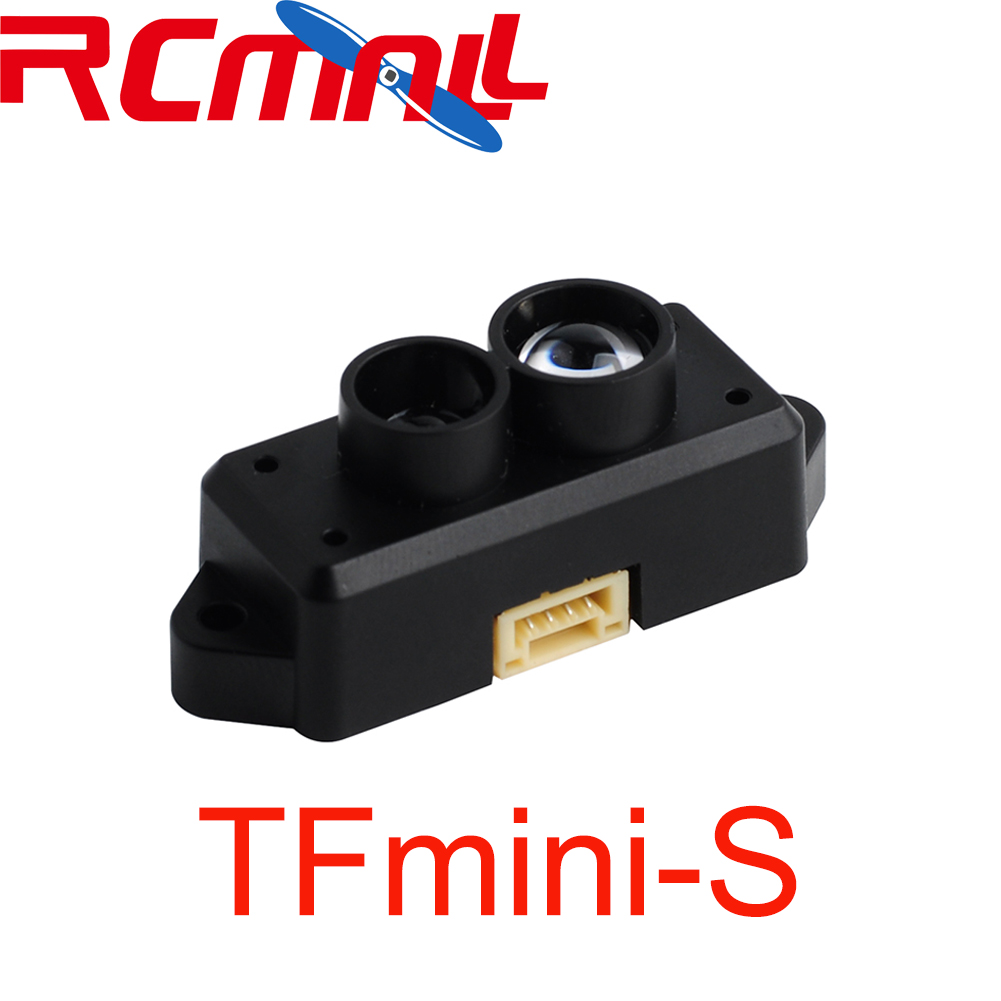

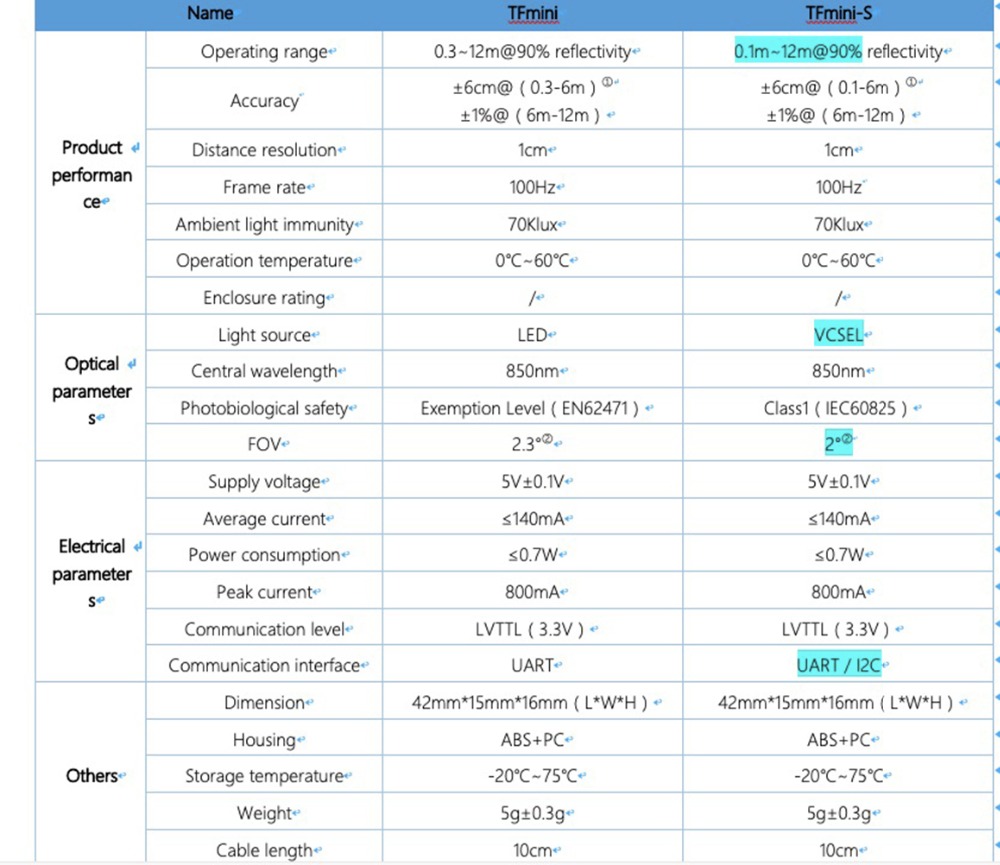

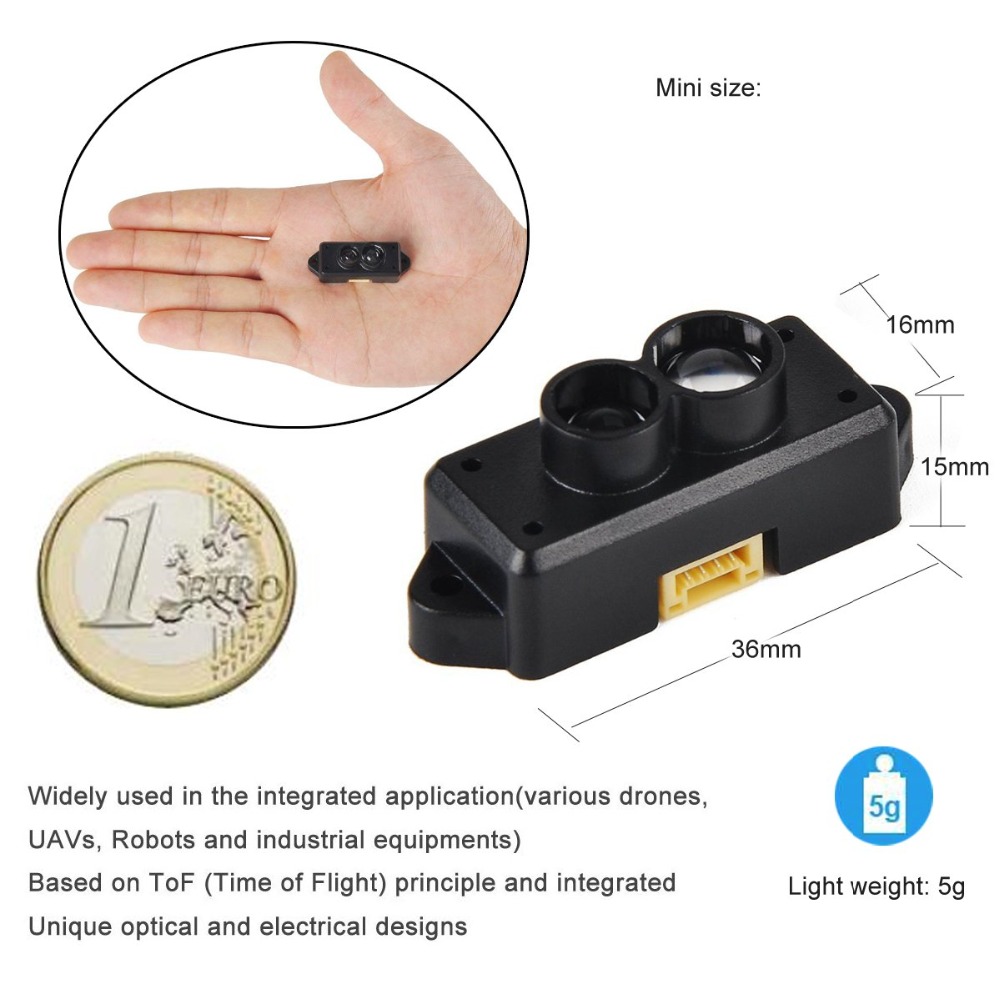

Description of TFmini -S


Specifications:
Operating Range : 0.1-12m
Maximum operating range at 10% reflectivity : 5m
Applicable voltage range : 4.5-6V
Average power consumption : 0.12W
FOV : 2°
Communication interface : UART/I2C
Electromagnetic Compatibility(EMC):EN 55032 Class B
Baud rate:115200
Data bit:8
Stop bit:1
Parity bit:0
Minimum resolution ratio : 5mm
Frequency: 100Hz(1-1000Hz adjustable)
Light source:VCSEL
Wavelength:850nm
Operating temperature : 20-60C
Light sensitivity : 70,000lux
Accuracy : 1% (less than 6m), 2% (6m-12m)
Size : 42mm * 15mm * 16mm
Weight : 6.1g
Certification:CE,FCC,ROHS
Major Applications:
Traffic Monitoring
Obstacle detection
Level measurement
Smart device
Security and obstacle avoidance
Drone altitude holding and terrain following
Machine control and safety sensors
Distance measuring instrument

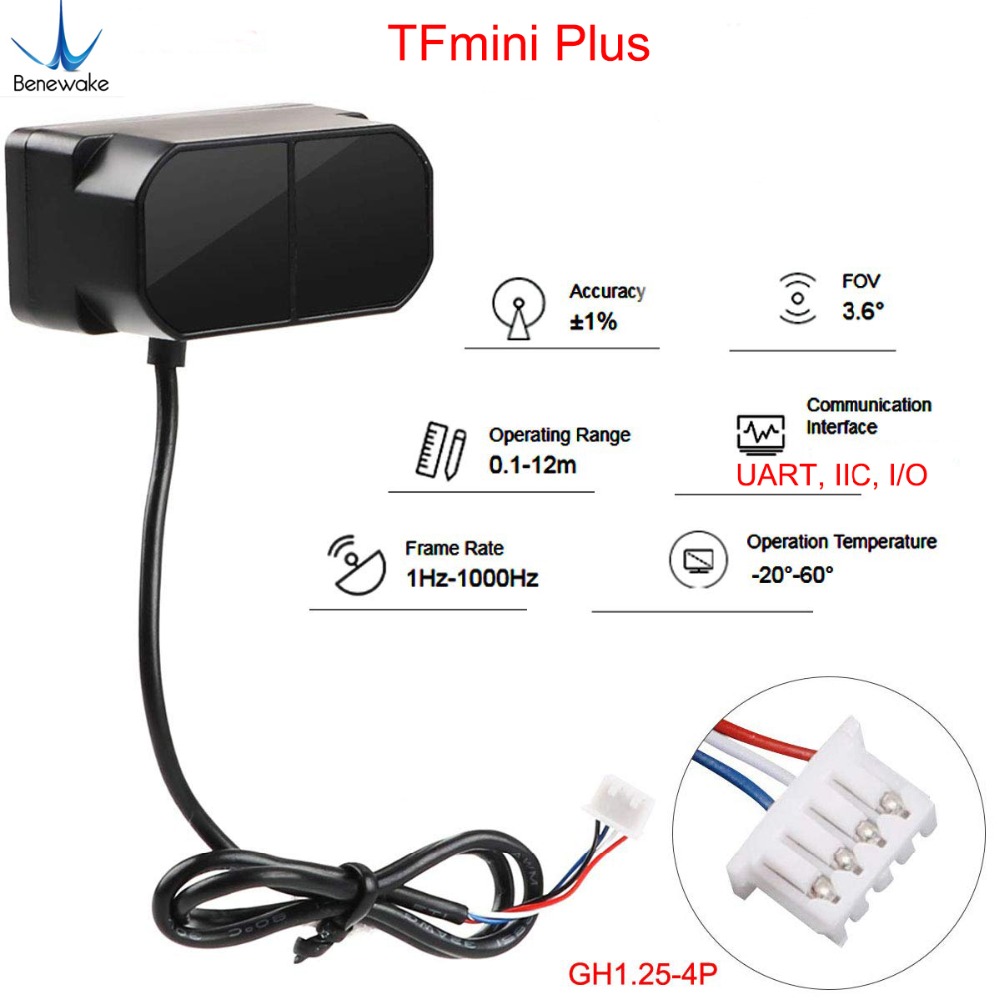

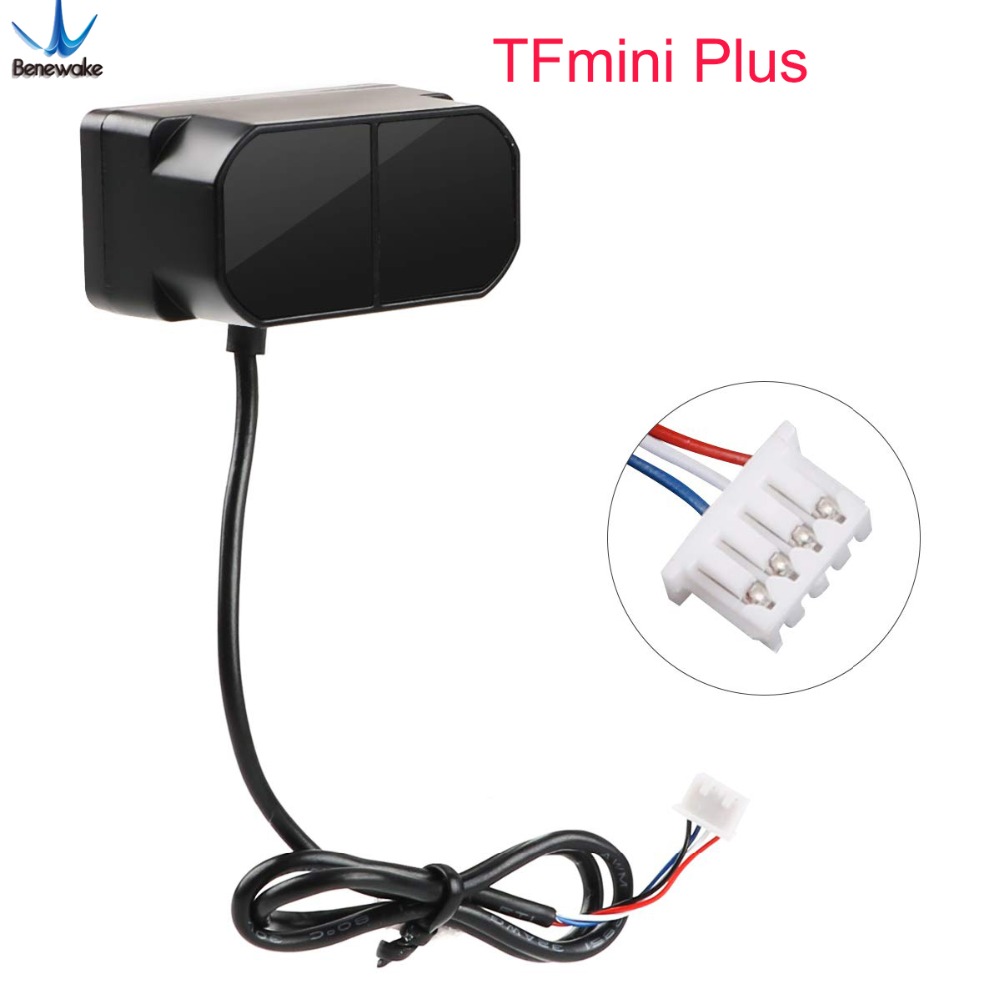

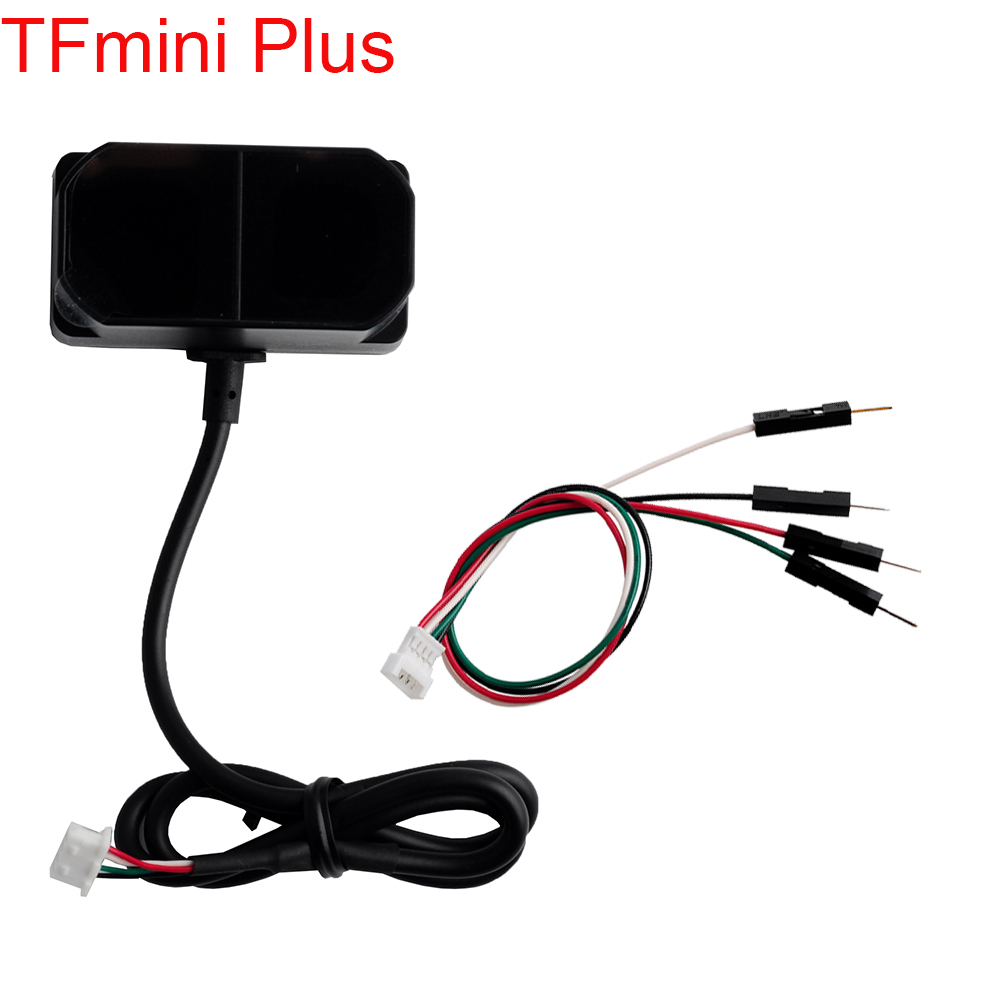

Description of TFmini Plus

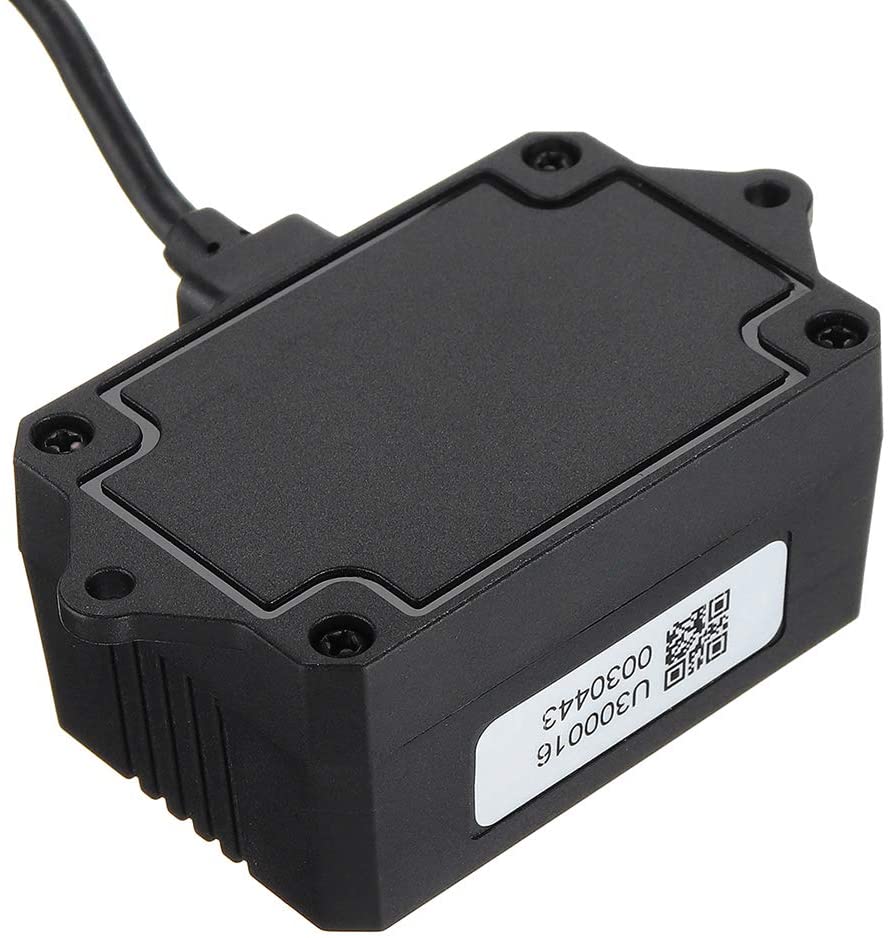

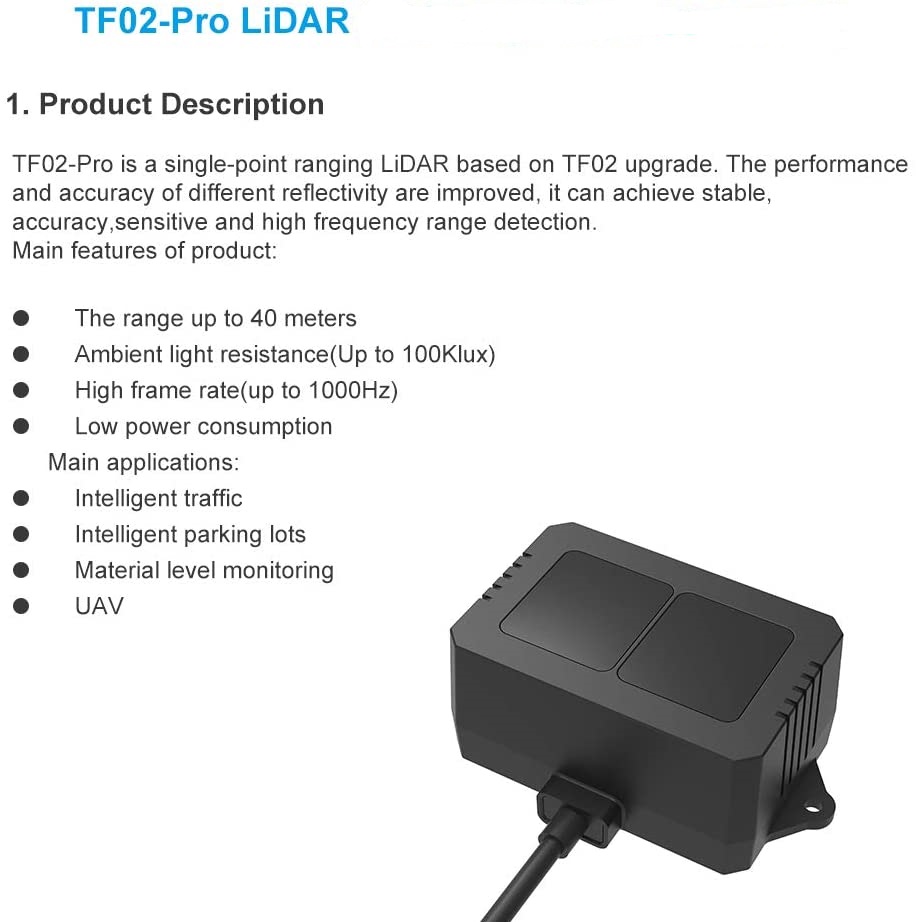

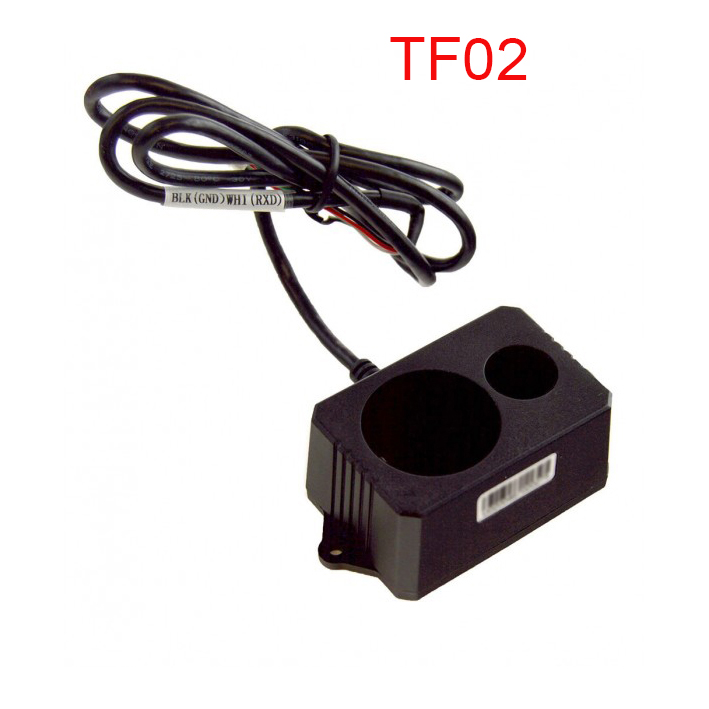

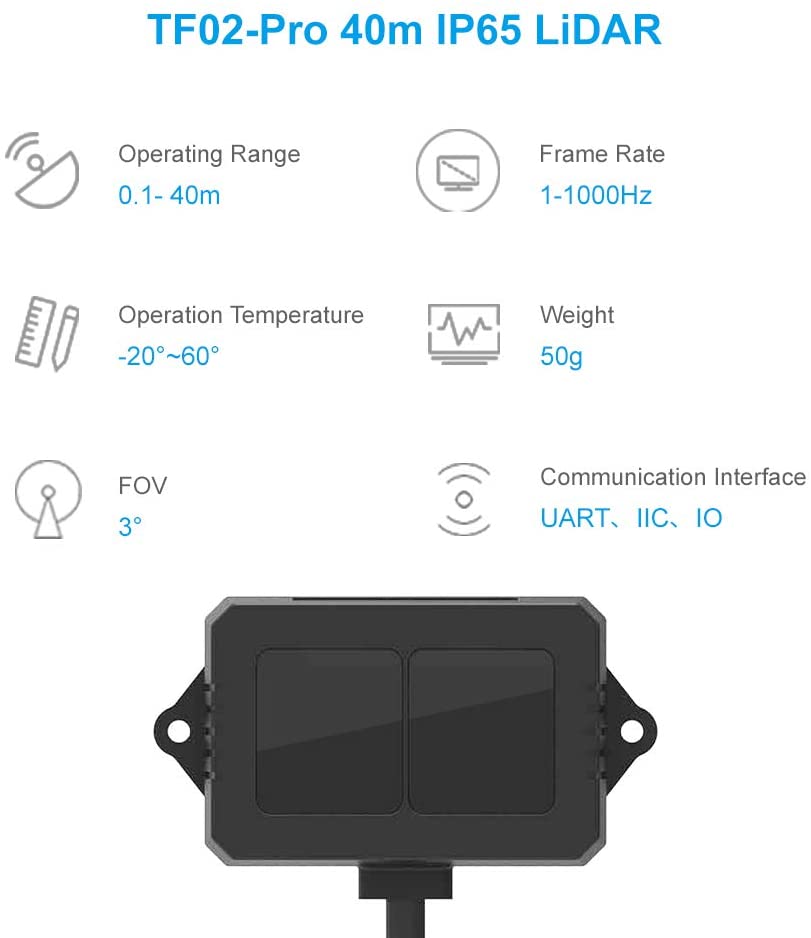

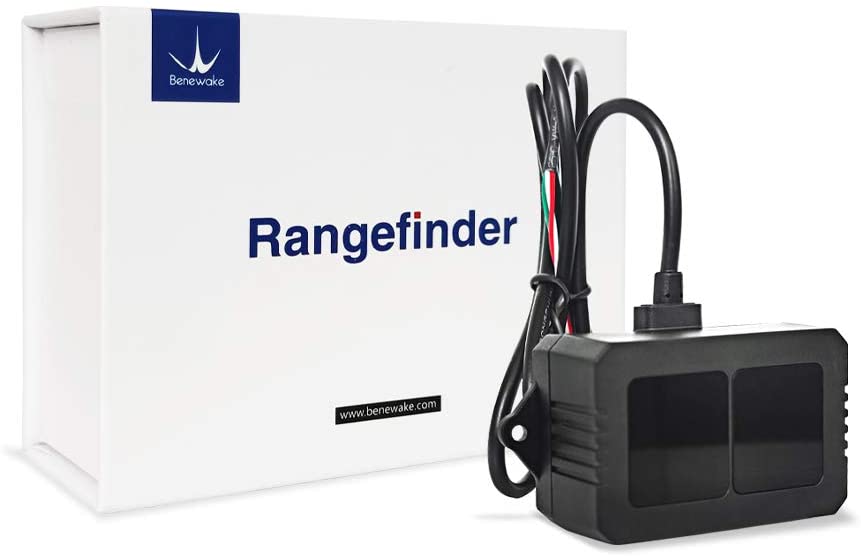

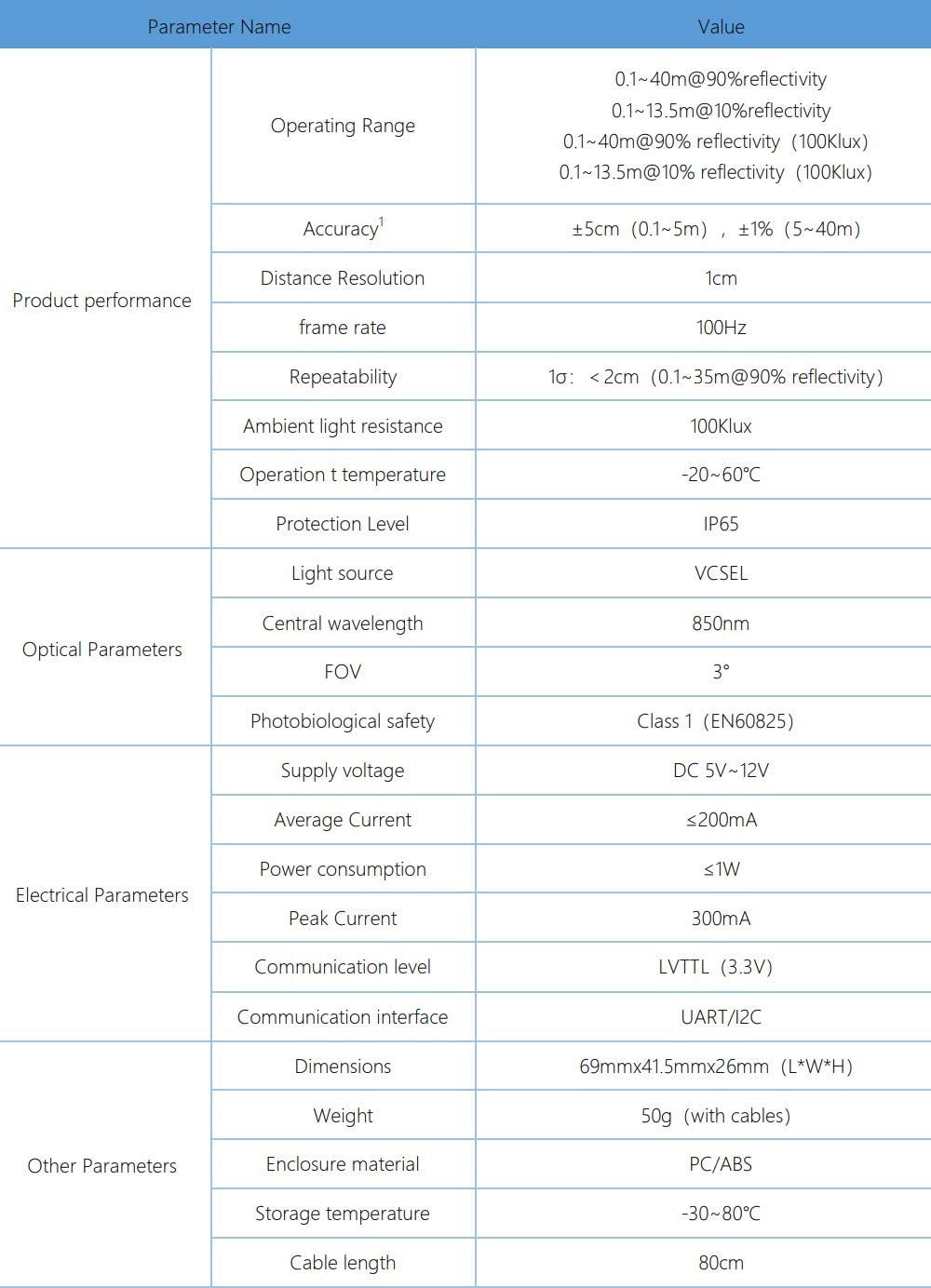

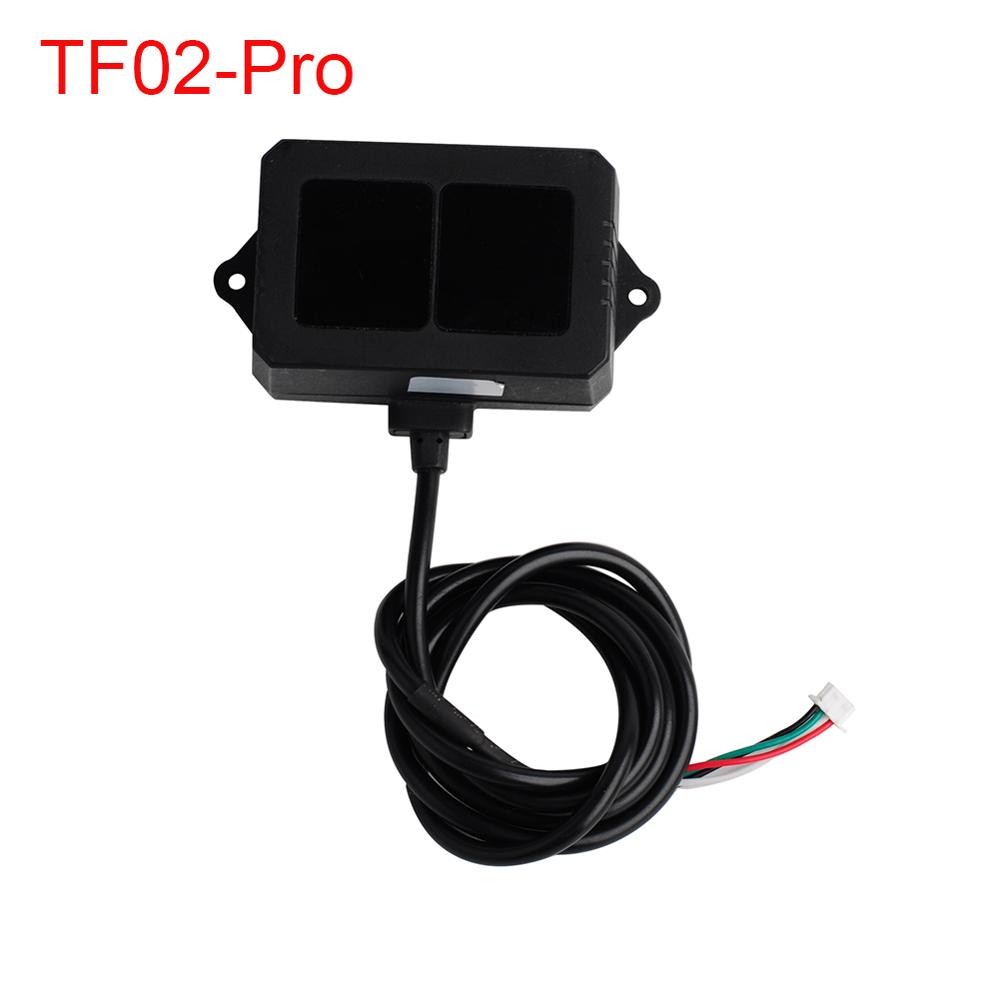

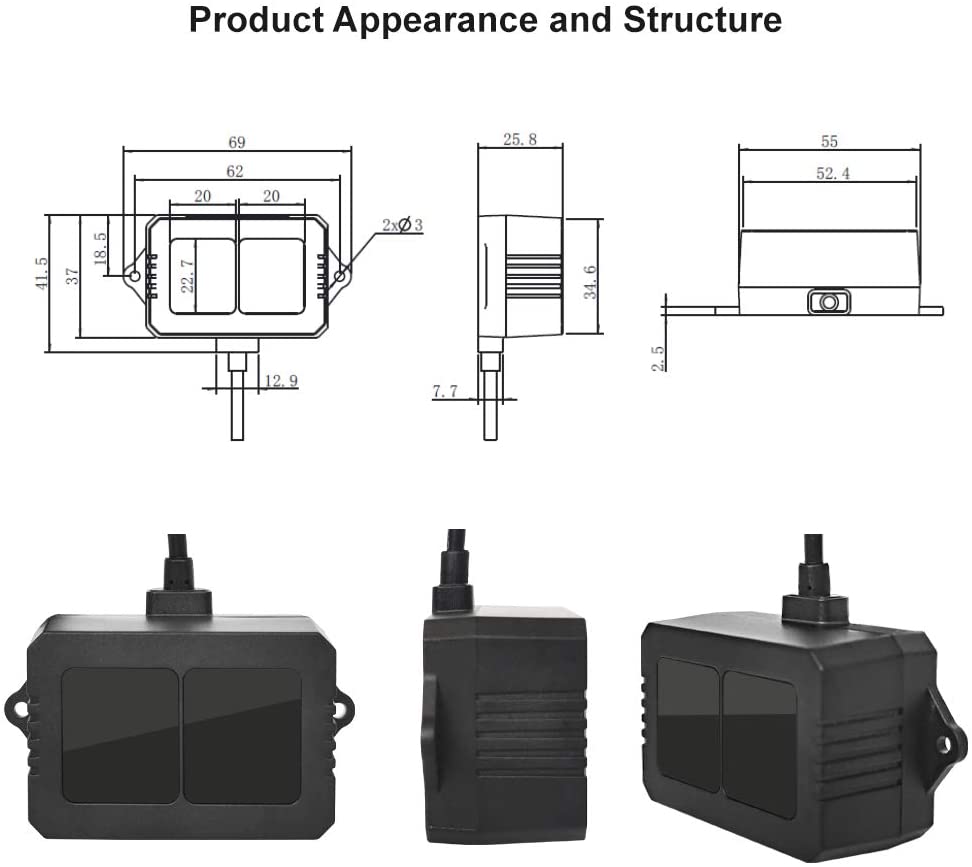

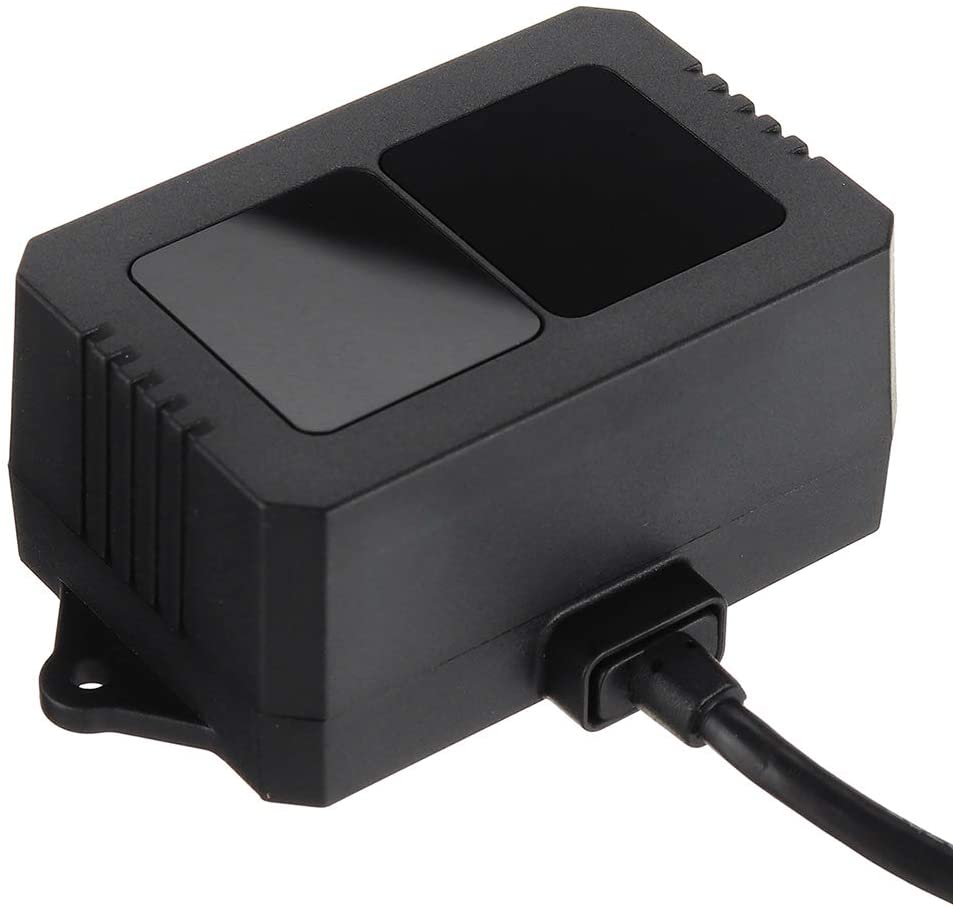

Description of TF02-PRO

TF02-Pro is the improve version of TF02, it is a newly developed product based on the widespread application
experience of TF01. It possesses a higher performance and is applicable to more fields. On the basis of preserving multiple advantages from the last generation,
TF02-Pro highly optimizes the energy system, product structure, fusion algorithm,
and shell material so as to achieve a 22-meter-long range and a more stable
ranging performance. Combining an innovative production process and multiple
software and hardware optimizations, Benewake upgrades LiDAR truly to a
consumer level and makes it applicable in numerous fields.

Feature:
High sensitivity, and able to measure as far as 22 meters
High speed measurement with a maximum sampling frequency of 100Hz
Excellent anti-ambient light usability (operable under 100kLux ambient light)
Protection grade reaches IP65
Anti-corrosive against pesticide
Small in size and light

Operating Range: 0.4-22m
Frequency: 1-10KHz
FOV : 3°
Communication interface: UART RS485 I2C



Maybe you will like

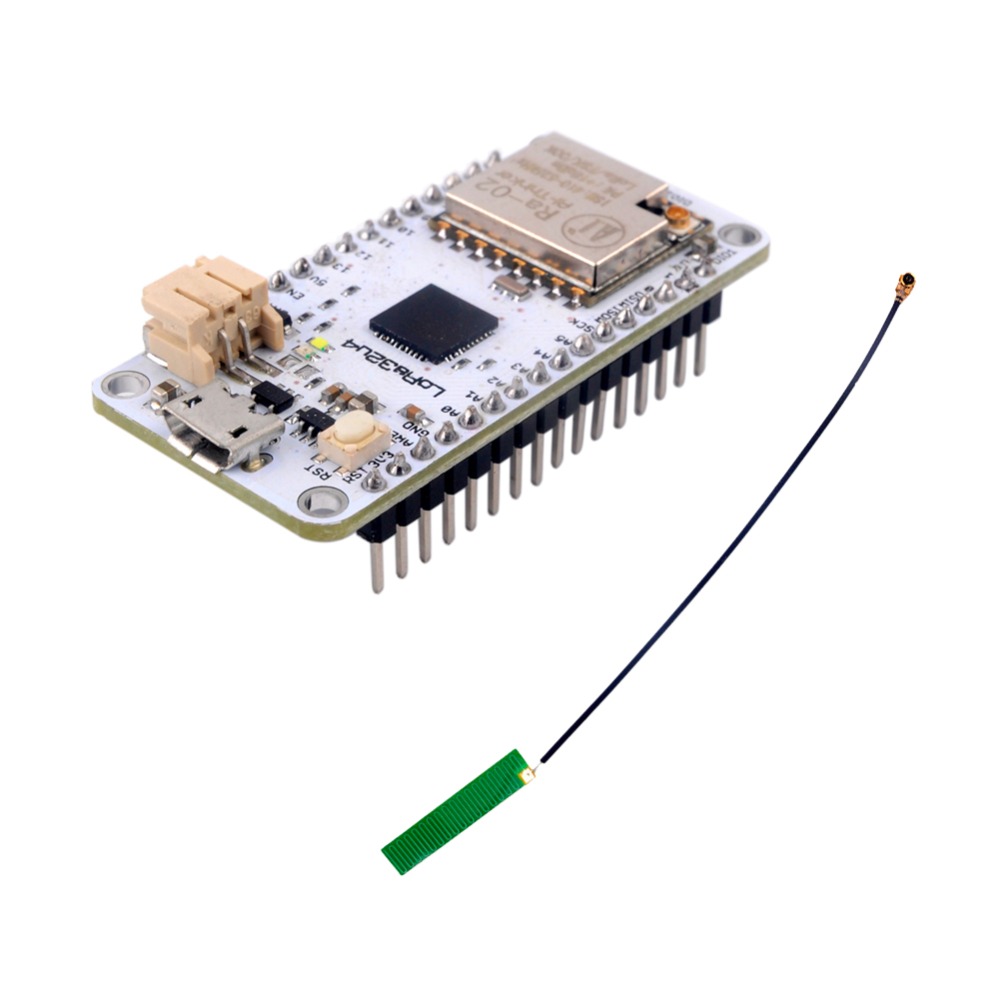

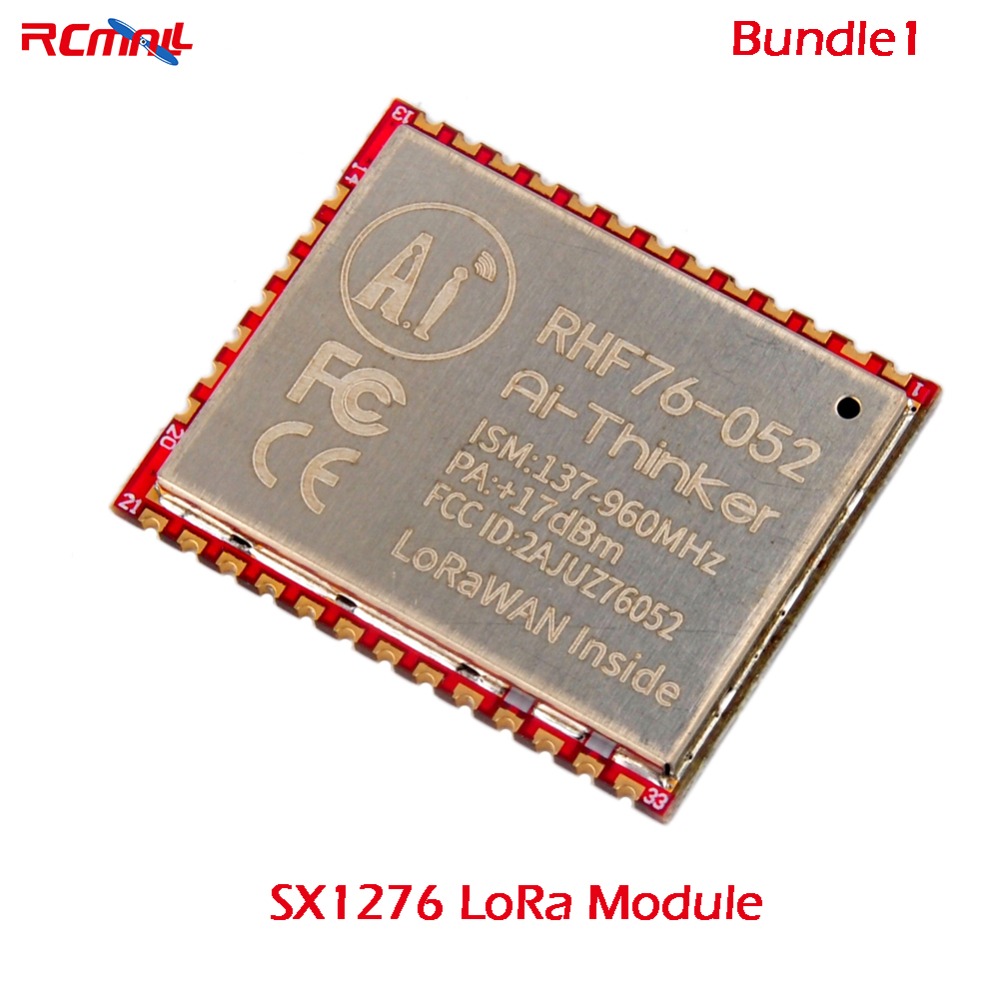

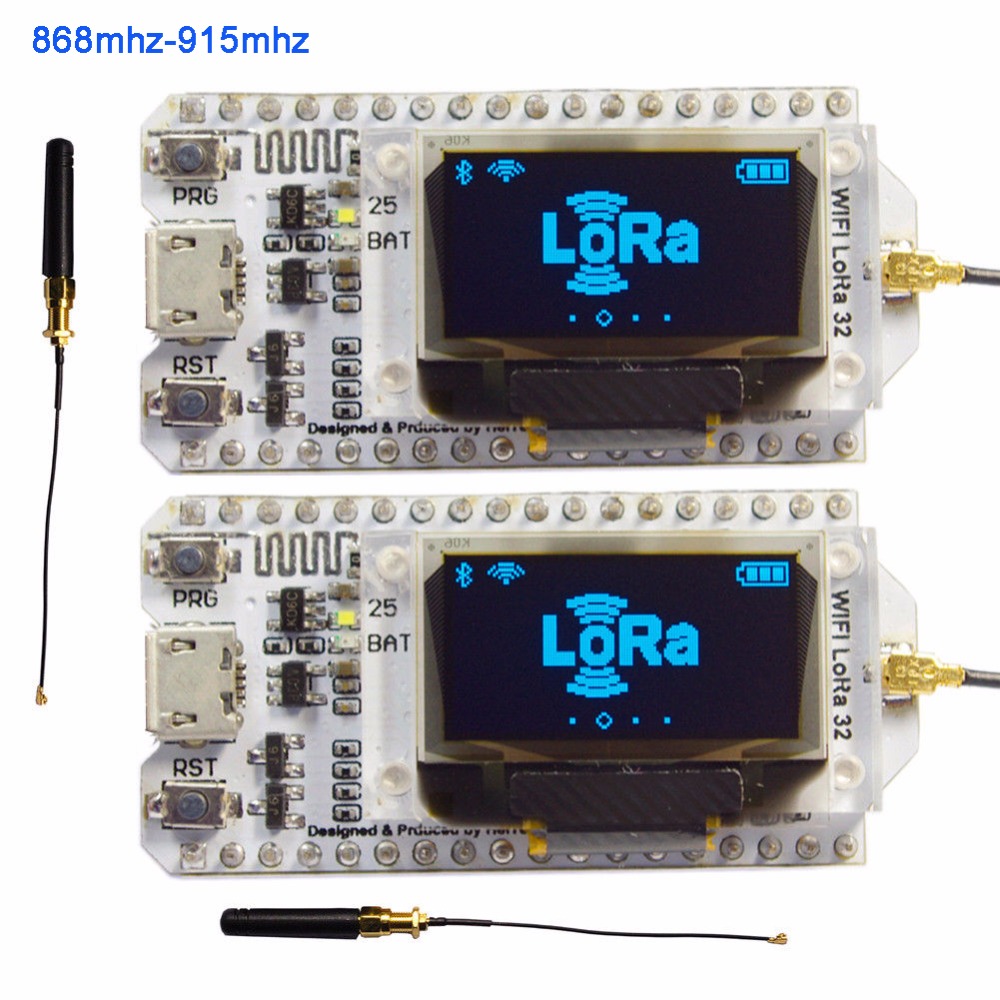

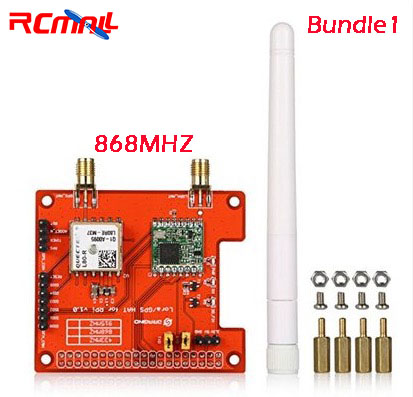

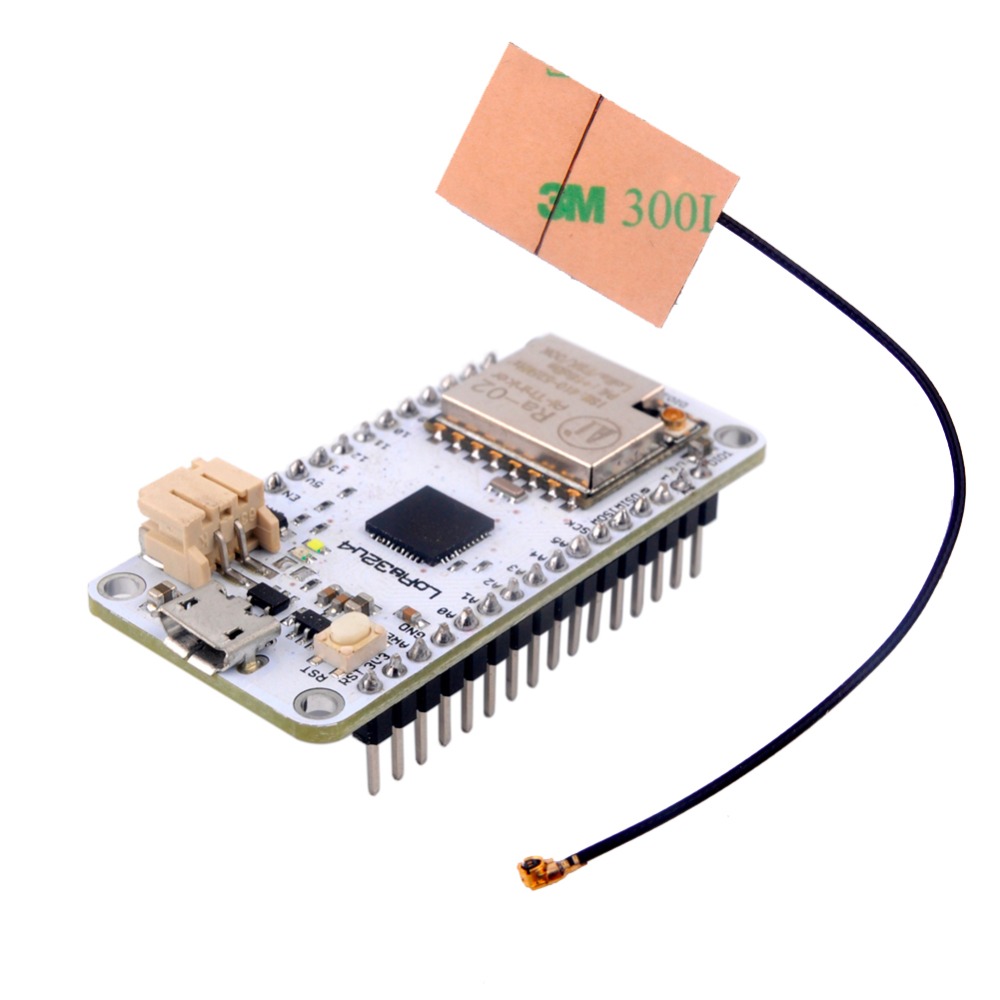

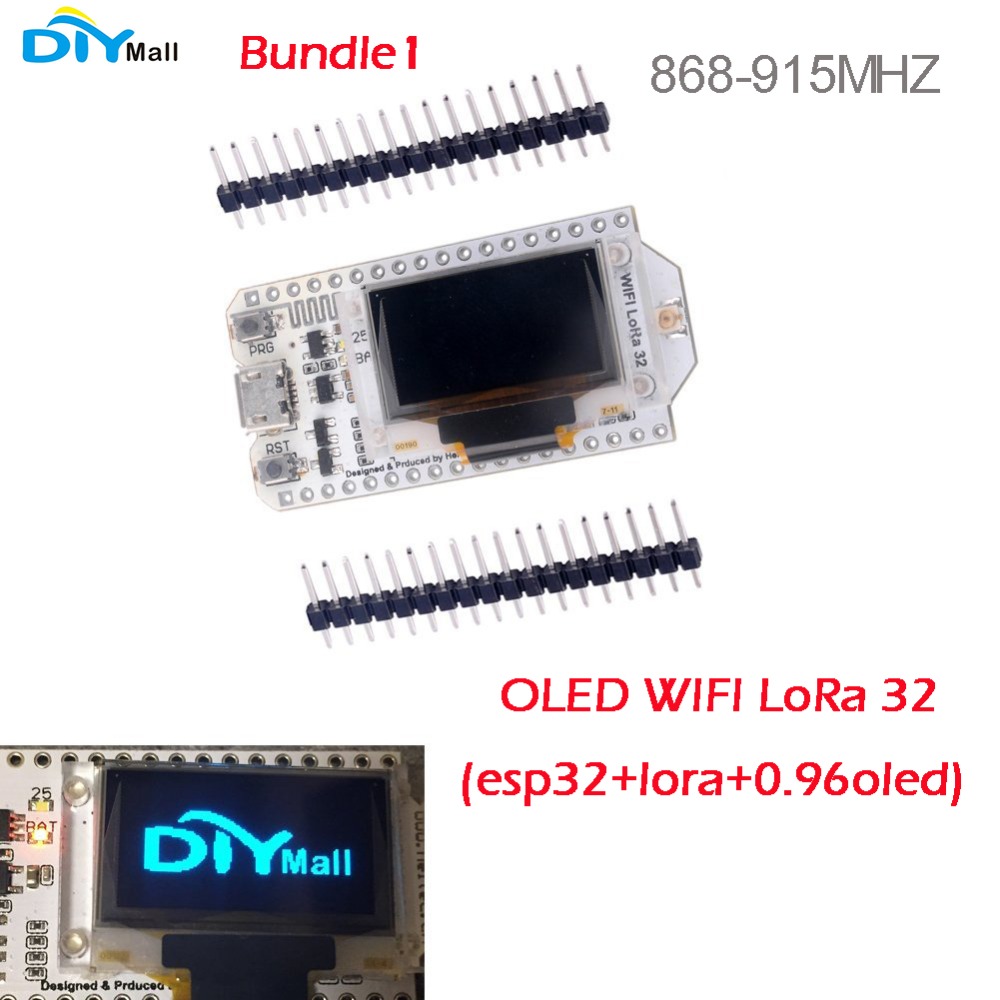

Lora Module
