TFmini-S 0.1-12m Mini Lidar Range Finder Sensor Module Long Range Electronic Component for Vehicle Inspection

  • Home
  • TFmini-S 0.1-12m Mini Lidar Range Finder Sensor Module Long Range Electronic Component for Vehicle Inspection
Sale!

TFmini-S 0.1-12m Mini Lidar Range Finder Sensor Module Long Range Electronic Component for Vehicle Inspection

$69.85

999 in stock

SKU: 1005003291709325 Category:

Description

  • Brand Name: VBESTLIFE
  • Origin: Mainland China
  • DIY Supplies: Metalworking
  • Certification: NONE
  • Model Number: Mini Lidar Module
  • Measuring Range: 0.1m~12m / 0.3~39.4ft
  • type: Lidar Sensor
  • product: Mini Lidar Module
  • Material: ABS PCB
  • Application: Pedestrian Detection
  • Power Consumption: 700mW
  • Feature 1: TFmini S Mini Lidar Module
  • Feature 2: TFmini S Module
  • Feature 3: Lidar Sensor Module
  • Feature 4: Obstacle Avoidance Sensor
  • Wholesale: Support

Mini Lidar Module Long Range Electronic Component for Vehicle Inspection TFmini‑S 0.1‑12m

Feature:

1. TFmini‑S is an upgrade project based on TFmini, a miniaturized single‑point ranging product, based on TOF (time of fly) principle
2. With unique optical, electrical, and algorithm design, mainly realizes the functions of stable, accurate, high‑sensitivity and high‑speed distance measurement
3. The radar module has the characteristics of low cost, small size, long distance measurement, etc., and the distance measurement accuracy is higher
4. More adaptable to different environments such as outdoor strong light, different temperature, different reflectivity, lower power consumption, and more flexible detection frequency
5. Compatible with UART and I2C communication interface at the same time, can be switched by instruction
6. Mainly used in pedestrian detection, vehicle detection, smart isolation doors and altimeters

Specification:

Item Type: Mini Lidar Module

Material: ABS, PCB
Main Application Scenarios: Pedestrian Detection, Vehicle Detection, Smart Isolation Door and Altimeter
Measuring Range: Approx. 0.1m~12m / 0.3~39.4ft
Accuracy: ±6cmat(0.1-6m)±1%at(6m-12m)
Default Distance Unit: Cm
Distance Resolution: 1Cm
Signal Receiving Angle: 2°
Output Frequency: 1~1000Hz (Adjustable)
Input Voltage: 5V±0.1V
Average Current: ≤140mA
LPK: 200mA
Power Consumption: 700mW
Communication Level: LVTTL (3.3V)

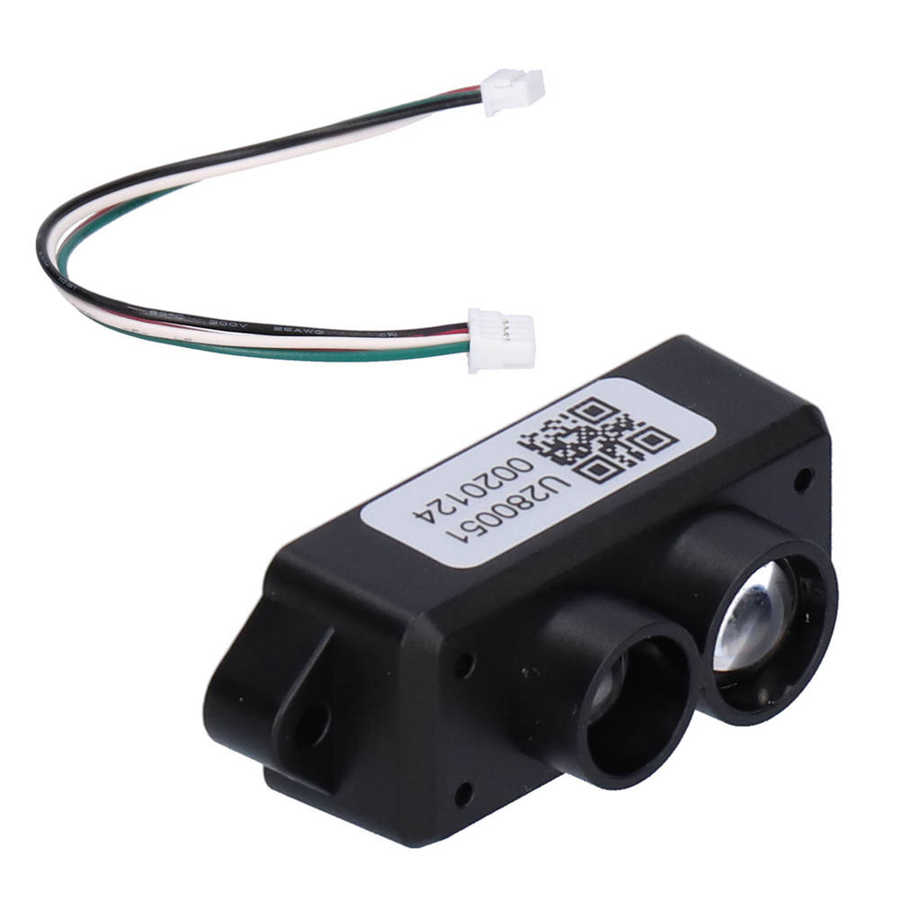

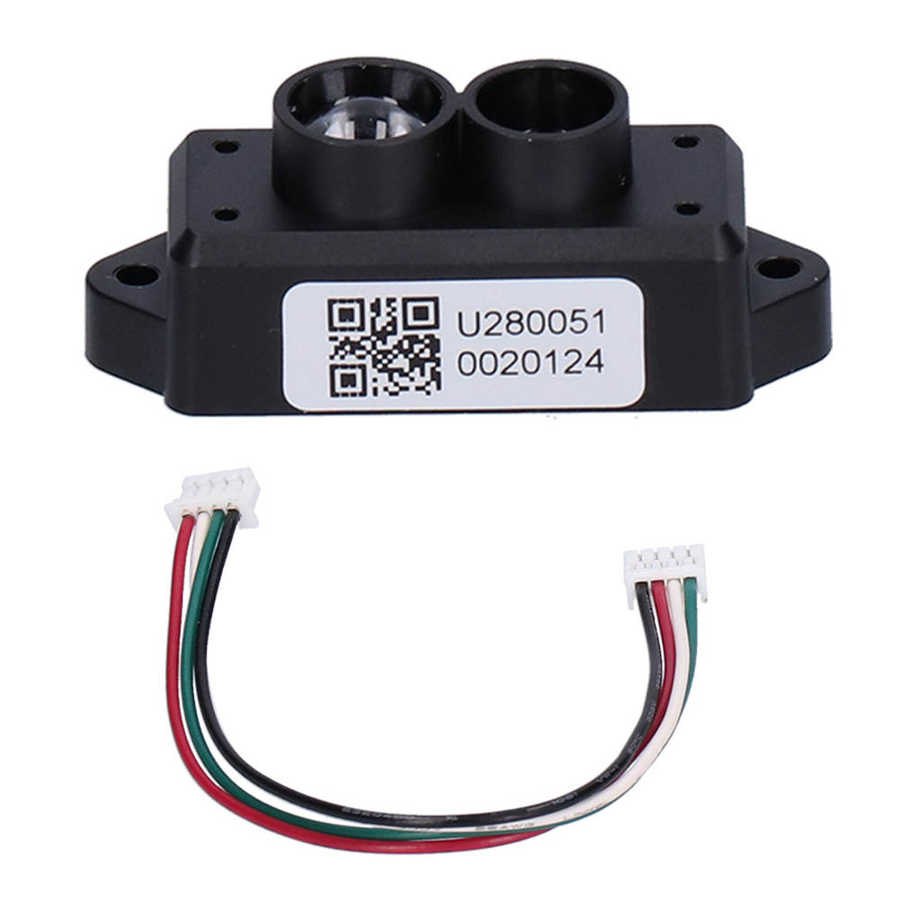

Package List:

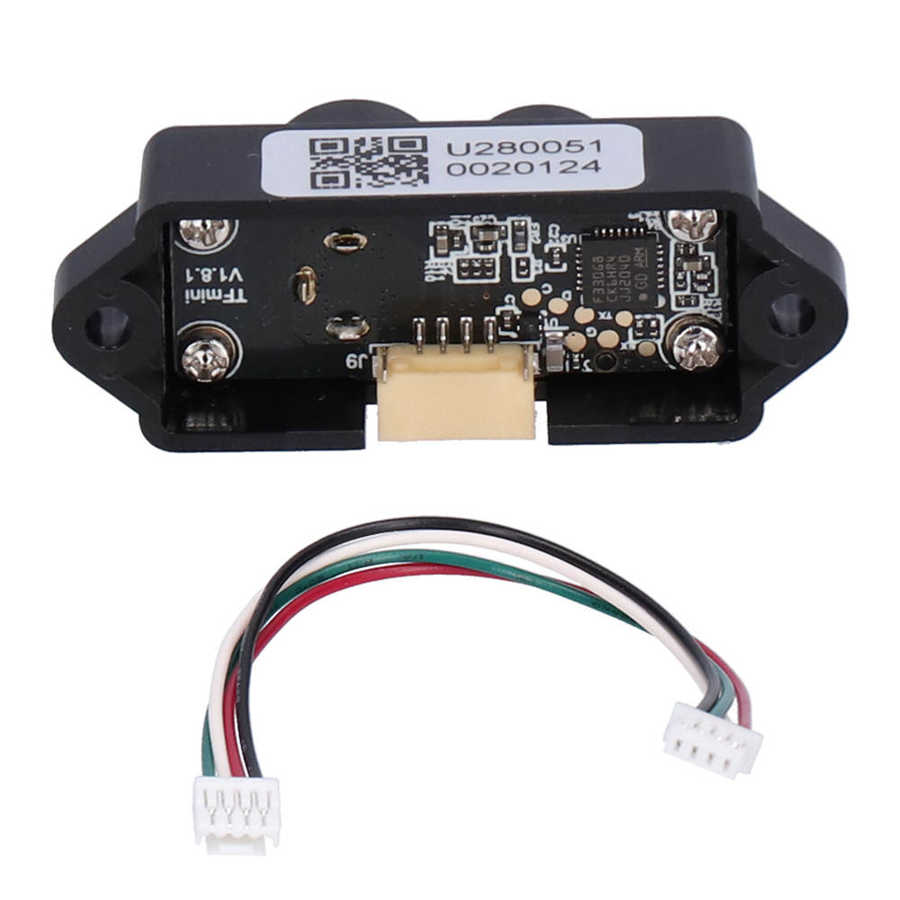

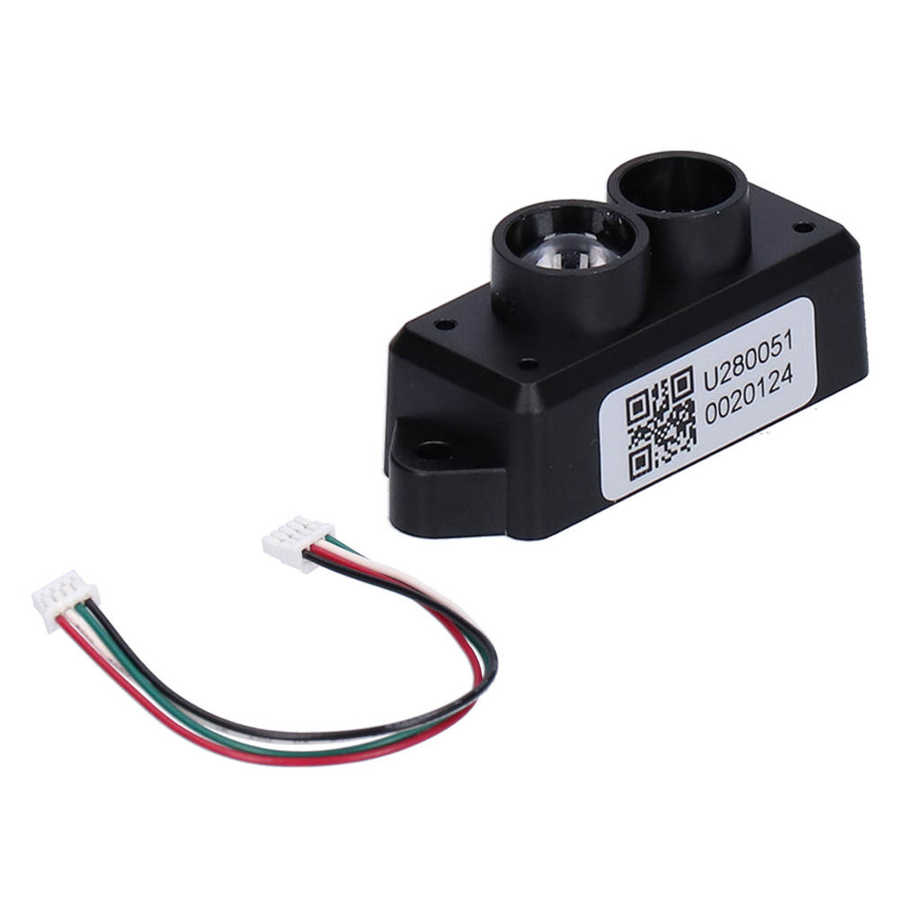

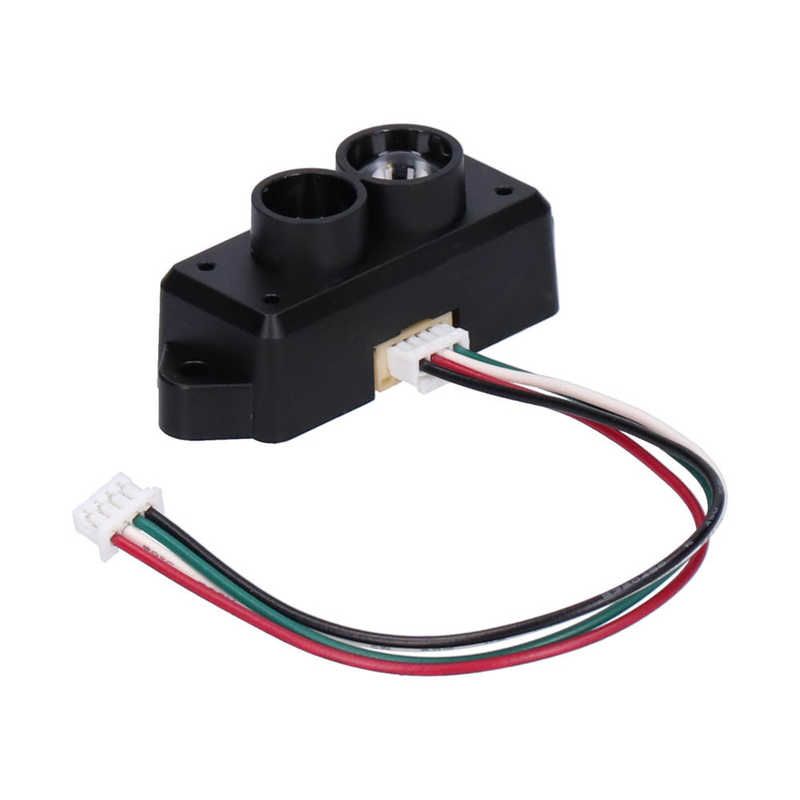

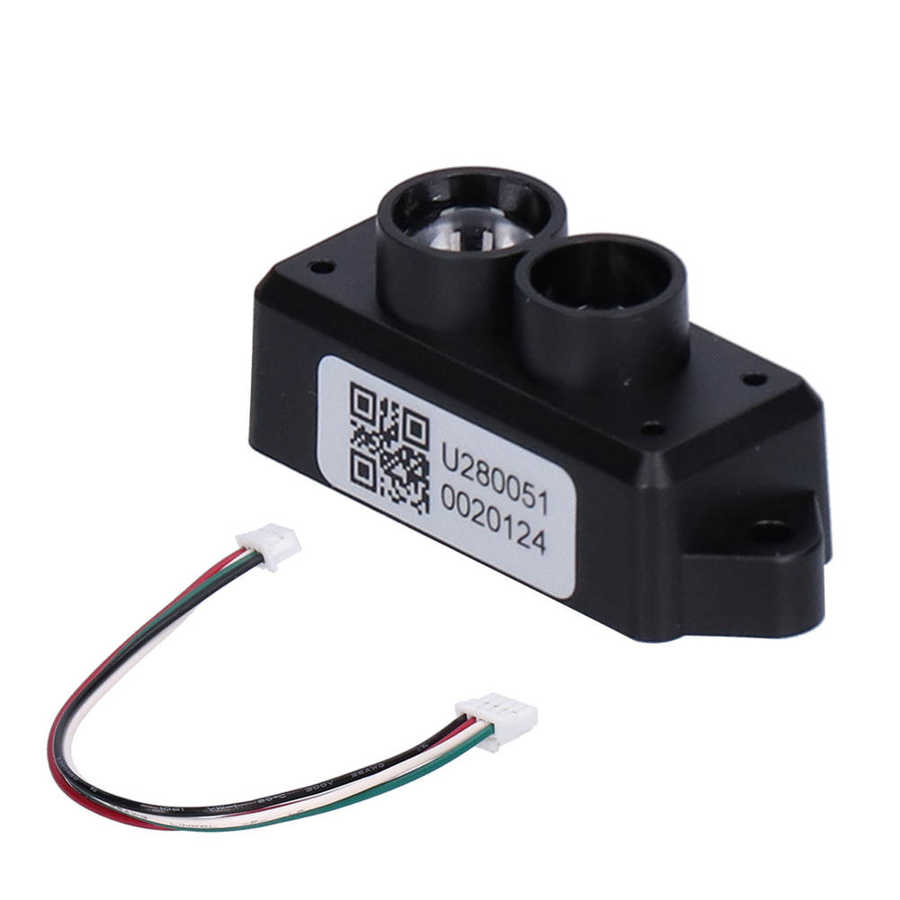

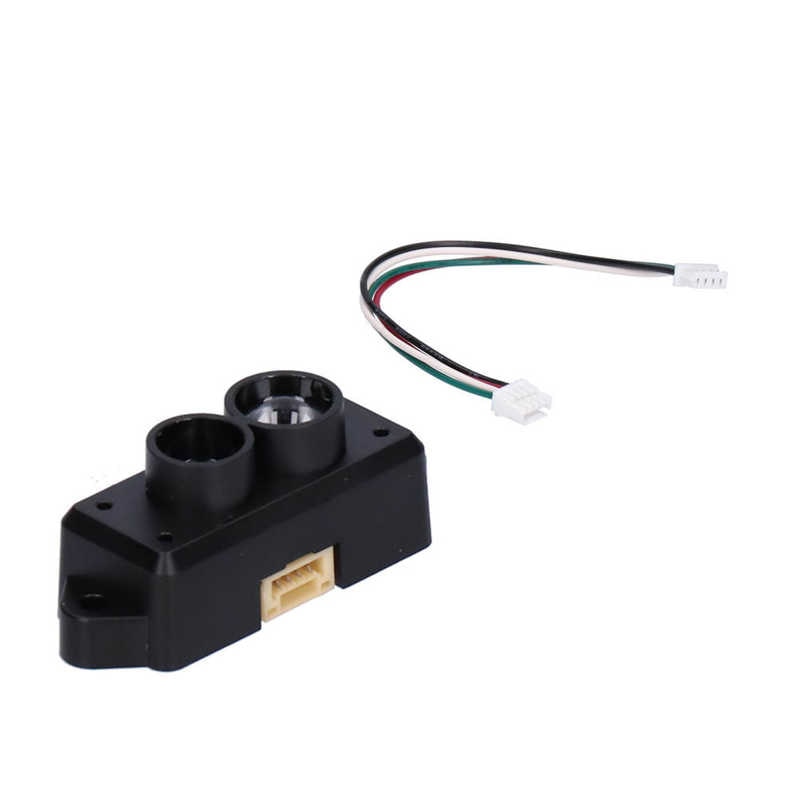

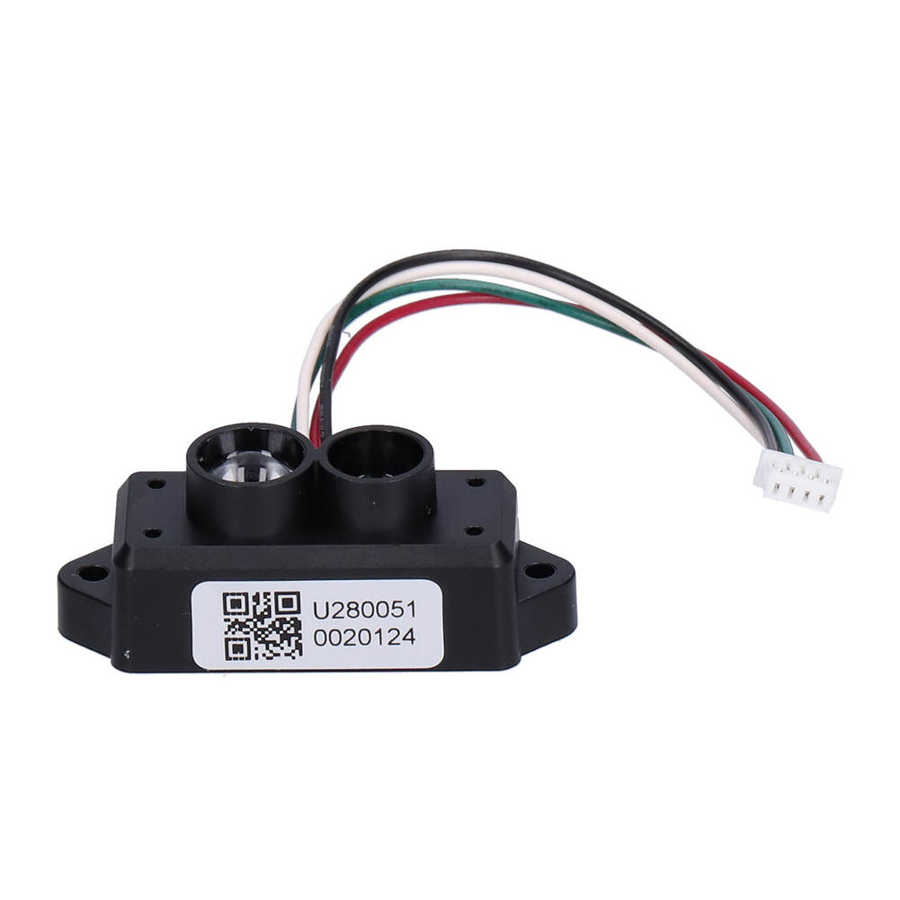

1 x Module

1 x Connection Line

Note:

1. The product itself has no polarity protection and over‑voltage protection, please connect and supply power correctly.
2. The working temperature of the product is 0℃‑60℃, please do not use it outside this temperature range to avoid risks.
3. The storage temperature of the product is ‑20℃‑75℃, please do not store it outside this temperature range to avoid risks.
4. Do not open the shell for assembly or maintenance other than this instruction, so as not to affect the product’s protective performance and cause the product to fail.
