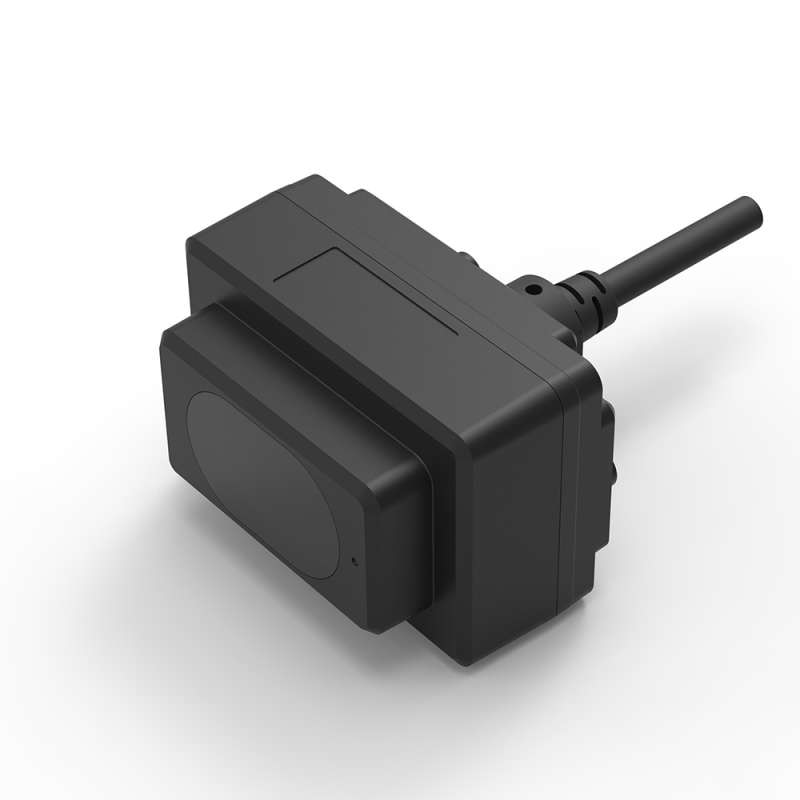

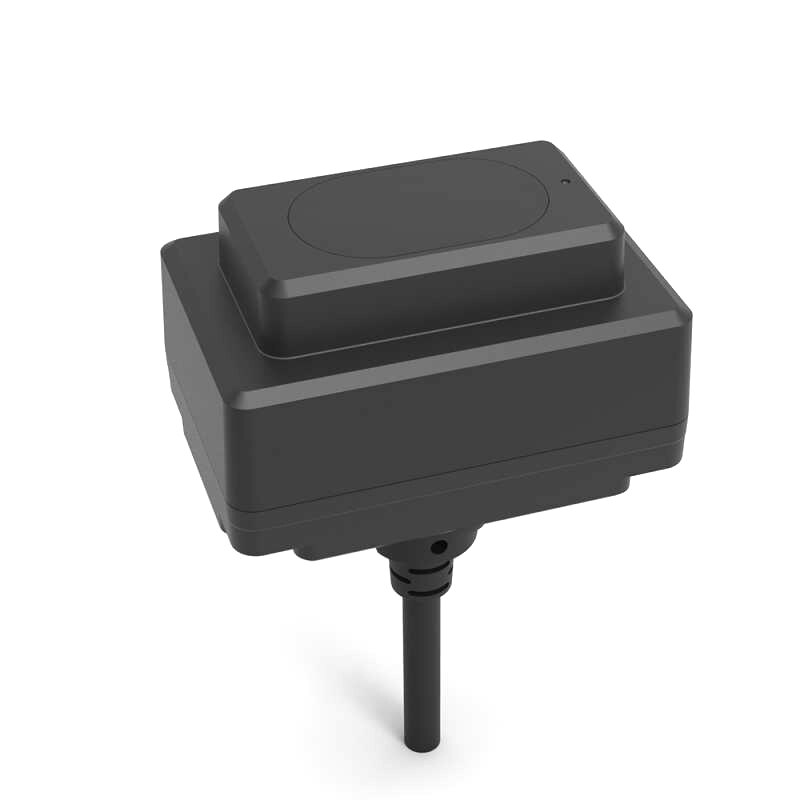

TFmini-i LiDAR Module Sensor 12m Medium-Range Distance Single-Point Ranging Finder Module Compatible with Pixhawk for Arduino

Description:

TFmini-i is an updated single-point ranging LiDAR based on TFmini-S. It has been optimized in communication interface, input voltage and reverse protection, making it meet different industrial applications.

Main Feature:

7-30V wide range input voltage

Reverse protection

CAN/RS485 interface

Specification:

Operating range:

0.1~12m@90% reflectivity

0.1~7m@10% reflectivity

0.1~12m@90% reflectivity(100Klux)

0.1~7m@10% reflectivity(100Klux)

Accuracy1: ±6cm(0.1~6m)，±1%(6~12m)

Distance resolution: 1cm

Frame rate:100Hz

Ambient light immunity: 70Klux

Operation temperature: -20~60℃

Enclosure rating: IP65

Light source: VCSEL

Central wavelength: 850nm

FOV: 2°

Photobiological: safety Class 1(EN60825)

Suppy voltage: 7~30V

Average current: ≤65mA@12V

Power consumption: ≤0.85W@12V

Peak current: 100mA@12V

Communication: RS-485, CAN

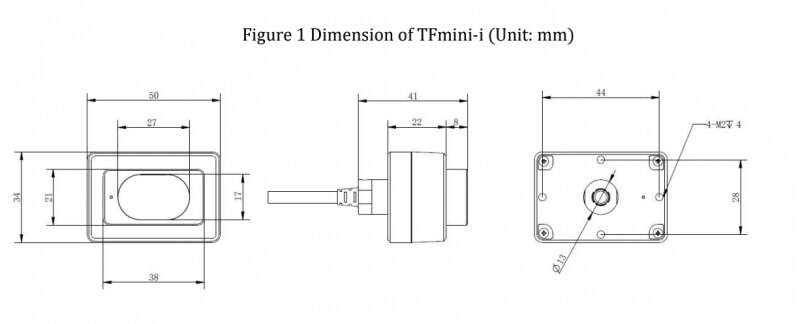

Dimension: 50mmx34mmx41mm（L*W*H）

Weight: 52g(with cable)

Shell material: PC/ABS/PMMA

Storage temperature: -30~80℃

Cable length: 70cm

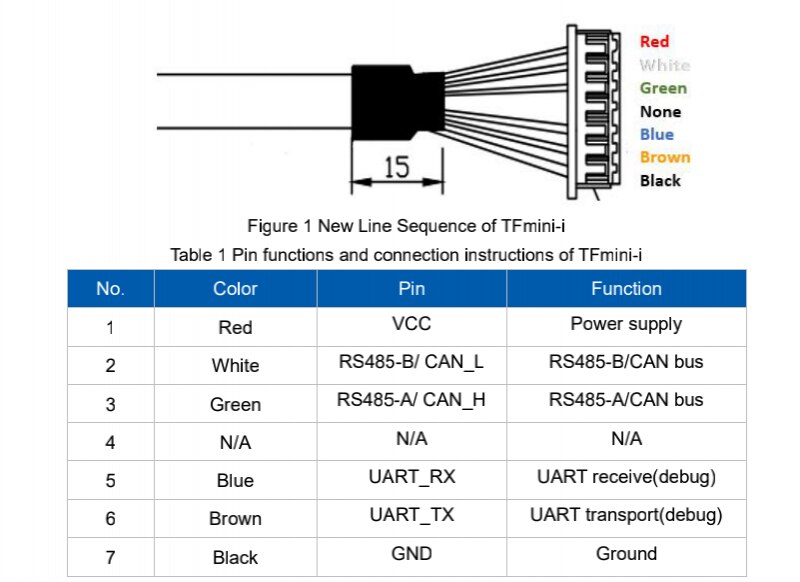

Connector: MH1.25mm 7P

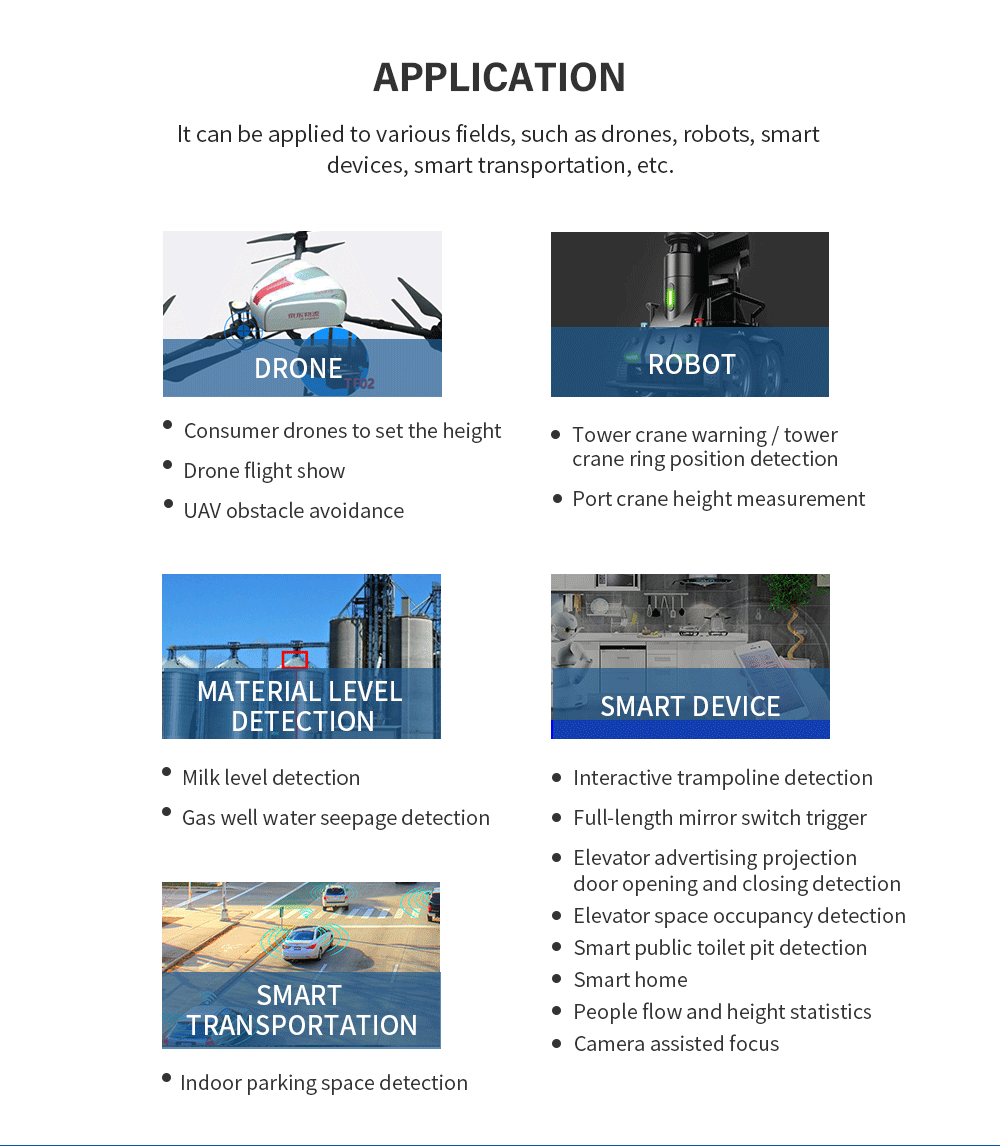

Application:

Pedestrian detection

Vehicle testing

Altitude

FAQ

Q1: Can the FOV (spot) of TF02-i be increased or decreased?

A1: Generally, this is a customized demand. You need to contact our sale colleague for further details. FOV is determined at the beginning of product design. Determination of FOV is also related to the optical system and the product structure. Therefore, it cannot be easily changed,

and needs to be customized.

Q2: Can I change the frequency of data output?

A2: Yes, customization of parameter configuration is supported in TF02-i.

Package Includes:

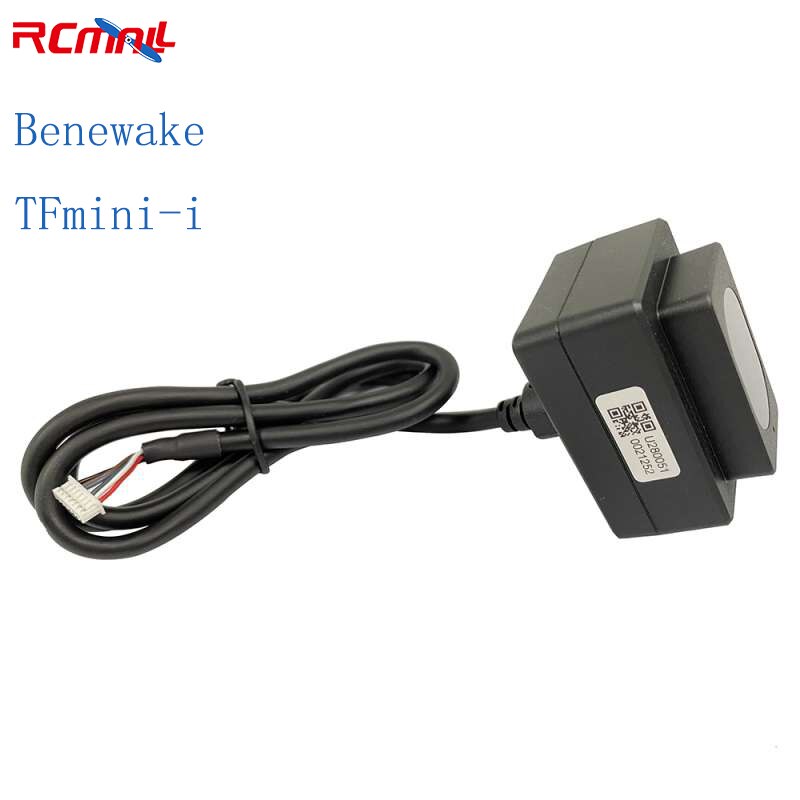

1 X Benewake TFmini-i LiDAR Module
