Description
- Origin: Mainland China
- Model Number: FZ3928-FZ3931
- Item: TF03 TOF Laser Rangefinder

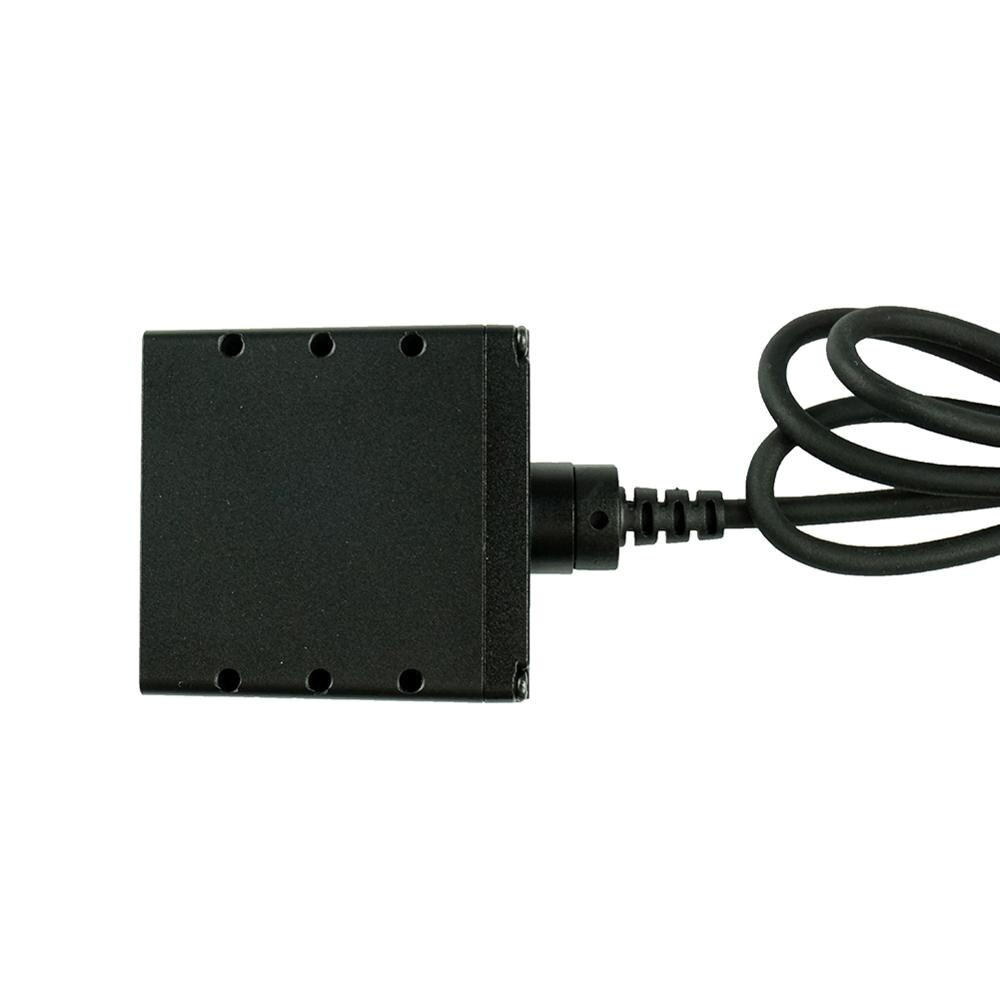

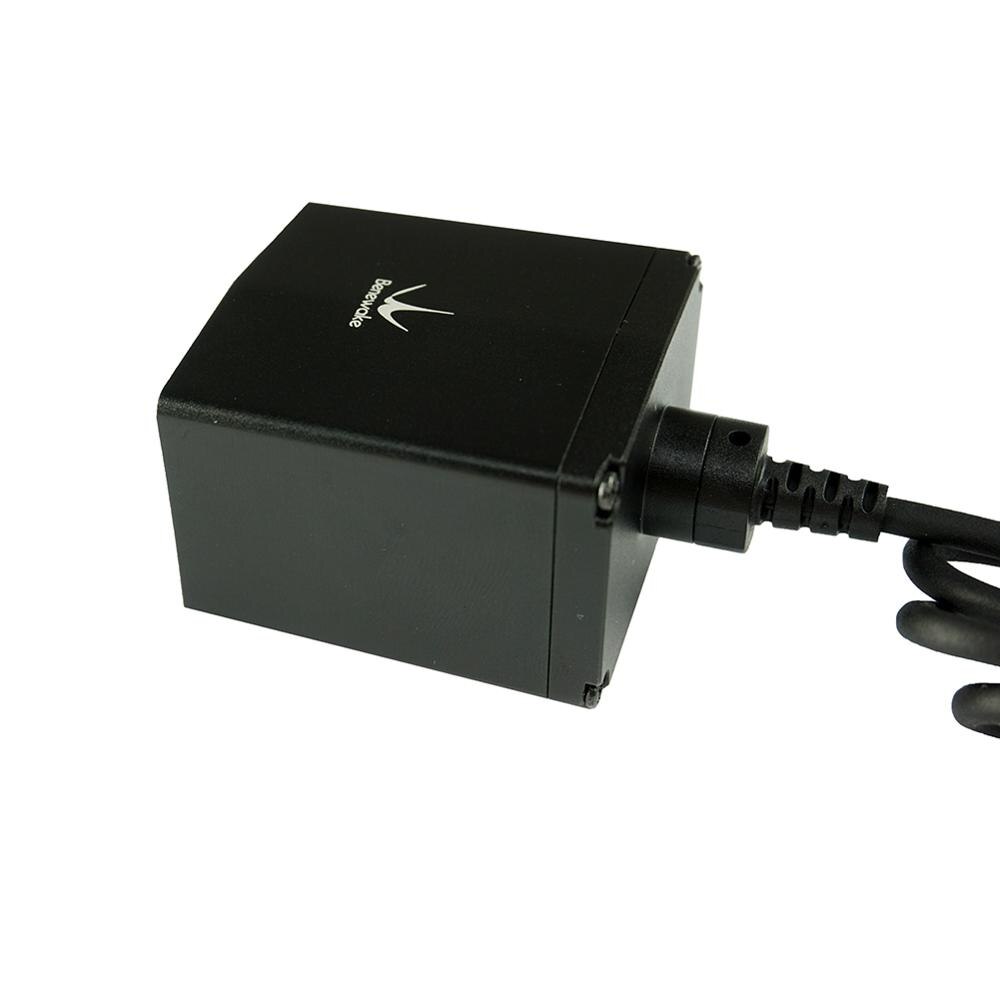

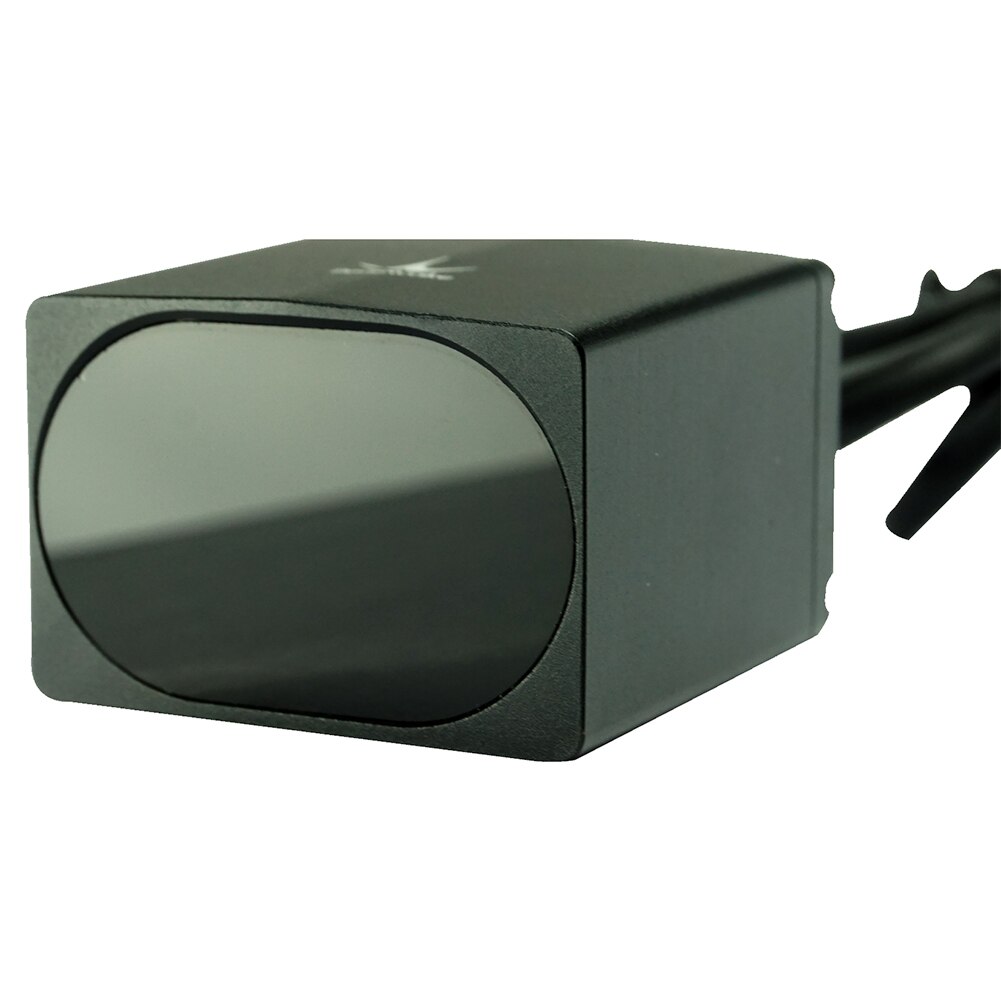

TF03 LiDAR ToF Laser Rangefinder IP67 Range Sensor Up to 100m/180m UART/CAN/IO,RS485/RS232
Product specification:
TF03 is a industrial high-speed LiDAR, It contains two versions with 100m and 180m.
TF03 includes compensation algorithms for outdoor glare and other interference, so it works normally under strong light environment and rain, fog and snow conditions. Different built-in operating modes let customers change parameters and configuration to meet their need.
Descriptions of TF03-100
Technical specifications:
Two versions of TF03-100 are available to customers who have different interface and power supply requirements:
1) Standard version supports TTL serial port and CAN interface with 5V power supply (If 6-24V power supply is needed, please contact sales).
2) RS485/RS232 version supports RS485/RS232 interface with 6-24V power supply.
Communication interface
TF03-100 standard version supports TTL serial port as default, and CAN communication mode is also available to use if needed. Command are provided for modifying to CAN mode, but only one of the two modes are working,two of them cannot output at the same time.TF03-100 RS485/RS232 version supports RS485 and RS232 communication modes at the same time. By default,TF03-100 standard version supports TTL serial port as default, and CAN communication mode is also available to
use if needed. Command are provided for modifying to CAN mode, but only one of the two modes are working,
two of them cannot output at the same time.
TF03-100 RS485/RS232 version supports RS485 and RS232 communication modes at the same time. By default,
both interfaces can communicate, and different interface lines can be used.
Product Performance
Operating Range:
0.1m-100m@90% reflectivity
0.1m-40m@10% reflectivity
0.1m-80m@90% reflectivity &100Klux
0.1m-30m@10% reflectivity &100Klux
Accuracy: ±10cm (within 10m), 1%(10m and futher)
Distance Resolution: 1cm
Frame Rate: 1Hz-1000Hz Adjustable (Default 100Hz)
Ambient Light Immunity: 100klux
Repeatability: 1σ：<3cm
Operating Temperature: -25℃~60℃
Enclosure Rate: IP67
Optical Parameters
Light Source: LD
Wavelength of Light Source: 905nm
FOV Angle: 0.5°
Laser Class: CLASS1 (EN60825)
Electrical Parameters
Supply Voltage: 5V±0.5V
Average Current: ≤180mA
Power Consumption: ≤0.9W
Peak Current: ≤180mA
Communication Voltage Level: LVTTL（3.3V）
Communication Interfaces: UART/CAN/IO ; RS485/RS232
Descriptions of TF03-180
Product Performance
Range: 0.1m-180m@90% reflectivity
0.1m-70m@10% reflectivity 0.1m-130m@90% reflectivity &100Klux， 0.1m-50m@10% reflectivity &100Klux
Accuracy: ±10cm (less than 10m), 1%(more than 10m)
Distance Resolution: 1cm
Frame Rate: 1Hz-1000Hz Adjustable (Default 100Hz)
Ambient Light Immunity: 100klux
Repeatability: 1σ：<3cm
Operating Temperature: -25℃~60℃
Enclosure Rate: IP67
Optical Parameters
Light Source: LD
Wavelength of Light Source: 905nm
FOV Angle: 0.5°
Laser Class: CLASS1 (EN60825)
Electrical Parameters
Supply Voltage: 5V±0.5V
Average Current: ≤180mA
Power Consumption: ≤0.9W
Peak Current: ≤180mA
Communication Voltage Level: LVTTL（3.3V）
Communication Interfaces: UART/CAN/IO ; RS485/RS232
