TF Luna lidar single point ranging sensor 0.2-8m measurement distance small volume high sensitivity smart city

$56.31

1000 in stock

SKU: 1005004716460234 Category:

Description

  • Brand Name: custom-souring
  • Origin: Mainland China
  • Output: Switching Transducer
  • Model Number: TF Luna
  • Type: Optical-Electronics Sensor
  • is_customized: Yes
  • Material: Metal
  • Usage: laser sensor
  • Quality: A

Welcome to Winwin ,

We offer PCB,PCB assembly,all kinds of components(LRC and all the parts you need ),

SMT Stencil , Modules,electronic Cables,customzied Sensors .Aluminum heatsink etc
good quality,reasonable prices and stylish designs according to your need ,
We will always make our effort to satisfy with you , looking forward to your contact .
more quanity please contact me to get the special discount !
wish you have a nice shopping .
TF Luna lidar single point ranging sensor 0.2-8m measurement distance small volume high sensitivity smart city

Product parameters
Measuring range:
0.2m~8m@90% reflectivity (indoor 0klux)
0.2m-25m@10% reflectivity (indoor 0klux)
0.2m~8m@90% reflectivity (outdoor 90klux)
0.2m-2.5m@10% reflectivity (outdoor 90klux)
Accuracy: ±6cm@(0.2m-3m)3±2%@(3m-8m)
Distance resolution: 1cm
Frame rate: 1~250Hz (adjustable)
Ambient light resistance: 70Klux
Working temperature: -10℃~60℃
Protection class :/
Light source: VCSEL
Center wavelength: 850nm
Eye safety: Class1 (IEC60825)
Field of view: 2°5
Supply voltage: 3.7V-5.2V
Average current: ≤70mA
Power consumption: ≤0.35W
Peak current: 150mA
Communication level: LVTTL(3.3V)
Communication interface: UART/12C

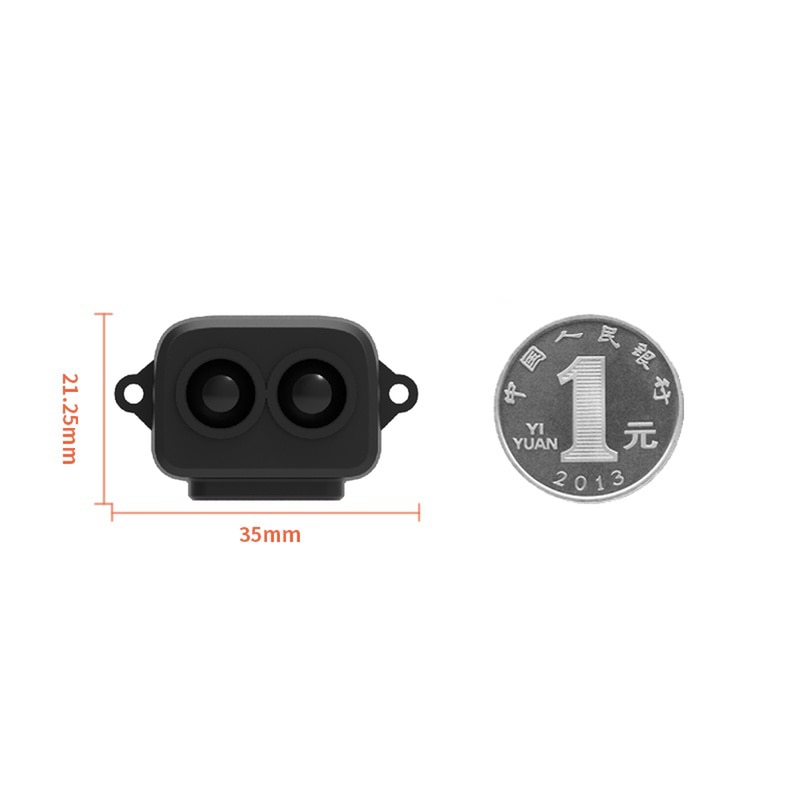

Size: 35mm*21.25mm*13.5mm(L*W*H)
Shell material: ABS/PC
Storage temperature: -20℃~75℃

Wide range of applications
UAV: can help all kinds of UAV achieve high obstacle avoidance
Smart toilet: public test traffic statistics and pit status detection
Smart trash can: trash can overflow detection, residual detection
Auxiliary focus: auxiliary focus, precise ranging
Robot: Robot obstacle avoidance and anti-drop detection
Curb parking: accurate recognition, recognition rate of 99.99%
