Description
- Origin: Mainland China
- Model Number: TF0004
- Item: TF-Luna
- Operating Range: 0.2m~8m
- Communication interface: UART/IIC
- Communication level: LVTTL(3.3V)
- Light source: VCSEL
- Accuracy: ±6cm@(0.2-3m), ±2%@(3m-8m)
- Measurement unit: cm
- Range resolution: 1cm
- Frame rate: 1~250Hz( adjustable )4
- FOV: 2°3
- Supply voltage: 5V±0.1V
- Default baud rate: 115200
- Data bit: 8
- Stop bit: 1
- Wavelength: 850nm
- Certification: CE,FCC,ROHS
TF-Luna LiDAR Module Range Finder Sensor Single-Point Micro Ranging Module for Arduino Pixhawk 5V UART IIC Interface

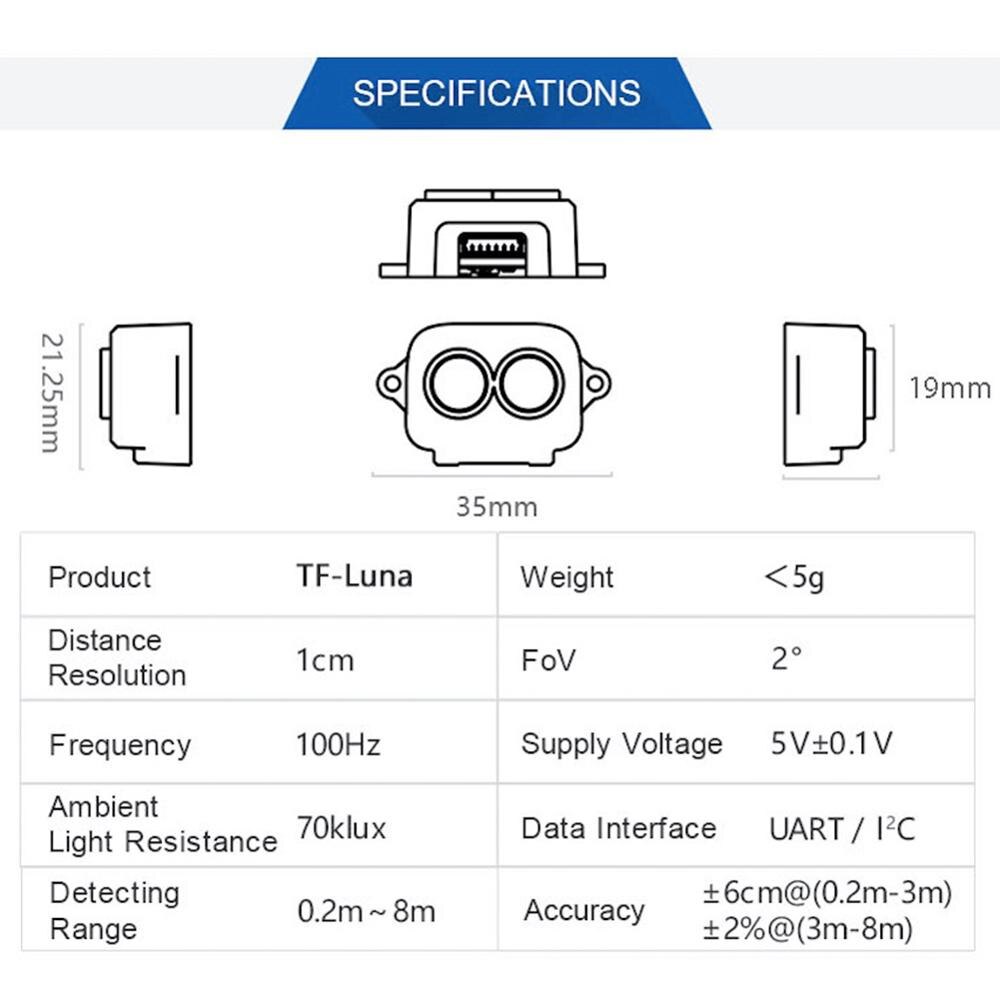

Description:
Operating range: 0.2m~8m1
Accuracy: ±6cm@(0.2-3m), ±2%@(3m-8m)
Measurement unit:cm
Range resolution: 1cm
FOV: 2°3
Frame rate: 1~250Hz( adjustable )4
Supply voltage: 5V±0.1V
Average current: ≤70mA
Peak current: 150mA
Average power: 350mW
Communication level: LVTTL(3.3V)

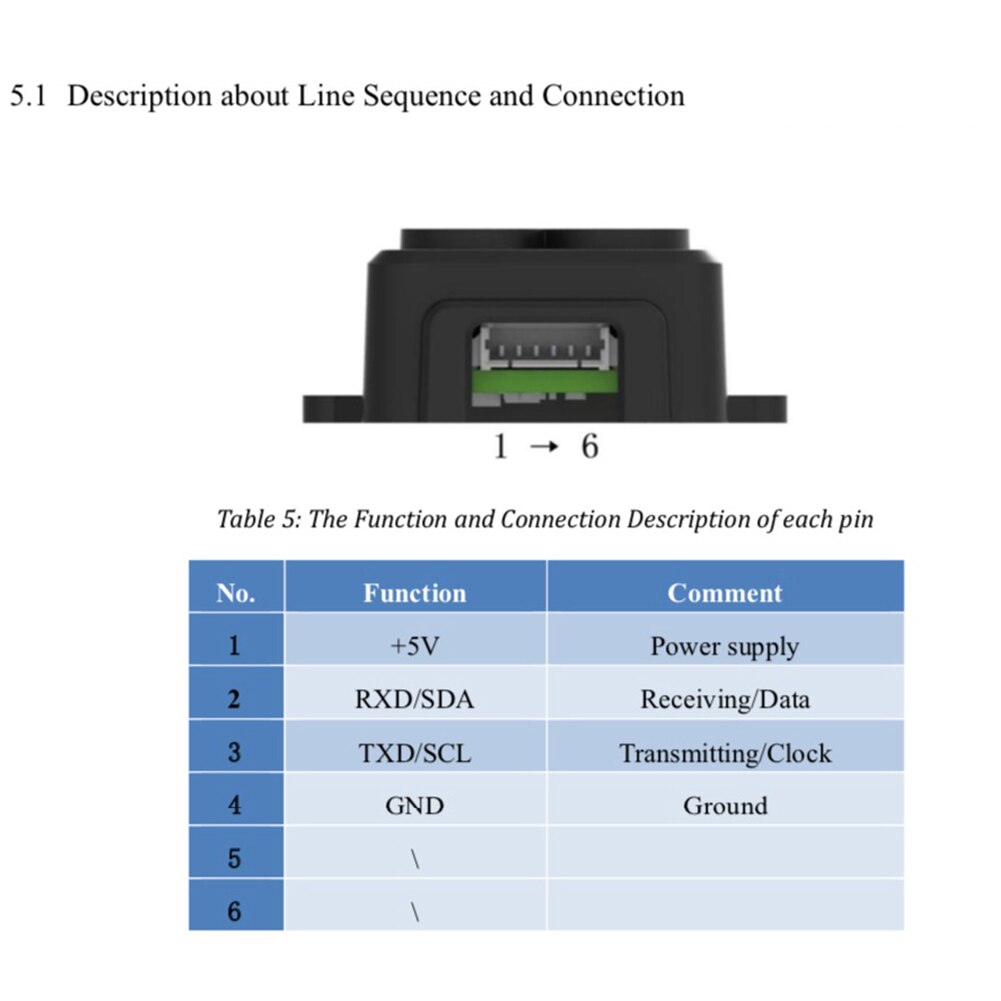

Communication interface: UART/IIC
Default baud rate: 115200
Data bit: 8
Stop bit: 1
Parity check: None
Light source:VCSEL
Wavelength:850nm
Operating temperature : -20°C~75°C
Certification:CE,FCC,ROHS
Package Includes:
1 X TF-Luna LiDAR Module
1 X 1.25mm 6P
Major Applications:
Traffic Monitoring
Obstacle detection
Level measurement
Smart device
Security and obstacle avoidance
Drone altitude holding and terrain following
Machine control and safety sensors
Distance measuring instrument
FAQ
Q1: Is TF-Luna available with 3.3V or other power supply voltage?
A1: Sorry, it is not available for the time being. The Standard power supply of TF-Luna is 5V±0.1V. If you have any further requirement, please contact our sales person to consult a customization design matter.
Q2: TF-Luna will heat up after operating for a while. Is it broken?
A2: This is the normal operating condition of the product. The temperature of the chip and circuit board will slightly up after a continuous operation, which is a normal case.
Q3: Can TF-Luna be connected with Arduino or Raspberry Pi for use?
A3: Yes, it can. TF-Luna adopts serial communication protocol so that it can connect to any control board supporting serial port communication.
