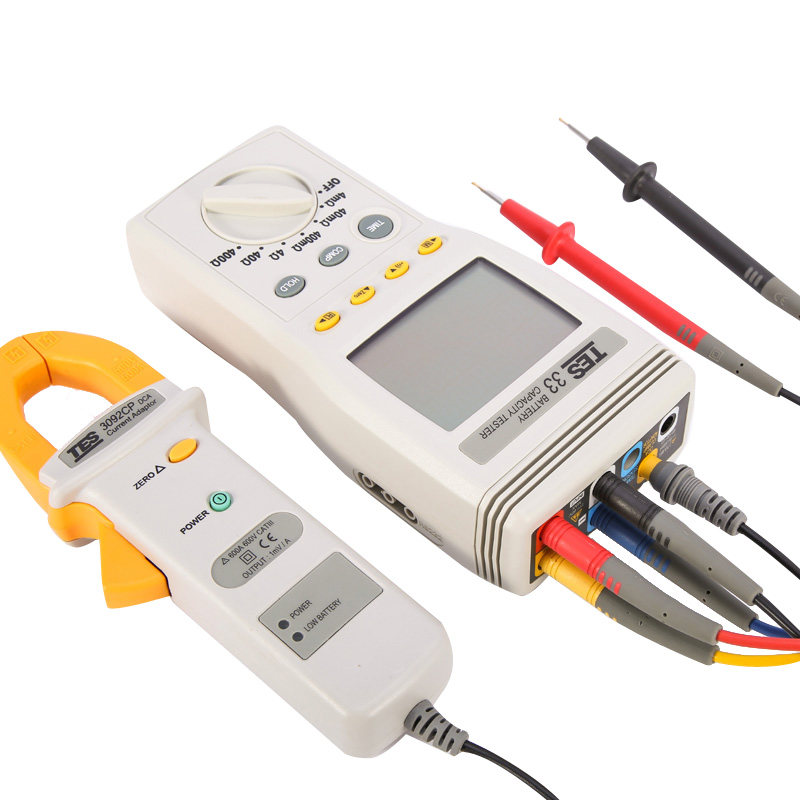

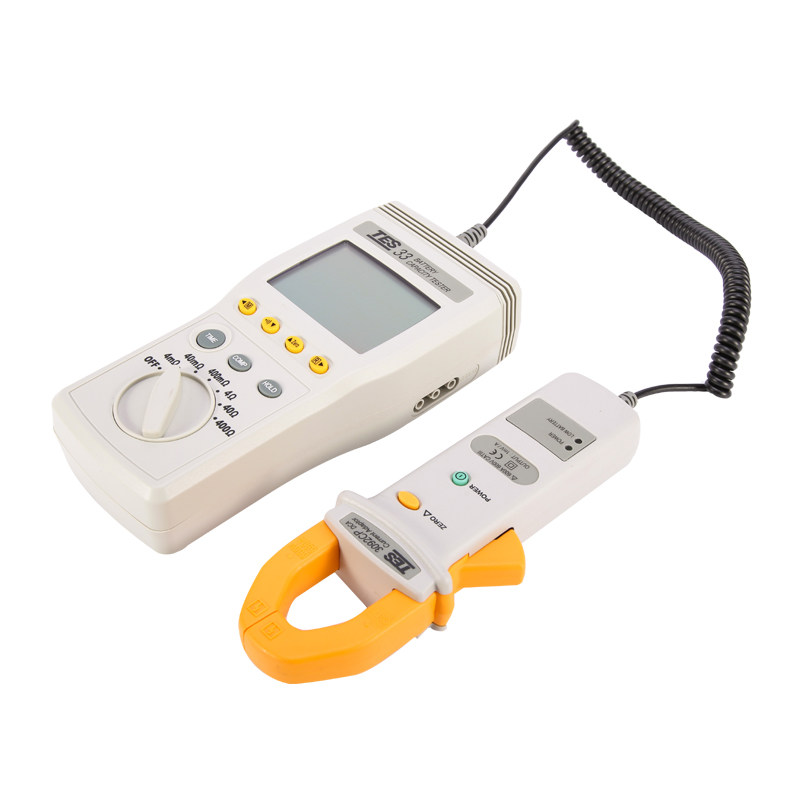

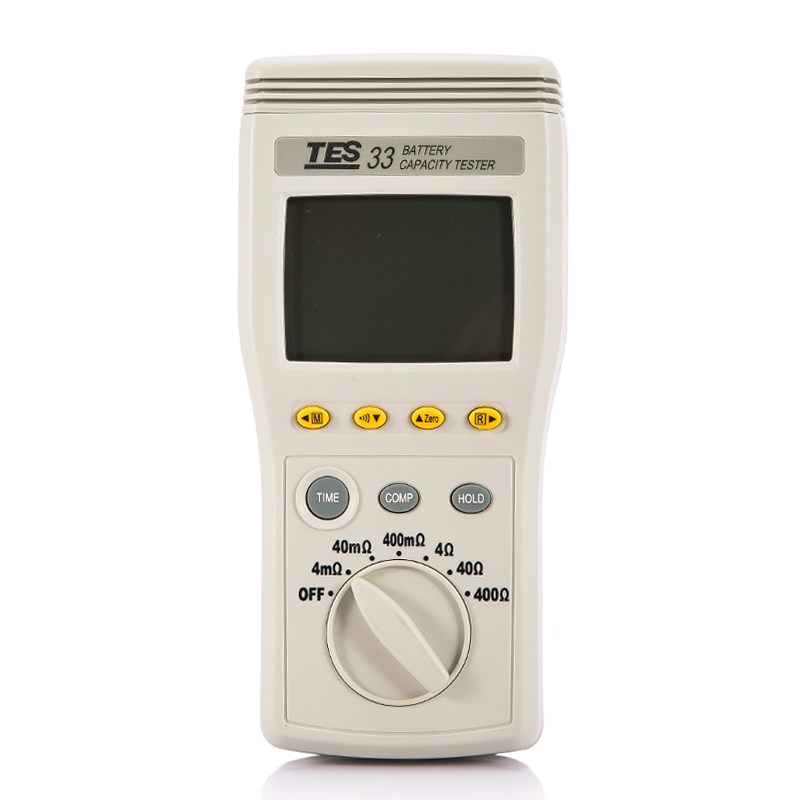

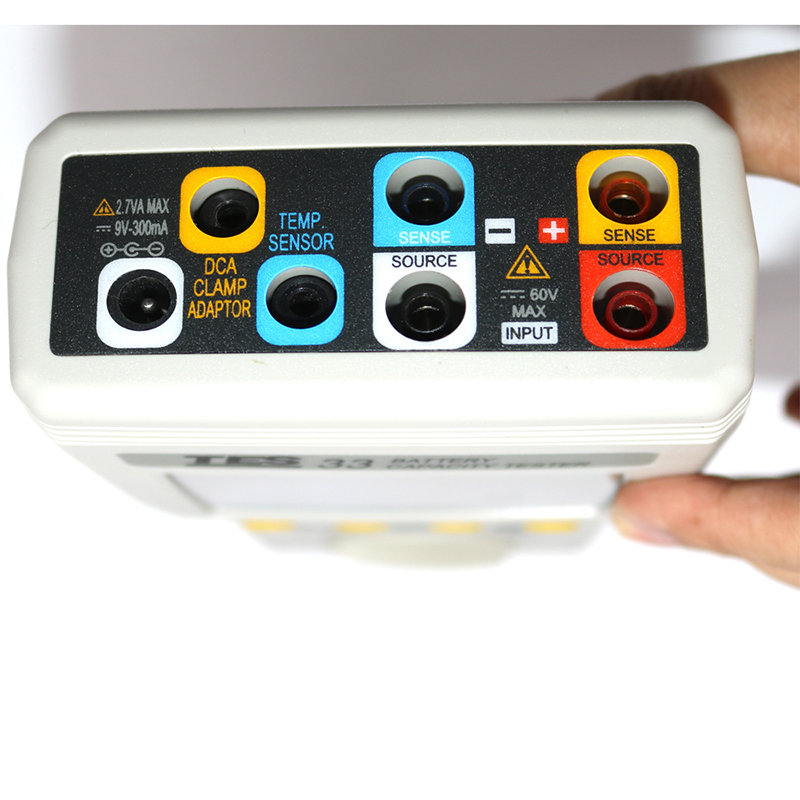

TES-33 Battery Capacity Tester Battery DCA/DCV/Capacity/Resistance/Temperature with USB Datalogger

$1,906.96

88 in stock

SKU: 1005004145237950 Category:

Description

  • Brand Name: MLHJ
  • Origin: CN(Origin)
  • Certification: CE
  • Place of Origin: ONE YEAR
  • Brand Name: TES
  • Model Number: TES-33
  • Test Condition Without Shutting Down Battery.
  • Simultaneously Measure Battery Resistance, Voltage, Current, Temperature.
  • Auto-hold and Auto-data storage.
  • Comparator Function.
  • Rates Conditions as Pass, Warning, or Fail.
  • Memory and Read Function
  • Compact and Lightweight.
  • RS232 PC Interface

Storage Battery Systems Battery Capacity Testers,
Check battery condition in seconds, with the battery in service!






Battery Types Tested Compact storage batteries, Alkali and lead-acid batteries..
Battery Capacity 0 to 1200AH
Resistance Ranges : 4mΩ, 40mΩ, 400mΩ, 4Ω, 40Ω, 400Ω
Resolution : 1μΩ , 10μΩ , 100μΩ , 1mΩ , 10mΩ , 100mΩ
Accuracy : 4mΩ±(2% reading ±8digits) 40mΩ~400Ω±(0.8% reading ±6digits)
Measurement Condition Current : Approx. 40mA, 4mA, 400μA, 40μA, 4μA
Frequency : 1KHz±30Hz
DC Voltage Range : 6V, 60V
Resolution : 1mV, 10mV
Accuracy : ±(0.1%rdg ±6digits)
Temperature Range : -20 to 60 (-4 to 140)
Resolution :0.1 / 0.1
Accuracy : ±1 / ±1.8
DC Current Range : 60A , 600A
Resolution : 0.01A , 0.1A
Accuracy : 60A : ±(2%rdg+20dgt) , 600A : ±(2%rdg+2dgt)
Open Circuit Voltage 5V max
Manual Data Memory 999 data sets
Continuous Data Memory 6000 data sets (only use PC download)
Comparator

Setting : Resistance upper and lower limits and voltage
throughold limit.
Memory : 99 sets of values
Operating Environment 0 to 40 (32 to 104), 80%RH or less, non-condensing.
Maximum Input Voltage 60VDC
Power Supply or AC Adapter Six AA size 1.5V alkaline batteries
Battery Life 5.5 hours
Weight Approx. 530g including batteries
Dimensions Approx. 198(L) × 94(W) × 49(H)mm

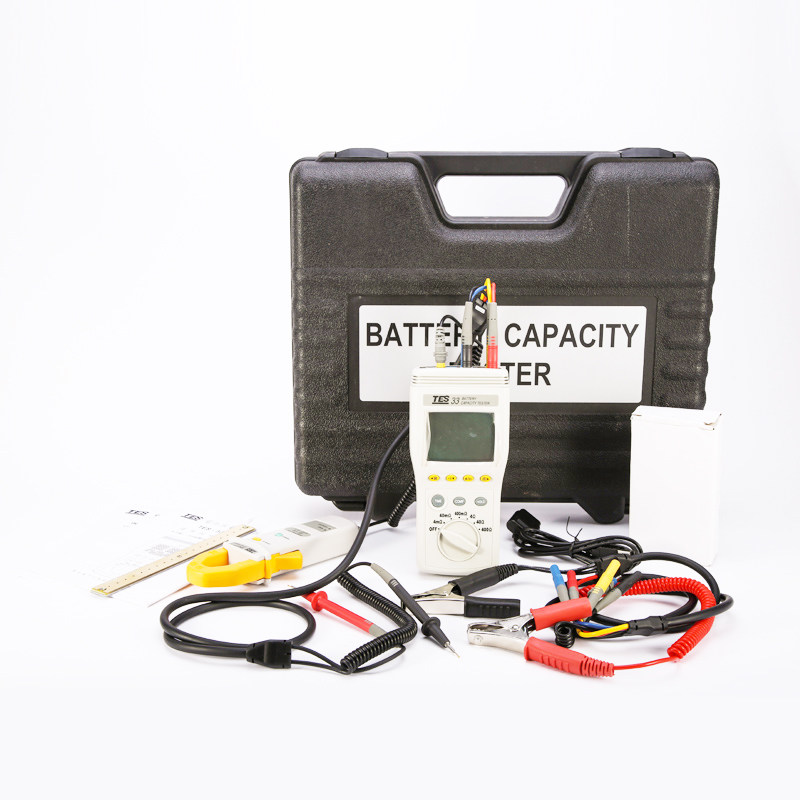

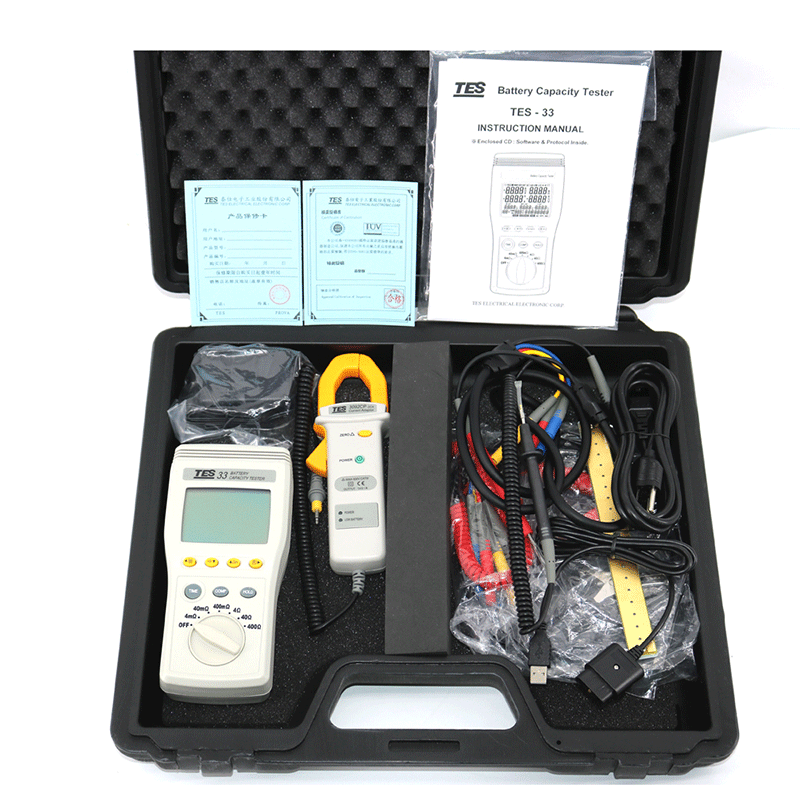

Accessories Clip type test lead with temperature sensor, Pin type test lead, 3092CP DCA current adaptor, Zero adjustment board, Instruction manual, batteries, AC adaptor, Optical RS232 cable, CD PC software, Carrying case.
