Description
- Brand Name: TES
- Measuring Voltage Range: Refer to SPEC
- Dimensions: 111(L)*64(W)*34(H)mm
- Operating Temperature: 0 to 50 below 80%RH
- DIY Supplies: ELECTRICAL
- Accuracy Class: Refer to SPEC
- Model Number: TES-1333R
- Measuring Current Range: Refer to SPEC
- Orginal of place: Made in Taiwan TES

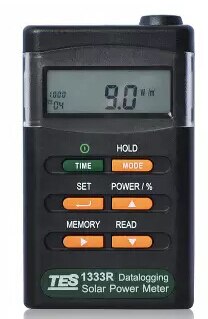

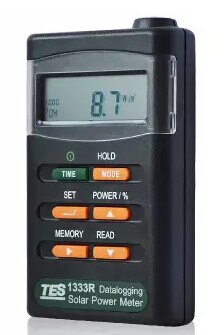

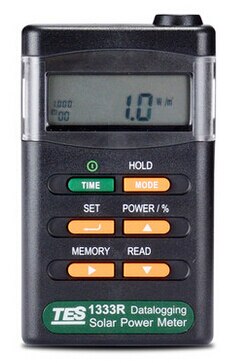

TES-1333R Datalogging Solar Power Meter Gauge,Solar Radiation Meter Gauge,RS 232 Interface Tes1333r
- Wide spectral range.
- Excellent long term stability.
- Cosine corrected.
- Automatic transmission measurements.
- Select either power or transmission.
- Solar energy power or transmission.
- Current time setting function.
|
- User calibration factor setting function.
- End-mount light sensor.
- Select either W/m2 or Btu / (ft2*h) units
- Data Hold / MAX / AVG modes.
- Data Memory and Read function. (99 sets.)
- RS232 interface to PC
|
| |
- Meteorology
- agriculture
- solar radiation measurement
- solar power research
|
- physics and optical laboratories
- solar transmission measurement
- identify high performance windows
|
| |
|
| Display |
3-1/2 digits.Max.indication1999 |
| Range |
2000W/m 2 634Btu/(ft 2 * h)
|
| Resolution |
1W/m21Btu/(ft2*h) |
| Spectral response |
400-1100nm |
| Accuracy |
Typically within ± 10W/m2[ ±3 Btu / (ft2*h) ] or ±5% , whichever is greater in sunlight; Additional temperature induced error ±0.38W/m2 / [ ±0.12 Btu / (ft2*h)/ ] from 25
|
| Angular accuracy |
Cosine corrected <5% for angles <60 ° |
| Drift |
<±2% / per year |
| Calibration |
User recalibration available |
| Over-input |
Display shows” “ |
| Sampling Time |
Approx. 0.4 second |
| Manu data memory and read |
99 sets |
| Auto data memory |
32000 sets |

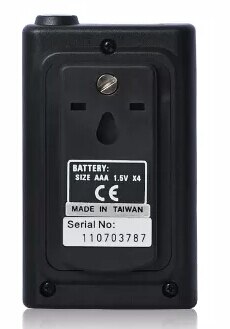

| Battery |
4pcs size AAA（the batteries not included package） |
| Battery Life |
Approx. 100 hours |
| Operating temp and humidity |
0 to 50 below 80%RH |
| Storage temp and Humidity |
-10 to 60 below 70% RH |
| Weight |
Approx. 165g |
| Dimension |
111(L)*64(W)*34(H)mm |

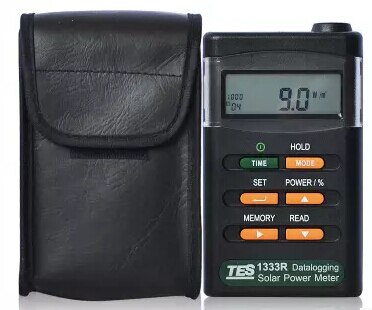

| Accessories |
Carrying Case, Operation Manual, 4 pcs size AAA, RS-232 cable , CD software |
|
