Description
- Display Type: DIGITAL
- Usage: Industrial
- Model Number: TM-185
- Display Size: 1.9 Inches & Under
- Style: Handheld
- Power Type: AAA battery
- Brand Name: NoEnName_Null
- Max Measuring Temperature: 50°C – 69°C
- Theory: Diode

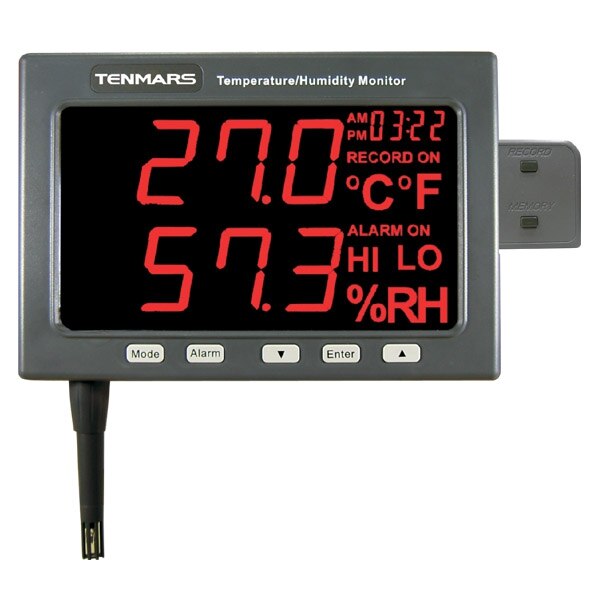

Tenmars TM-185 USB Interface Temperature Humidity Data Logger with Large LED Display
|
|
Product Description
– Complete environmental monitor and alarm
– Wall-Mounted LED type, easy reading
– Alarm set for Hi and Low limit-Temperature and Humidity
– Data Logging Capacity 30,000 records (TM-185D only)
– LED displays real time data
– USB interface (TM-185D only)
Application
This data logging temperature / humidity monitor can be wall mounted and features an easy to read LED. It is capable of datalogging 30,000 records and is perfect for temperature and humidity monitoring in controlled environments and other critical areas.
Specification
|
Temperature range:
|
-4º to 140ºF (-20º to 60ºC)
|
|
Temp. accuracy:
|
+/-1.8F / +/-1.0C (23C to 104F / -5.0C to 40.0C ) other 3.6F /+/-2.0C
|
|
Temp. resolution:
|
0.1F/0.1C
|
|
Temp. update rate:
|
times/second
|
|
Temp. sensor type:
|
Diode
|
|
Relative Humidity range:
|
5% to 95%
|
|
Relative Humidity accuracy:
|
+/-2.0%RH (at 25C,35%RH to 80%RH). +/-2.5%RH (at 25C. 10% to 35%,80% to 90%) other +/- 5.0%RH (at 25C,90%RH)
|
|
Relative Humidity resolution:
|
1.0 RH
|
|
Relative Humidity response time:
|
below 4 seconds
|
|
LED display:
|
8.4×4.73 inch (214mm x 120mm)
|
|
Power supply:
|
AC to DC Adapter (9V/1A)
|
|
Battery backup:
|
DC 9V battery enables continued recording without display reading during power disruption for an hour only.
|
|
Size:
|
260 x 178 x 47mm
|
|
Weight:
|
1000g
|
|
Temperature range:
|
-4º to 140F (-20º to 60C)
|
|
Temp. accuracy:
|
+/-1.8F / +/-1.0C (23C to 104ºF / -5.0 to 40.0C ) other 3.6F /+/-2.0C
|
|
Temp. resolution:
|
0.1F/0.1C
|
|
Temp. update rate:
|
times/second
|
|
Temp. sensor type:
|
Diode
|
|
Relative Humidity range:
|
5% to 95%
|
|
Relative Humidity accuracy:
|
+/-2.0%RH (at 25C,35%RH to 80%RH). +/-2.5%RH (at 25C. 10% to 35%,80% to 90%) other +/- 5.0%RH (at 25C,90%RH)
|
|
Relative Humidity resolution:
|
1.0 RH
|
|
Relative Humidity response time:
|
below 4 seconds
|
|
LED display:
|
8.4×4.73 inch (214mm x 120mm)
|
|
Power supply:
|
AC to DC Adapter (9V/1A)
|
|
Battery backup:
|
DC 9V battery enables continued recording without display reading during power disruption for an hour only.(the batteries not included package)
|
|
Size:
|
260 x 178 x 47mm
|
|
Weight:
|
1000g
|
|
