Description
- Brand Name: MLHJ
- Origin: CN(Origin)
- Place of Origin: Taiwan
- Brand Name: TECPEL
- Model Number: CA-60
- Display Type: Digital Only
- Measuring Current Range: 0-60A(AC/DC)
- Operating Temperature: 0~40°C
- Dimensions: 178mm X 70mm X 33mm
- Weight: 290g
- Measuring Range: 0-60A
- Clamp Caliber: 9mm
- Signal Output: 1mV / 10mA or 1mv / 100mA
- AC Accuracy: ±2.0% (40~2K Hz) / ±4.0% (2K~10K Hz)
- DC Accuracy: ±1.5%

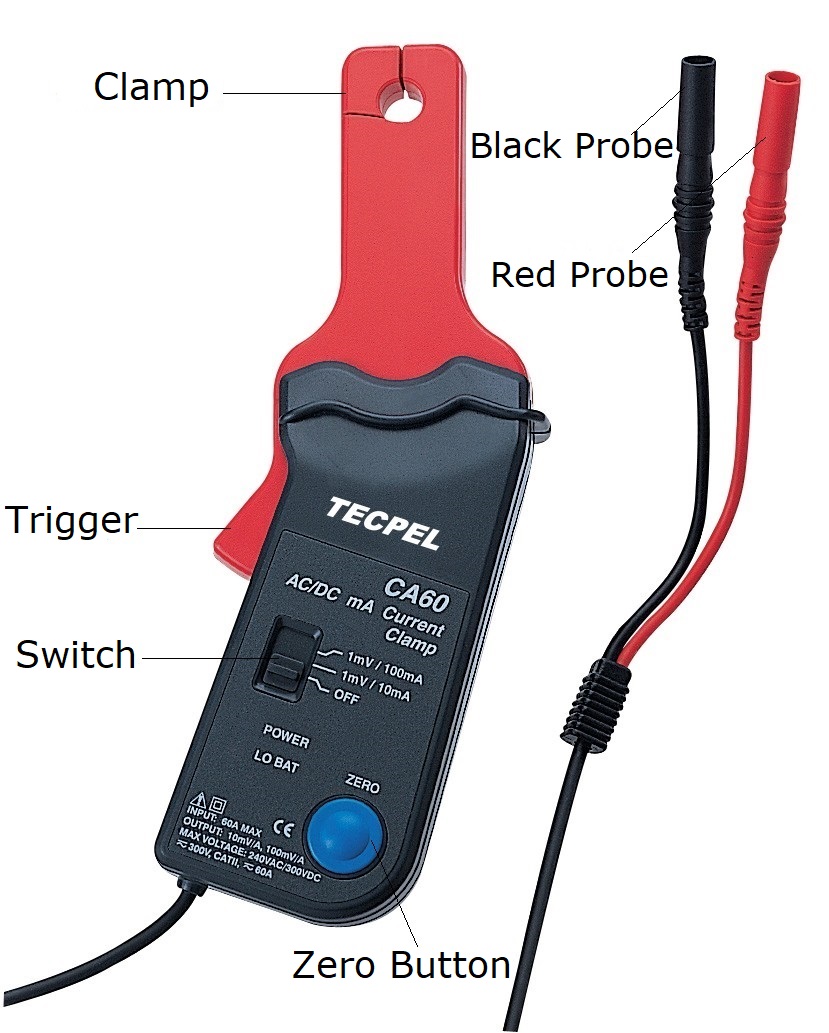

Current Clamp Transmitter , Clamp Transducer CA-60
1. This miniature clamp meter features two Hall effect sensors

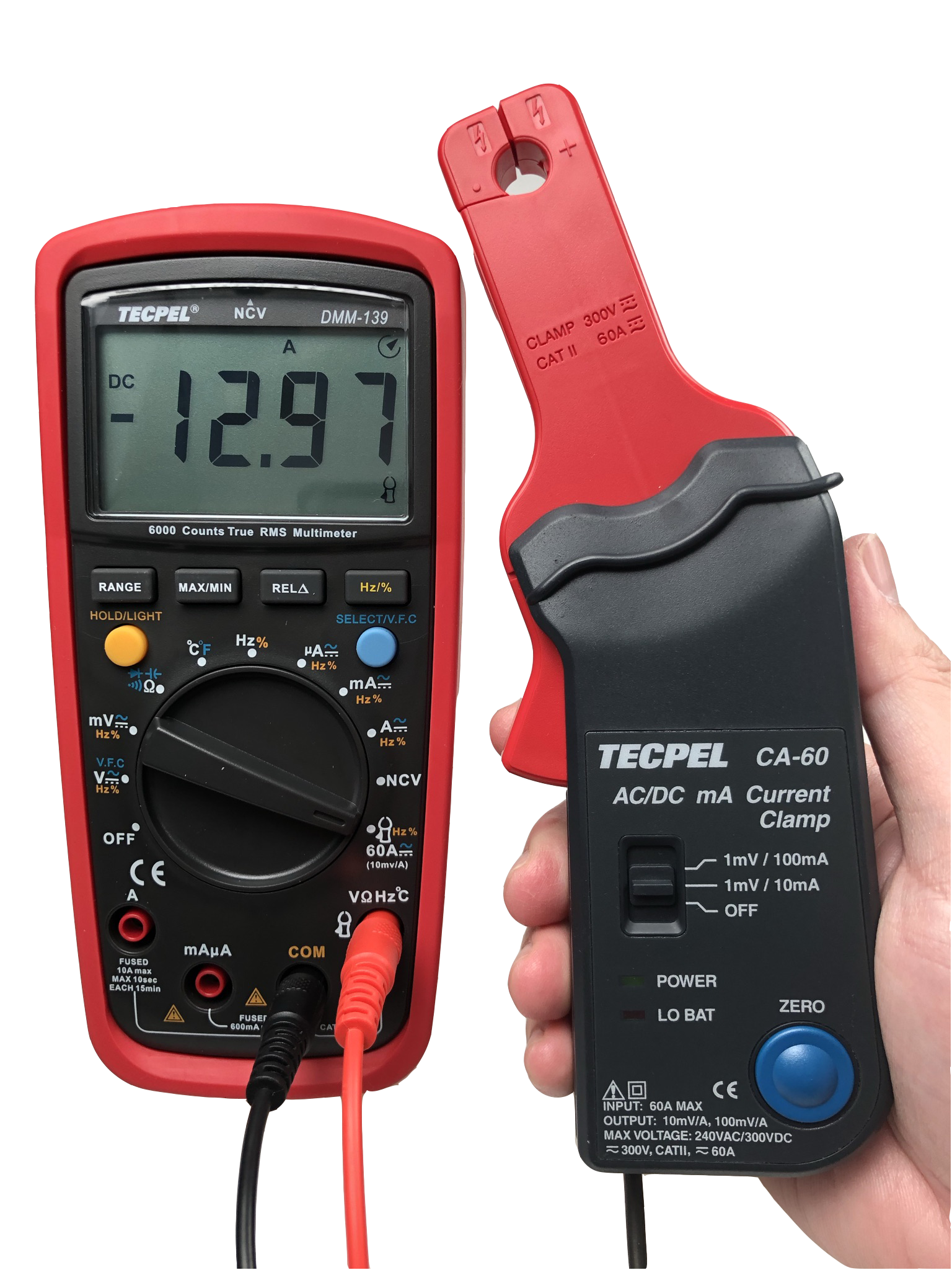

2. For use with any multimeter with 200mV or/and 2V ranges for direct readout input impedance of least 1M ohm.
3. High conversion factor for low DC and AC mA measurement.
4. With the small jaw size it can fit into tight space in circuit panel or wire bundle to take the reading
5. The high frequency response at 20 kHz is useful for waveform monitoring on an oscilloscope.

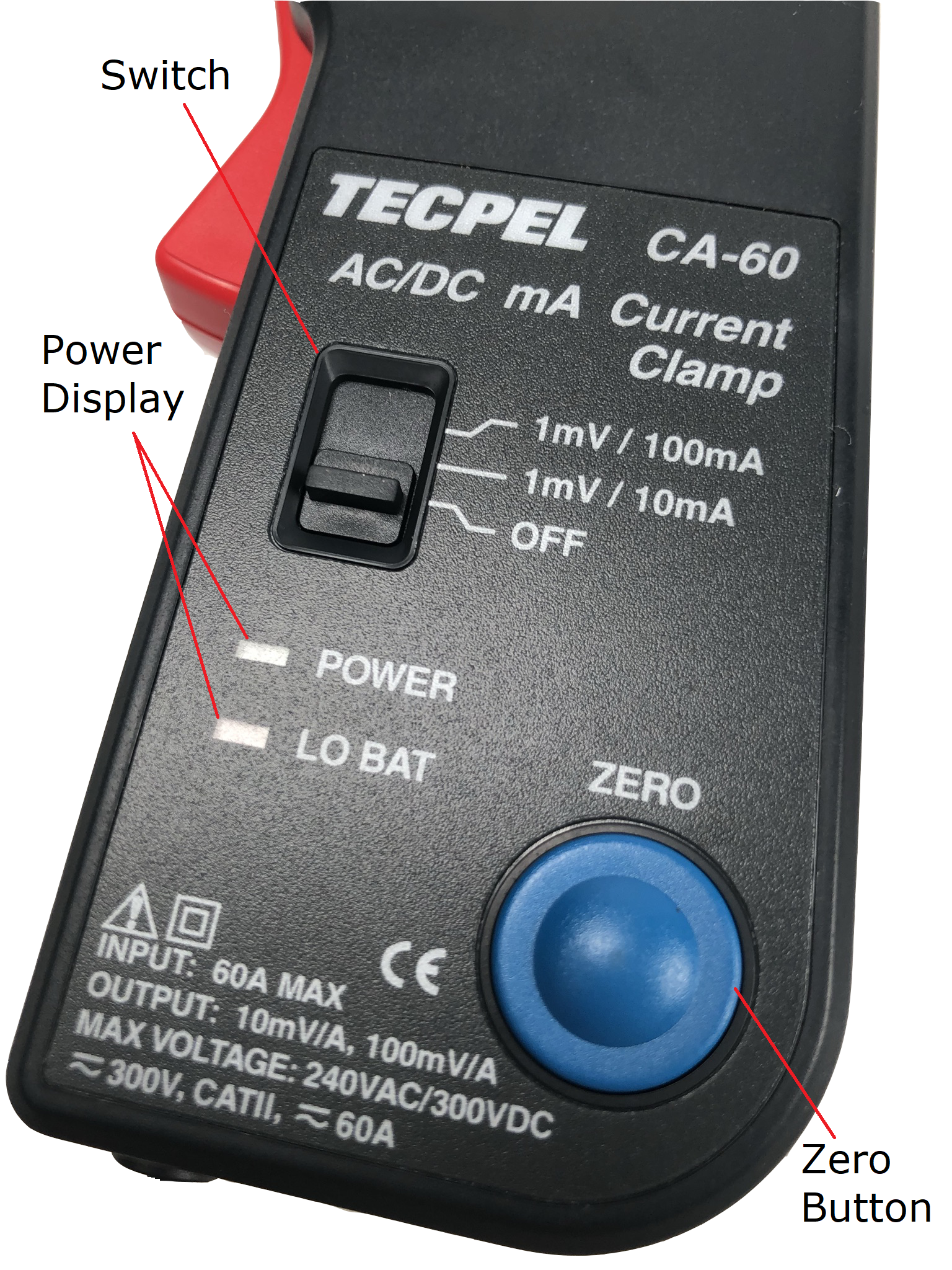

6. Zero adjustment is made easy by just pushing the ZERO button.
7. It is best for locating small signal, industrial control, battery leakage,and automotive usage
- CA-60 Specifications:
- 0 ~ 60 Amp DC or AC current

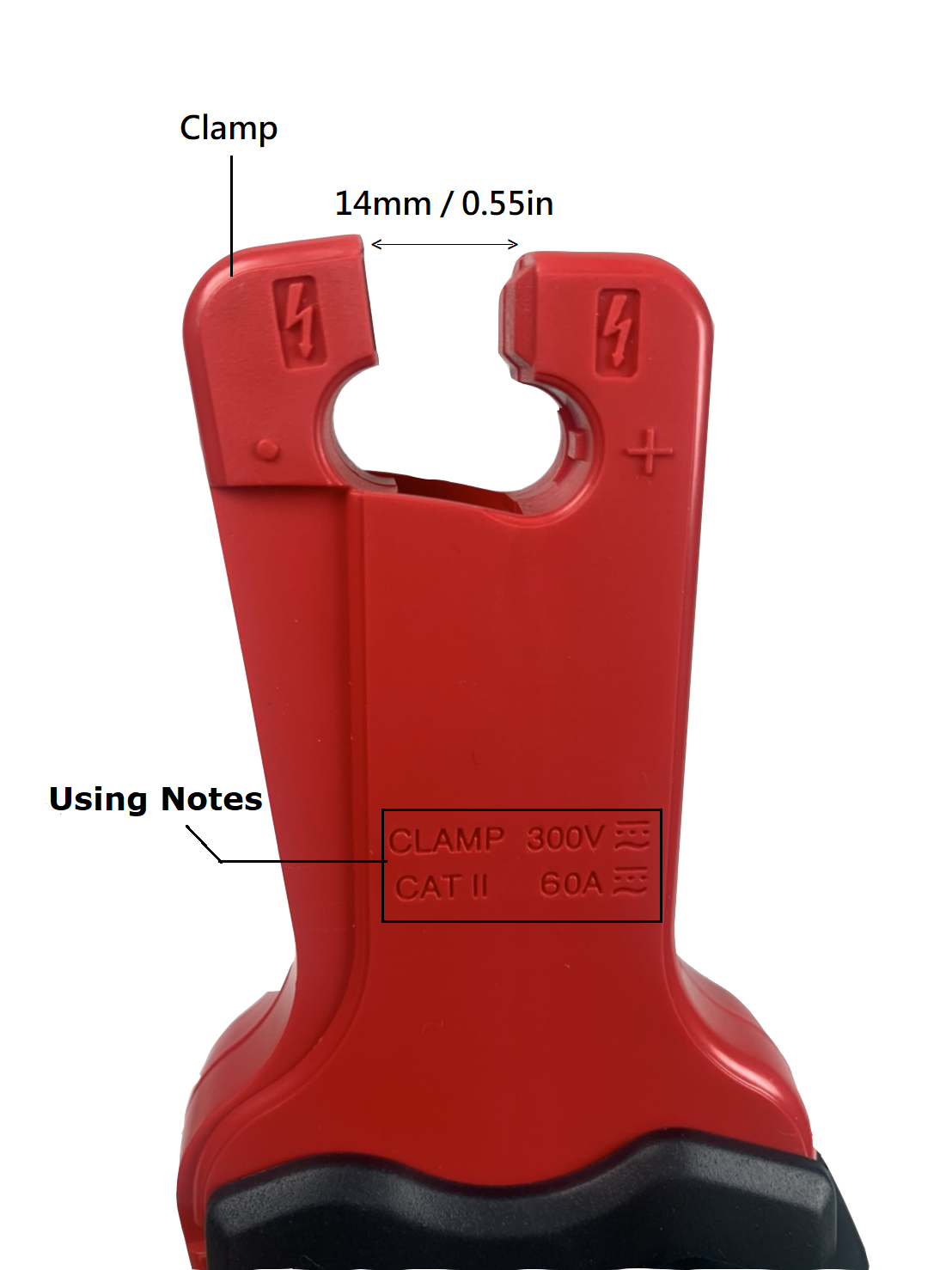

- 9mm 3/8 ” Conductor jaw opening capability, fits tight space
- Transformer ratio: 10:1, 100:1
- 1 mV/10mA or 1 mV/100mA conversion
- Frequency response to 20 kHz
- Accuracy:
DC A : +/- 1.5% ACA : +/- 2% (40Hz ~ 2K Hz)
AC A: +/- 4% ( 2K ~ 10KHz)
AC A: +/- 6% ( 10K ~ 20K Hz) - Output: 1mV/ 10mA, 1mV/ 100mA
- Monitor small signal, waveform and leakage
- Size: 7.7″ x 2.8″ x 1.3″
- Safety: Designed to meet IEC 100-1 , IEC 1010-2-032 CE
- CA-06 Adapter (Option)
- BNC- Female 4mm Banana post adapter for receiving Signal output from CA-60 and able to be monitored by oscilloscope.
Optional accessory:
Use LF-180 and TL-19 together to connect CA-60 with any oscilloscope
to monitor low frequency signal.

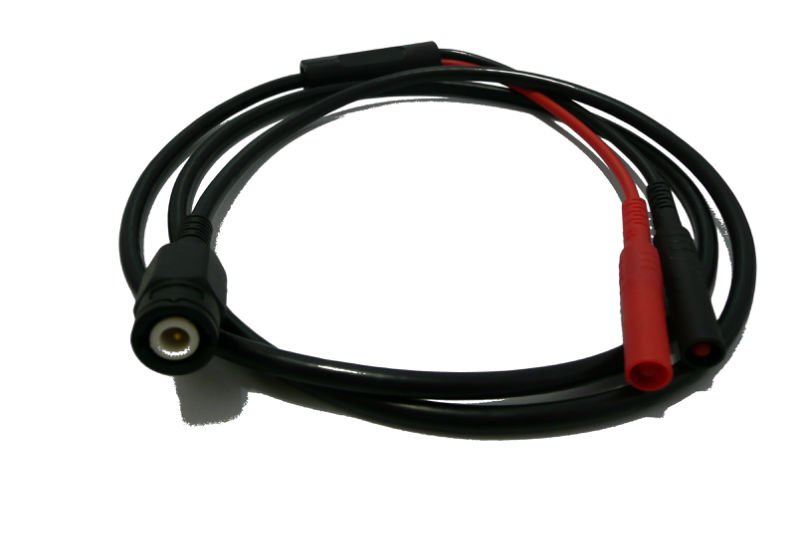

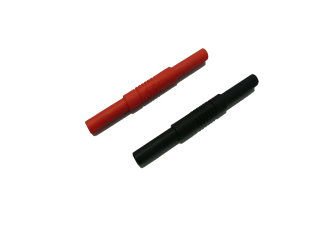

| LF-180 BNC Probe- 4mm Male Banaba connector | TL-19 Female 4mm to Female 4mm socket for connecting 4mm Banana male Jack |
 |
 |
| Break down parts for connecting LF-180 + TL-19 With CA-60 | Connecting CA-60 with LF-180 + TL-19 |
