Description
- Brand Name: MLHJ
- Origin: CN(Origin)
- Certification: CE
- Warranty: 1 year
- Customized support: ODM
- Place of Origin: Jiangsu, China
- Brand Name: TECMEN
- Model Number: ADF735S TM14
- Switch Time: 1/16,000 s

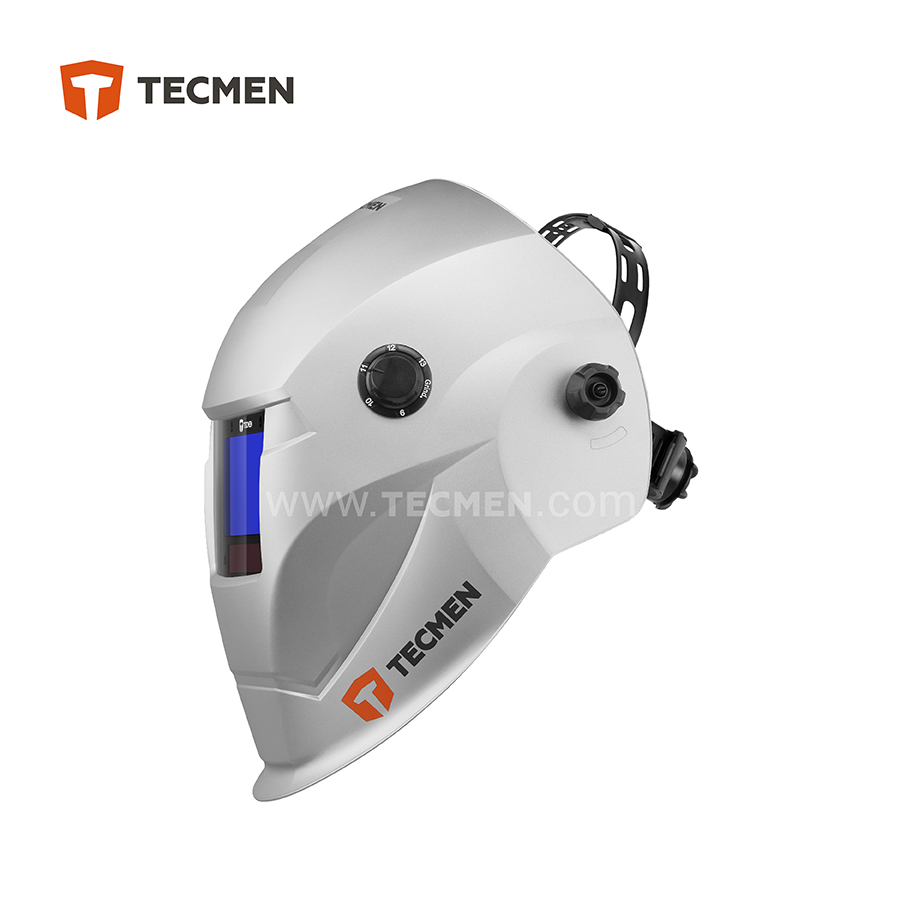

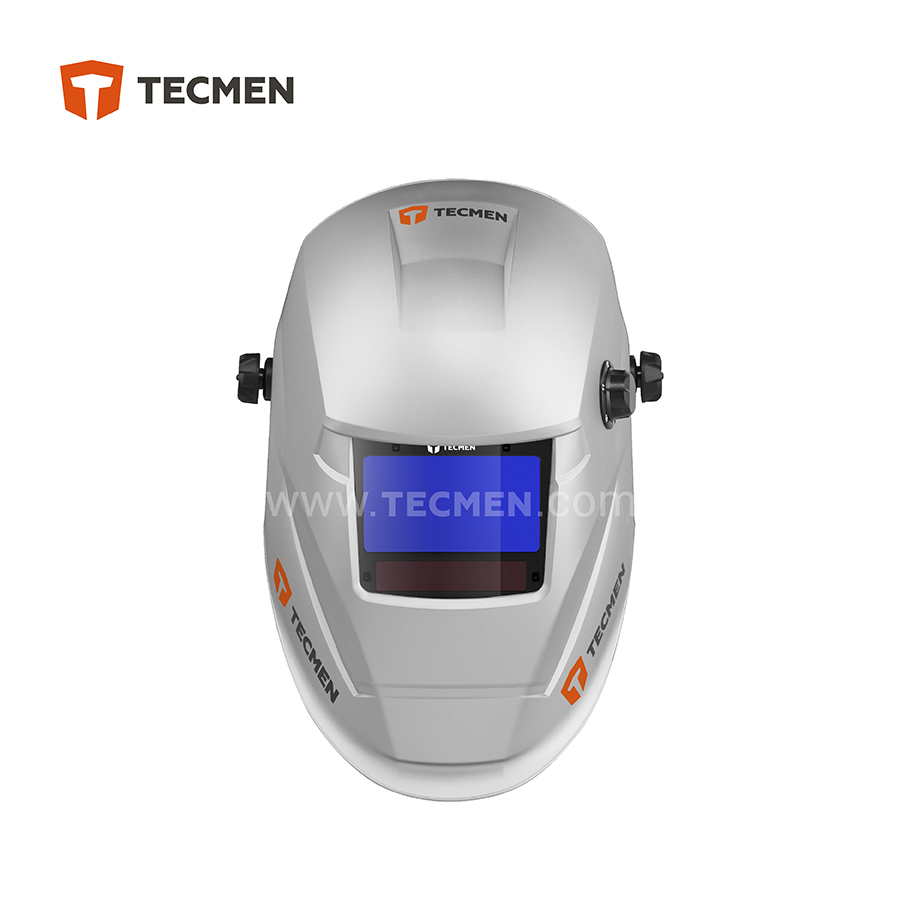

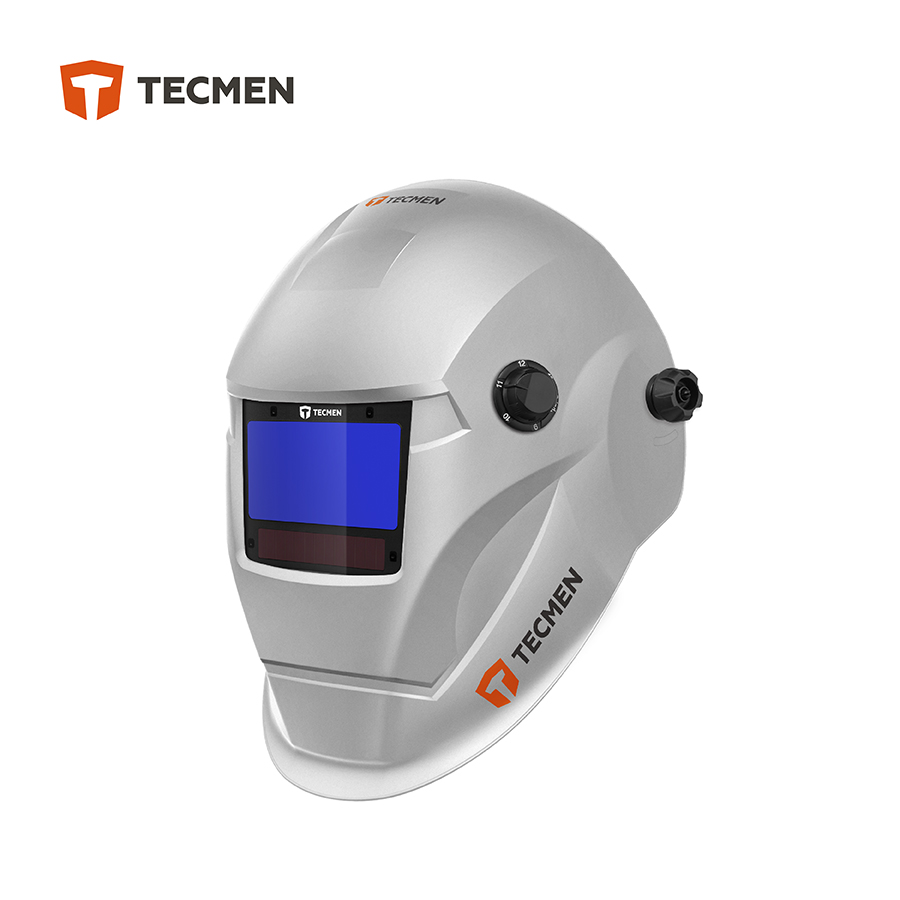

- Product name: TECMEN ADF735S TM14 welding helmet
- Material: High Impact Resistance Nylon
- Usage: Face&Eye Protection
- Application: Welding Industry
- Packing: 1pc/color box; 8pcs/master carton
- Certification: ANSI, CE, CE, ANSI, AS/NZS
#detail_decorate_root .magic-0{border-bottom-style:solid;border-bottom-color:#53647a;font-family:Roboto;font-size:24px;color:#53647a;font-style:normal;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-1{margin-bottom:10px;line-height:0}#detail_decorate_root .magic-2{margin-bottom:0}#detail_decorate_root .magic-3{position:relative;width:100%}#detail_decorate_root .magic-4{width:750px;border-collapse:collapse}#detail_decorate_root .magic-5{min-height:18px;padding:5px 10px;width:221px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-6{min-height:18px;padding:5px 10px;width:480px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-7{width:750px}#detail_decorate_root .magic-8{overflow:hidden;width:750px;height:1040.506329113924px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-9{margin-top:0;margin-left:0;width:750.0000000000001px;height:1040.506329113924px}#detail_decorate_root .magic-10{overflow:hidden;width:750px;height:223.10126582278482px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-11{margin-top:0;margin-left:0;width:750.0000000000001px;height:223.10126582278482px}#detail_decorate_root .magic-12{overflow:hidden;width:750px;height:747.1518987341773px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-13{margin-top:0;margin-left:0;width:750.0000000000001px;height:747.1518987341773px}#detail_decorate_root .magic-14{overflow:hidden;width:750px;height:714.8734177215191px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-15{margin-top:0;margin-left:0;width:750.0000000000001px;height:714.8734177215191px}#detail_decorate_root .magic-16{overflow:hidden;width:750px;height:777.5316455696203px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-17{margin-top:0;margin-left:0;width:750.0000000000001px;height:777.5316455696203px}#detail_decorate_root .magic-18{overflow:hidden;width:750px;height:1005.3797468354431px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-19{margin-top:0;margin-left:0;width:750.0000000000001px;height:1005.3797468354431px}#detail_decorate_root .magic-20{overflow:hidden;width:750px;height:1345.2531645569622px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-21{margin-top:0;margin-left:0;width:750.0000000000001px;height:1345.2531645569622px}#detail_decorate_root .magic-22{overflow:hidden;width:750px;height:692.0886075949368px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-23{margin-top:0;margin-left:0;width:750.0000000000001px;height:692.0886075949368px}#detail_decorate_root .magic-24{overflow:hidden;width:750px;height:474.68354430379753px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-25{margin-top:0;margin-left:0;width:750.0000000000001px;height:474.68354430379753px}#detail_decorate_root .magic-26{vertical-align:top}#detail_decorate_root .magic-27{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-28{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-29{padding:0;margin:0;white-space:pre-wrap;font-size:14px}#detail_decorate_root .magic-30{margin-bottom:10px;overflow:hidden}
Product Description
Specification
|
item
|
value
|
|
Place of Origin
|
China
|
|
Brand Name
|
TECMEN
|
|
Model Number
|
ADF735S TM14
|
|
Optical Class
|
1 / 1 / 1 / 2
|
|
Viewing area
|
96 x 53 mm (3.78” x 2.09”)
|
|

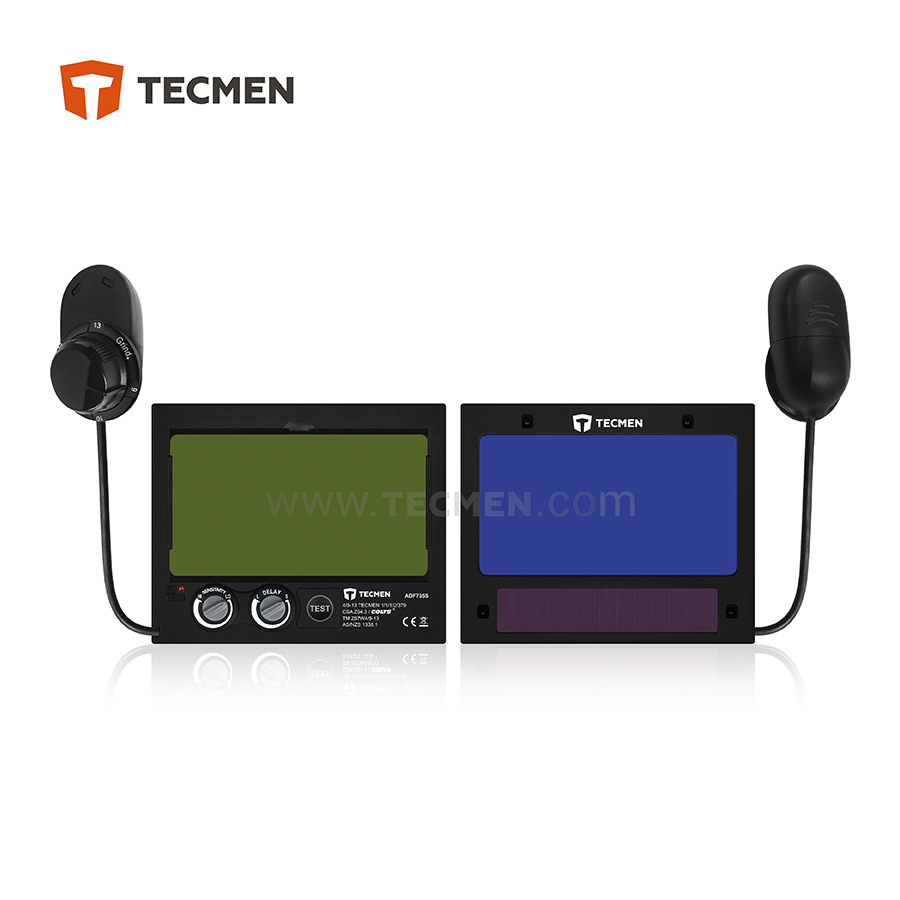

Size of cartridge
|
110 x 90 x 9 mm(4.33” x 3.54” x 0.35”)
|
|
Lens shade
|
Variable Shade 9-13
|
|
Light State
|
DIN 3.5
|
|
Shade control
|

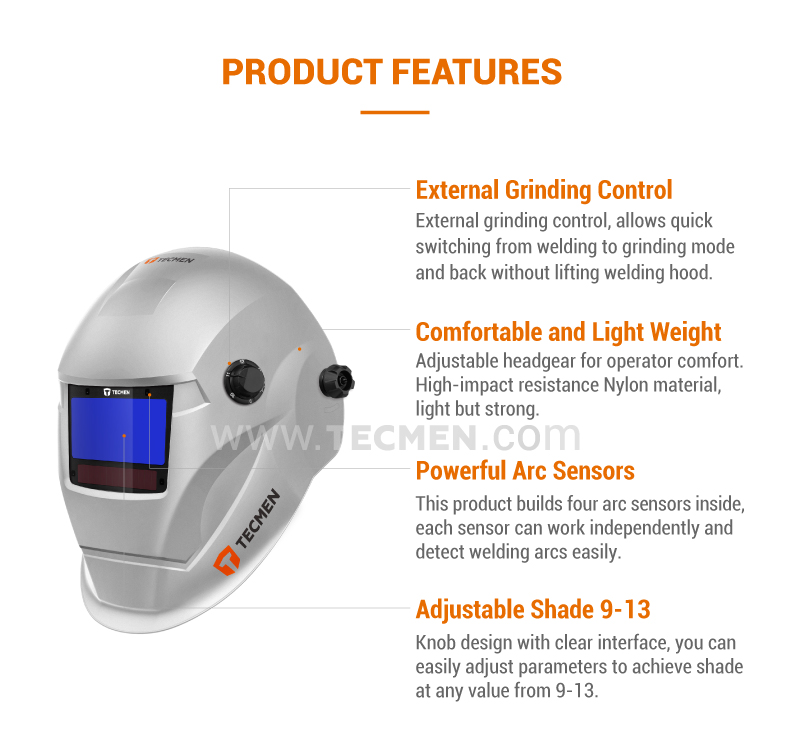

External
|
|
Sensors
|
4
|
|
On/Off
|
Automatic On / Off
|
|
Power Supply
|

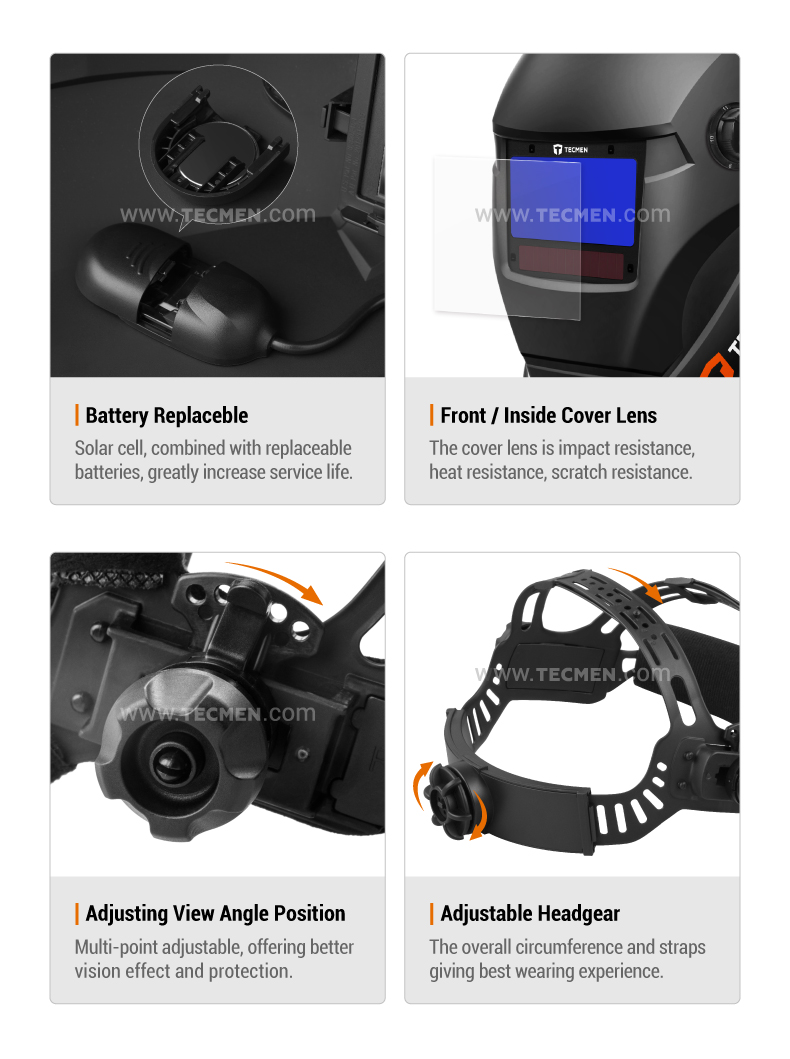

Solar cell + Battery replaceable
1*CR2450 lithium battery |
|
Switch time
|
1/16,000 sec. from Light to Dark
|
|
Sensitivity Control
|
Low~High, by infinitely dial knob
|
|
Delay time(dark to light)
|
0.1~1.0s by infinitely dial knob
|
|
Low TIG amps rated
|
≥5 amps(DC); ≥5 amps(AC)
|
|
Grind mode
|
Yes
|
|
Operating Temperature
|
-10℃~＋55℃(14℉~131℉)
|
|
Storing Temperature
|
-20℃~＋70℃(-4℉~158℉)
|
|
Packaging
|
Color box
|
|
Application range
|
Stick Welding (DC&AC); TIG( DC,DC Pulse);TIG AC(Pulse),Excellent low amperage TIG response; MIG/MAG ;MIG/MAG Pulse;Plasma Cutting/
Welding; Grinding; Not for Laser Welding or Oxyacetylene Welding/Cutting |
|
Warranty
|
1 year
|
|
Standard
|
CE, ANSI, AS/NZS approved
|
FAQ
1. who are we?
We are based in Jiangsu, China, start from 2005,sell to North America(35.00%),Western Europe(20.00%),Domestic Market(10.00%),Northern Europe(8.00%),Eastern Europe(7.00%),South America(5.00%),Southeast Asia(5.00%),Oceania(5.00%),Mid East(4.00%),Africa(1.00%). There are total about 201-300 people in our office.
We are based in Jiangsu, China, start from 2005,sell to North America(35.00%),Western Europe(20.00%),Domestic Market(10.00%),Northern Europe(8.00%),Eastern Europe(7.00%),South America(5.00%),Southeast Asia(5.00%),Oceania(5.00%),Mid East(4.00%),Africa(1.00%). There are total about 201-300 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Welding helmet,Powered air purifying Respirator,Protective face shield,earmuffs,full mask
4. why should you buy from us not from other suppliers?
TECMEN focuses on R&D and manufacturing all different kinds of powered air purifying Respirators, face shield, earmuffs, welding helmets and other PPE products since 1984. A strong TECMEN R&D team and QC team makes us stronger competitive.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF；
Accepted Payment Currency:USD,EUR,JPY,HKD,GBP,CNY;
Accepted Payment Type: T/T,L/C,Credit Card,PayPal;
Language Spoken:English,Chinese
