Tec Fan Ttl analog Best Selling 532nm 3000mw Dpss Green Laser Diode Module

$4,556.42

SKU: 3456034018651 Category:

Description

Tec Fan Ttl analog Best Selling 532nm 3000mw Dpss Green Laser Diode Module


Product Parameters

 laser diode module

Specifications:

Wavelength

532nm

Operating mode

CW

Output power

>3W

Spatial mode

Near TEM00

Longitudinal mode

Multi

Spectral linewidth

0.1nm

Coherence length

20cm

Polarization

Linear vertical

Polarization ratio

>100:1

Beam quality

M2<1.5

Beam divergence full angle

2mrad

Beam diameter at aperture

3mm

Beam ellipticity

1±0.1

Beam pointing stability

0.03mrad

Noise

<15% 10Hz-50MHz

Power stability

±5% over 8 hrs rms

Optical axis height

48mm

Size of laser head

L×W×H=154.5×77×60mm

Size of power supply

L×W×H=194×104×85mm

Cabel-laser head

1.0m

Weight of laser head

0.9kg

Weight of power supply

0.9kg

TTL modulation

0V-no lasing, 5V-lasing

Frequency of TTL

1kHz-30kHz

Efficiency of TTL

40%-60%

Analogue modulation

0-5V

Frequency of analogue

1kHz-20kHz

Cooling mode

TEC

Operating votage

90-260VAC

Maximum power consumption

20W

Warm-up time

15 mintues

Operating temperature

10-35℃

Storage temperature

-20-60℃(<90% relative humidity, non-condensing)

Expected life time

10,000 hours

Warranty time

1 year

Product Display

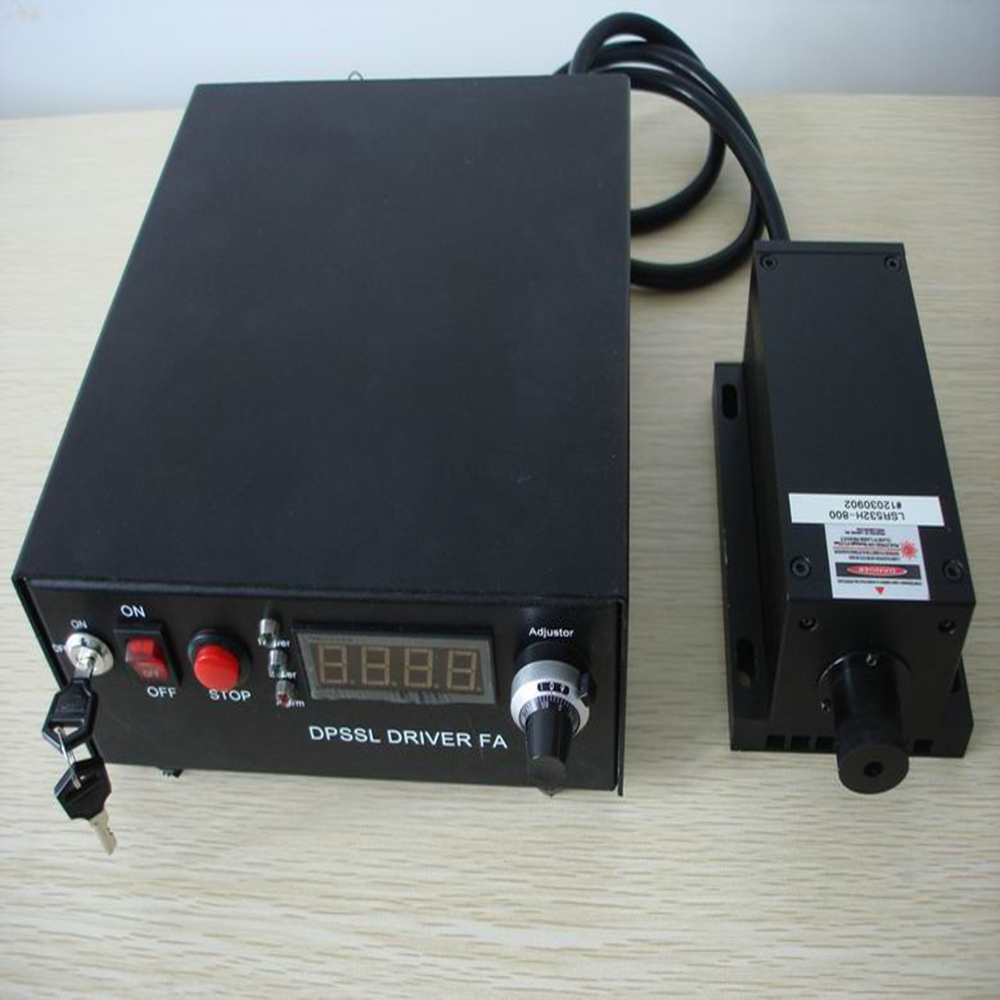

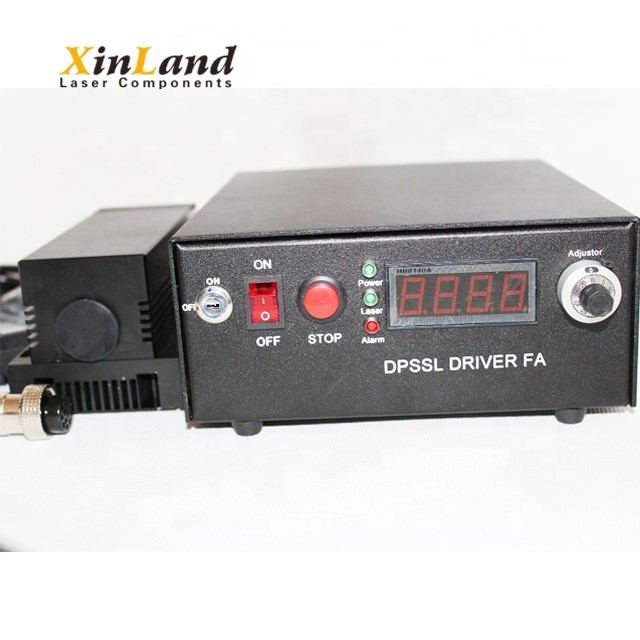

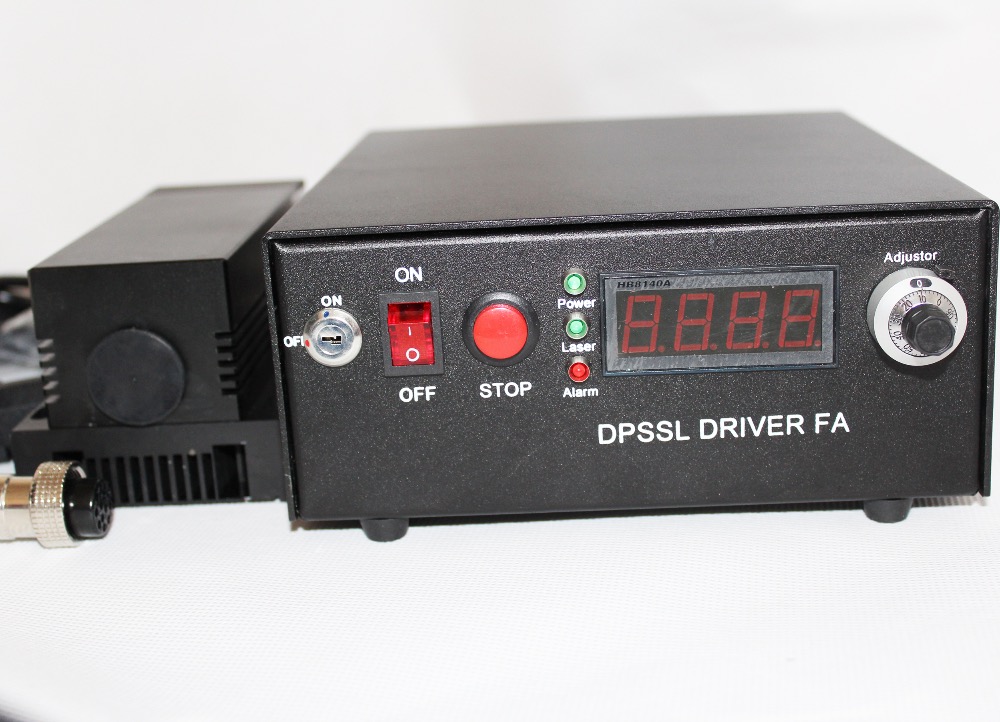

Product Photo:

dpss green laser diode module532nm 3000mw laser diode module



Laser Head Dimension:

laser diode module

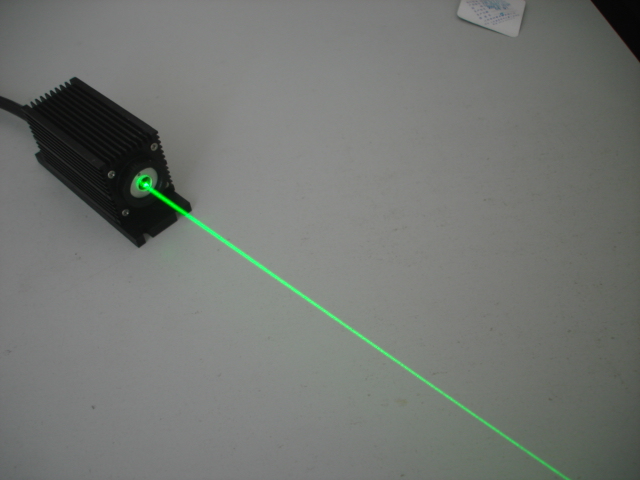

Beam light quality:

dpss green laser diode module



Beam profile:

532nm 3000mw laser diode modulelaser diode module

Click here for more information

Additional information

Model Number

P-XL532ST3W
