TC1 T7 T7-H Transistor Tester Multimeter TFT LCD Display ESR Diode Triode Capacitance Resistor Meter NPN PNP MOSFET Multimeter

What’s the difference between 3 versions?

T7 / TC1:color screen / M644 chip, two functions are the same! T7 is slightly faster! The TC1 screen is slightly larger and they are all powered by lithium batteries. In addition to measuring resistance, capacitance, inductance, diodes, MOS transistors, thyristors, it can also measure additional voltage regulators, infrared decoding (limited to for Hitachi format)

T7H:is an upgraded version of T7, Up-to-date / fastest version

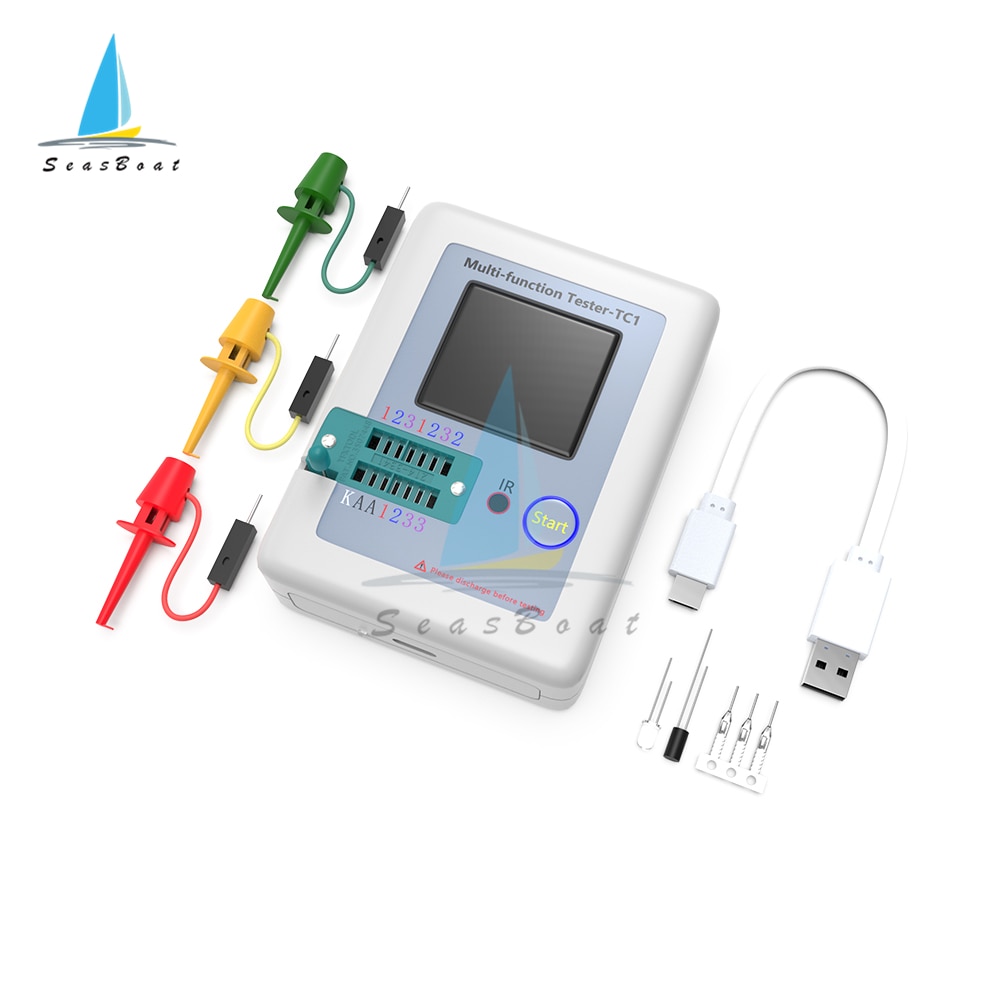

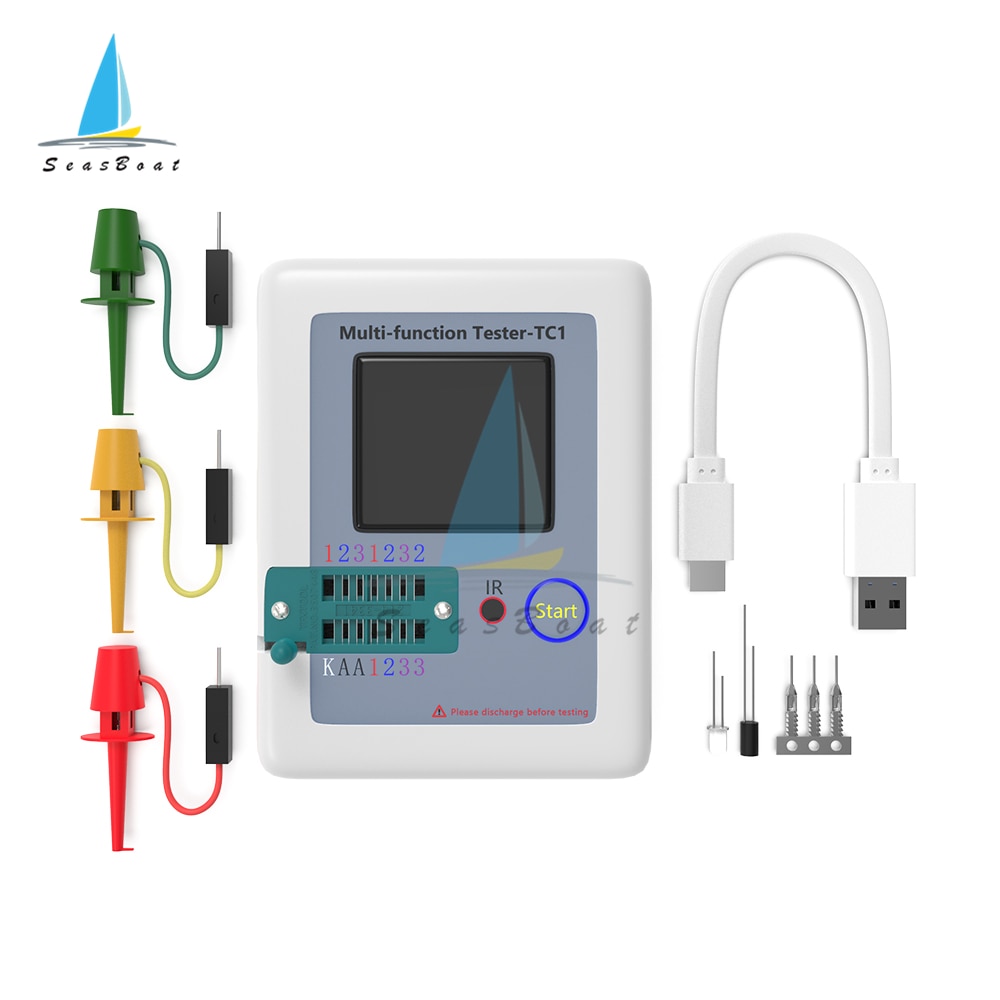

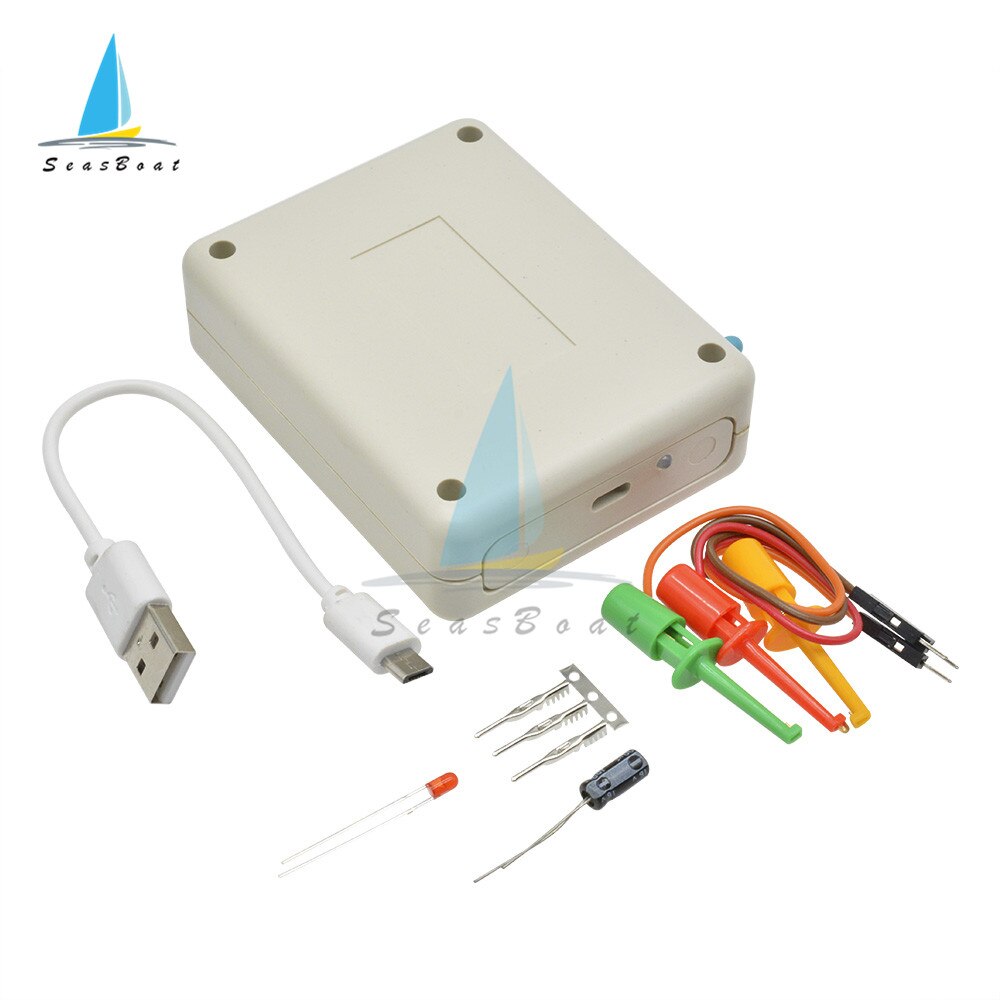

LCR-TC1

Features:

It can be widely used to detect  NPN and PNP transistor, capacitor, resistor, diode, triode, N-channel and P-channel MOSFET, IGBT, JFET, triac and battery etc.

It can also be used to detect  infrared wave forms.

It also can detect  zener diode and has the function of  self-calibration.

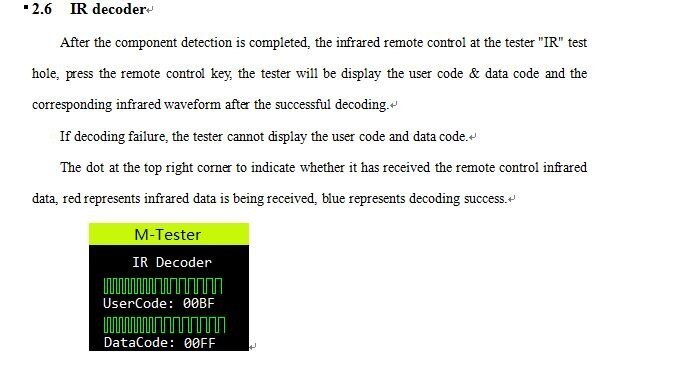

After detection, align the infrared remote control with the “IR” light, then press the button in the remote control, if the detector successfully decode it, it will display the data code and infrared wave form.

One button operation, automatically detect and shutdown, and you can press the multi-functional button to close the detector too.

Put the pins of component in corresponding area, then dial the little handle and the detector will test it automatically, finally the results will display on the back light TFT screen clearly.

Not like the usual black and white display,  this detector will show results in color.

Specifications:

Display: 1.8 inch TFT Screen

Diode Range:  < 4.5V

Zener Diode:Transistor Detect Area:  0.01-4.5V

Zener Diode Detect Area:  0.01-30V

Triac Range:  IGT < 6mA

Capacitance:  25pF-100mF

Resistor:  0.01-50MΩ

Inductance:  0.01mH-20H

Battery: 0.1-4.5V

Power Mode: Rechargeable Lithium Battery ( INCLUDED)

Item Size: 8.8 x 8 x 2.8cm / 3.47 x 3.15 x 1.10in

Item Weight: 111.5g / 3.94oz

Package Size: 14.5 x 12 x 2.7cm / 5.71 x 4.73 x 1.06in

Package Weight: 114g / 4.02oz

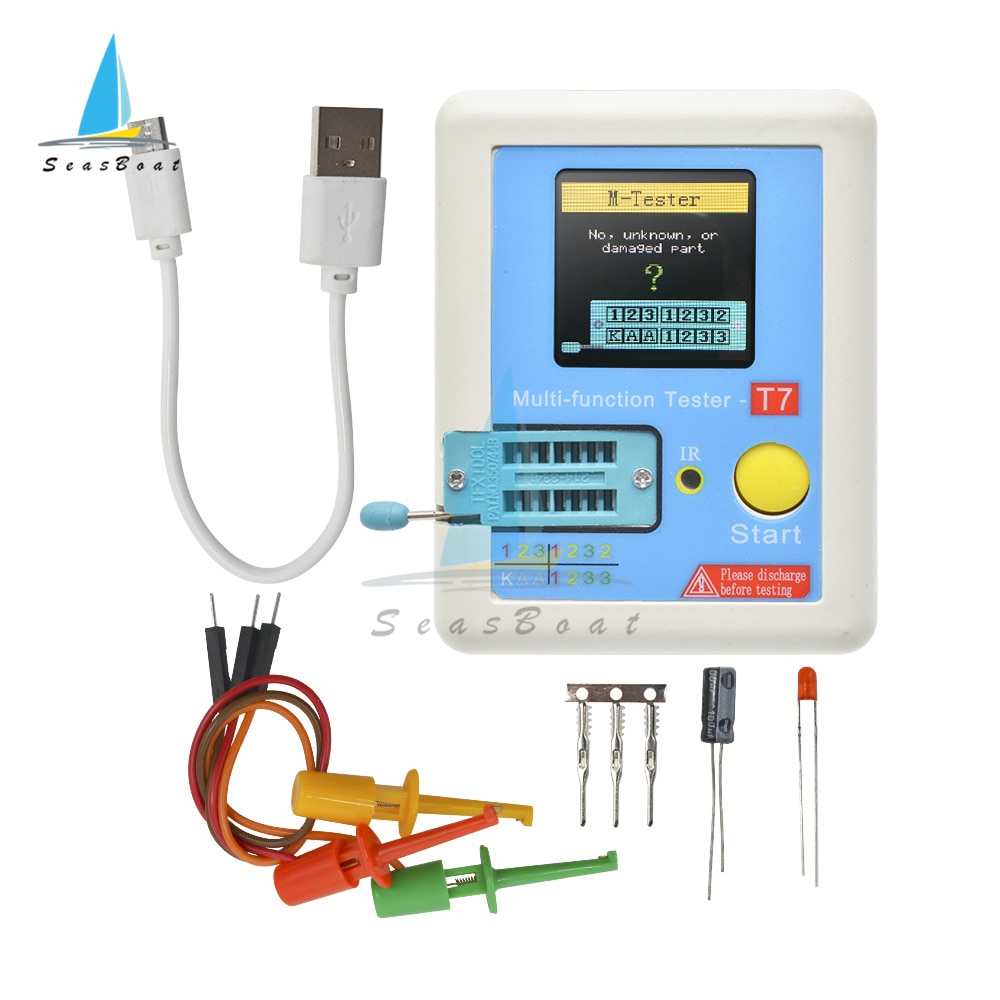

TCR-T7

1.1         Introduction

– 160×128 TFT display

– Multi function key

– Transistor test area

– Zener Diode test area

– IR receiver window

– Micro USB Charging Interface

– Charge indicator LED

1.1         Features

TC-V2.12k is a TFT graphic display Multifunction Tester.

l         Transistor Tester

–

–           Automatic detection of zener diode0.01-30V

–           Self test with automatic calibration

l         IR decoder

–           Support Hitachi IR coding

–           IR waveform display

–           Infrared receiving instruction

l         Other

–           Measurement results using TFT graphic display(160×128)

–           One key operation

–           Auto Power Off(Timeout Settable)

–           Built-in high capacity rechargeable Li-ion Battery

–           Li-ion Battery voltage detection

–           Support Chinese and English

Warning: Built-in Li-ion Battery, it is strictly prohibited the tester immersed in water, or near a heat source!

Warning: For your personal safety, please strictly comply with the use of Li-ion Battery specifications and precautions!

1          Operating Instructions

1.1         Key operational definitions

Multi-function key has two actions:

l         Short press: Press the key and not less than 10 ms, release key within 1.5 seconds

l         Long press: Press the key more than 1.5 seconds

1.2         Power on

In the power off state, short press the multifunction key, the tester is turned on and automatically measured.

l         Power on & measurement interface

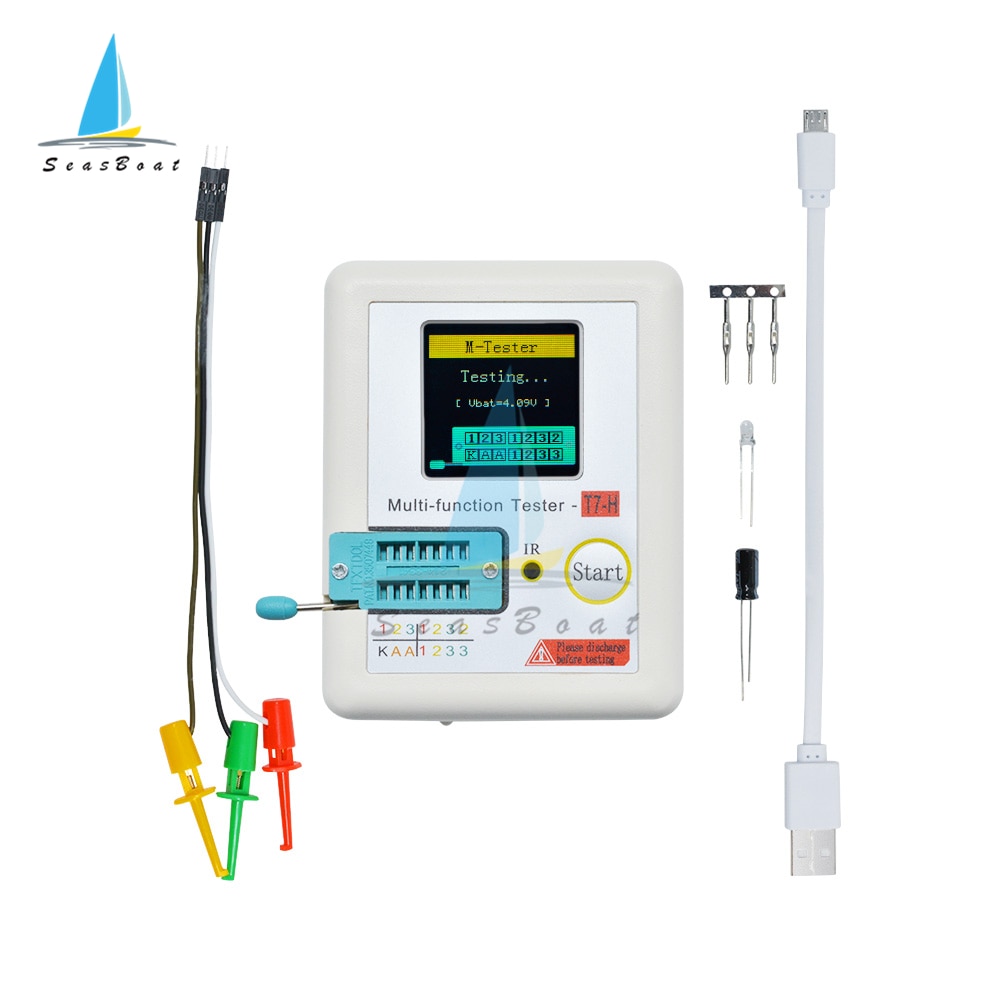

TC-T7-H

128×128 TFT display

Multi function key

Transistor test area

Zener Diode test area

IR receiver window

Micro USB Charging Interface

Charge indicator LED

Features:

TC-T7-H  is a TFT graphic display Multifunction Tester.

Transistor Tester:

Automatic detection of NPN and PNP bipolar transistors, N-channel and P-channel MOSFETs, JFETs, diodes (including double diodes), N- and P-IGBTs, resistors (including potentiometers), inductors, capacitors, thyristors, triacs and battery (0.1-4.5V)

Automatic detection of zener diode(0.01-20V)

Self test with automatic calibration

IR decoder:

Support Hitachi IR coding

IR waveform display

Infrared receiving instruction

Other:

Measurement results using TFT graphic display(160×128)

One key operation

Auto Power Off(Timeout Settable)

Built-in high capacity rechargeable Li-ion Battery

Li-ion Battery voltage detection

Support Chinese and English

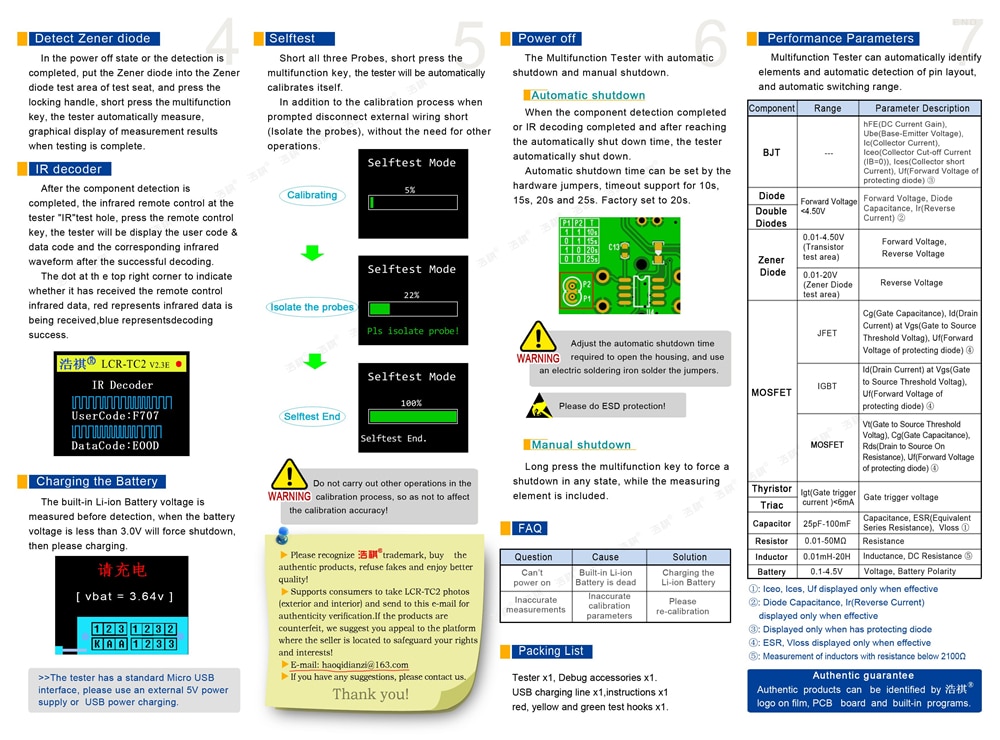

Performance Parameters:

Multifunction Tester can automatically identify elements and automatic detection of pin layout, and automatic switching range.

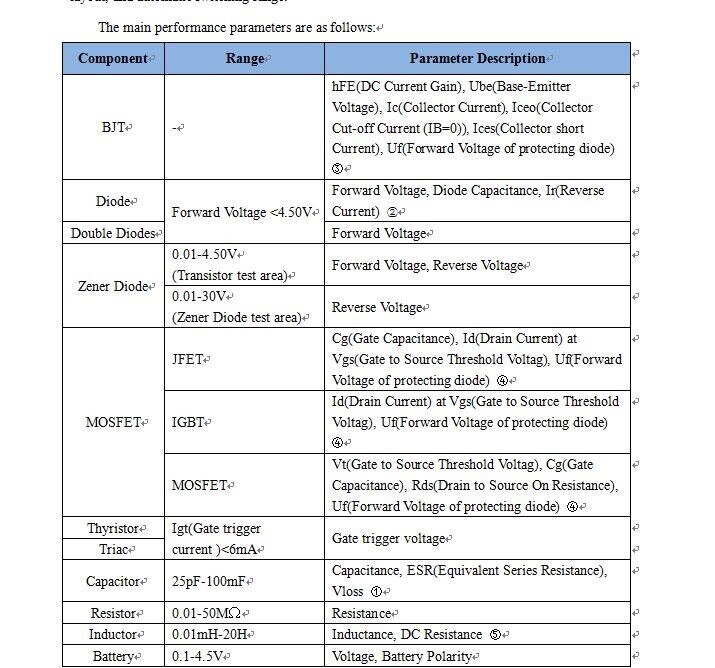

The main performance parameters are as follows:

Component	Range	Parameter Description

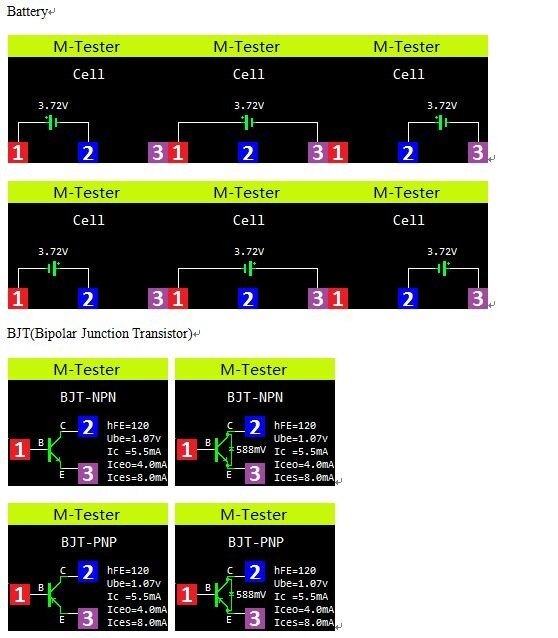

BJT	–	hFE(DC Current Gain), Ube(Base-Emitter Voltage), Ic(Collector Current), Iceo(Collector Cut-off Current (IB=0)), Ices(Collector short Current), Uf(Forward Voltage of protecting diode) ③
Diode	Forward Voltage <4.50V	Forward Voltage, Diode Capacitance, Ir(Reverse Current) ②
Double Diodes		Forward Voltage
Zener Diode	0.01-4.50V (Transistor test area)	Forward Voltage, Reverse Voltage
	0.01-20V (Zener Diode test area)	Reverse Voltage
MOSFET	JFET	Cg(Gate Capacitance), Id(Drain Current) at Vgs(Gate to Source Threshold Voltag), Uf(Forward Voltage of protecting diode) ④
	IGBT	Id(Drain Current) at Vgs(Gate to Source Threshold Voltag), Uf(Forward Voltage of protecting diode) ④
	MOSFET	Vt(Gate to Source Threshold Voltag), Cg(Gate Capacitance), Rds(Drain to Source On Resistance), Uf(Forward Voltage of protecting diode) ④

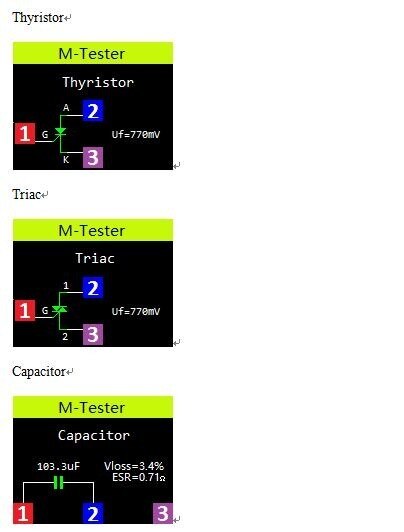

Thyristor	Igt(Gate trigger current )<6mA	Gate trigger voltage
Triac
Capacitor	25pF-100mF	Capacitance, ESR(Equivalent Series Resistance),  Vloss ①
Resistor	0.01-50MΩ	Resistance
Inductor	0.01mH-20H	Inductance, DC Resistance ⑤
Battery	0.1-4.5V	Voltage, Battery Polarity

Note①: Iceo, Ices, Uf displayed only when effective

Note②: Diode Capacitance, Ir(Reverse Current) displayed only when effective

Note③: Displayed only when has protecting diode

Note④: ESR, Vloss displayed only when effective

Note⑤: Measurement of inductors with resistance below 2100Ω

1. FAQ

Question	Cause	Solution

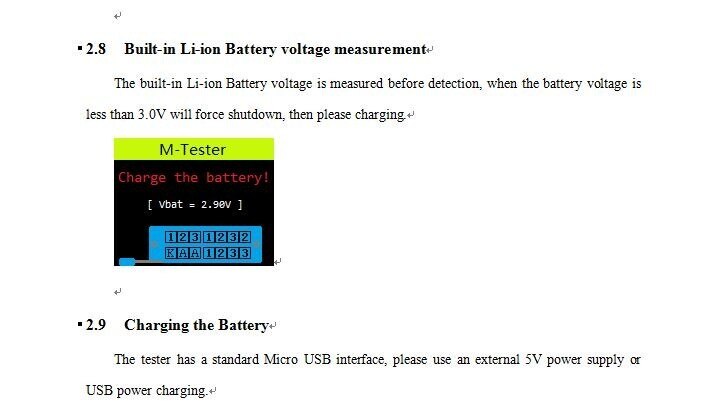

Cannot power on	Built-in Li-ion Battery is dead	Charging the Li-ion Battery, charging methods see section 2.9
Inaccurate measurements	Inaccurate calibration parameters	Please re-calibration, see section 2.4

NOTE:

1.Built-in Li-ion Battery, it is strictly prohibited the tester immersed in water, or near a heat source!

2.For your personal safety, please strictly comply with the use of Li-ion Battery specifications and precautions!

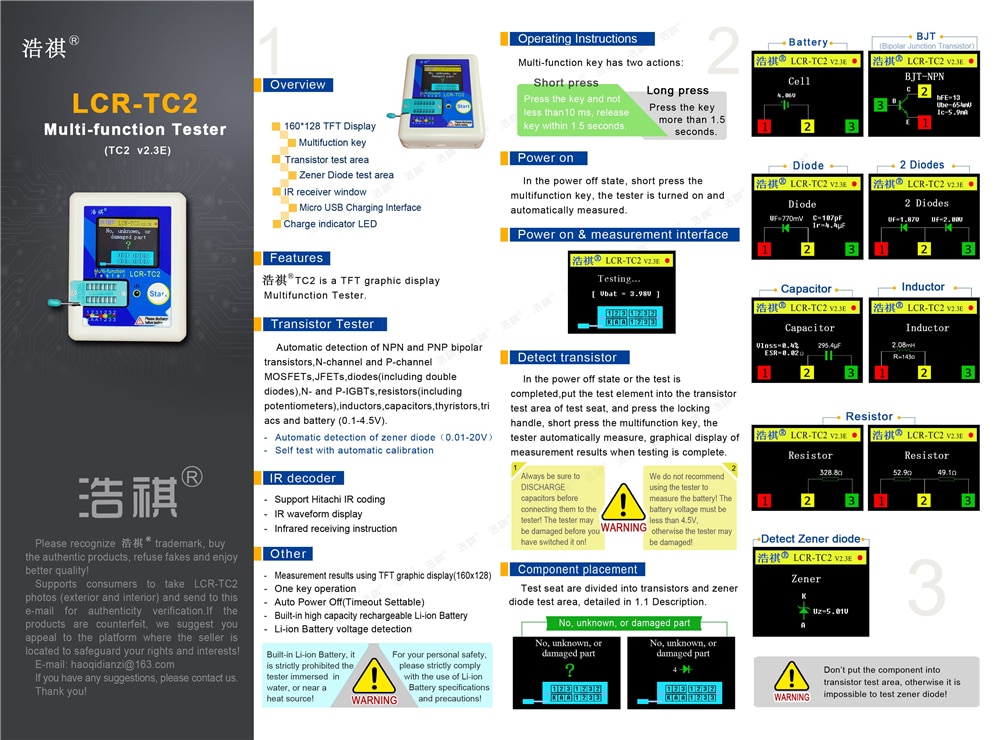

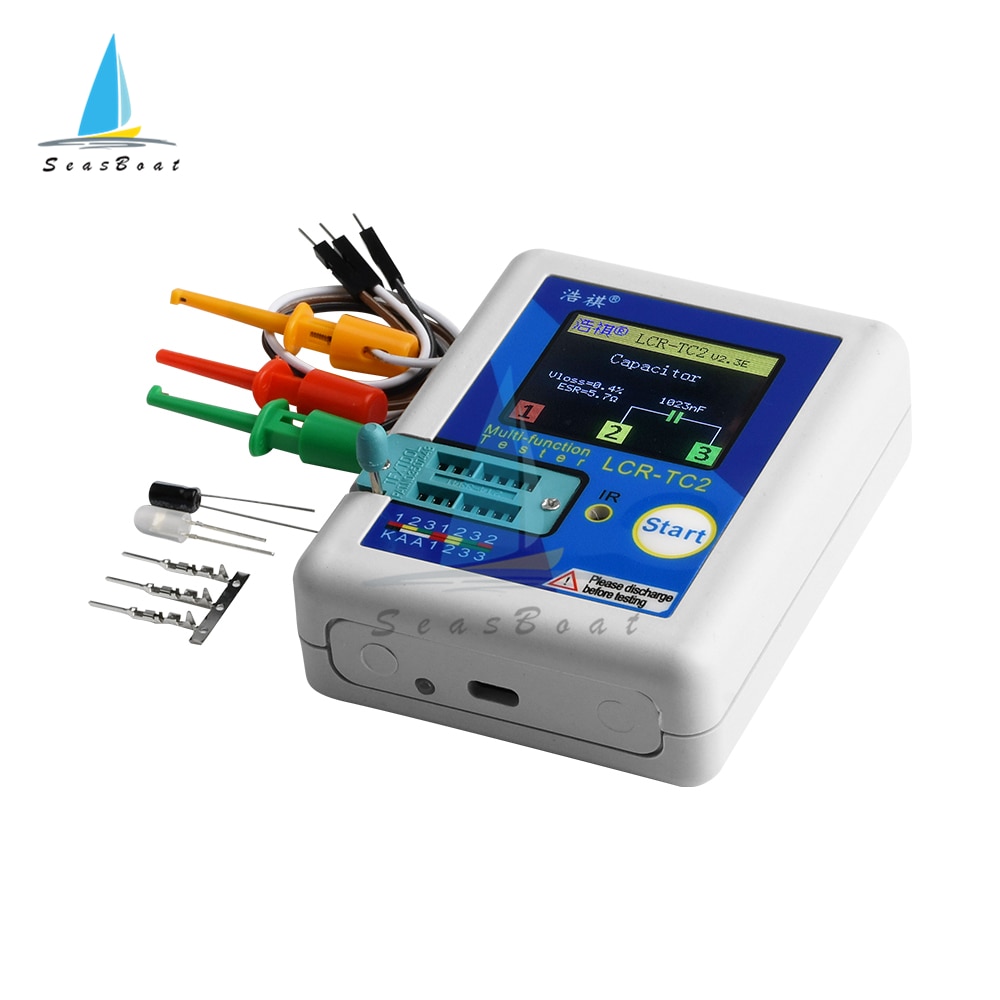

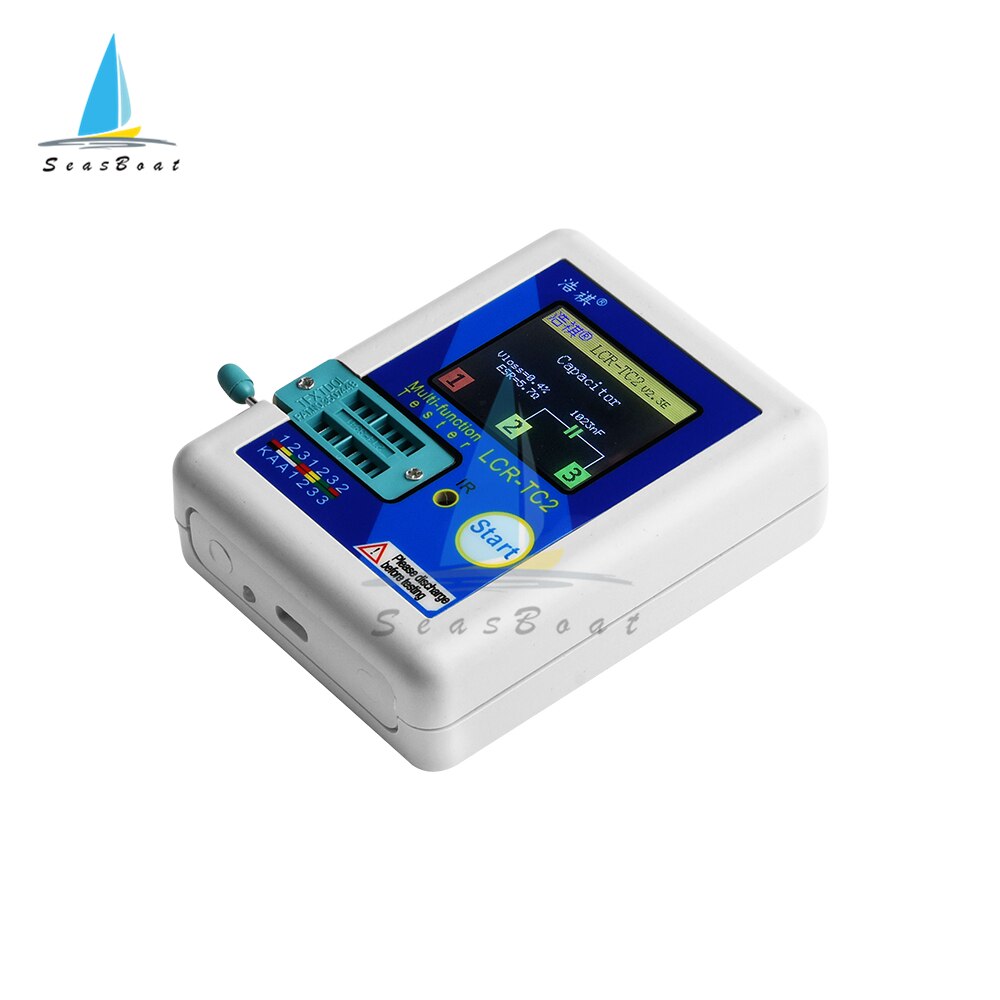

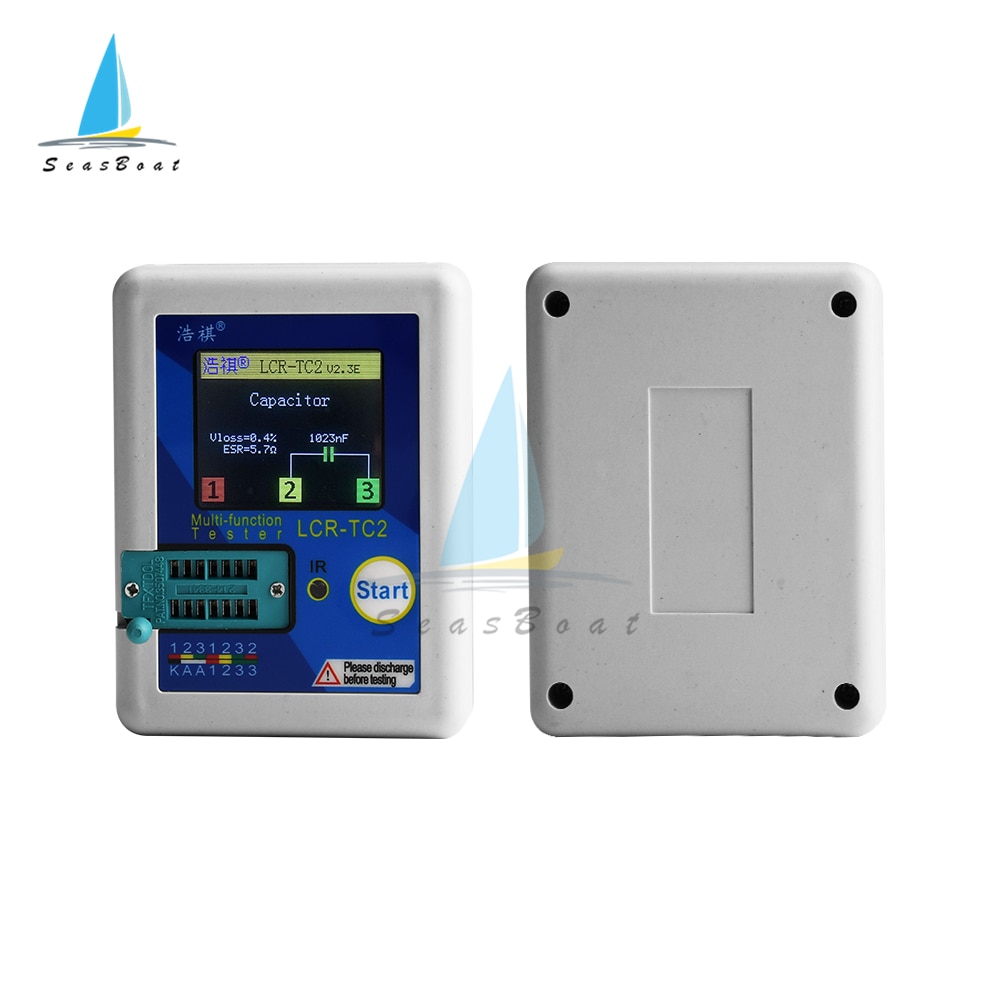

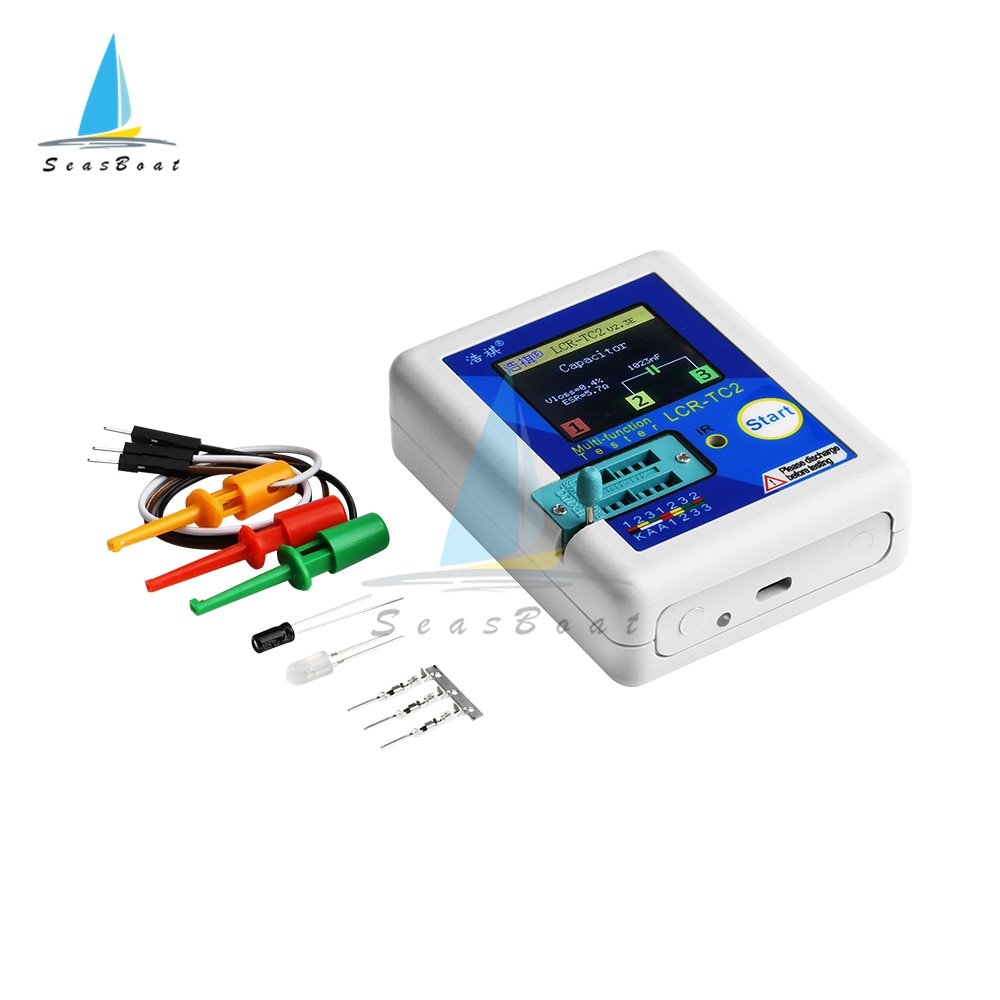

Upgraded Version LCR-TC2
