Description
- Brand Name: Aideepen
- DIY Supplies: ELECTRICAL
- Certification: None
- Origin: CN(Origin)
- Model Number: Multifunctional Transistor Tester
- AC Current: Pls check description
- AC Voltage: Pls check description
- Measuring Resistance Range: Pls check description
- Operating Mode: Pls check description
- Measuring Inductance Range: Pls check description
- Display Type: Digital Display
- DC Current: Pls check description
- DC Voltage: Pls check description
- Measuring Capacitance Range: Pls check description
- Dimensions: 70*90*26m
- Operating Temperature: Pls check description
Be sure to discharge before testing the capacitor to avoid electrostatic breakdown of the chip.
Feature:
Self test with automatic calibration

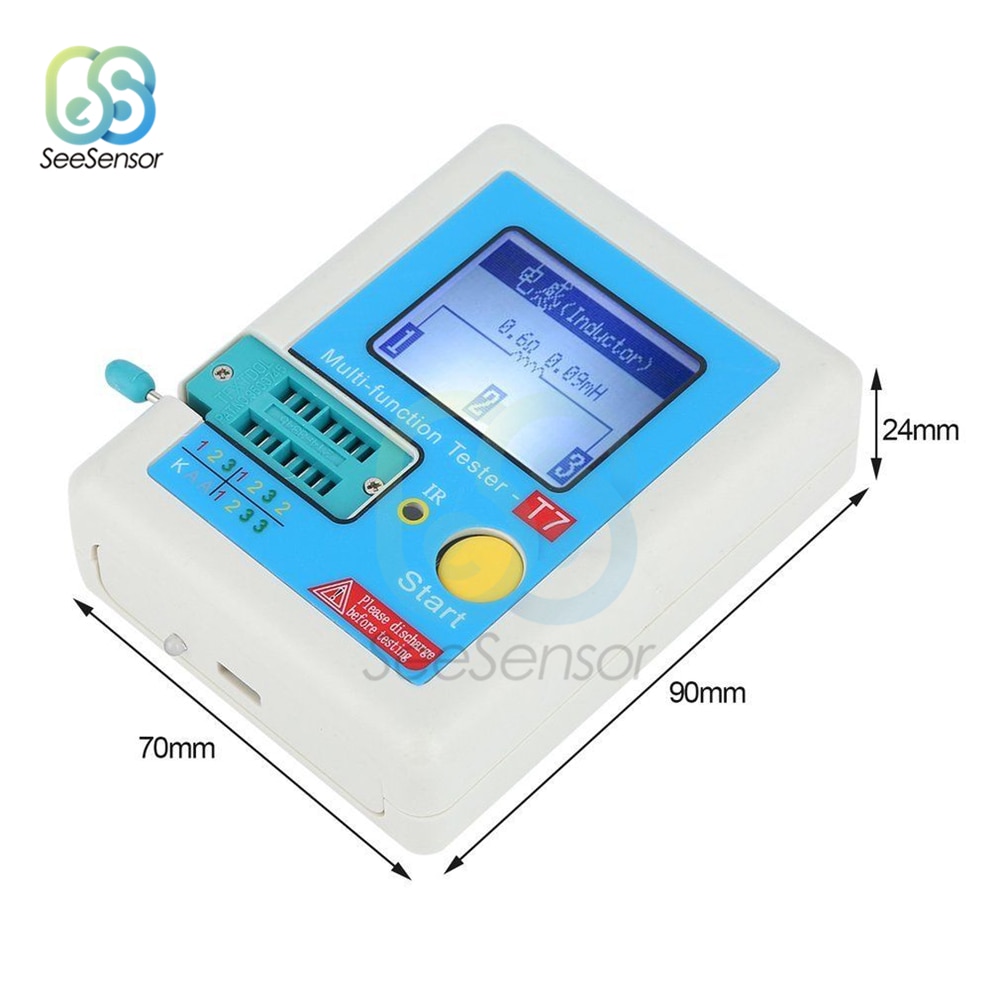

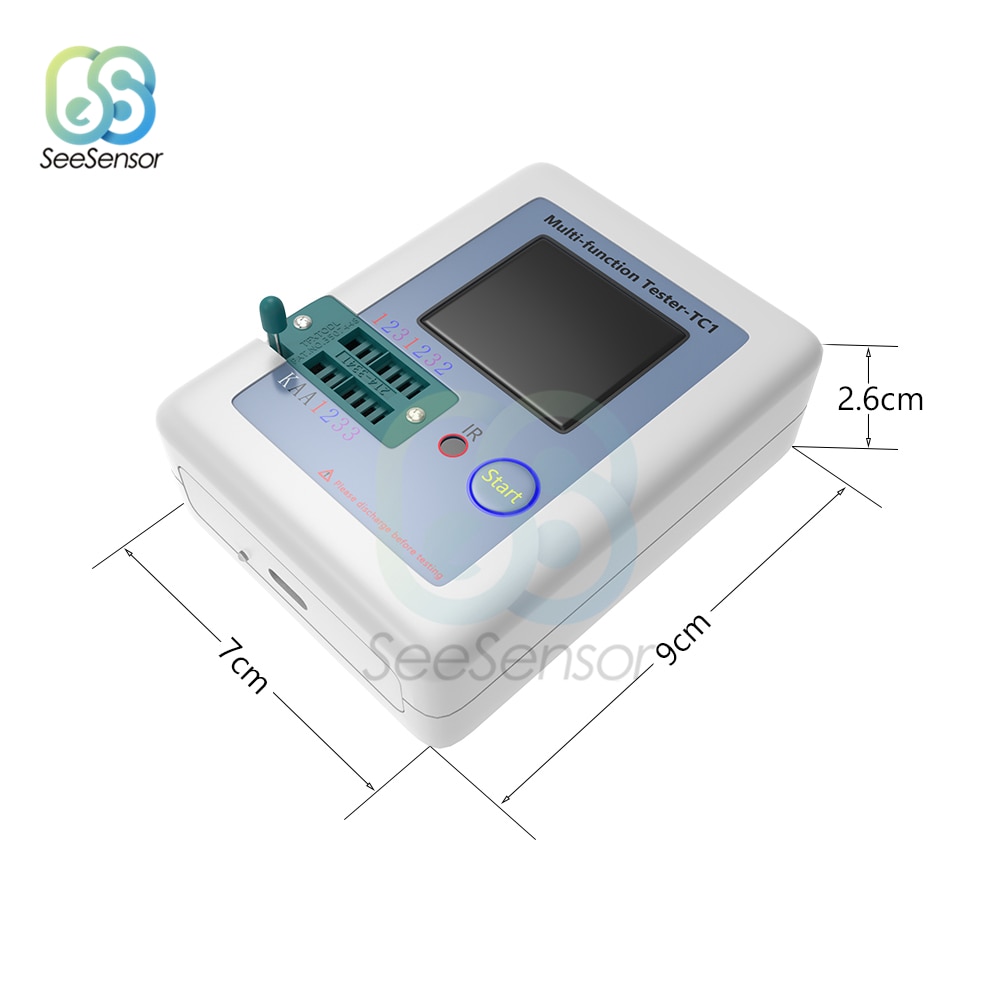

Size: 70*90*26m/ 2.71×3.58×1.10 inch
Display: 1.8 inch TFT Screen, Color Screen
Diode Range: less than 4.5V
Transistor Detect Area: 0.01-4.5V
Zener Diode Detect Area: 0.01-30V
Triac Range: IGT less than 6mA
Capacitance: 25pF-100mF
Resistor: 0.01-50MΩ
Inductance: 0.01mH-20H
Power Voltage: 3.7V
Power: Built-in Rechargeable Lithium Battery
Measurement results using TFT graphic display (160×128)
One-button operation
Auto power off (timeout setting)
Built-in high-capacity rechargeable lithium-ion battery
Lithium-ion battery voltage detection
Support Chinese and English
Warning: Built-in lithium-ion battery, it is strictly forbidden to immerse the tester in water or near heat source!
Warning: For your personal safety, please strictly observe the specifications and precautions for using lithium-ion batteries!

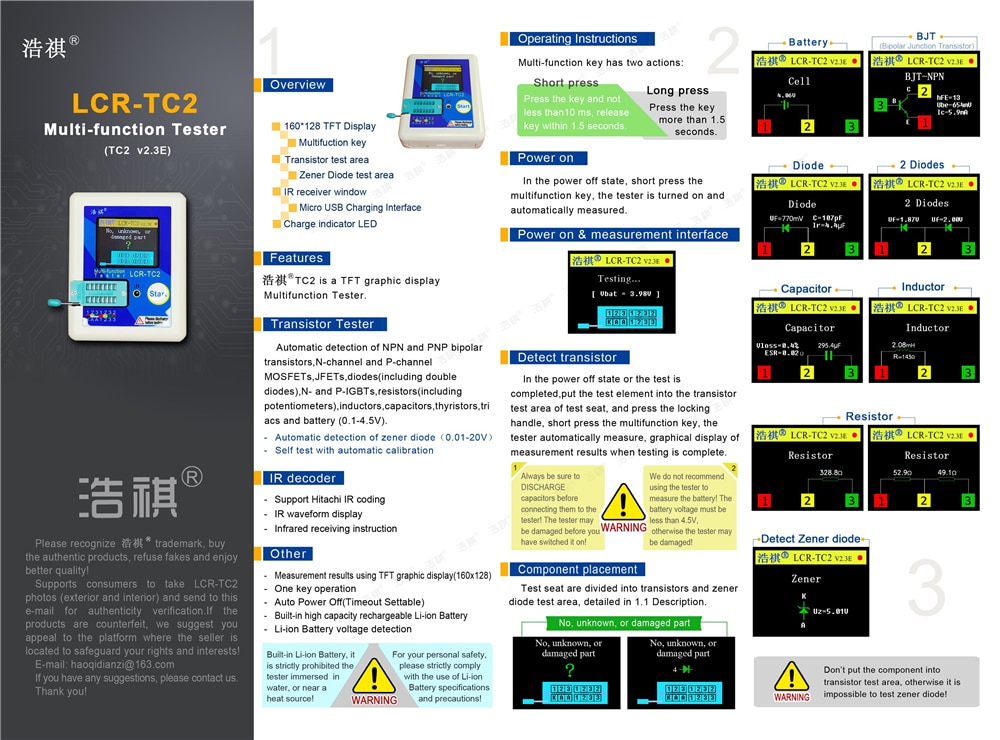

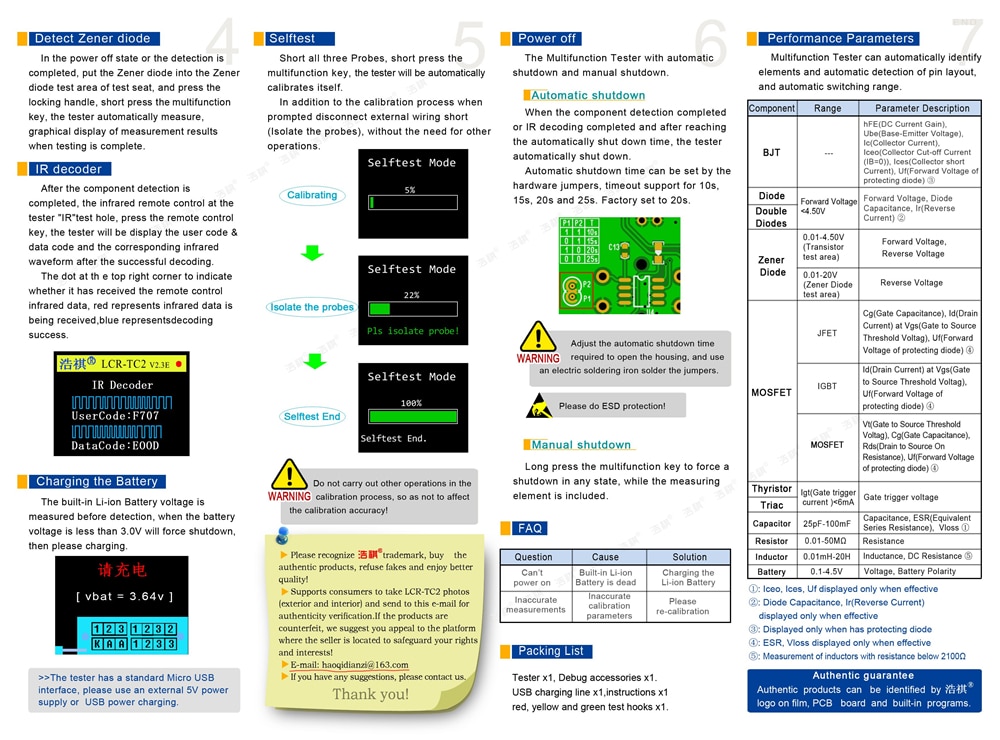

Transistor Detection:
After the power-off state or test is completed, put the test component into the transistor test area of the test socket, press the lock handle, press the multi-function key, the tester automatically measures, and the measurement result is displayed at the end of the test.
Warning: Always discharge the capacitor before connecting them to the tester! The tester may be damaged before you turn it on!
Warning: We do not recommend using a tester to measure the battery! The battery voltage must be less than 4.5V, otherwise the tester may be damaged!
Feature:
Automatic detection of zener diode 0.01-30V.
Self test with automatic calibration.
Support Hitachi IR coding.
IR waveform display.
Infrared receiving instruction.
Measurement results using TFT graphic display.
One key operation.
Auto power off (timeout settable).
Built-in high capacity rechargeable Li-ion battery.
Li-ion Battery voltage detection.
Used to detect NPN and PNP transistors, capacitors, resistors, diodes, transistors, N-channel and P-channel MOSFETs, IGBTs, JFETs, triacs and batteries
Specification:
Sweep range: 0.1MHz
Voltage: 3.7V
Display: 160 * 128 TFT
Battery: 1 * Li-ion battery, 3.7V, 300mAh
Features:
1. Automatic detection of zener diode 0.01-20V.
2. Self-test with automatic calibration.
3. Support infrared coding.
4. Infrared waveform display.
5. Infrared receiving instructions.
6. The measurement results are displayed by TFT graphic.
7. A key operation.
8. Automatic shutdown (timeout setting).
9. Built-in high capacity rechargeable lithium ion battery.
10. Lithium ion battery voltage detection.
Specification:
Condition:100% Brand New
Color: As Pictures Shown
Capacitor: 25pF-100mF
Resistor: 0.01-50MΩ
Inductor: 0.01mH-20H
Battery: 0.1-4.5V
Weight: Approx.121g/4.3oz

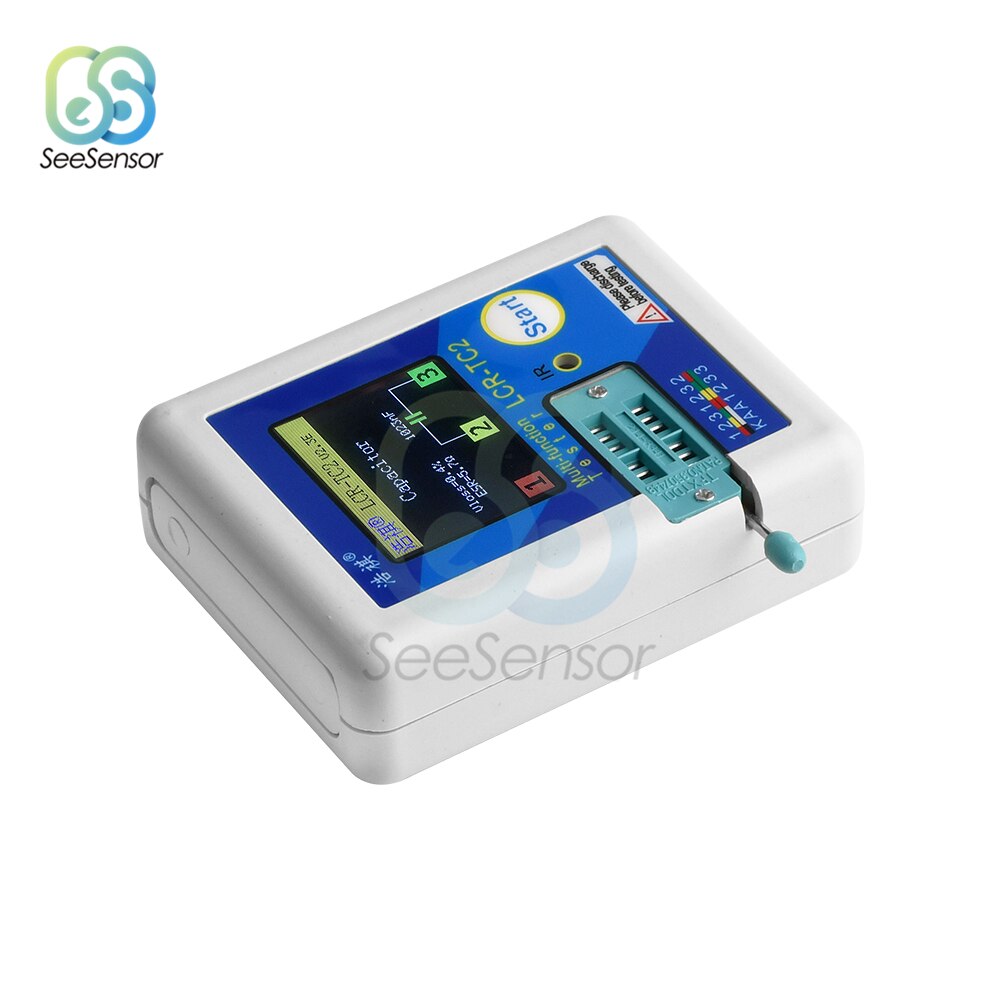

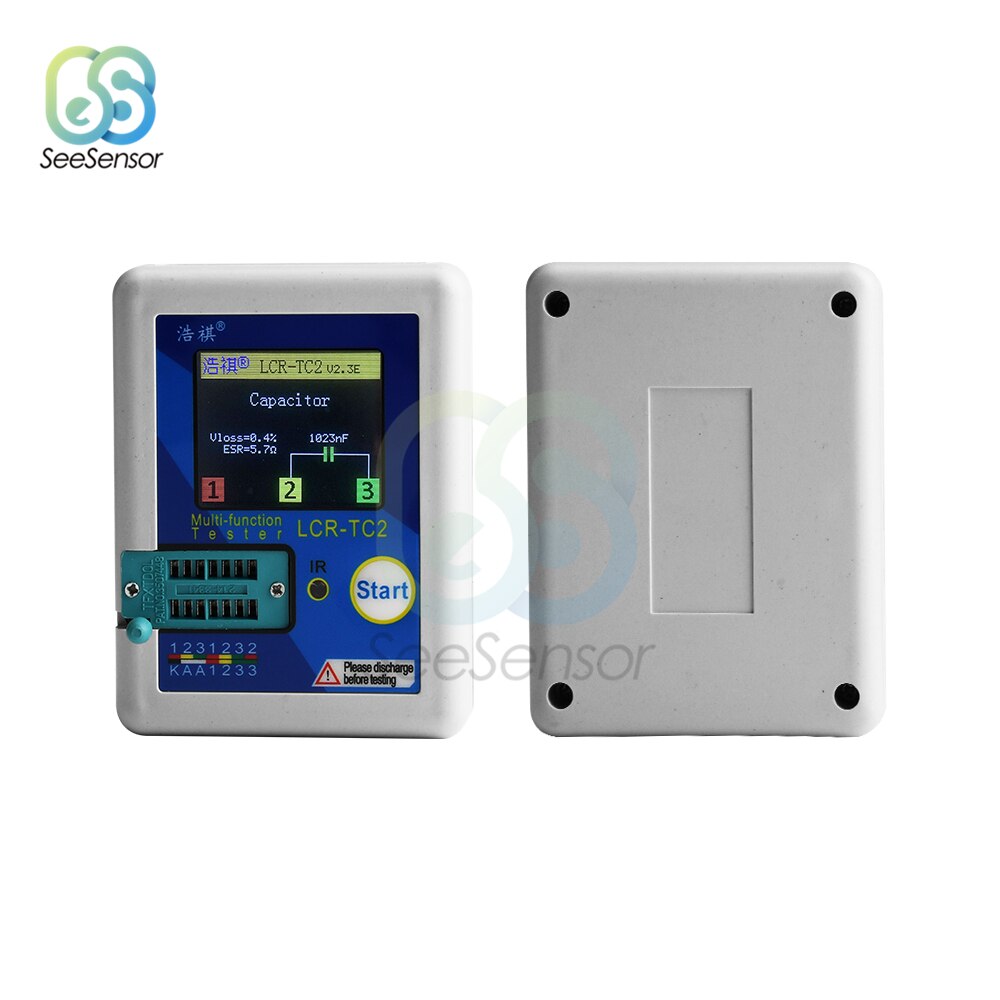

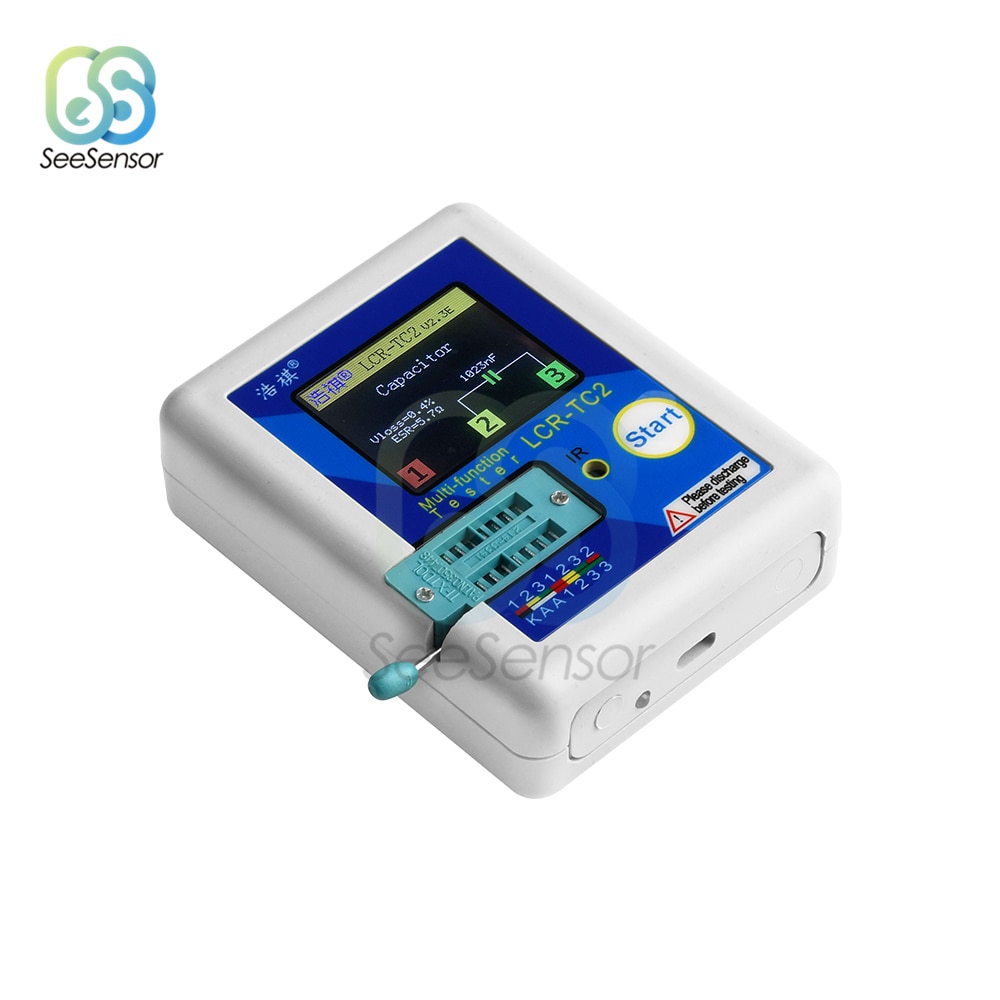

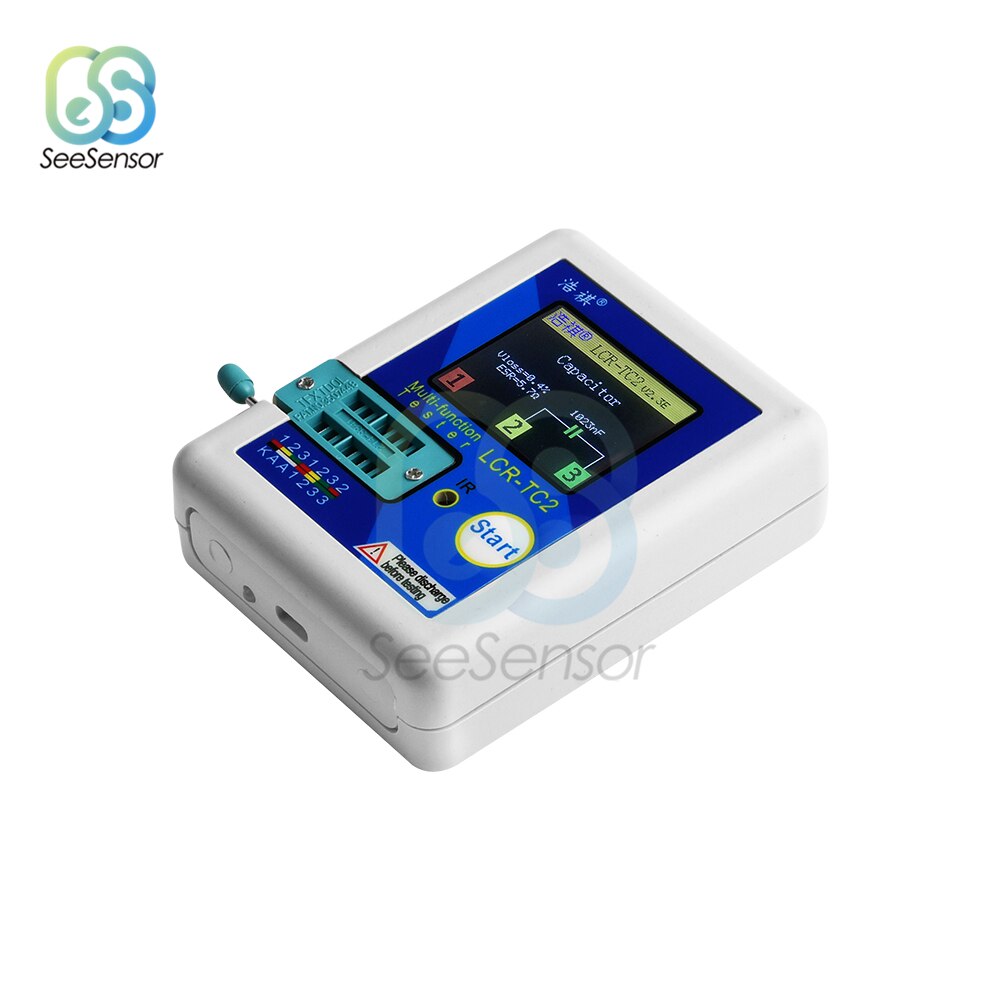

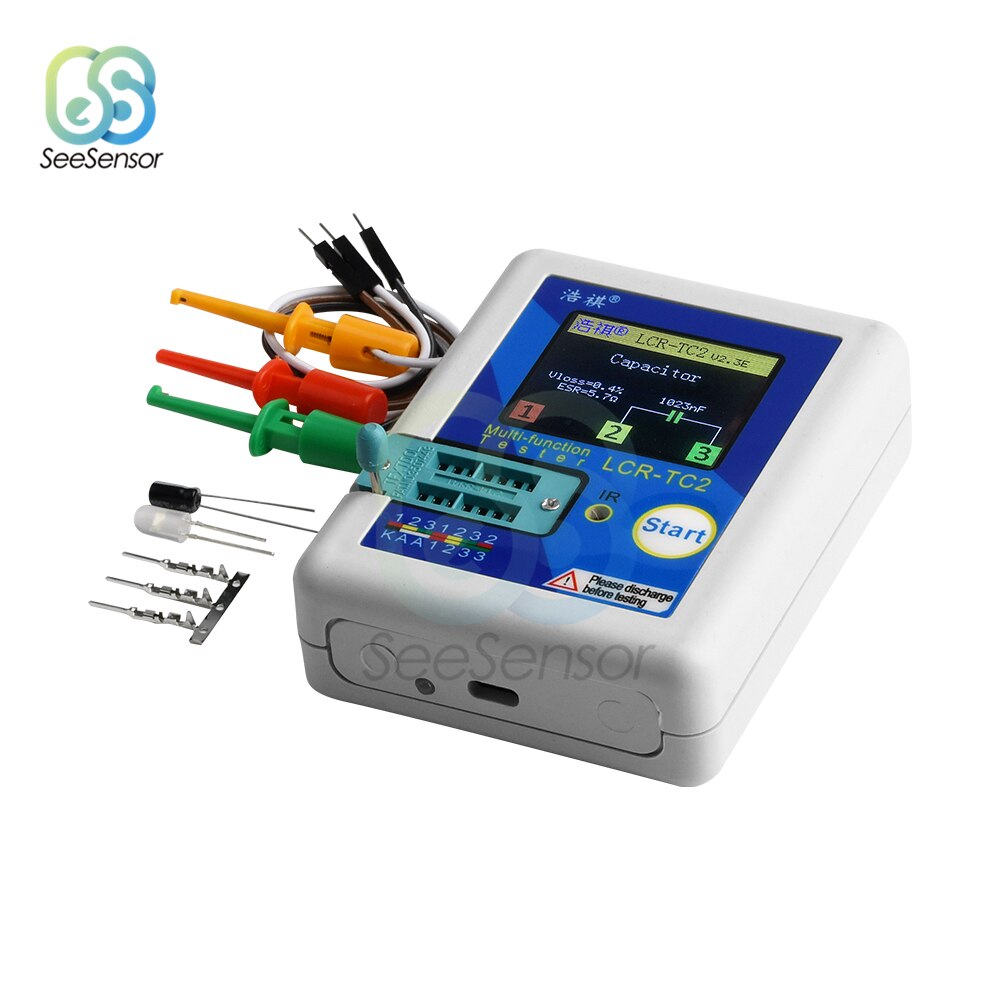

LCR-TC2
