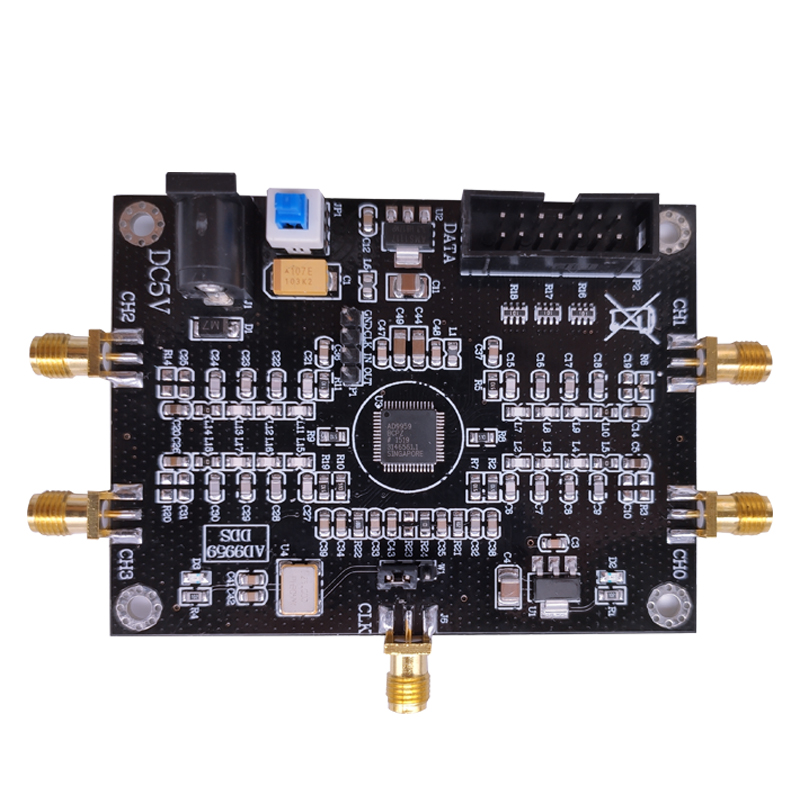

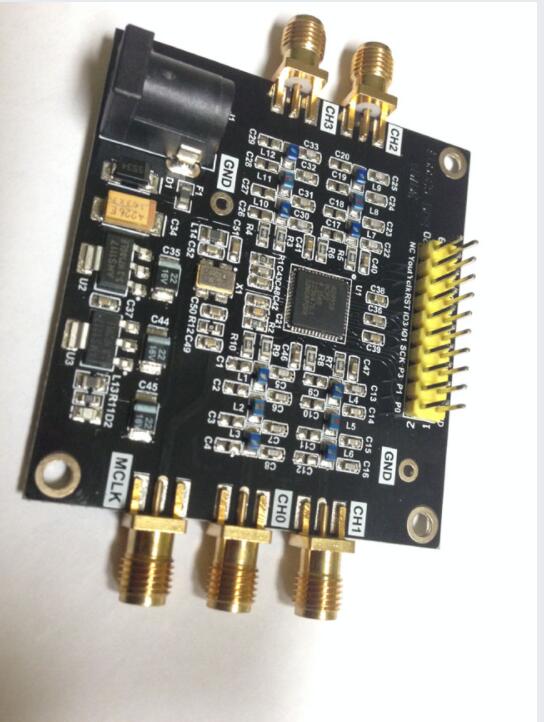

Taidacent RF Signal Source 2 mhz Four Direct Digital Synthesizer DDS Module DDS Signal Generator AD9959
The AD9959 can perform up to 16th-order frequency, phase, or amplitude modulation (FSK, PSK, ASK) by applying data to the mode pins to perform modulation. In addition, the AD9959 also supports linear frequency, amplitude or phase scanning, which is suitable for applications such as radar and instrumentation. The serial I/0 port of the AD9959 can support multiple configurations, providing great flexibility. Similar to the SPI operating mode provided by ADI’s previous DDS products, the serial I/O terminal C provides an SPI compatible operating mode. The four data pins (SDIO _0/ SDIO_ 1/SDIO. 2/SDIO_3) correspond to serial| /0’s four programmable modes, thus providing flexibility.
Features

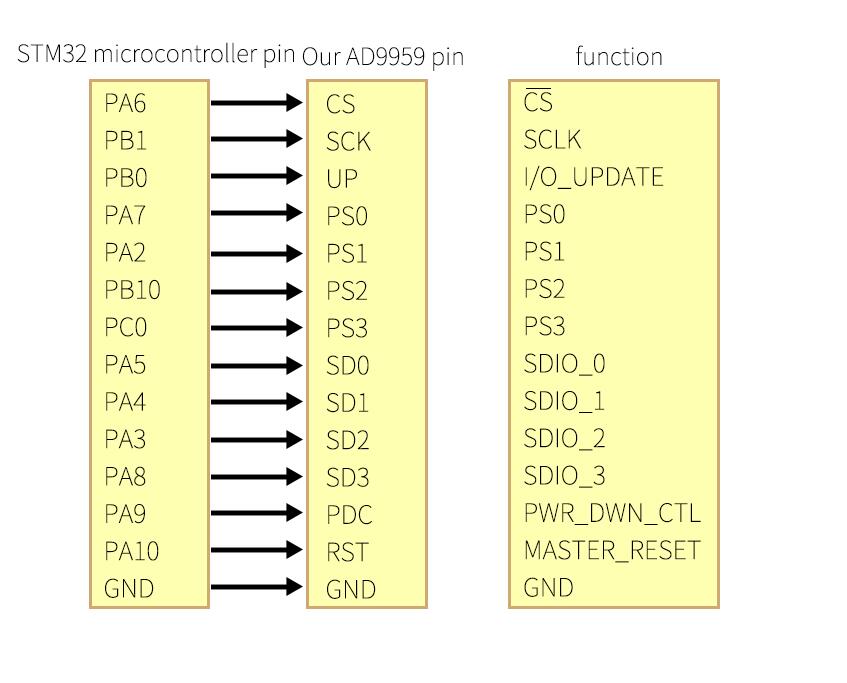

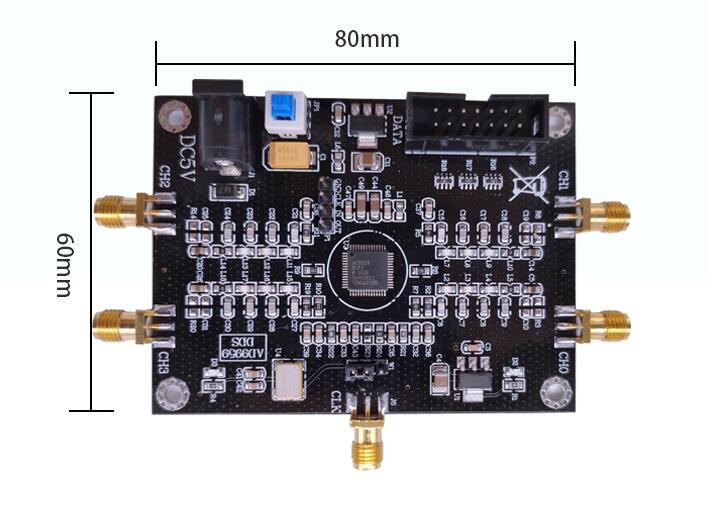

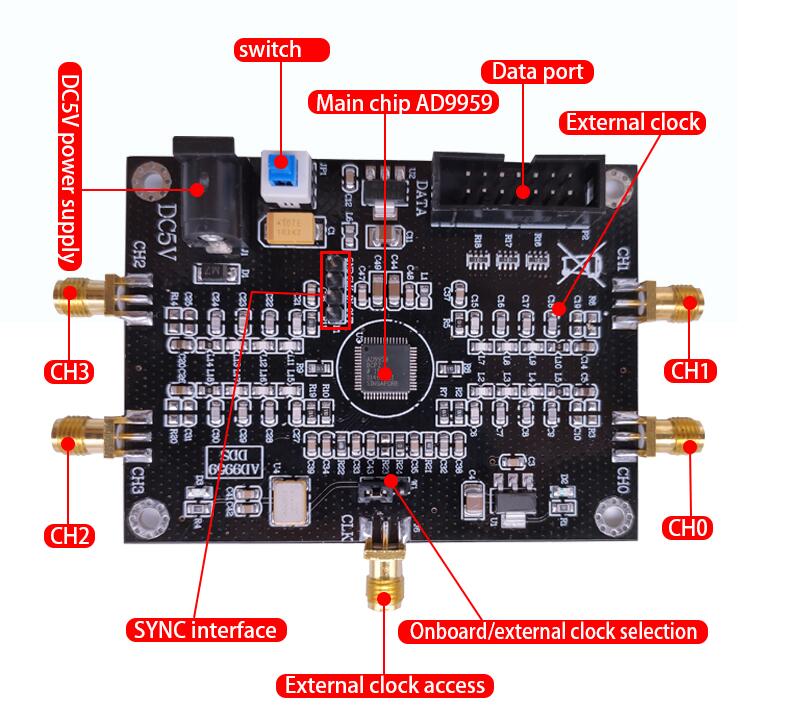

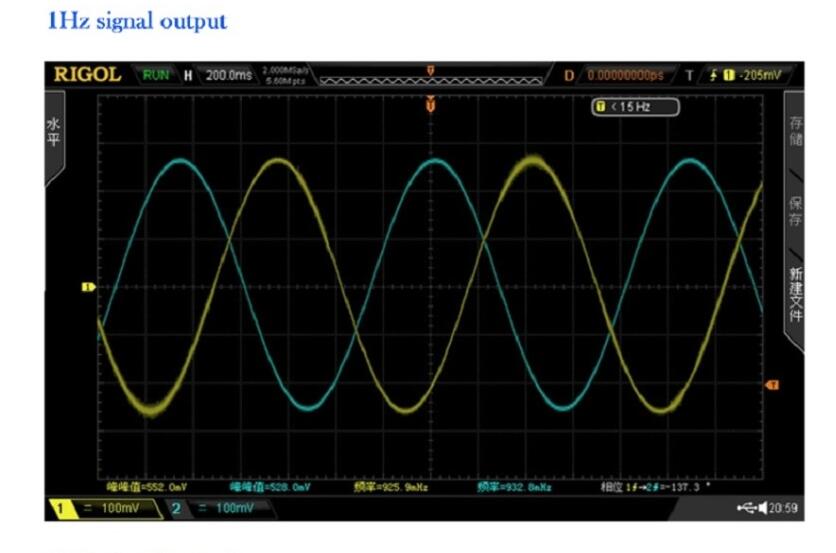

Module model: AD9959 Module type: digital synthesis frequency source Module power supply: DC-5V Module current: 320mA (MAX); quiescent current 90mA (TYP) normal drive current 300mA (TYP) Module communication protocol: SPI serial Module provides routines: STM32F103RCT6 Routine platform: STM32F103X-M3; KEIL5 version source code Module system frequency: 500MHz (MAX) DAC resolution digits: 10 digits Phase accumulator bits: 32 bits Module output interface: SMA; 24-hour salt spray anti-oxidation Module output signal: sine wave; sine wave with 200MHz low-pass filter. Module output channels: 4 channels; each channel and independent adjustment of frequency, amplitude, phase. The signal characteristics of the module: the sine wave has no coupling output; the module is coupled through the capacitive output, and the output amplitude at the very low frequency is small, which can be directly measured with an oscilloscope. Highest main frequency output sine wave signal range: 1Hz-200MHz Output amplitude: sine wave 530mVpp (MAX); sine wave amplitude decreases with increasing frequency Output impedance: 50 ohms Module features: multiple; high-performance DDS sine wave signal generator, high-order elliptic filter, low-noise voltage regulator chip, etc. Module application: multiple; multi-channel signal source, frequency signal generation, sine wave signal generation, sensor excitation Module weight: 40g Module specifications: 80*60*12mm
Product Description
Specification
|
item
|
value
|
|
Type
|
DDS AD9959 Shield
|
|
Customized support
|
OEM
|
|
Place of Origin
|
China
|
|
Guangdong
|
|
|
Brand Name
|
Taidacent
|
|
Model Number
|
TDJLAD9959
|
