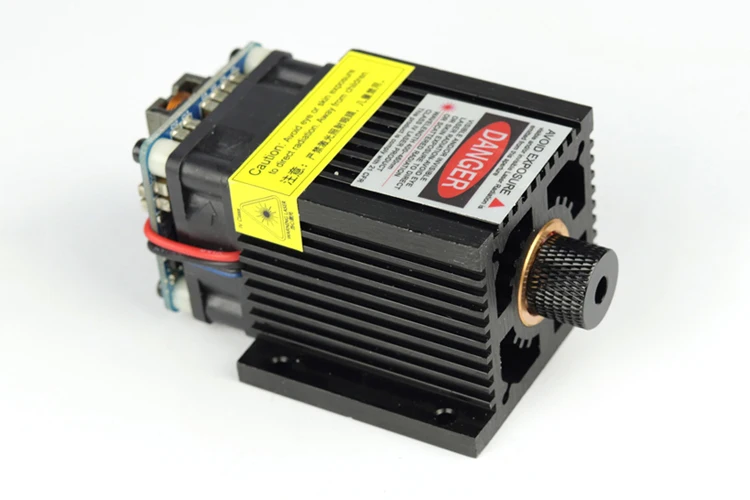

T05 445nm 5500mW 12V Varifocus Laser Module Diode TTL /PWM Marking Stainless Steel DIY Laser Engraver Cutter

  • Home
  • T05 445nm 5500mW 12V Varifocus Laser Module Diode TTL /PWM Marking Stainless Steel DIY Laser Engraver Cutter
Awaiting product image

T05 445nm 5500mW 12V Varifocus Laser Module Diode TTL /PWM Marking Stainless Steel DIY Laser Engraver Cutter

$345.57

1098 in stock

SKU: 32873838553 Category:

Description

  • Brand Name: GKTOOLS
  • Model Number: GK T05 7500
  • Laser Wavelength: 445nm (Blue Light)
  • Spot Type: Dot (Varifocus)
  • Light Output Power: >=5.5 watts (5500mW)
  • Current: >2A
  • Operating Voltage: 12V DC(8-15V),Power does not change with voltage
  • Cooling Method: Forced Air Cooling
  • Shell Material: Aluminum,Surface Anode Black
  • Module Material: Copper
  • Power Supply & Control Interface: 2×2.54(Power Supply) 3×2.54(PWM)
  • Incidental Features: Low Light Position Switch Function (Switch Down, low power output)

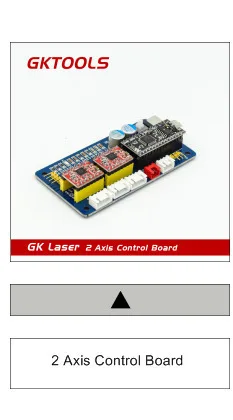

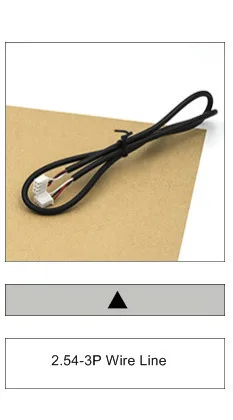

Recommended Accessories



Real Shot Show



FAQ:

1. Where is the TTL port? I can only see the PWM?
TTL and PWM is compatible and you can only choose one of them. It means that you can connect this module's PWM port to the PWM (or TTL) port on the control board of your engraver. But make sure the voltage supply of that port is DC 5V.

2. How can I connect this module to the my engraver?

If you don't need the PWM function, you can directly connect the power port to Motor Port (12V, GND) on your control board and leave the PWM port unconnected.



3. Is the focus of this module adjustable?
This is a fixed focus module with fixed focus. We will send a focus adjustment aluminum column to help you determine the focus.



Note(Please pay attention):

1. Please wear laser goggles during usage and avoid touching the laser directly with your eyes and skin!



2. The warranty period of laser module is one month. If you have any quality problem(Except individual situation like using the laser module more than 30 minutes per time and casue the damage ), please feel free to ask our customer service for a help.



3. If your laser module has any problem, please DO NOT dismantle it without our permission. It will destroy the laser module.



4.  If you have any quality problem about the machine, please feel free to contact us. Many operative problem can be solved according to your video and problem description. Thank you in advance.



5. If you want to use on GKTOOLS machine, please connect the PWM plug . The PWM/TTL switch with light indicated is used for switching PWM or TTL mode.



Package Included:

7.5W Blue Laser Module * 1

Laser Protect Glasses * 1

2P Wire Line *1

3P Wire Line *1

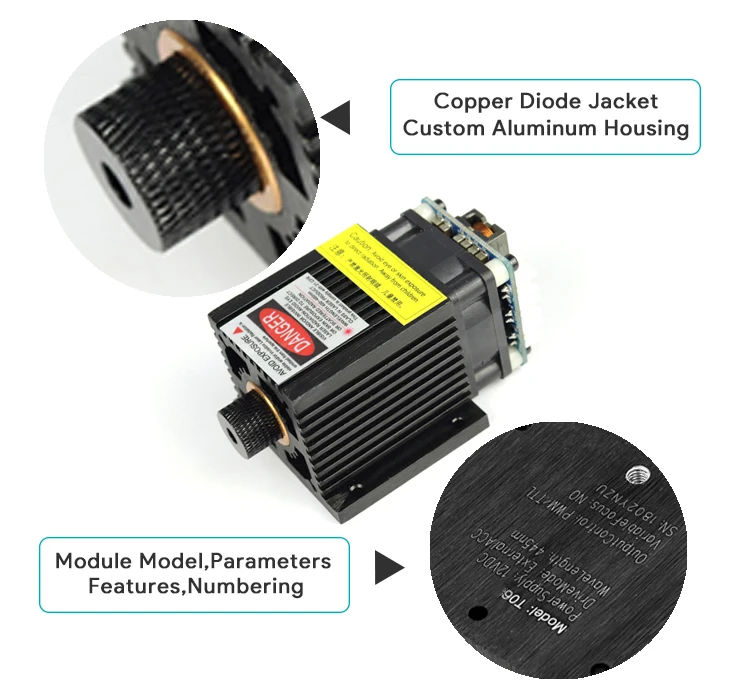

Product Information

1. Silkscreen logo, product model, features and production date.



2. Each module can be traced.

3.The focal length of the module is 18mm. We will send a focus adjustment aluminum column to help you determine the focus.

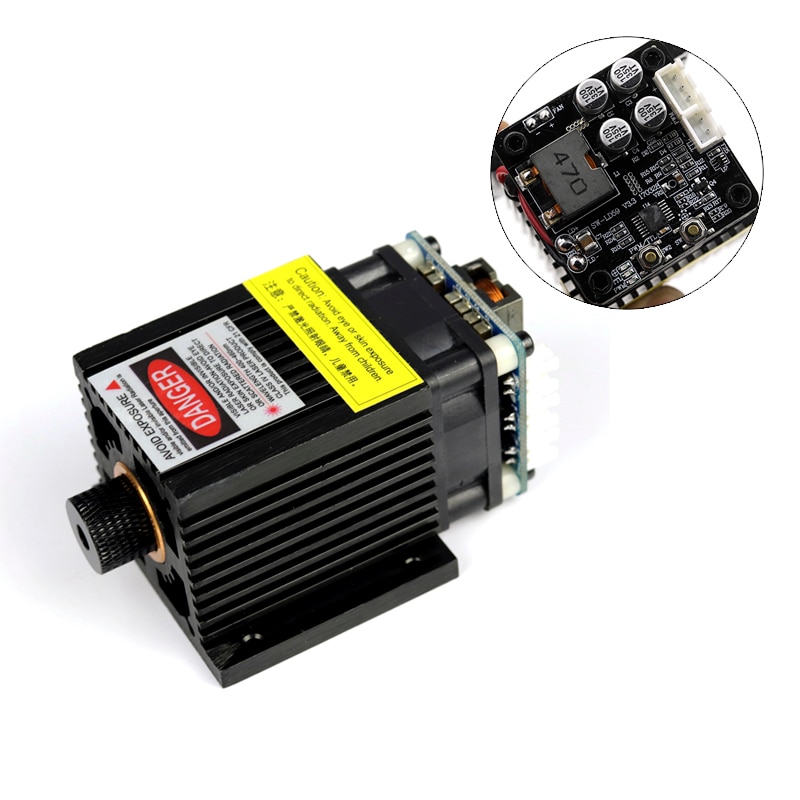

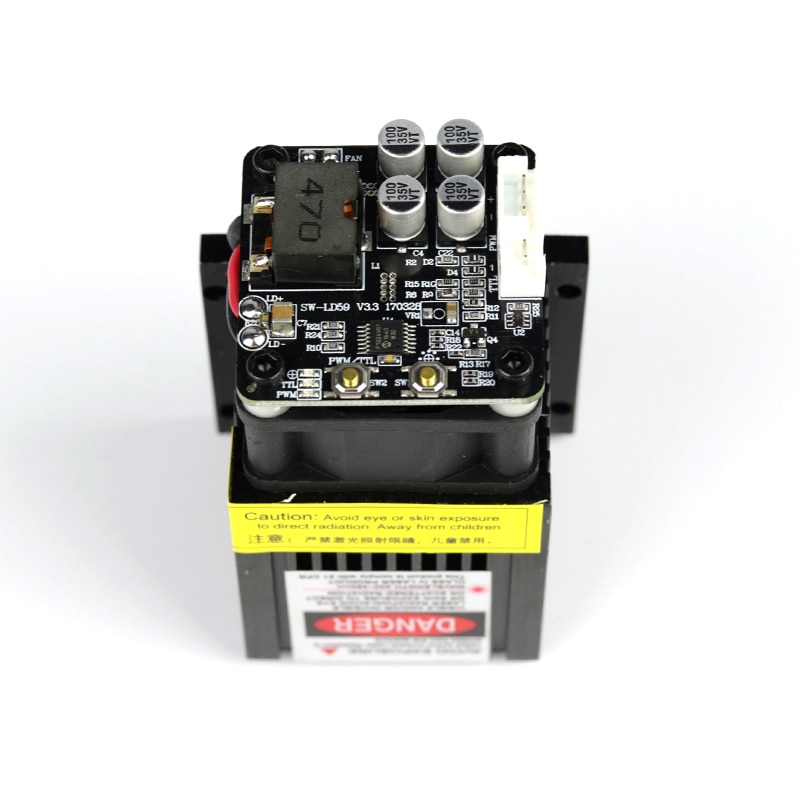

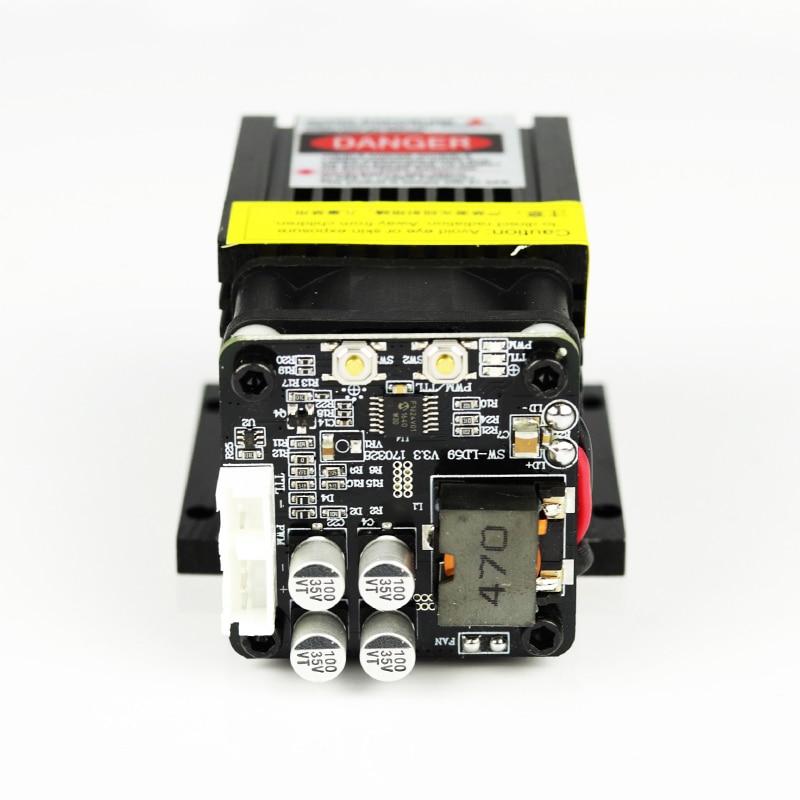

Control Board Introduction

1. Low Light Button

When adjust the focus or engraving preview, it can be pressed, the laser will output a weak laser, low light indicator will flash, and press again to return to normal.

2. Constant Light Button

After pressing, the laser will always output full power, press again to resume normal.

3. TTL/PWM Control.

TTL and PWM is compatible and you can only choose one of them. It means that you can connect this module's PWM port to the PWM (or TTL) port on the control board of your engraver. But make sure the voltage supply of that port is DC 5V.

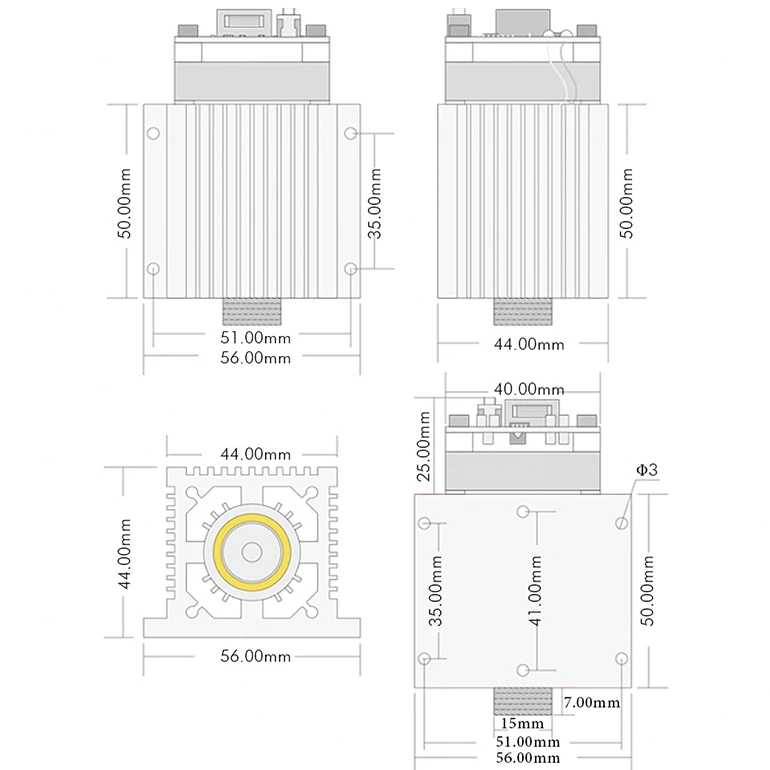

Laser Model Design and Size

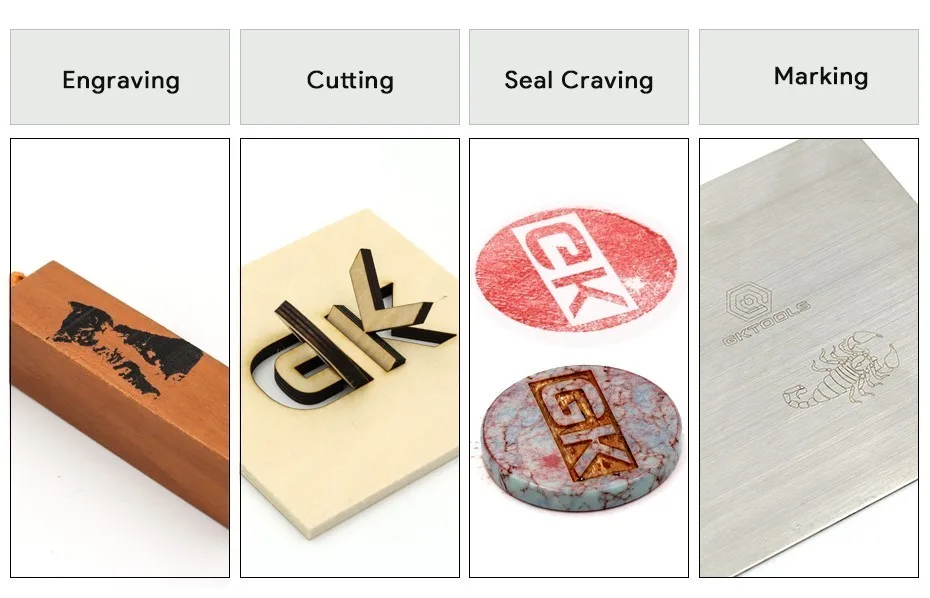

One Laser Solve All Problems





All Materials Are Taken Down

Nothing is Impossible

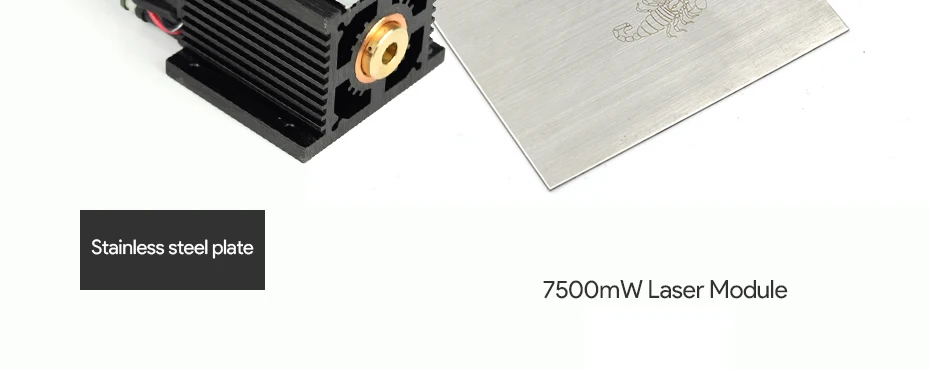

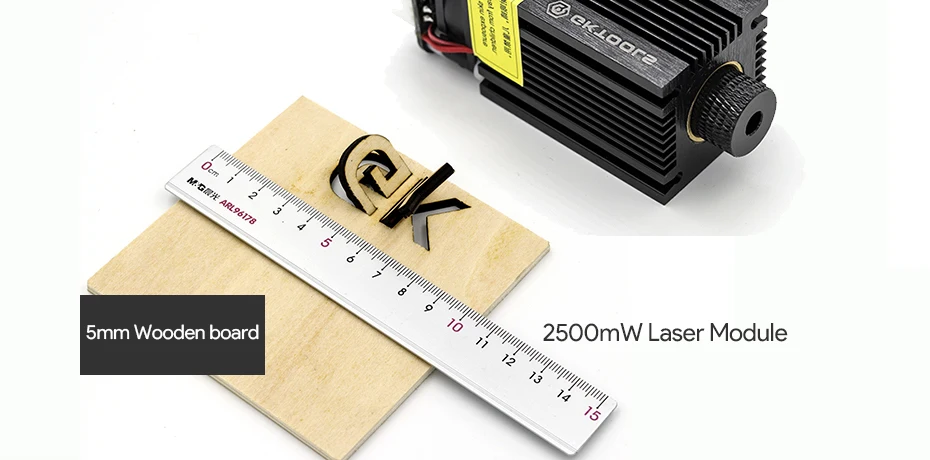

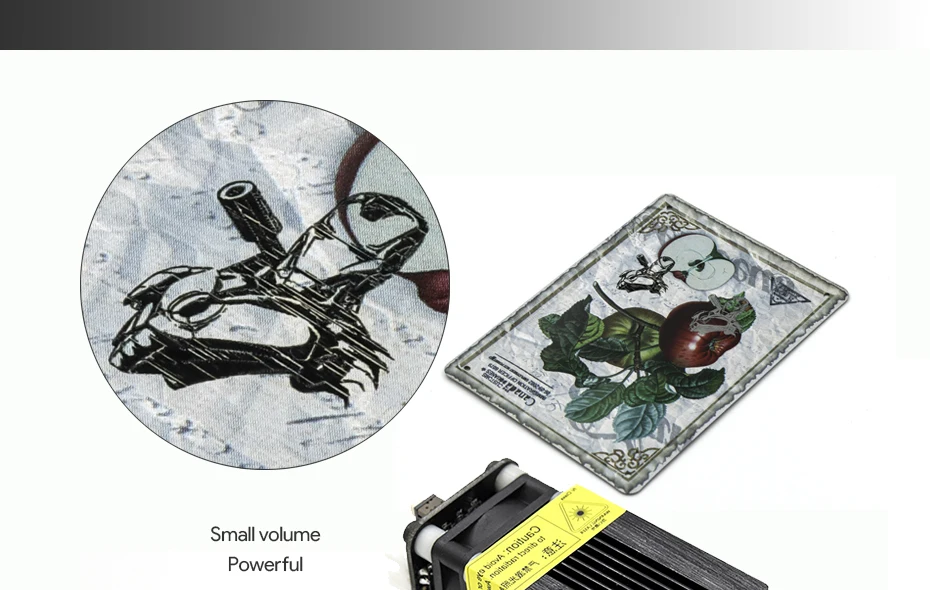

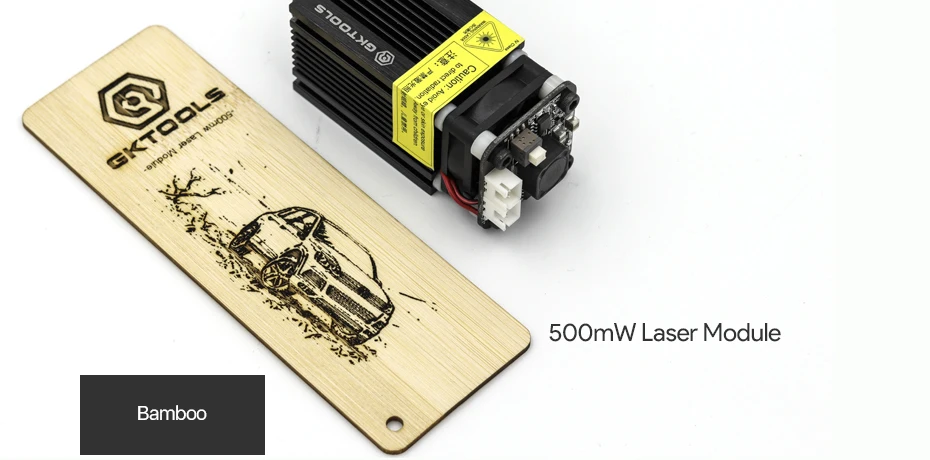

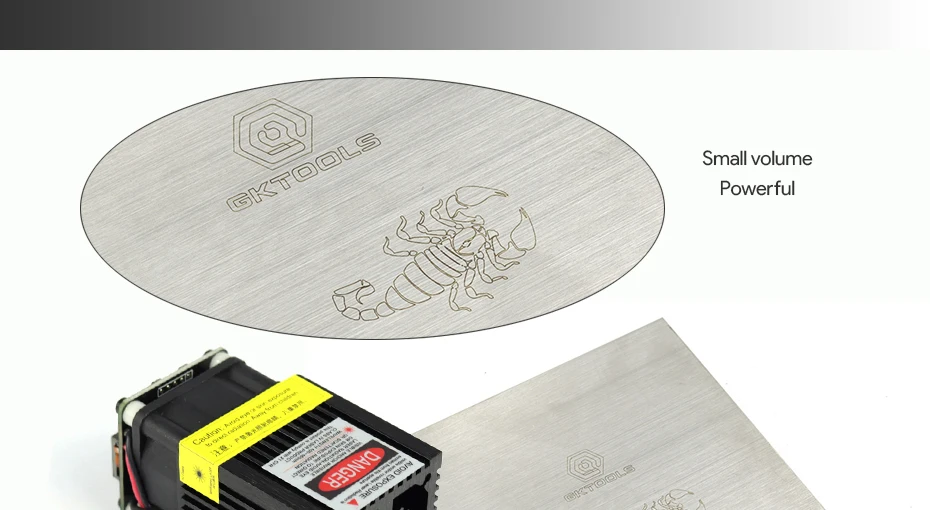

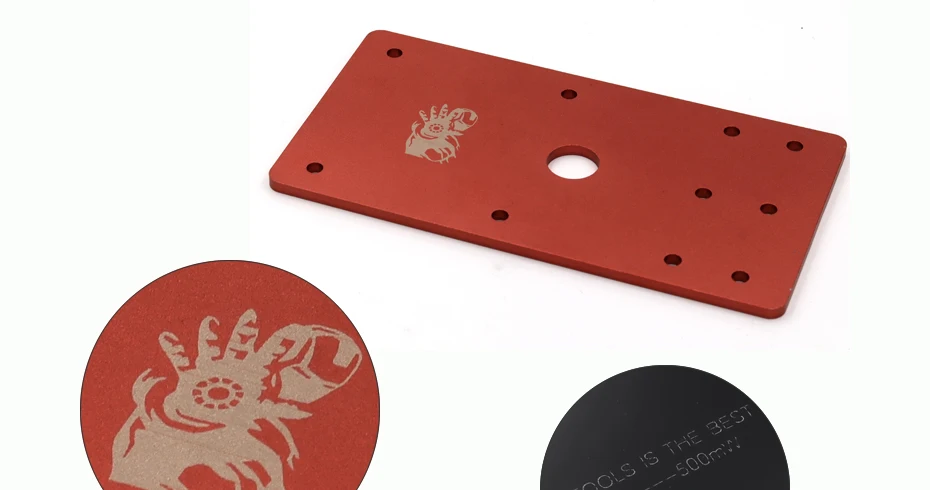

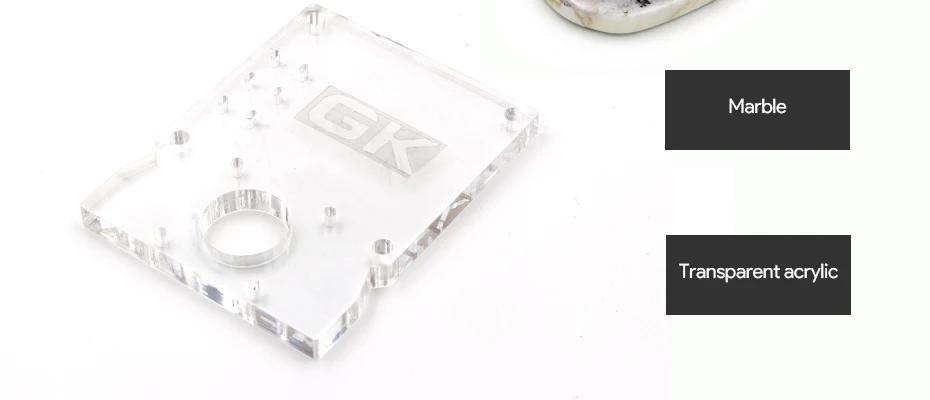

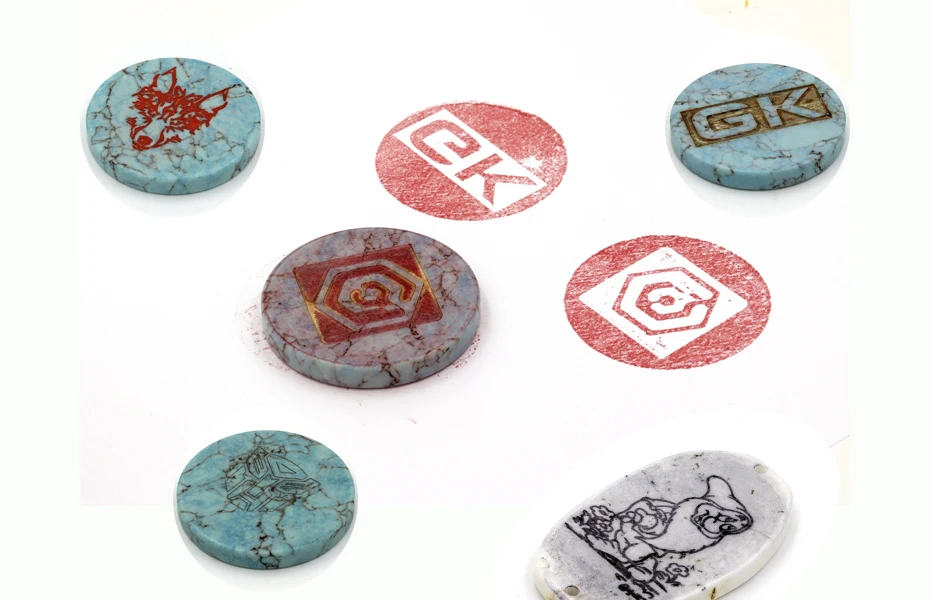

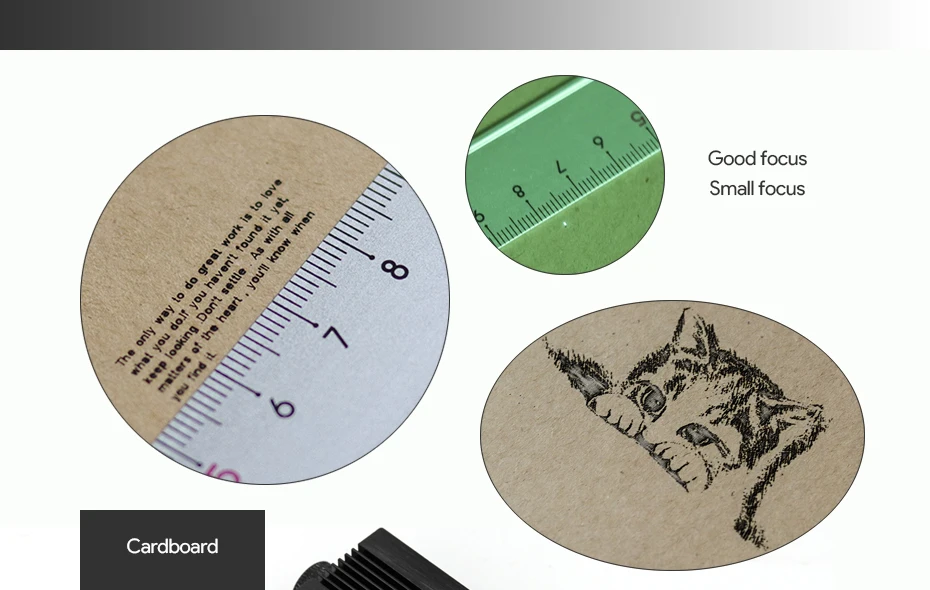

Works Show


1-17_011-17_021-18_011-18_021-19_011-19_021-20_011-20_021-21_011-21_021-22_011-22_02














Difference about FB02&FB03&FB04


Model
            		FB04
            		FB03
            		FB02


Power


SAME


Power Control Interface


2.54-2P2P

PWM/TTL Control


2.54-3P


PWM/TTL Control

DC 5.5*2.1
Wire Line

Control Board


Factory outlet!

If order more than 30 sets!

We can print customized LOGO on the Module!
