SURE PGA2311 Digital Volume Control Pre-fever Amplified Tone Board 12V Finished HIFI

$34.30

986 in stock

SKU: 32988372762 Category:

Description

  • Origin: CN(Origin)
  • Condition: New
  • Type: Logic ICs
  • Model Number: AA-AB41148

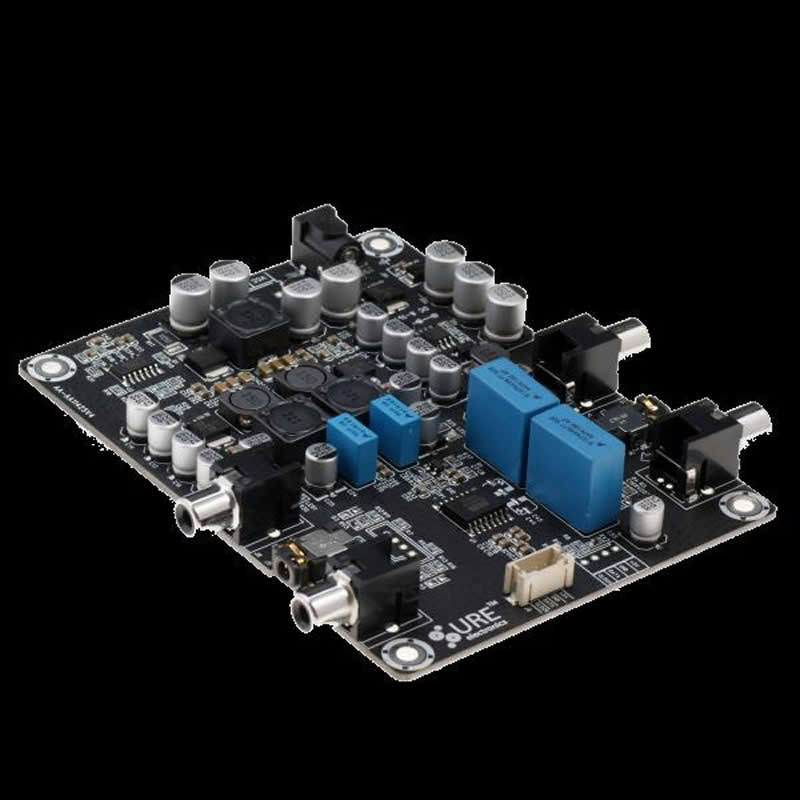

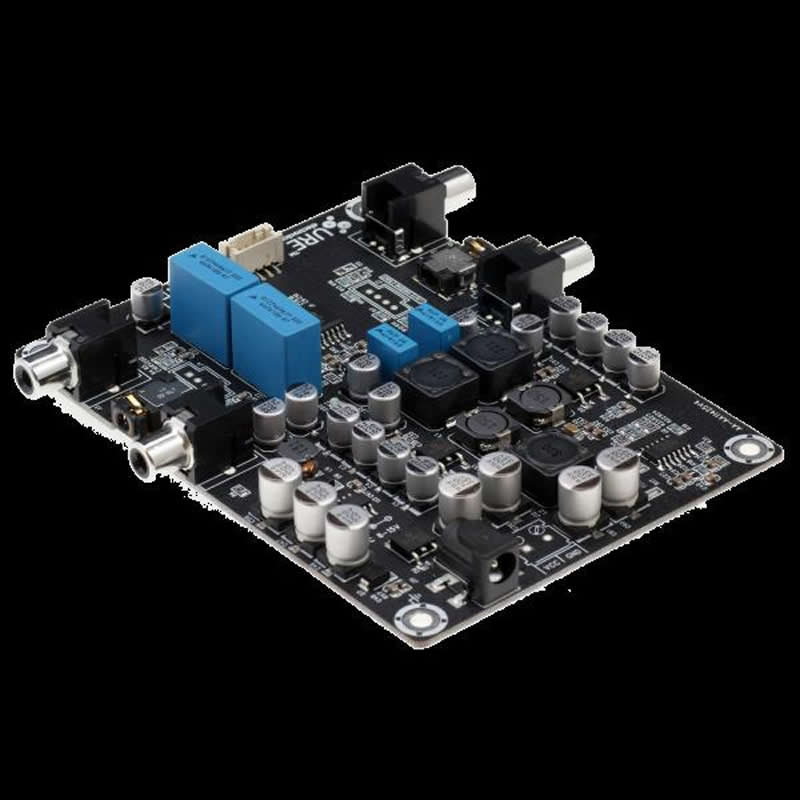

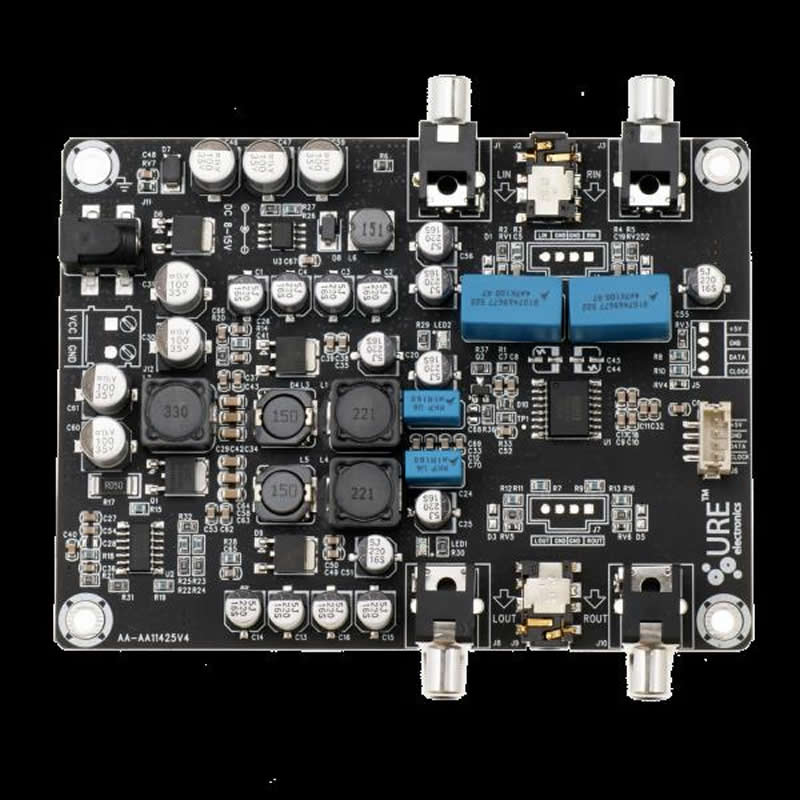

PGA2311 Digital Volume Control Pre-fever Amplified Tone Board 12V Finished HIFI

Characteristic:

  • Volume controller board size: 4.8 x 3.6 inches
    Potentiometer board size: 2 x 1.5 x 1.7 inches

  • Control range: – 95.5dB to 10dB

  • Accuracy: 1.5dB/step

  • Output Noise Voltage: 8.8 UV

  • THD+N: 0.0006%

  • Signal-to-noise ratio: 108 dB

  • Single-ended information input and output

  • LED indicator light

  • Flexible connection and convenient installation

Benefits:

High Sound Quality

Every board is carefully designed by our skilled engineers and fine tuned for several versions before released and they can offer almost the best performance of the original chip. Easy to integrated, RCA interface and 3.5mm jack were provided together, 4pin PH or PX style audio interface for internal connection is also standard configuration, for OEM applications, we provide rich cable solutions to reduct customer’s assemble time.

Single (Asymmetric) Power Supply

All Sure Electronics volume control products use single power supply to reduce the system complexity. All power rails needed for those boards are generated on board.

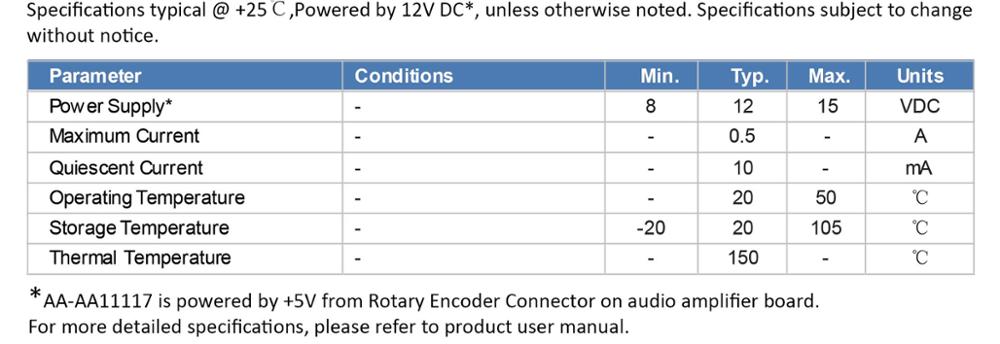

Specifications:

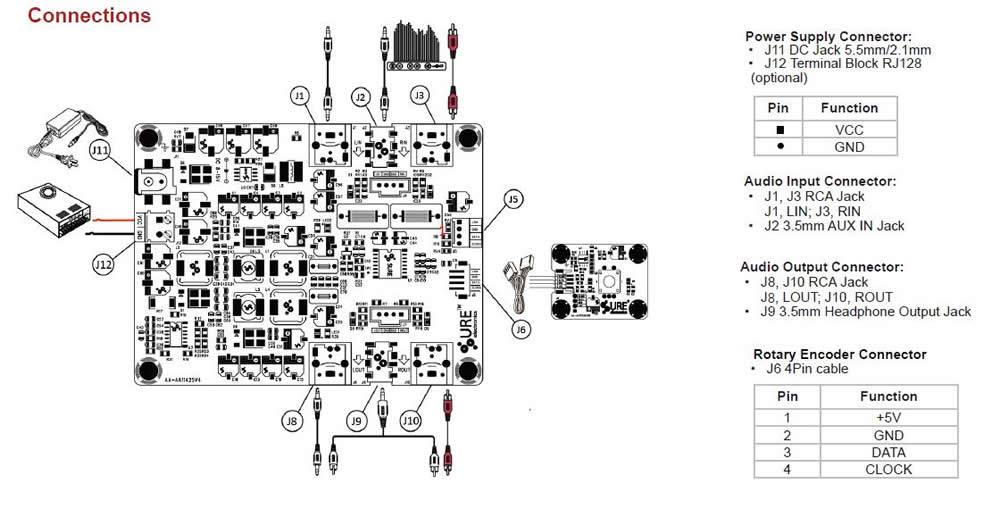

Connections:
