Description

SUPERCONTINUUM SOURCE Laser OEM ODM Manufacture Module is designed according to customers requirements.    It is the latest product designed with the compact footprint for the demanding medical and industry application. It has single-mode fiber output, delivers a wide spectral output ranging from 400nm to 2400nm with up to 8W total power. The OEM not only maintains the traditional supercontinuum lightsourc eexcellent performance, but also sets aside DB25,RS232,NIM trigger,Pulseon Demand (POD) and many other control interfaces. The wide spectrum combined with laser beam quality makes it an ideal source for replacing traditional broadband source like lamp, LED, SLED or any number of laser lines in the system.

Features:

Wavelength: 400nm-2400nm
Total Power: >8W
Visible Power: >800mW
Repetition Rate: 10kHz-200MHz
Optional External Triggerable: 1-80MHz

Applications:

Semiconductor Inspection & Metrology
Industrial Sorting/ Machine Vision
Medical Instrumentation
Flow Cytometry
Optical Coherence Tomography

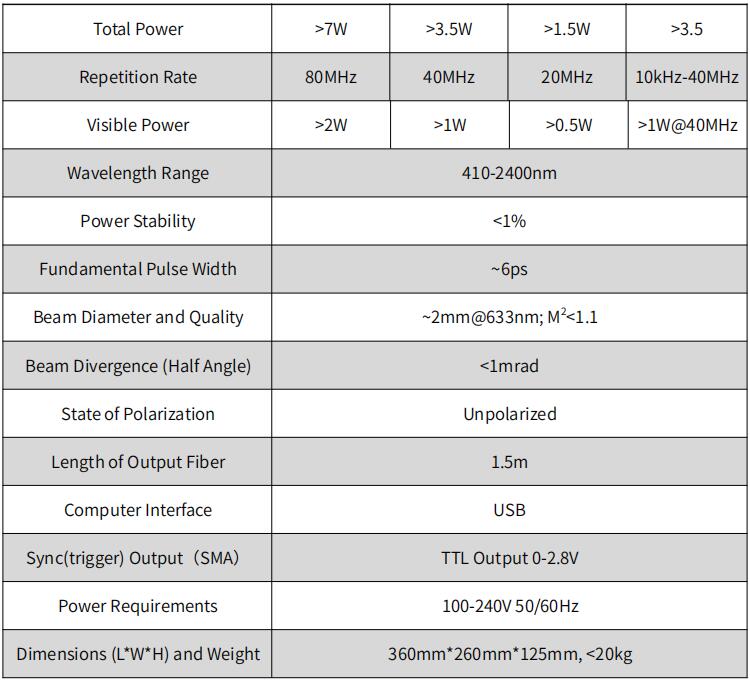

download the datasheet.

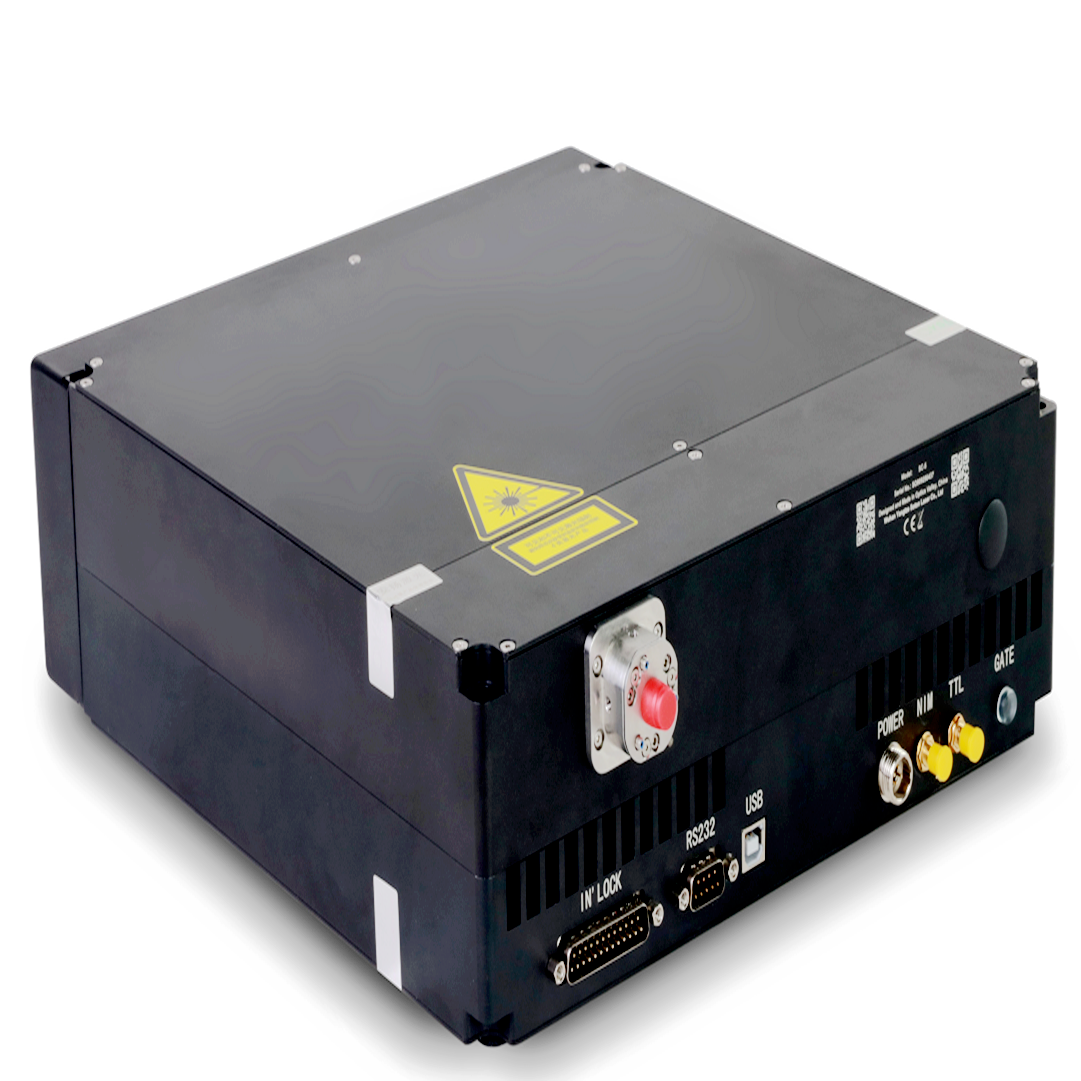

SUPERCONTINUUM SOURCE Laser OEM ODM Manufacture Module
