Super Precision Module Guide Reci 150w CO2 Laser Acrylic/Wood Business Cutter/Ruida System 1390 Laser Cutter With Low Price

$3,764.15$12,854.15

SKU: 1005001604497508 Category:

Description

  • Origin: CN(Origin)
  • Condition: New
  • Model Number: RTJ-1390
  • CNC or Not: CNC
  • Is Smart Device: YES
  • item: 1390 CO2 laser engraving machine
  • cutting area: 1300*900mm
  • Laser power: 80w
  • Laser type: CO2 sealed laser tube,water-cooled,10.6um
  • Engraving speed: 0-60000mm/min
  • Cutting speed: 0-40000mm/min
  • Power supply: 220V/50HZ (Optional 110V/60HZ)
  • Graphic format supported: BMP, PLT, DST, DXF, AI
  • Software supported: TAJIMA, CorelDraw, Photoshop, AutoCAD
  • Driving system: stepper motor
  • Cooling mode: Water-cooling and protection system
  • Optional Spare Parts: Up-down clump, Rotary System, Honeycomb table,Fire prevention gun
  • Recommended Spare Parts: Laser Tube and Lens

Super Precision Module Guide Reci 150w CO2 Laser Acrylic/Wood Business Cutter/Ruida System 1390 Laser Cutter With Low Price

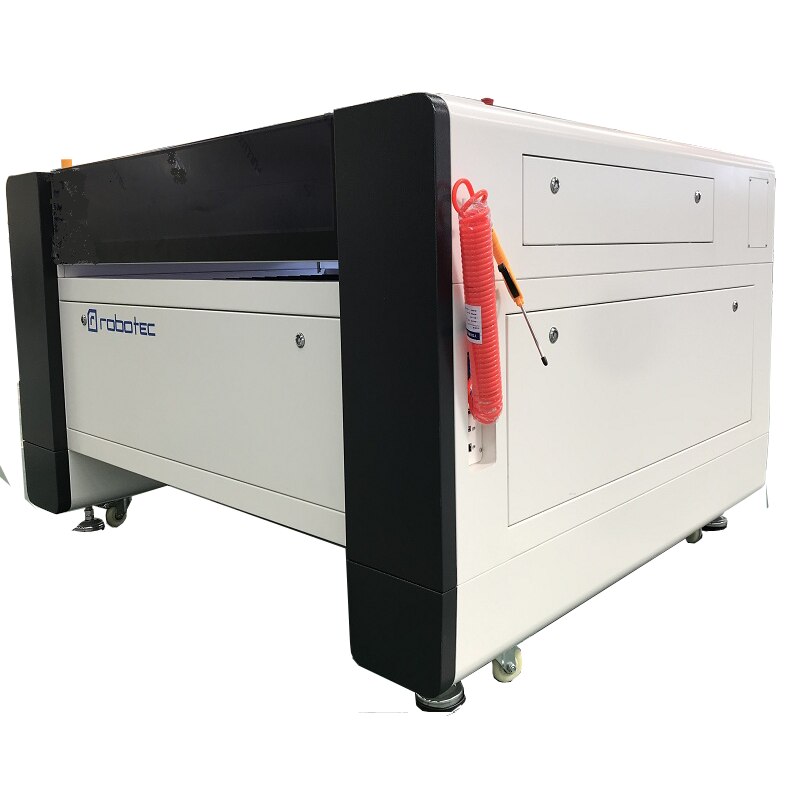

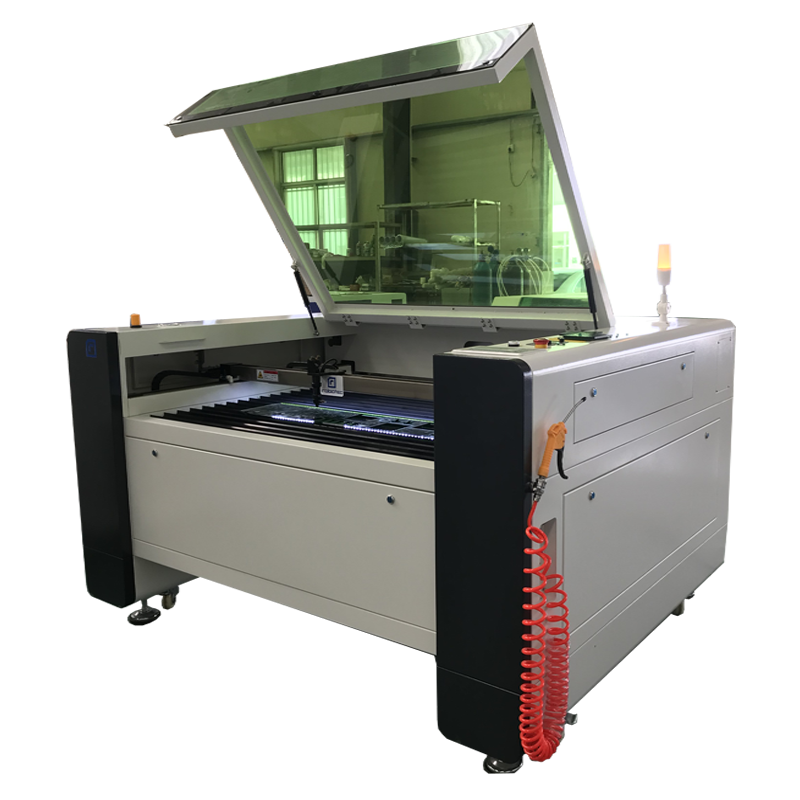

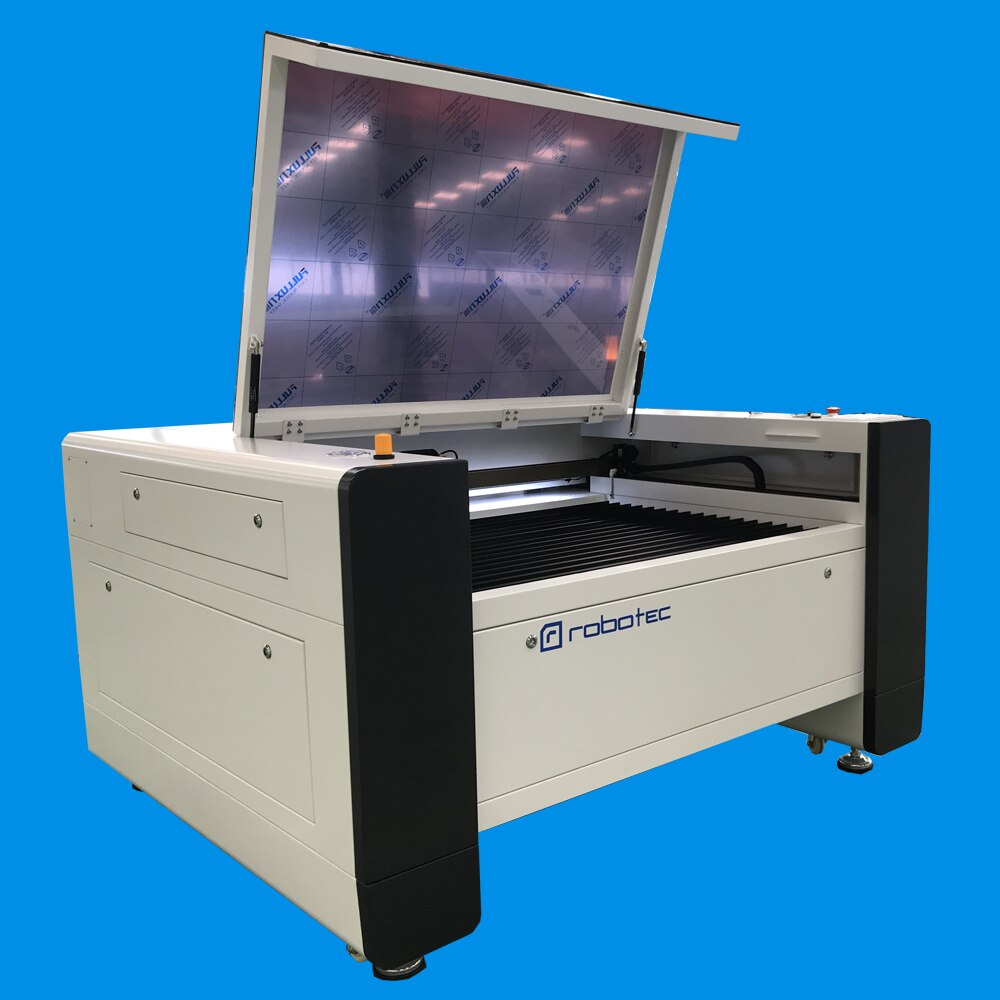

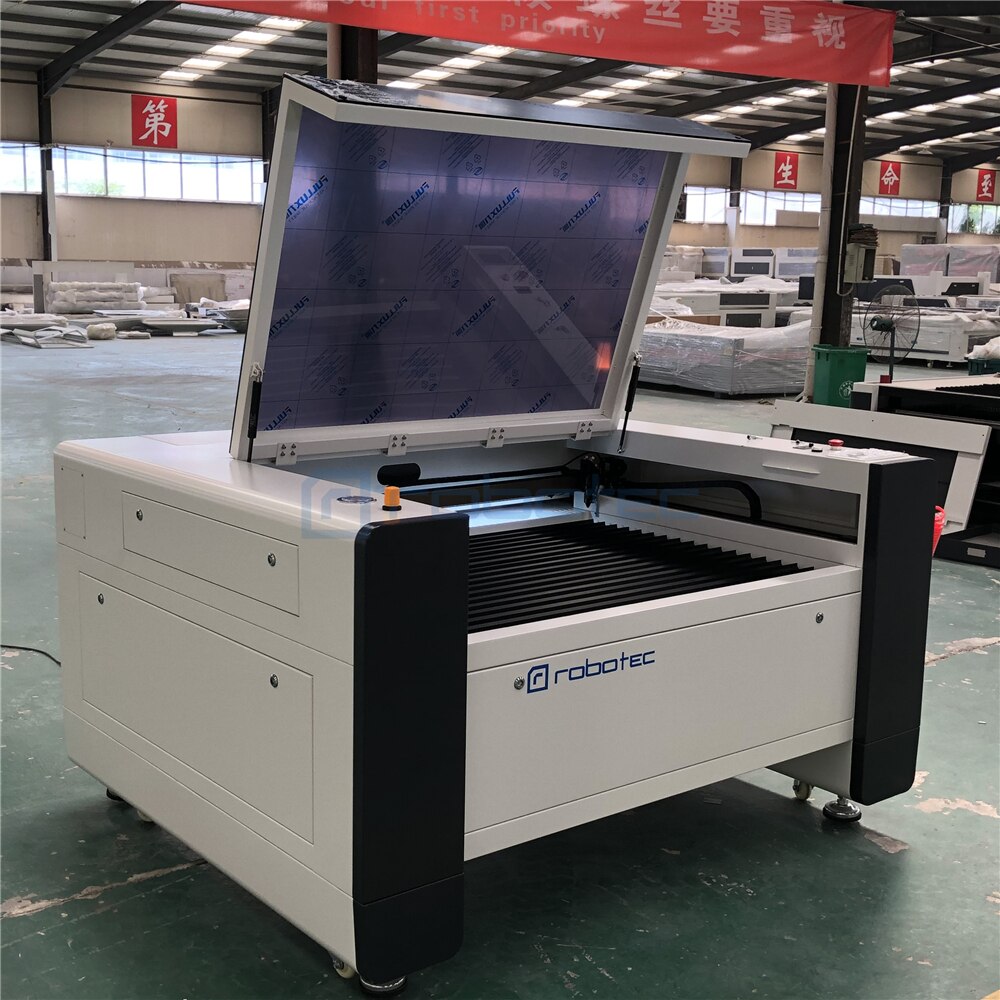

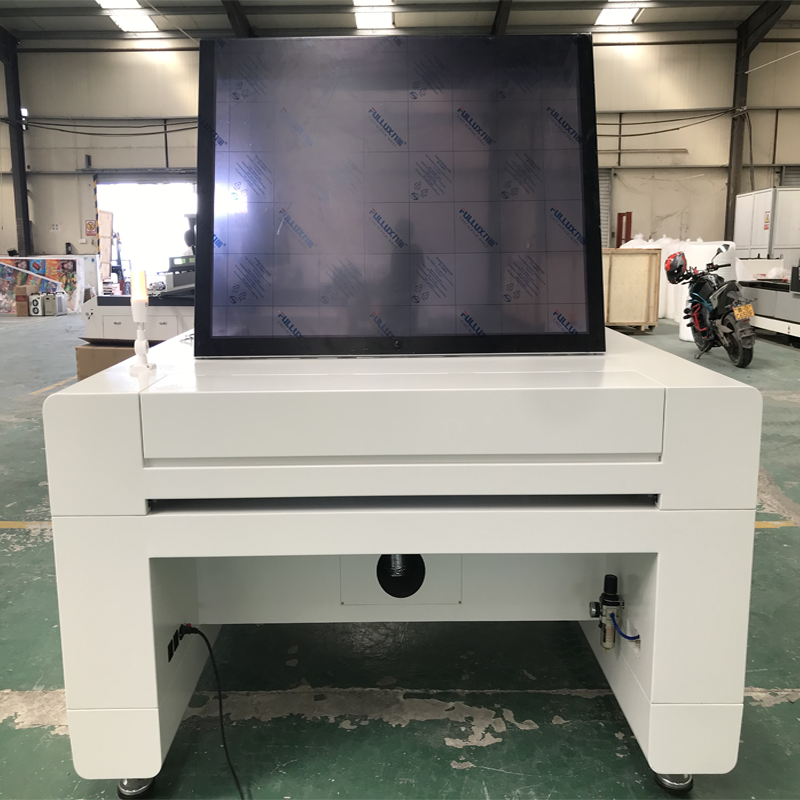

1390 laser cutter pictures:

1390 laser cutter  technical parameters:

Item  /  Model

RTJ-1390

Cutting area

1300 x 900mm

Laser power

80W/100w/150w/180w

Laser type

CO2 sealed laser tube,water-cooled,10.6um

Engraving speed

0-60000mm/min

Cutting speed

0-40000mm/min

Laser Output

1-100%software setting

Resetting positioning accuracy

≤±0.01mm

Power supply

220V/50HZ (Optional 110V/60HZ)

Operating temperature

0 – 45°C

Operating humidity

5 – 95%

Min. shaping character

English 1.0 x 1.0mm

Graphic format supported

BMP, PLT, DST, DXF, AI

Software supported

TAJIMA, CorelDraw, Photoshop, AutoCAD

Driving system

stepper motor

Cooling mode

Water-cooling and protection system

Equipment Dimensions

3590x1900x1470mm

Net Weight:

1550kg

Shipping Dimensions

3690 x 2000 x 1570mm

Optional Spare Parts

Up-down clump, Rotary System, Honeycomb table

Recommended Spare Parts

Laser Tube and Lens



1390 laser cutter parts:

1390 laser cutter features:

1. 3mm Cold-rolled steel welded machine bed, strong and running stable.

2. Aluminium blade table: to process hard materials like acrylic, wood and so on.

3. Fireproof window,more security.

4.CO2 Glass sealed laser tube China famous brand (EFR, Reci), good beam mode stability,

service time over 8500~10000 working hours.

5. Laser Power 40W~180W, good quality and stable output to prolong the laser tube service time.

6. Singapore imported lens and mirrors. High transmittance, good focusing, reflecting effect.

7. Ruida or Leetro Controller USB interface, support online/offline working, English language

system, adjustable cutting speed and power.

8. High accuracy stepper motors and drivers. Belt transmission.

9. Tiwan Hiwin Linear square guide rails, higher precision.

10. Laser engraving and cutting or Lasercut 8.0 software, user’s manual.

11. Tool box: A set of wrenches, lens cleaning paper, a pack of screws, a spare limit switch,

a lens removal tool, manual, CD, U disk, a focal length of stick.

12. Open style, the front and back of the machine is open which is possible for longer material,breakthrough the limit of the workpiece length.

1390 laser cutter option parts:


1390 laser cutter samples:

cup engraving samplebottle engraving sample

pt2020_06_18_15_18_09

_meitu_01

>>Laser Cutting Machine Applicable Material:

Non-metal materials such as fabrics, label, rubber, marble, granite, tiles, paper boards, leather,embroidery, acrylic, glass, plastic, MDF, wooden plates and paper ware etc.

>>Laser Cutting Machine Applicable Industry:

Advertising, Embroidery, garments, shoemaking, label processing, arts and crafts, etc

1) Machine has been adjusted before delivery.

2) English software, user manual and detailed installation & training Videos DVD

3) Warranty period: one year on parts from date of shipping date, 3 additional years on free repair. Life-time technical support.

4) Machine spare parts and repair service is offered in lifetime.

5) Free training is offered in the plant and free samples are available.

6) 24 hours technical support by e-mail, calling or door-to-door service.

7) Professional cnc router machine supplier with 10 years experiences.

8) International quality certificate: CE, ISO9001 metal laser cutting machine  For offer the most suitable machine with favorable price, would you like to confirm below questions:

1) What is your reuqested max working area, X:___mm, Y:___mm?

2) What mainly job you do ? Only engrave, cut or both ?

3) What kind are your materials, metal or non-metal, what are they?



After your return comments, we will send you more information about the machine along price . Thanks

HTB15OxzcxrI8KJjy0Fpq6z5hVXa5

Pls attention:

1. The machine is shipping by sea!!! Pls don’t place order on aliexpress.

2. The price is FOB Qingdao, pls give me your nearest port before order.

3. Will have discount if you contact me !!!



                                         Waiting for your inquiry.
