Description

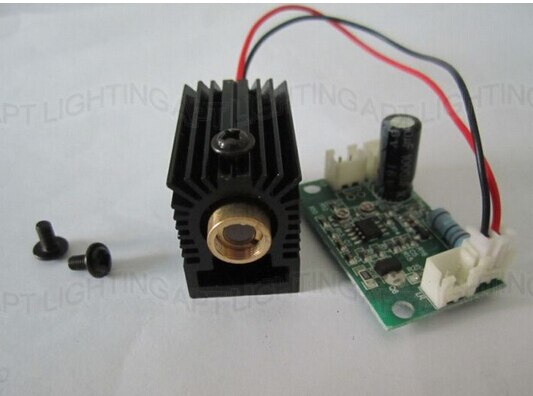

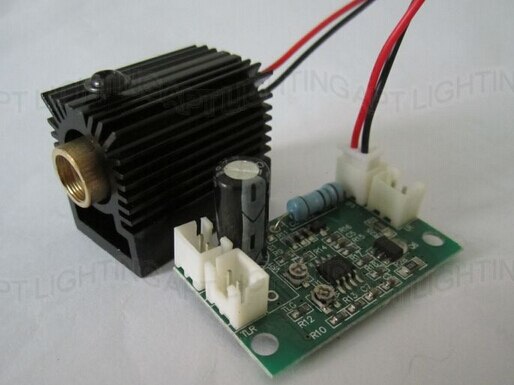

PICTURES OF PRODUCTS:

EFFECTS OF PRODUCTS:





Description OF Laser Module:



Wavelength:	532nm
Power output:	100mW with 5% tolerance
Threshold current::	260mA
Maximum current:	360mA
Requirements Voltage:	1.7~2.2V
Working Temperature:	+10dgC-+40dgC
Storage Temperature:	+10dgC-+50dgC
Lifepan (under normal operation)	>5000hours
Size:	12mmx35mm



Attention of Products:

Red cable at "+"

Black cable at "-"

Green laser module working must with Cooling Heatsink/ Heat Sink together;

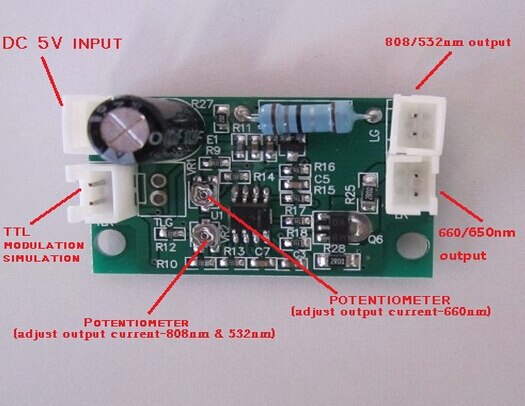

Description OF Driver board:



 1.Suitable for 5mW~1000mW 808nm&532nm;5~300mW 660nm laser diode/laser module.

2.Current can be adjusted:Green:0~800mA;Red:0~200mA.

3. Before sending the driver,We unified set current: Green 340mA,Red:140mA.

   if buyers need larger or smaller current can be set by yourself.

4. DC5V input

5. With TTL modulation(10~20K), very suitable for the stage laser lightshows.

6. Constant current Stable voltage IC circuit, laser diode can be better protected without being damaged.

7.Size:42mmx25mm(LxW).



*Stability is very good!



*This driver have been rigorously tested, and now we also have been using it.



7 days continuous work without any problems, the diode can be well protected.









Package:



1pcs Green laser module

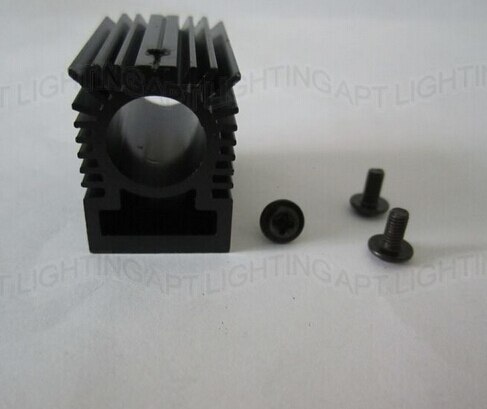

1pcs heatsink of green laser moule



1pcs Driver Board
