Description

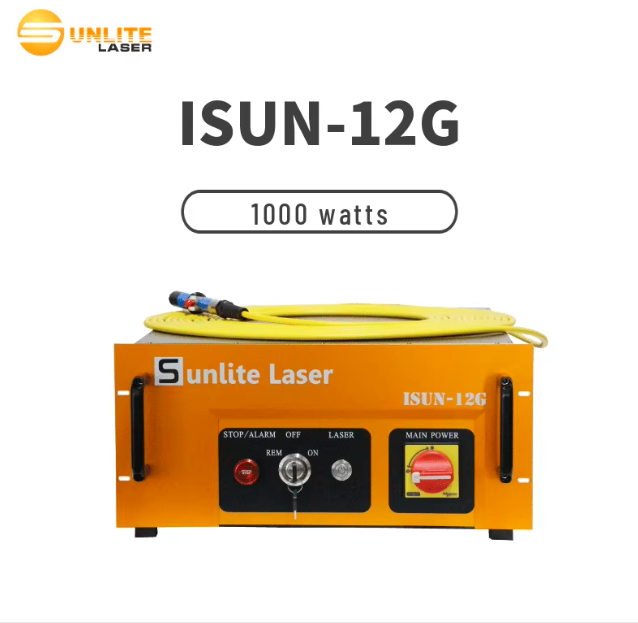

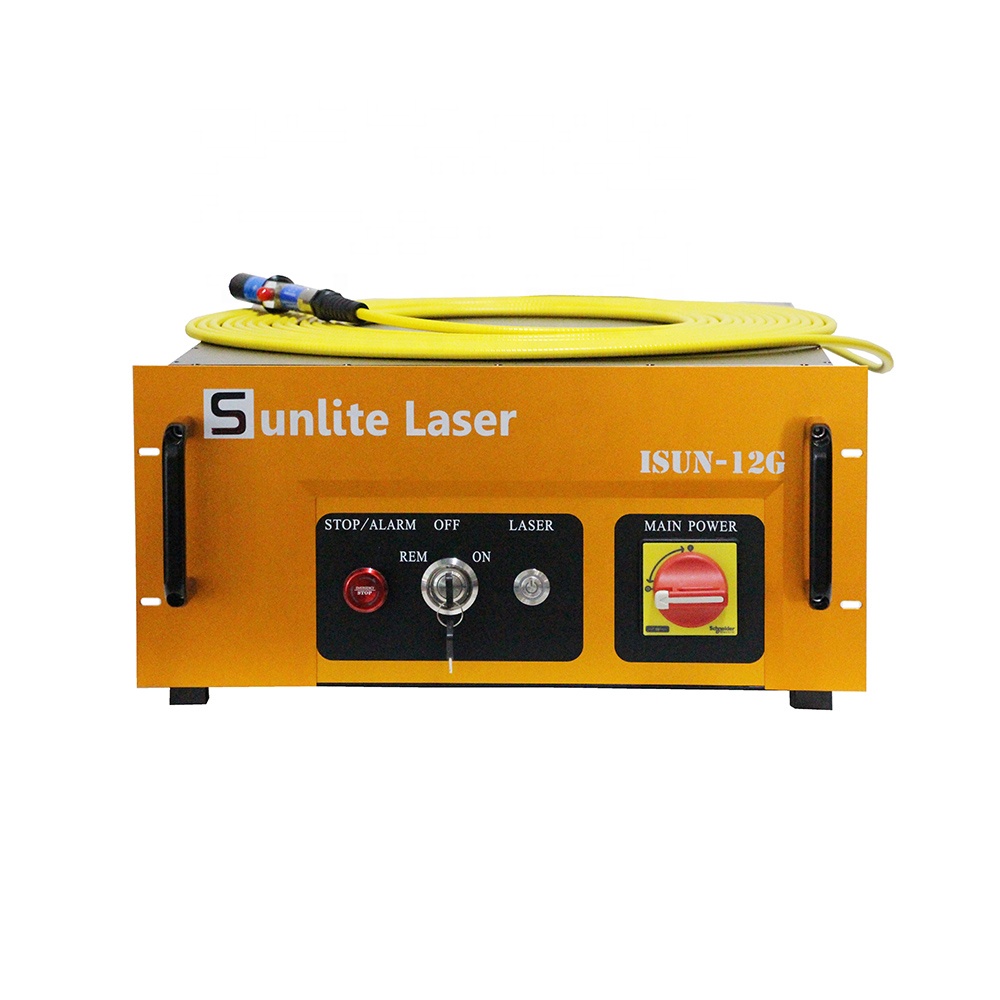

Characteristics Of Sunlite ISUN-6G ISUN-12G ISUN-18G Single Module CW Fiber Laser
The third-generation single module Cw fiber laser series developed by Raycus ranges from 500W to 1,500W, the new lasers have higher electro-optical conversion efficiency, higher and more stable optical quality, stronger altitude stress-resisting capacity and it applies optimized second-generation fiber transmission system to ensure a more stable and more sophisticated cutting effect in thick sheet cutting. This machine applies to many application scenarios: cutting, welding, holing, medical device processing, etc., with a narrow seam of the cut sheet and bright section. Compared with the same lasers, it has obvious advantages.
It has the advantages of high electro-optical conversion efficiency, good beam quality, high energy density, wide modulation frequency, strong reliability, long life, and maintenance-free operation. It can be widely used in welding, precision cutting, cladding, surface treatment, 3D printing and other fields. Its optical fiber output characteristics make it easier to integrate with robots into flexible manufacturing equipment to meet the needs of three-dimensional processing.
Technical characteristics
High electro-optical conversion efficiency
Output fiber length can be customized
QBH/QD connector
Maintenance-free operation
Wide modulation frequency range
Small size, easy to install
Optical properties
Average output power: (W): 500
Central wavelength: (nm): 1080±5
Maximum modulation frequency: (kHz): 20
Output power stability: ±1.5%
Red laser: Yes
Output characteristics
Output connector: QBH (customizable)
output fiber core diameter (μm): 25 (customizable)
beam quality:1.1
polarization state: random
output fiber length (m): 15(customizable)Electronic control characteristics
Input power (V AC ): 200-240, Single Phase
Control mode: external RS232, external AD, super terminal
power adjustment range (%): 10-100
High electro-optical conversion efficiency
Output fiber length can be customized
QBH/QD connector
Maintenance-free operation
Wide modulation frequency range
Small size, easy to install
Optical properties
Average output power: (W): 500
Central wavelength: (nm): 1080±5
Maximum modulation frequency: (kHz): 20
Output power stability: ±1.5%
Red laser: Yes
Output characteristics
Output connector: QBH (customizable)
output fiber core diameter (μm): 25 (customizable)
beam quality:1.1
polarization state: random
output fiber length (m): 15(customizable)Electronic control characteristics
Input power (V AC ): 200-240, Single Phase
Control mode: external RS232, external AD, super terminal
power adjustment range (%): 10-100

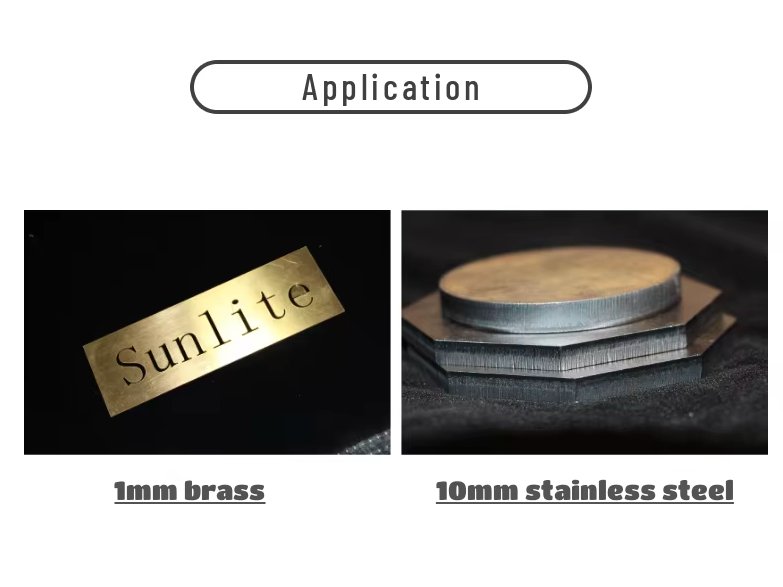

Application Of Single Module CW Fiber Laser
Precision Cutting
Metal Welding
Sheet Metal Piercing
Metal Carving
Surface Treatment
3D Printing/Rapid Prototyping
Precision Cutting
Metal Welding
Sheet Metal Piercing
Metal Carving
Surface Treatment
3D Printing/Rapid Prototyping
![](http://sc02.alicdn.com/kf/Hf15112c02b8f4d3596252b53dccc9776r/248221347/Hf15112c02b8f4d3596252b53dccc9776r.png)
![](http://sc01.alicdn.com/kf/Hcab30420d5924f32b71ef5dd10da36d4p/248221347/Hcab30420d5924f32b71ef5dd10da36d4p.png)
![](http://sc01.alicdn.com/kf/H00b4197c71f143008ffdb1eb500b53ddN/248221347/H00b4197c71f143008ffdb1eb500b53ddN.png)
![](http://sc01.alicdn.com/kf/Hc9242ded10944d98ba2b8c26cdcf5bd8n/248221347/Hc9242ded10944d98ba2b8c26cdcf5bd8n.png)
![](http://sc02.alicdn.com/kf/He46c2443efbc4a65a6f37267e716ba1cO/248221347/He46c2443efbc4a65a6f37267e716ba1cO.png)

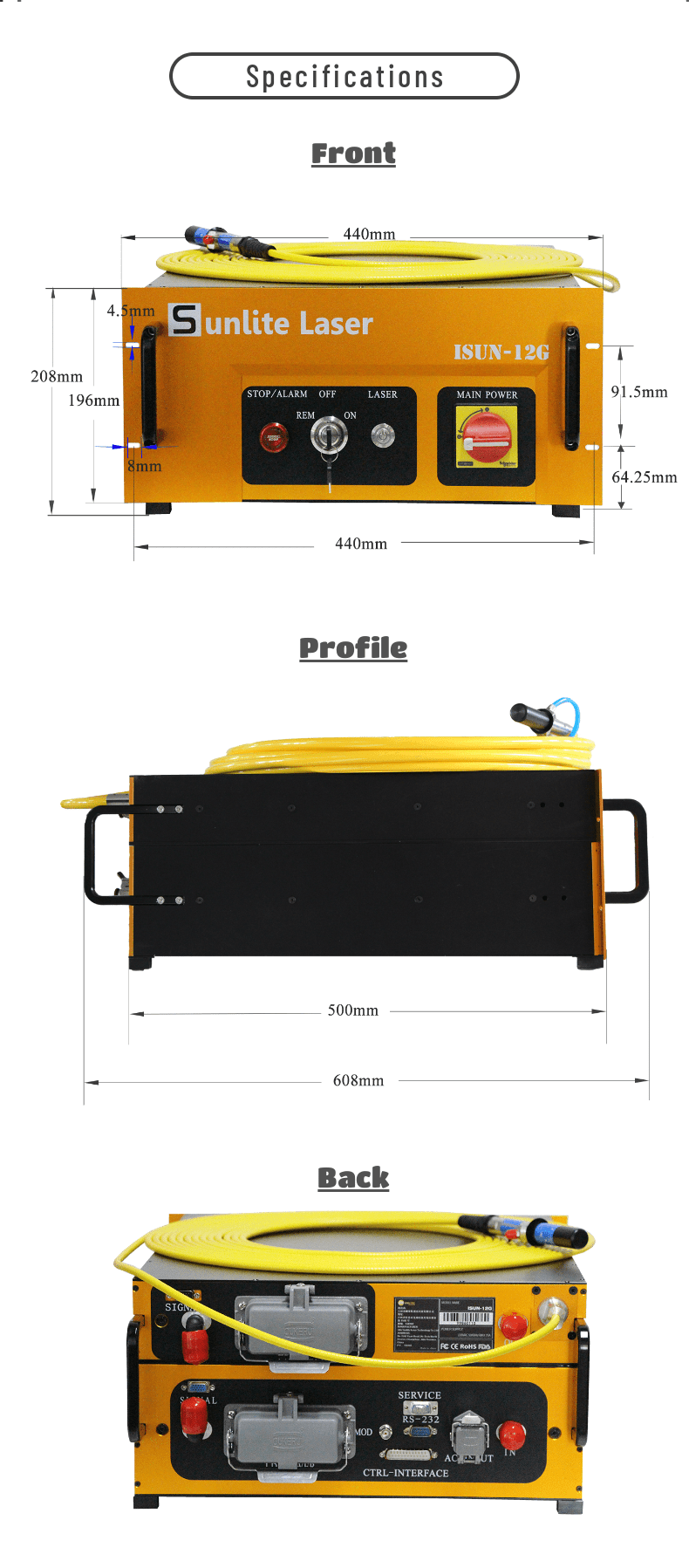

Package size
Model
|
ISUN-6G (500W)
|
ISUN-12G (1000W)
|
ISUN-18G(1500W)
|
Goods Size
|
500*432*87mm
|
608*440*208mm
|
935*505*230mm
|
Package Size
|
870*560*400mm
|
860*600*600mm
|
860*600*600mm
|
![](http://sc02.alicdn.com/kf/H6a647a7a75f34e888f9f78538f7ce8e7j/248221347/H6a647a7a75f34e888f9f78538f7ce8e7j.png)
