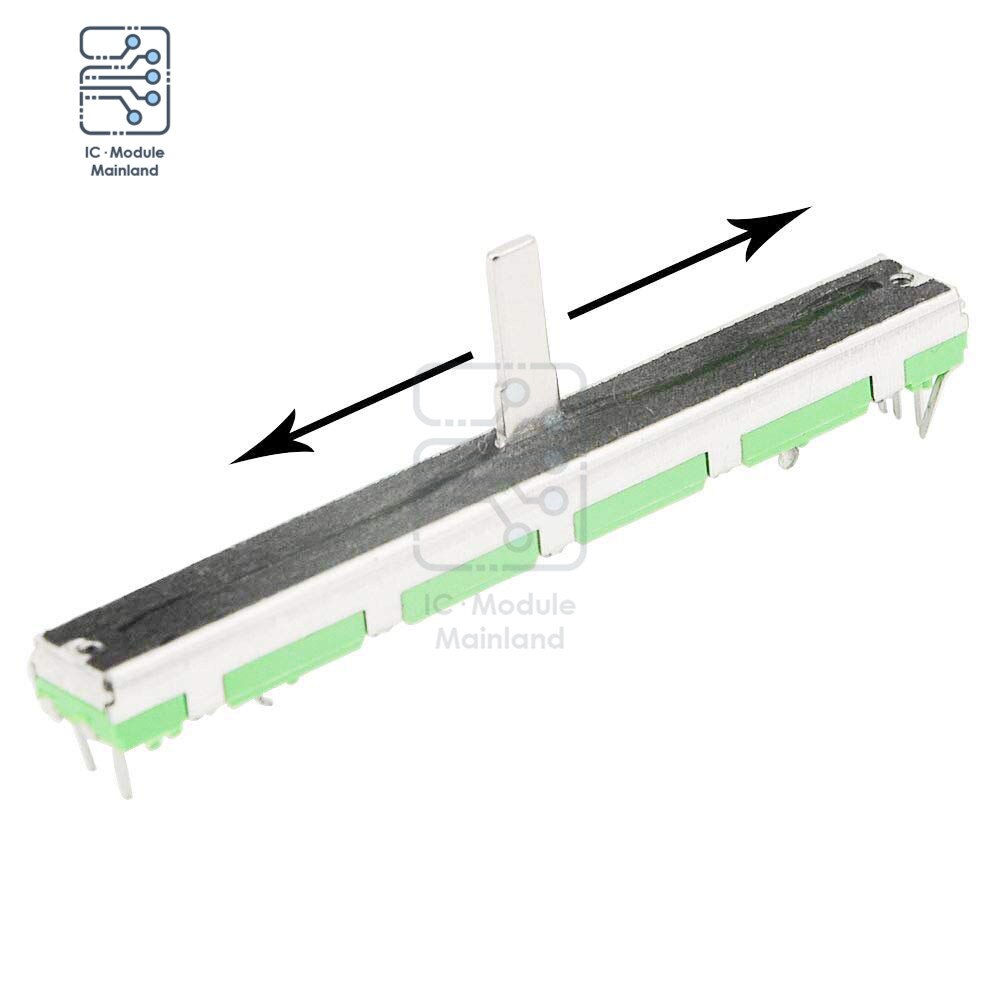

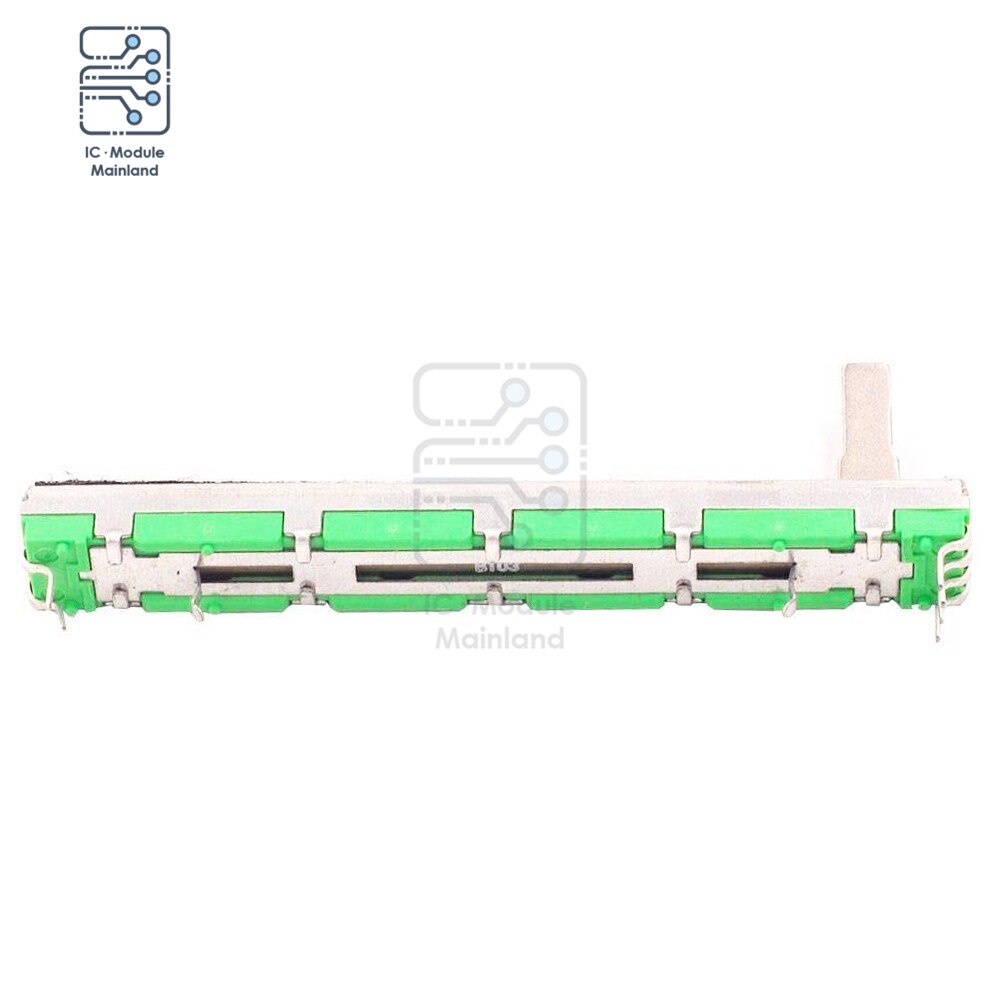

5Pcs Straight Slide Liner Mixer Fader B103 10K Ohm 75mm Dual Channel Fader Potentiometer Variable Resistors for Dimming Tuning
- Condition: New
- Resistance Tolerance: ±20%
- Technology: Carbon Film
- Type: Slide Potentiometer
- Operating Temperature: -20 -125℃
- is_customized: Yes
- Max. Operating Voltage: 10K Ohm
- Model Number: B103
- Rated Power: 0.25W
5Pcs Straight Slide Liner Mixer Fader B103 10K Ohm 75mm Dual Channel Fader Potentiometer Variable Resistors for Dimming Tuning
Specification:
Model: B103 (B type Linear Potentiometer)
Resistance Value: 10k Ohm
Adjustment Type: Slide

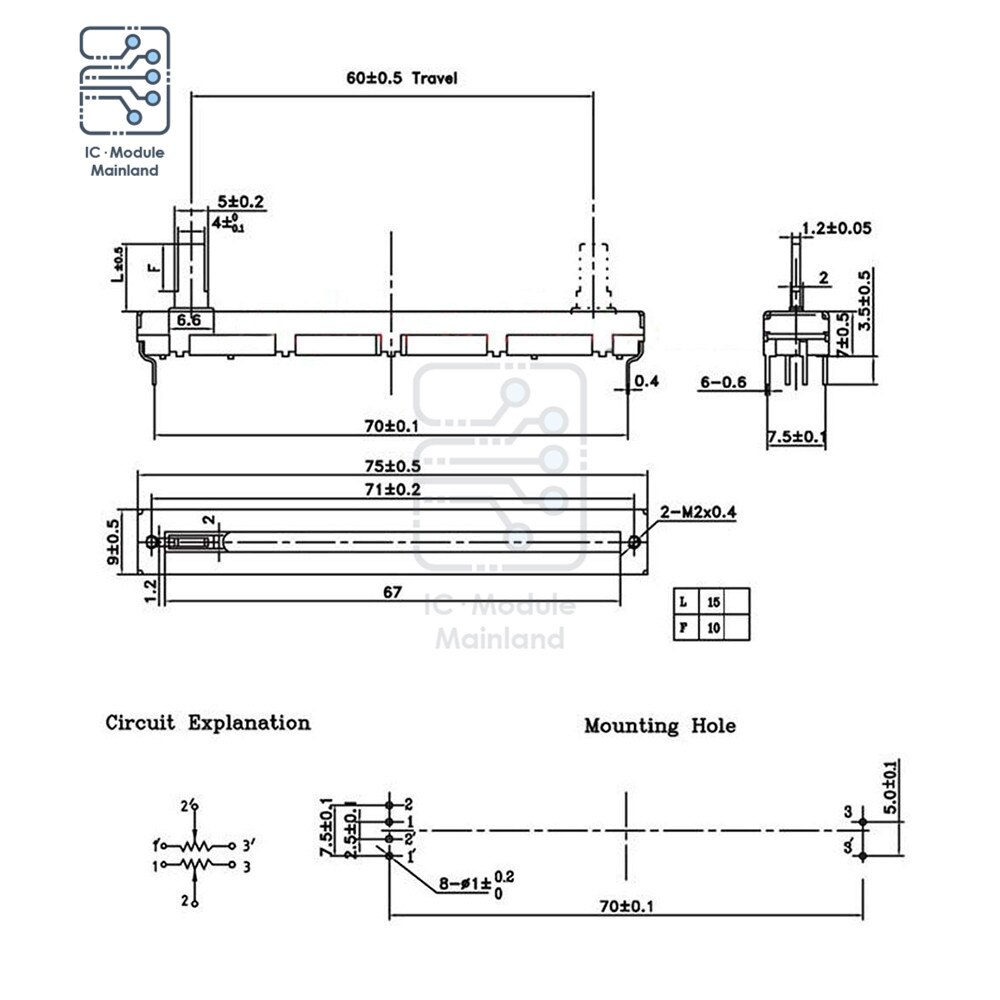

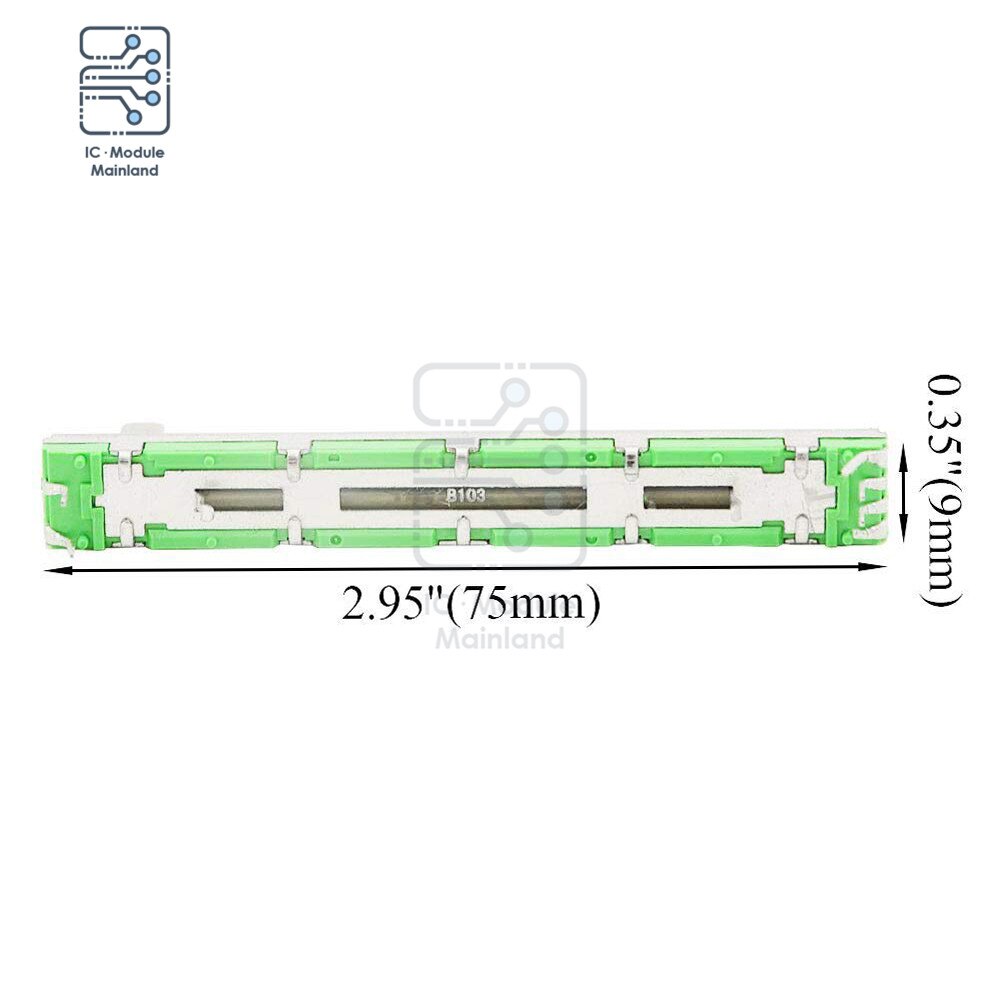

Body Size: 75 * 9 * 6mm / 2.95 * 0.35 * 0.24″(pin not included)
Shaft Size: 15*4*1.2mm (L* W*T)
Mounting hole diameter: M2
Terminals Number: 6
Channel: Double Channel
Rated Power: 0.25W
Resistance Tolerance: ±20%
Sliding Noise: Less than 68mV
Resolution: 100%
Zero Resistance: 2Ω
Contact Resistance: 5Ω
Insulation Resistance: 100MΩ
Package Included:
5 x B103 10K Straight Slide Potentiometer
