1、STM32The model isSTM32F407VGT6；



2、FPGAThe model isXC6SLX16-2CSG324C/XC6SLX25-2CSG324C/XC6SLX45-2CSG324C；

3、DDR3The model isMT41K128M16JT-125，Memory capacity128M*16bit=2Gbit，Can be in333MHzClock（666MHz*16bitdata）Work steadily for a long time；

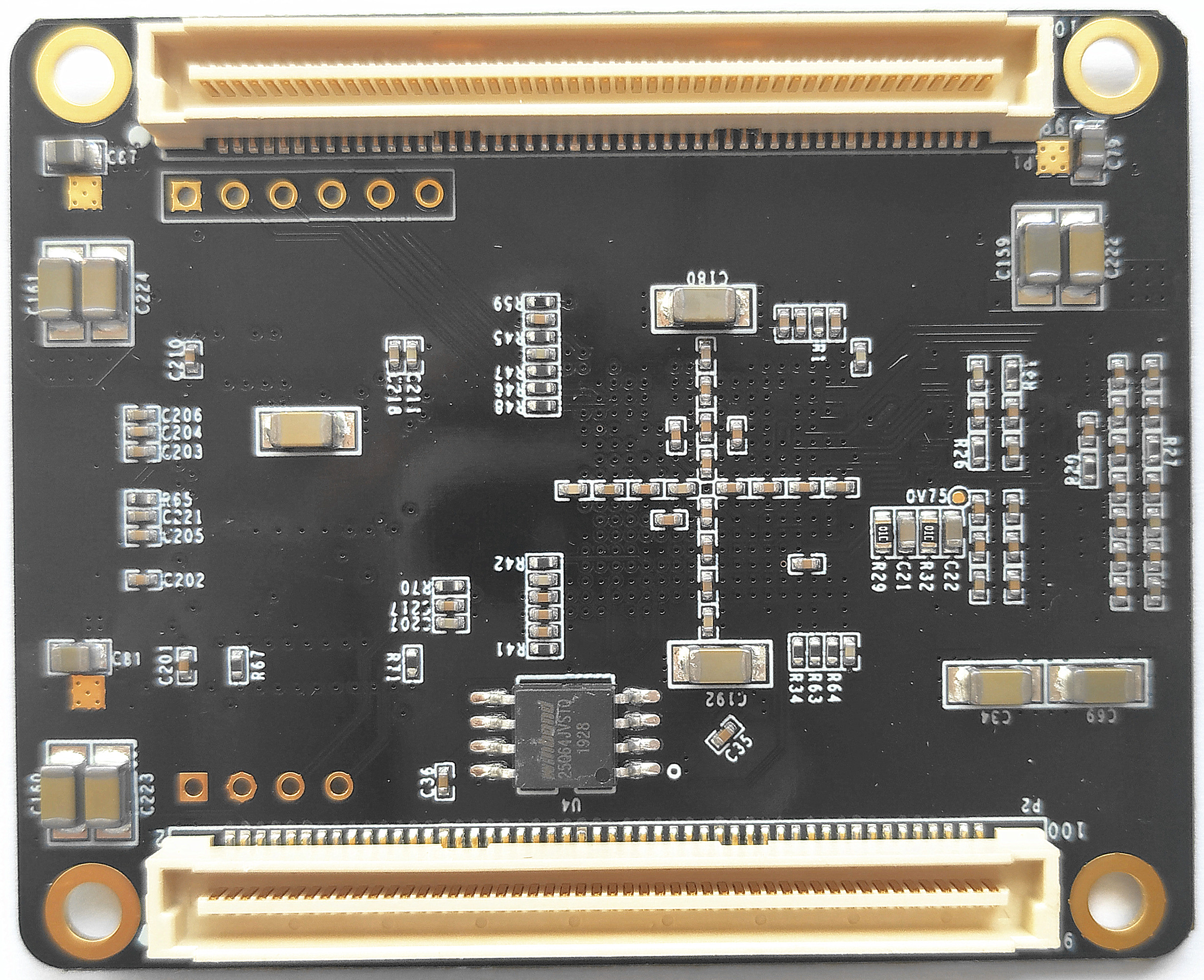

4、STM32AndFPGAadoptFSMCconnect，Parallel communication；

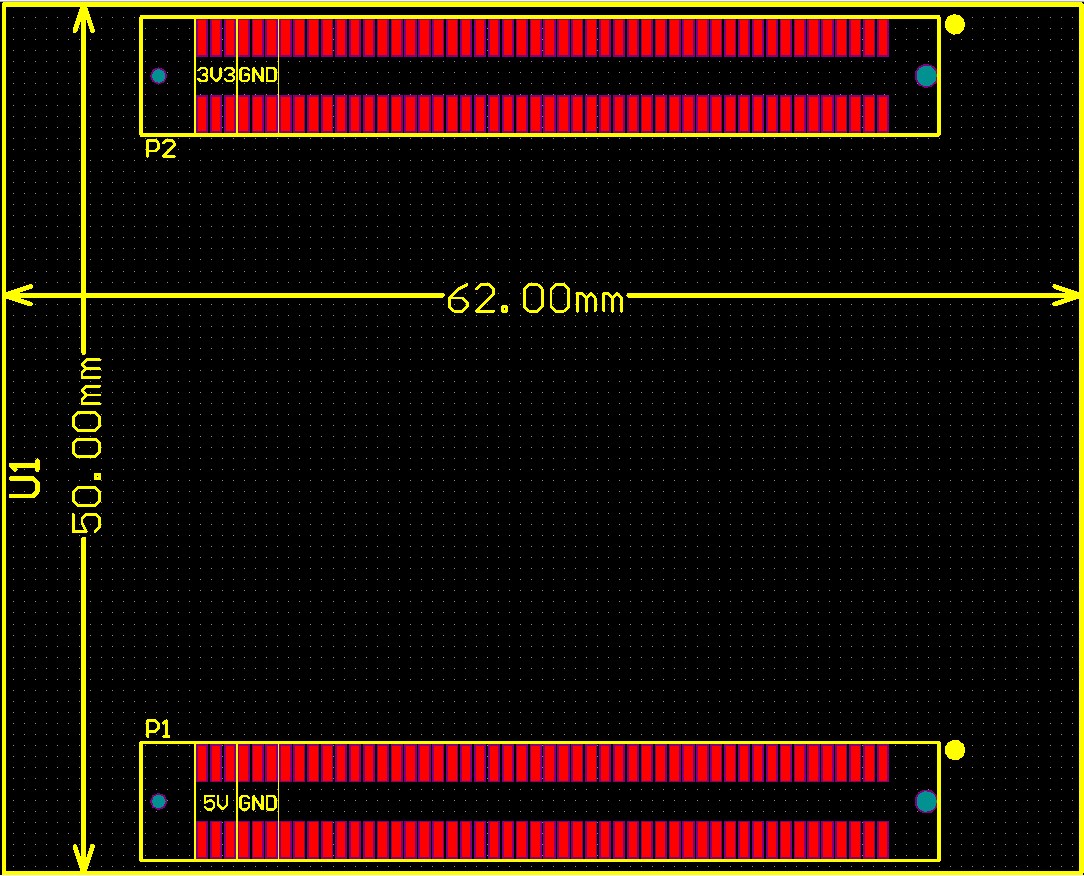

5、The core board size is5cm*6.2cm，ARMEnd to end45individualIO，FPGAEnd to end112individualIO，Passing through the bottom plate2individual100PINConnector connection，Provide the schematic diagram and interface of the connectorPCBchart； 6、Core board support5Vreach9VWide voltage range power supply，At the same time, it can provide support for the bottom plate3.3VPower Supply，Maximum output current3A。



7、See Baidu cloud disk for a brief introduction of the core board，linkhttps://pan.baidu.com/s/1RqR8EtWW4TGxHOviVK7ABw
