Description
- Brand Name: ACCTEK
- Origin: CN(Origin)
- Certification: CE
- Condition: New
- CNC or Not: CNC
- Is Smart Device: YES
- Working Accuracy:: 0.01mm
- Condition:: New
- Application:: Laser Marking, Laser Marking
- Cooling Mode:: Air Cooling
- Certification:: CE
- Control System Brand:: EZCAD
- Warranty:: 1 Year
- Control system:: PC control system
- Laser Source Brand:: RAYCUS
- Working area:: 110*110mm
Hot sale portable cnc laser marking machine with 20/30/50/100w for metal and nonmetal
Product Description
Main Features
# Marking area: 110*110mm / 200*200mm
# Raycus brand 20w/30w/50w/100w fiber laser generator (lifetime:100000h)
# Aluminum alloy up down table
# Filed lens,high speed galvanometer,marking head
# Cooling system:air cooling
# Computer included
# PC control system:Windows XP and win7,win8,win10
# Control software: EZCAD
# Marking with red point
# Foot switch
# Support all-English language interface
# Suitable for most metal and nonmetal materials marking
# Raycus brand 20w/30w/50w/100w fiber laser generator (lifetime:100000h)
# Aluminum alloy up down table
# Filed lens,high speed galvanometer,marking head
# Cooling system:air cooling
# Computer included
# PC control system:Windows XP and win7,win8,win10
# Control software: EZCAD
# Marking with red point
# Foot switch
# Support all-English language interface
# Suitable for most metal and nonmetal materials marking
Specification
|
1-Configurations & technical parameter
|
||
|
NO
|
Model
|
Fiber laser marking machine AK30F
|
|
1
|
Laser power
|
Raycus fiber laser source 30w
|
|
2
|
Working area
|
200*200mm
|
|
3
|
Laser Wavelength
|
1064nm
|
|
4
|
Response time
|
0.5ms
|
|
5
|
Frequency of pulse
|
20-100KHz
|
|
6
|
Max marking depth
|
≤0.8mm
|
|
7
|
Marking lines
|
1-10 lines(in the marking area)
|
|
8
|
Minimum line width
|
10um
|
|
9
|
Minimum character
|
0.15mm
|
|
10
|
Repeatability accuracy
|
±0.002mm
|
|
11
|
Resolution ratio
|
0.1mm
|
|
12
|
Marking content
|
Text,pattern,date,barcode,etc
|
|
13
|
Operation system
|
Windows XP and win7,win8,win10
|
|
14
|
Control software
|
EZCAD control software
|
|
15
|
Graphic format supported
|
bmp, jpg, gif, tga, png,tif,ai,dxf,dst,plt,etc.
|
|
16
|
Unit power
|
≤1.2KW
|
|
17
|
Operation temperature
|
5℃-40℃
|
|
18
|
Relative moisture
|
≤ 90%,no fog
|
|
19
|
Supply Voltage
|
220V, 50/60Hz
|

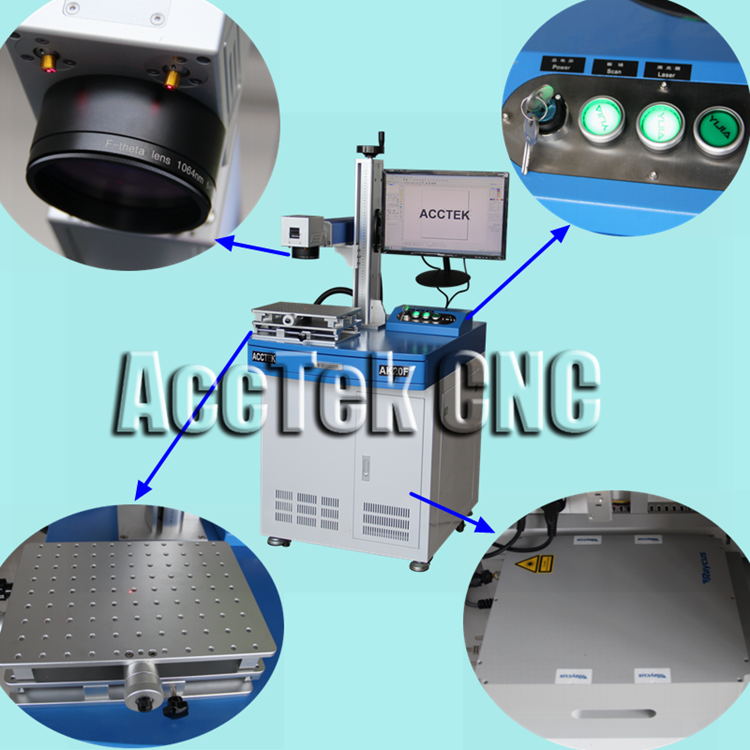

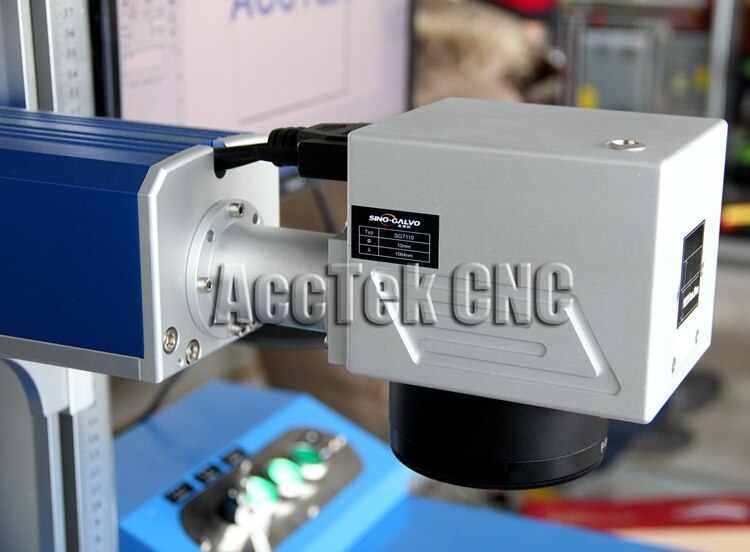

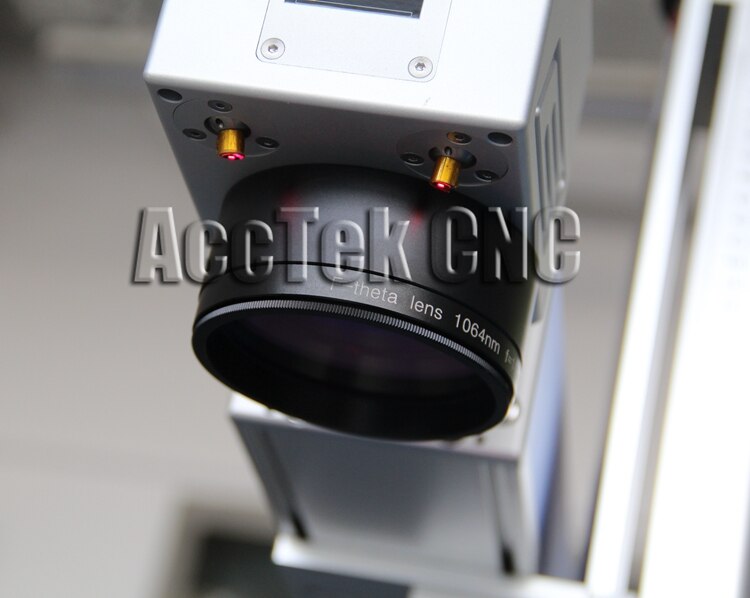

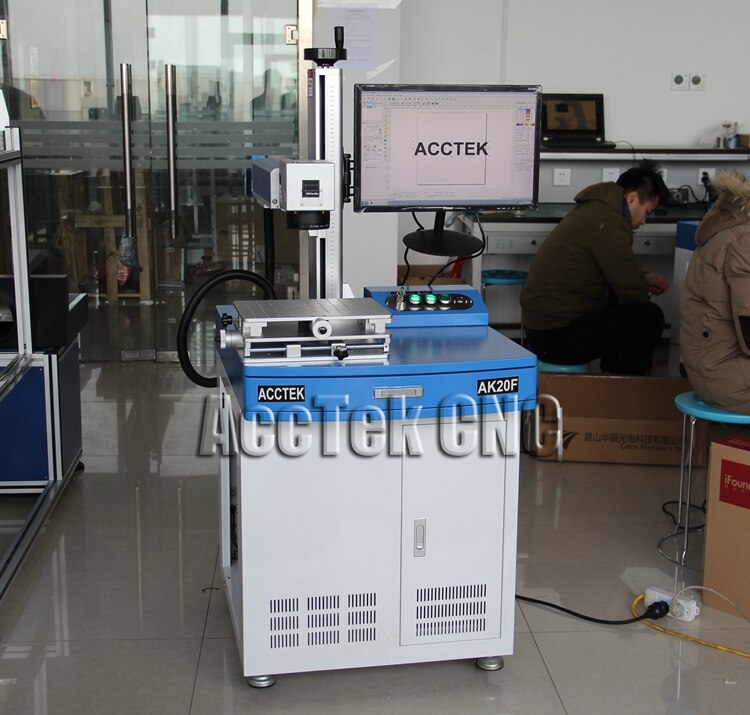

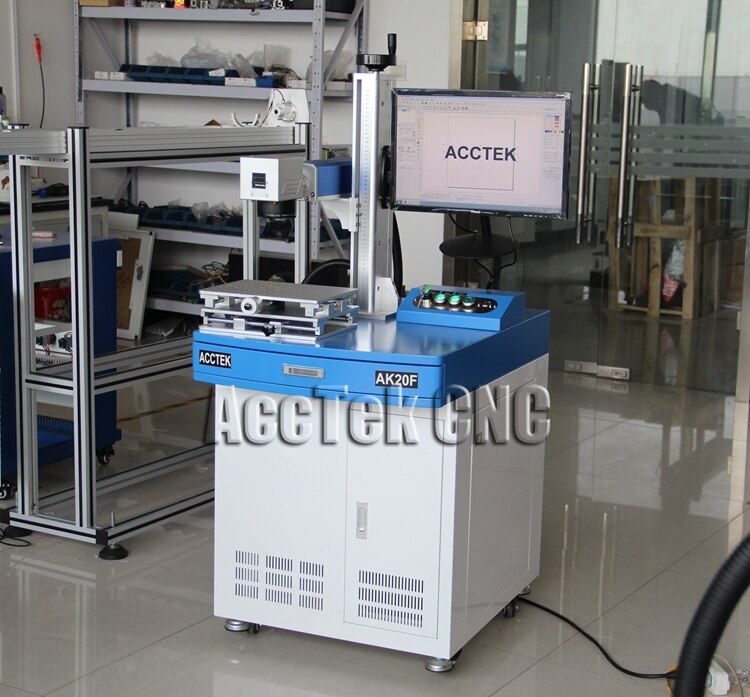

Details Images
Application industry
◆1.Applicable Industries
Mobile phone keypad, plastic translucent materials, electronic components, integrated circuits (IC), electrical appliances, communication products, sanitary ware, kitchen utensils, glasses and clocks, jewelry, auto parts, luggage buckle, stainless steel products and other industries.
◆2.Applicable Materials
Metals (steel, titanium, copper, gold, silver, including rare metals), engineering plastics, electroplating materials, plastics, rubber, epoxy resin, ceramic, ABS, PVC, PES and other materials.
Mobile phone keypad, plastic translucent materials, electronic components, integrated circuits (IC), electrical appliances, communication products, sanitary ware, kitchen utensils, glasses and clocks, jewelry, auto parts, luggage buckle, stainless steel products and other industries.
◆2.Applicable Materials
Metals (steel, titanium, copper, gold, silver, including rare metals), engineering plastics, electroplating materials, plastics, rubber, epoxy resin, ceramic, ABS, PVC, PES and other materials.
SAMPLES
Customers feedback
Our Service
#1 years quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge if there is any problem during the warranty period.
# Free training course.
# We will provide the consumable parts at an agency price when you need replacement.
# 24 hours on line service each day, free technical support.
# Our staff can be sent to your company to install or adjust if necessary.
Payment & Delivery
Payment:
1. T/T
*We accept T/T , you can pay 30% in advance, 70% before delivery.
*The machine will be produced after received your deposit.after the machine is ready, we will show you the machine photos and the testing video.
*After you agree, please finish the balance. Finally. we arrange the delive
2. Trade Assurance
Delivery:
*Outside package: Standard marine export plywood case .
*Inner package: Stretch film and plastic film for humidity .
*To better ensure the safety of your goods, we can package according to your requests.
1. T/T
*We accept T/T , you can pay 30% in advance, 70% before delivery.
*The machine will be produced after received your deposit.after the machine is ready, we will show you the machine photos and the testing video.
*After you agree, please finish the balance. Finally. we arrange the delive
2. Trade Assurance
Delivery:
*Outside package: Standard marine export plywood case .
*Inner package: Stretch film and plastic film for humidity .
*To better ensure the safety of your goods, we can package according to your requests.
Company Profile
Jinan AccTek Machinery Company specializes in manufacturing CNC Router and Laser machines.Since 2005 we have been based in the Industrial Zone of Jinan City, Shandong Province south of Beijing.
Our main products are AccTek CNC Routers and Laser engraving and cutting machines. Stock or custom configurations are our specialty. Components for our machines are sourced from world class suppliers and innovators in machine control. These machines are used in many industries, crafts and arts businesses around the world. These include woodwork, metal and stone work, aluminum fabrication, boat building, shop fitting, mold making, to name a few.
Our dedicated and highly skilled after sales service department, sales team, and thorough quality assurance procedures mean that you can buy with confidence. We welcome customers and potential business associates from around the world. We can work together cooperatively for mutual benefit.
"Our business is to improve your business"
