Description
Product Description
|
Place of origin
|
China
|
|
Province
|
Shandong
|
|
Brand Name
|
SENTER
|
|
Model Number
|
ST815 series
|
|
Power supply
|
AA or Li battery
|
|
Product name
|

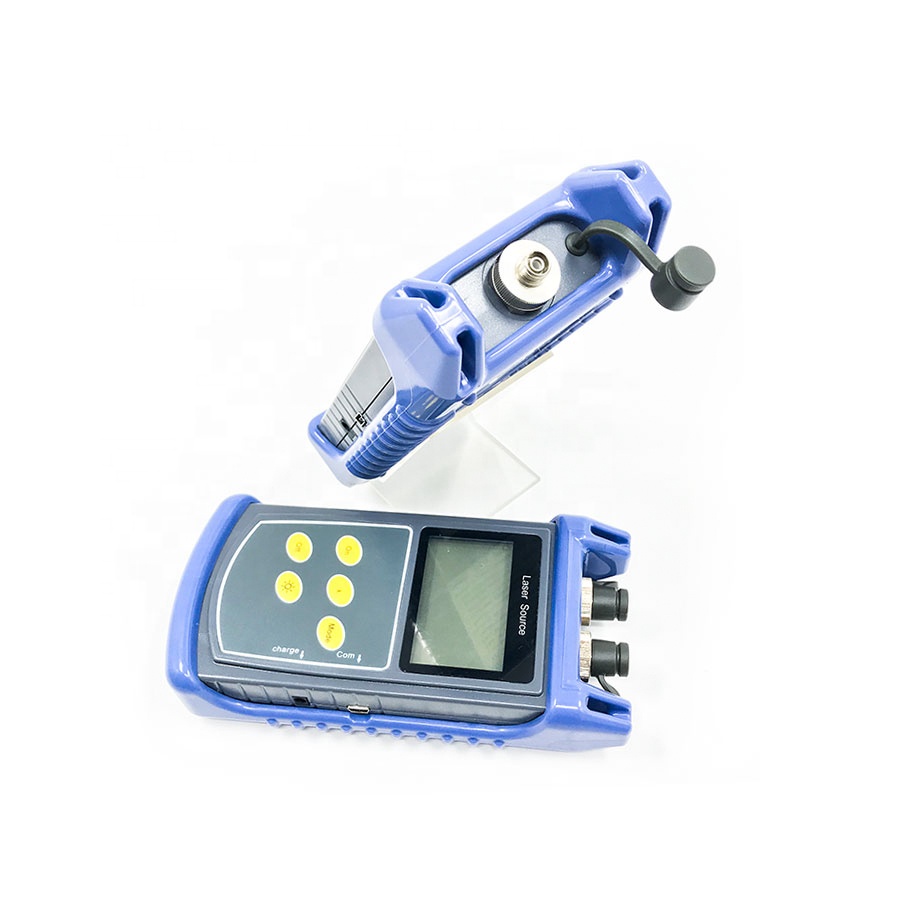

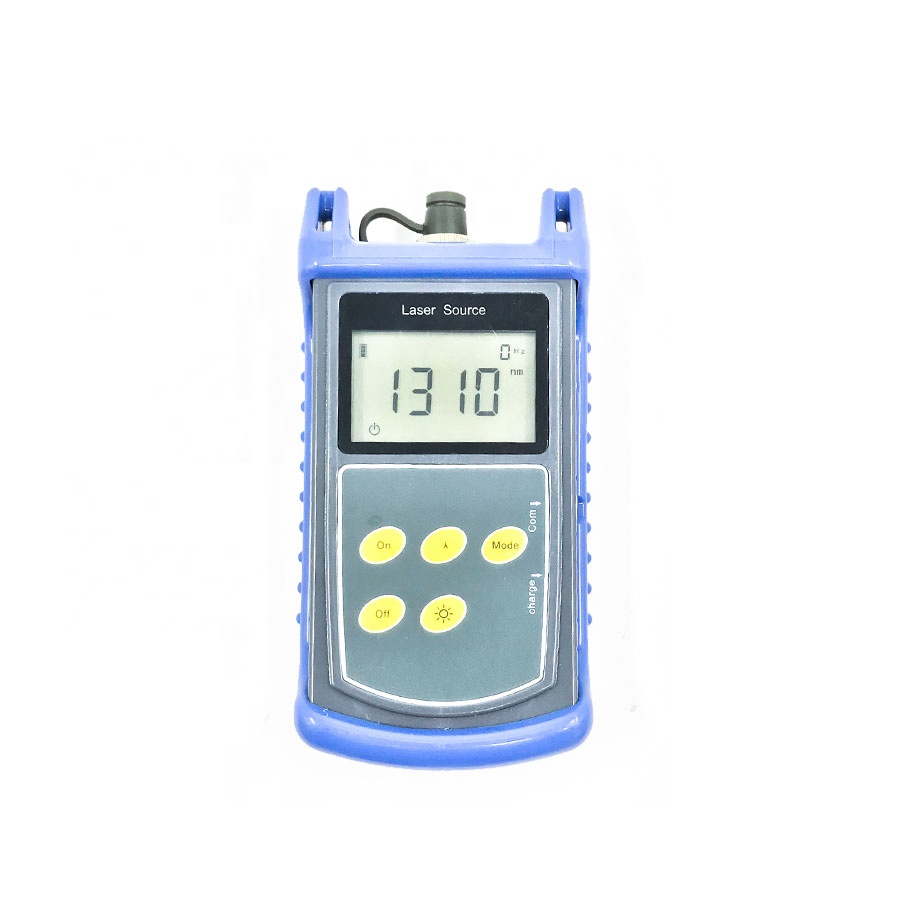

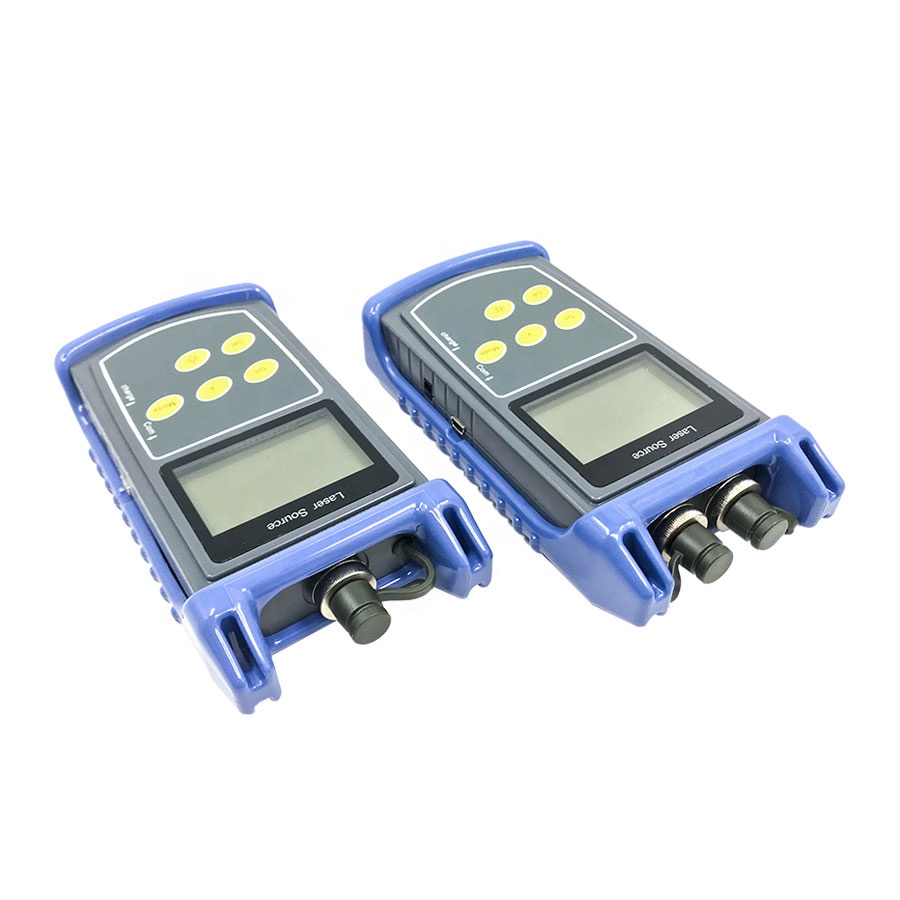

Mini Optical Light Source Fiber Optical laser Light Source
|
Overview
Functions
1. Handhold, easy to operate 2. Two to Four wavelength optional 3. Continuous light, modulated light output 4. Output double wavelength or three wavelengths through single tie-in 5. Output three or four wavelength through double tie-in 6. High stabilization 7. Auto 10 minutes shut off function 8. Big LCD, intuitive, easy to use 9. LED backlight switch on/off 10. Auto close back light in 8 seconds 11. AAA dry battery or Li battery 12. Battery voltage display 13. Low voltage checking and shut off to save energy 14. Automatic wavelength identification mode (with the help of corresponding power meter)
Specifications
|
Key Tech Specifications
|
||
|
Emitter type
|
FP-LD/ DFB-LD
|
|
|
Output wavelength switch (nm)
|
ST815 Wavelength: 1310±20nm, 1550±20nm
|
|
|
ST815B Wavelength: 1310±20nm, 1550±20nm, 1490±20nm
|
||
|
ST815C Wavelength: 1310±20nm, 1550±20nm, 850±20nm, 1300±20nm
|
||
|
ST815D Wavelength: 1310±20nm, 1550±20nm, 1625±20nm
|
||
|
ST815E Wavelength: 1310±20nm, 1550±20nm, 650±20nm
|
||
|
ST815 Multi Mode: 850±20nm, 1300±20nm
|
||
|
Spectral width (nm)
|
≤5
|
|
|
Output optical power (dBm)
|
≥-7, ≥0dBm（customized）,650 nm≥0dBm
|
|
|
Optical Output Mode
|
CW continuous light
Modulization output: 270Hz, 1kHz, 2kHz, 330Hz —AU automatic wavelength identification mode (It can be used with the help of corresponding power meter, red light doesn’t have automatic wavelength identification mode) 650nm red light:2Hz and CW |
|
|
Power Stability (dB) (Short time)
|
≤±0.05/15min
|
|
|
Power Stability (dB) (Long time)
|
≤±0.1/5h
|
|
|
General specifications
|
||
|
Working temperature (℃)
|
0–40
|
|
|
Storage temperature (℃)
|
-10—70
|
|
|
Weight (kg)
|
0.22
|
|
|
Dimension (mm)
|
160×76×28
|
|
|
Battery
|
2 pieces AA dry battery or Li battery, LCD display
|
|
|
Battery working duration (h)
|
dry battery about 15 hours
|
|
