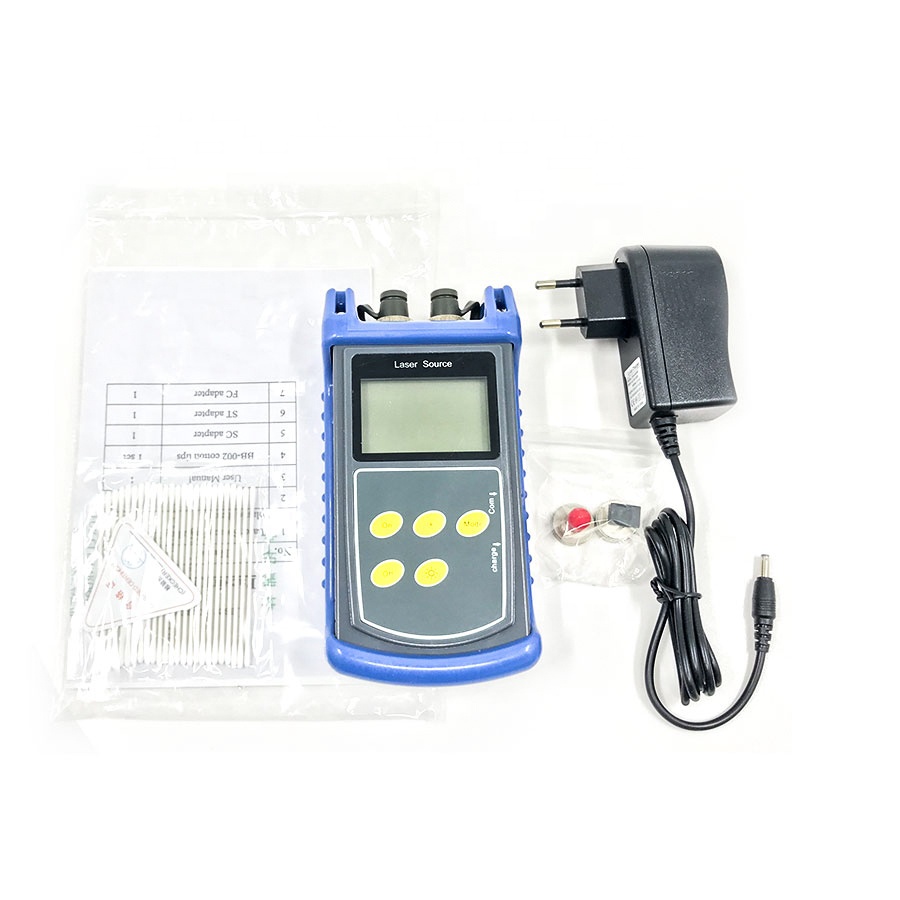

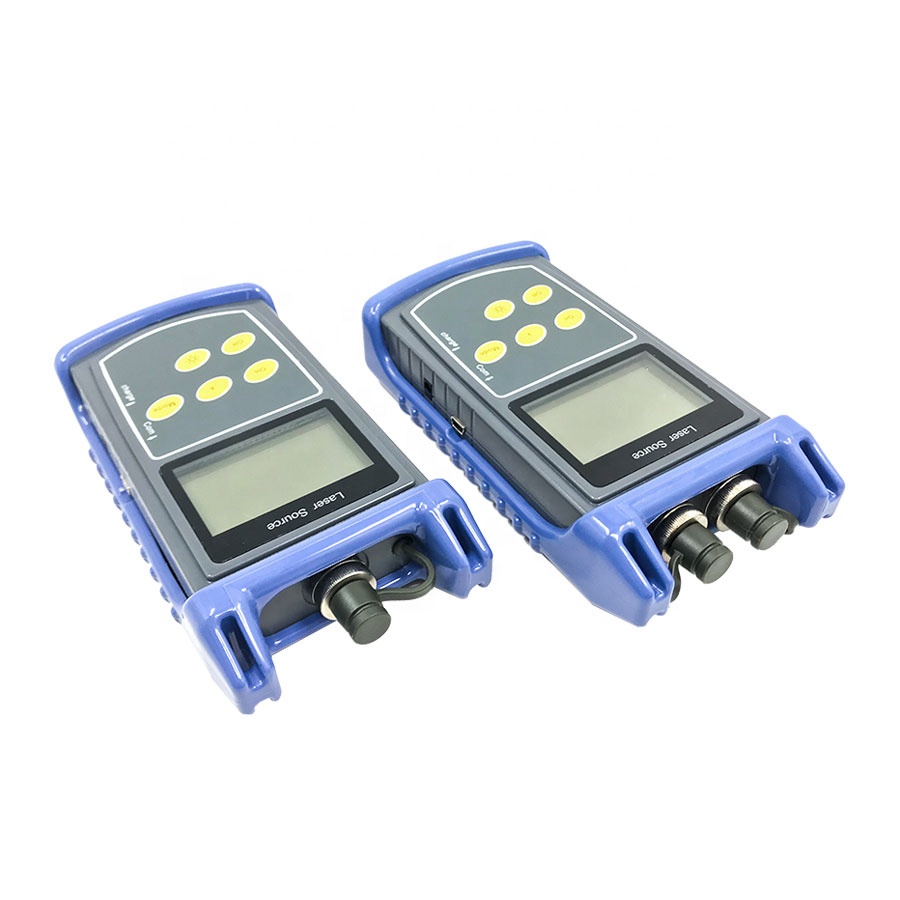

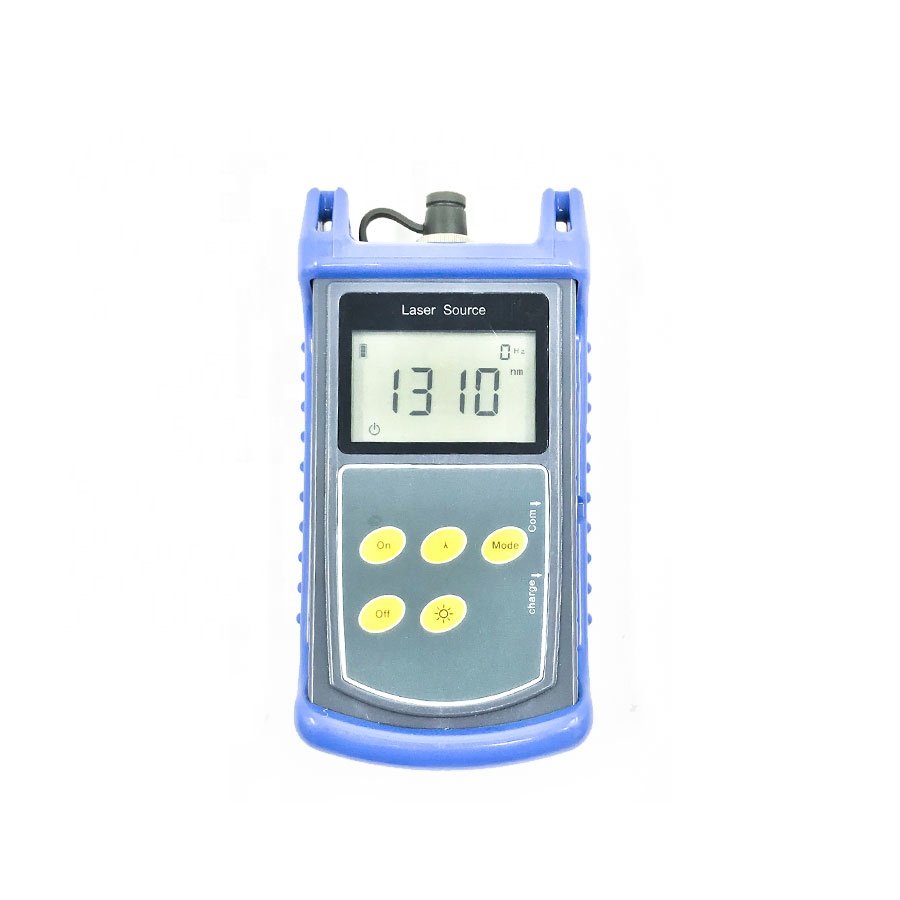

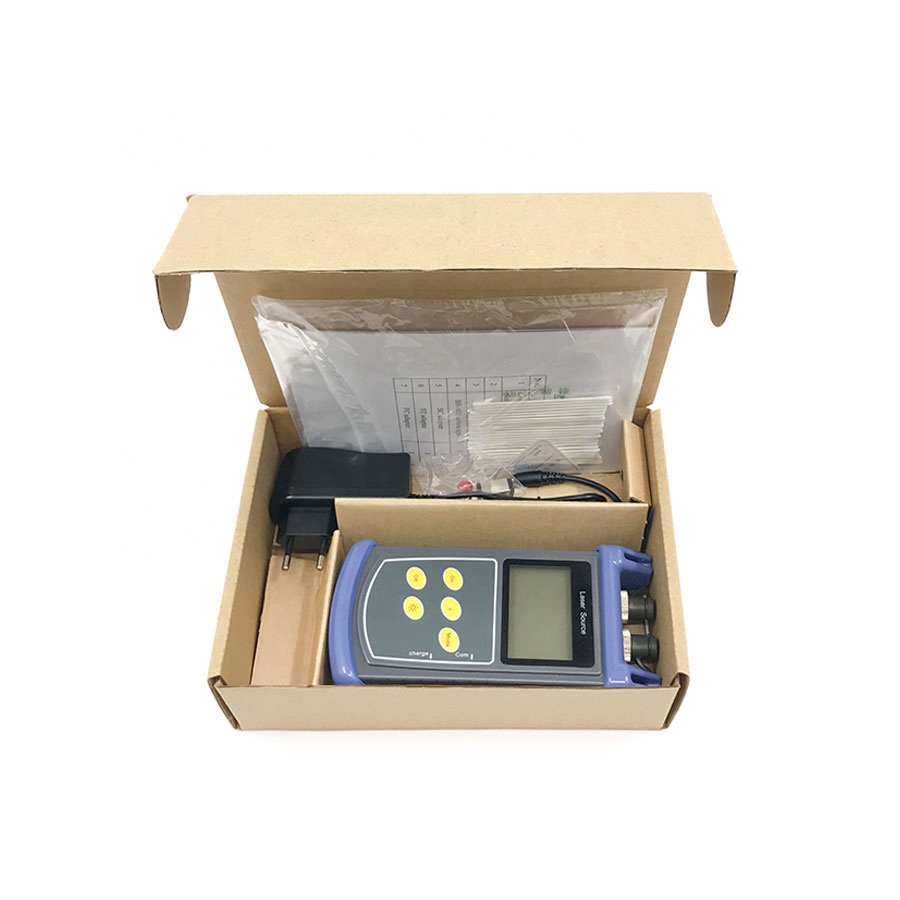

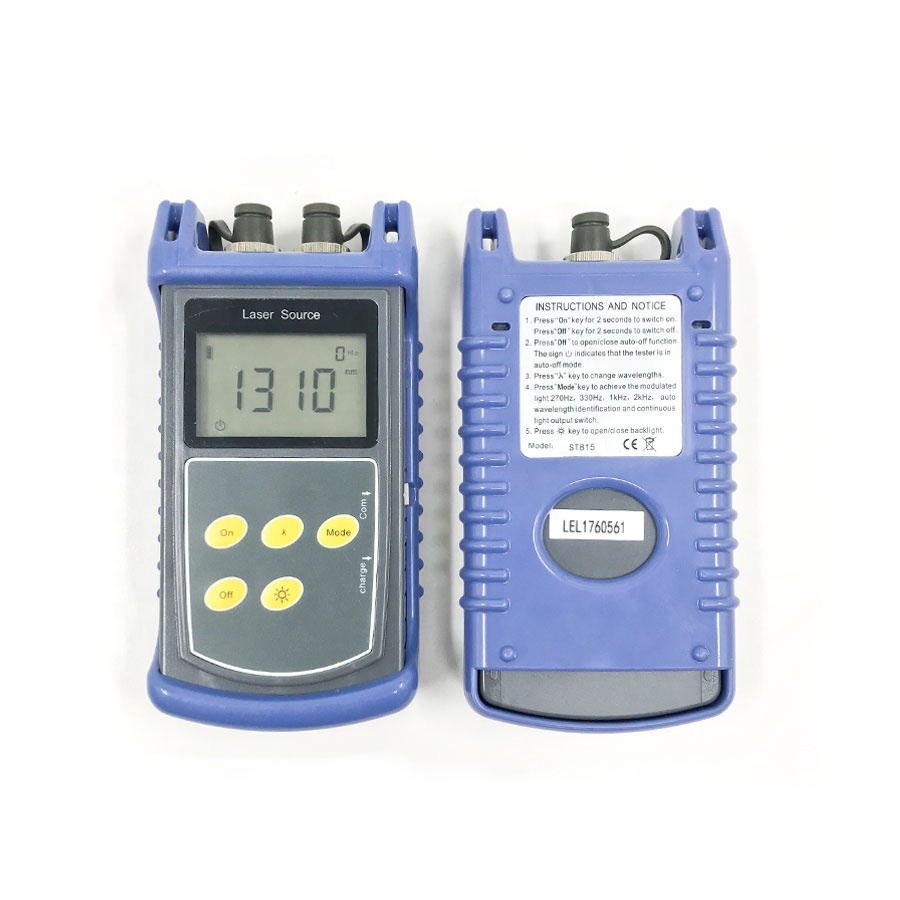

ST815 Fiber Optic Equipments 1310/1550nm Handheld Fiber Optical Laser Light Source

$109.65

SKU: 3540161018651 Category:

Description

Product Description
Place of origin
China
Province
Shandong
Brand Name
SENTER
Model Number
ST815 series
Power supply
AA or Li battery
Product name
Mini Optical Light Source Fiber Optical laser Light Source
Overview
ST815 Laser Source can support stable laser signal on many kinds of wavelength, it can identify fiber, test fiber loss and continuity accurately, help to evaluate transmission quality of fiber chain as well. It supplies high performance laser source for field test and lab project development. With features of durable structure, large LCD display with backlight and friendly operation interface, the ST815 advanced stability handheld optical light source provides a lot of convenience for your field work. High stability of output power and quite stable output wavelength, it is an ideal instrument for optical network installation, trouble shooting, maintenance and other optical fiber related systems. It can be widely operated for LAN, WAN, CATV, remote optical network, etc. Cooperate with Optical Power Meter; it can distinguish fiber, test optical loss and connection, help to evaluate fiber transmission performance.

Functions
1. Handhold, easy to operate 2. Two to Four wavelength optional 3. Continuous light, modulated light output 4. Output double wavelength or three wavelengths through single tie-in 5. Output three or four wavelength through double tie-in 6. High stabilization 7. Auto 10 minutes shut off function 8. Big LCD, intuitive, easy to use 9. LED backlight switch on/off 10. Auto close back light in 8 seconds 11. AAA dry battery or Li battery 12. Battery voltage display 13. Low voltage checking and shut off to save energy 14. Automatic wavelength identification mode (with the help of corresponding power meter)

Specifications
Key Tech Specifications
Emitter type
FP-LD/ DFB-LD
Output wavelength switch (nm)
ST815 Wavelength: 1310±20nm, 1550±20nm
ST815B Wavelength: 1310±20nm, 1550±20nm, 1490±20nm
ST815C Wavelength: 1310±20nm, 1550±20nm, 850±20nm, 1300±20nm
ST815D Wavelength: 1310±20nm, 1550±20nm, 1625±20nm
ST815E Wavelength: 1310±20nm, 1550±20nm, 650±20nm
ST815 Multi Mode: 850±20nm, 1300±20nm
Spectral width (nm)
≤5
Output optical power (dBm)
≥-7, ≥0dBm(customized),650 nm≥0dBm
Optical Output Mode
CW continuous light

Modulization output: 270Hz, 1kHz, 2kHz, 330Hz

—AU automatic wavelength identification mode (It can be used with the help of corresponding power meter, red light doesn’t have

automatic wavelength identification mode)

650nm red light:2Hz and CW
Power Stability (dB) (Short time)
≤±0.05/15min
Power Stability (dB) (Long time)
≤±0.1/5h
General specifications
Working temperature (℃)
0–40
Storage temperature (℃)
-10—70
Weight (kg)
0.22
Dimension (mm)
160×76×28
Battery
2 pieces AA dry battery or Li battery, LCD display
Battery working duration (h)
dry battery about 15 hours
