Parameters:

Material :aluminum
Type: SPL PL90_3
Opt. Peak Power: 75w

Feature:

Optical peak power up to 75 W
Laser wavelength 905 nm
Suited for short laser pulses from 1 to 100 ns
Nanostack laser technology including 3 epitaxially stacked emitters
Laser aperture 200 µm × 10 µm
Cost effective plastic package for high volume

Application:

Hand-held Laser Range Finders (LRF) for golfers, hunters, civil engineers
Automotive applications (Adaptive Cruise Control (ACC), pre-crash detection, collision avoidance, adaptive rear lighting)
Traffic surveillance (Laser speed gun, traffic recording, vehicle classification, distance measurement, fog detection)
Professional laser sensors for distance measuring, positioning, protection
Safety Advice
Depending on the mode of operation, these devices emit highly concentrated non visible infrared light which can be hazardous to the human eye. Products which incorporate these devices have to follow the safety precautions given in IEC 60825-1 “Safety of laser products”.

Package:

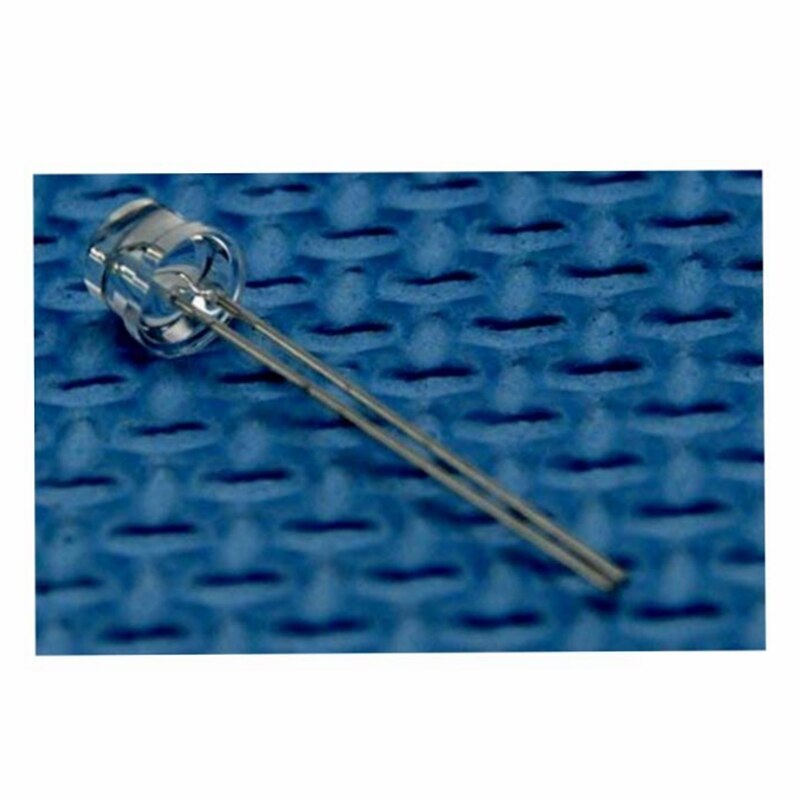

1x SPL PL90_3 905nm 75W Peak Power Laser Diode
