Description
- Brand Name: MLHJ
- Origin: CN(Origin)
- Certification: CE
- Model Number: FFS8
- Type: Testers &Tools
- Place of Origin: Shanghai, China
- Brand Name: Dong Fang Zhi Guang
- Screen: 5 inch TFT color display
- Splicing Time: 5s
- Heating Time: 15s
- Charging time: 3.5 Hours
- Battery: 7800mah
- Application: FTTH FTTB FTTX Network
- Splicing method: Fully automatic,Step by step splicing
- Splicing Mode: Normal / high precision splicing
- Shrinkable tube: 60mm,50mm,40mm,25mm
- Product protection: Waterproof, dust proof, shock-resistant
- Use: FTTH
#detail_decorate_root .magic-0{border-bottom-style:solid;border-bottom-color:#53647a;font-family:Roboto;font-size:24px;color:#000;background-color:#7a90b2;font-style:normal;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-1{vertical-align:top}#detail_decorate_root .magic-2{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-3{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-4{padding:0;margin:0;white-space:pre-wrap;font-size:14px}#detail_decorate_root .magic-5{text-align:center}#detail_decorate_root .magic-6{font-size:18px}#detail_decorate_root .magic-7{text-align:left}#detail_decorate_root .magic-8{font-size:14px}#detail_decorate_root .magic-9{color:#ff3d00;font-weight:bold;font-size:18px}#detail_decorate_root .magic-10{width:750px;border-collapse:collapse}#detail_decorate_root .magic-11{min-height:18px;padding:5px 10px;width:336px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-12{min-height:18px;padding:5px 10px;width:370px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-13{min-height:18px;padding:5px 10px;width:336px;box-sizing:content-box}#detail_decorate_root .magic-14{min-height:18px;padding:5px 10px;width:370px;box-sizing:content-box}#detail_decorate_root .magic-15{margin-bottom:10px;line-height:0}#detail_decorate_root .magic-16{width:750px;height:750px;overflow:hidden;margin-bottom:0}#detail_decorate_root .magic-17{position:relative;left:0;top:0;width:750px;height:750px}#detail_decorate_root .magic-18{width:750px;height:507px;overflow:hidden;margin-bottom:0}#detail_decorate_root .magic-19{position:relative;left:0;top:0;width:750px;height:507px}#detail_decorate_root .magic-20{margin-bottom:10px;overflow:hidden}#detail_decorate_root .magic-21{width:750px}#detail_decorate_root .magic-22{overflow:hidden;width:750px;height:790px;margin-top:0;margin-bottom:4px;margin-left:0;margin-right:0}#detail_decorate_root .magic-23{margin-top:0;margin-left:0;width:750px;height:790px}#detail_decorate_root .magic-24{overflow:hidden;width:373px;height:248.791px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-25{margin-top:0;margin-left:0;width:373px;height:248.791px}#detail_decorate_root .magic-26{overflow:hidden;width:373px;height:248px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-27{margin-top:0;margin-left:0;width:373px;height:249.164px}#detail_decorate_root .magic-28{overflow:hidden;width:750px;height:617px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-29{margin-top:0;margin-left:0;width:750px;height:617px}#detail_decorate_root .magic-30{overflow:hidden;width:750px;height:332px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-31{margin-top:0;margin-left:0;width:750px;height:332px}#detail_decorate_root .magic-32{overflow:hidden;width:750px;height:449.2049469964664px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-33{margin-top:0;margin-left:0;width:750px;height:449.2049469964664px}
Product Description

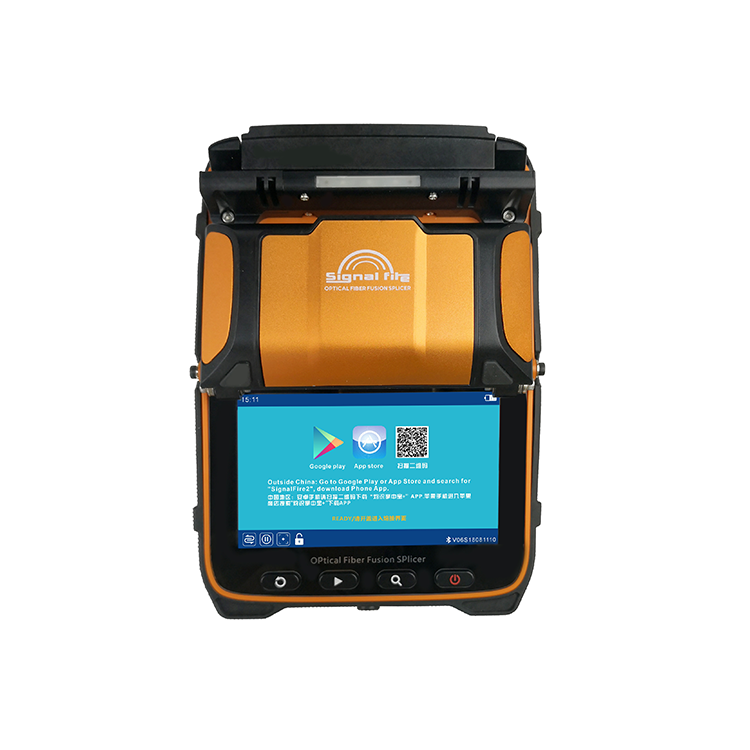

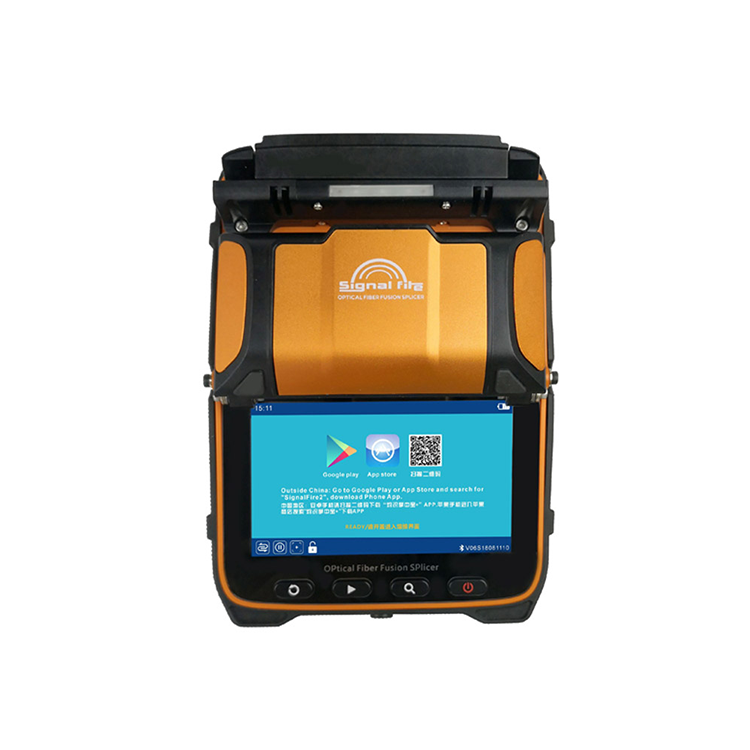

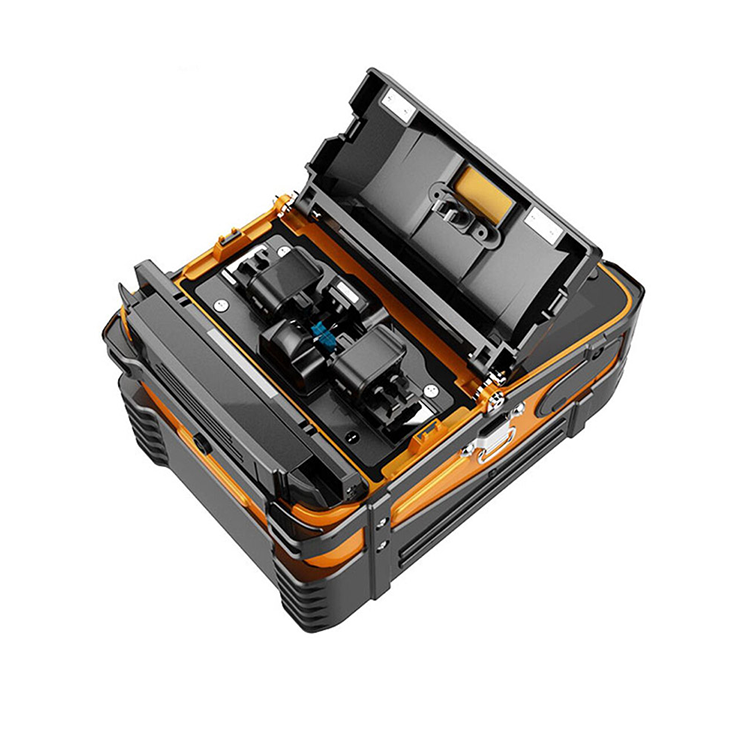

Splicing time SM&MM Multi-language FTTH full Automatic Intelligent AI-9 Optical Fiber Fusion Splicer
Discription:
Fusion Splicing is a preferred way to join two fibers together by using heat. Whether the fiber was broken or not long enough, a fusion splicer will make your job easier. Splicing fiber optic cable is a fairly simple procedure. Prepared fiber ends are placed in the splicer and automatically aligned and then fused together. This method ensures greater reliability with less light being scattered or reflected back by the splice and with the splice itself being as strong as the original optical fiber. Process: The process of fusion splicing normally involves heat to melt or fuse the ends of two optical fibers together. The splicing process begins by preparing each fiber end for fusion. 1, Stripping the fiber Stripping is the act of removing the protective polymer coating around optical fiber in preparation for fusion splicing. 2, Cleaning the fiber The customary means to clean bare fibers is with alcohol and wipes. 3, Cleaving the fiber The fiber is then cleaved using the score-and-break method so that its end-face is perfectly flat and perpendicular to the axis of the fiber. 4, Splicing the fibers Current fusion splicers are either core or cladding alignment. Using one of these methods the two cleaved fibers are automatically aligned by the fusion splicer in the x,y plane, then are fused together.
|

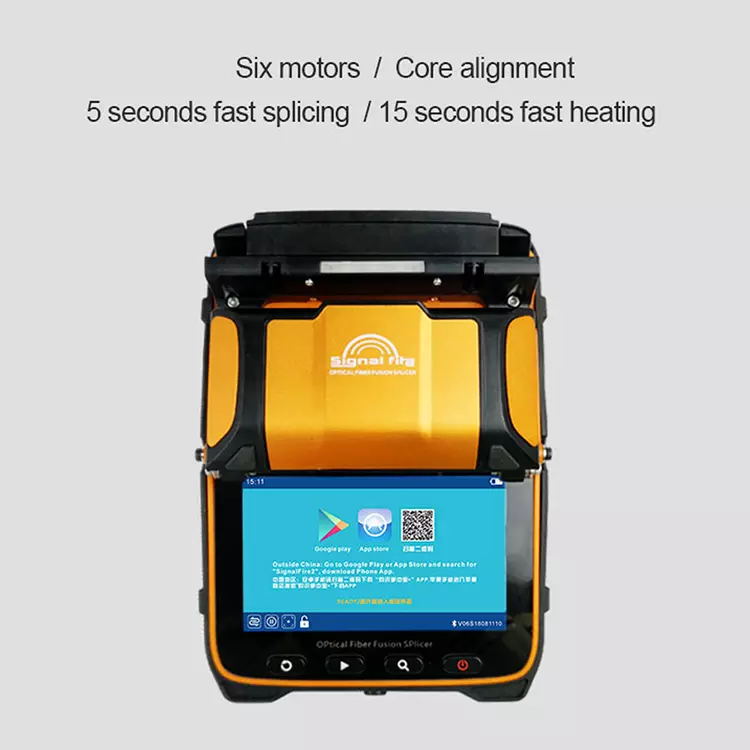

Fiber alignment
|
Core/cladding alignment / Manual alignment
|
|
Splicing time
|
5S
|
|
Heating time
|
15S
|
|
Heating mode
|
Automatic heating(Preheating)
|
|
Focus mode
|
Six motors Auto focus
|
|
Applicable Fibers
|
SM(G.652&G.657),MM(G.651),DS(G.657), NZDS(G.655)
|
|
Control technology
|
Real-time control and calibration of fusion ARC
|
|
Return loss
|
Better than 60DB
|
|
Fiber diameter
|
Cladding Diameter:80-150μm Coating Diameter:100-1000μm
|
|
Fiber Cleave Length
|
Coating less than 250μm:8-16mm Coating less than 250-1000μm:16mm
|
|
Software updates Length
|
Automatically update, Update by a key
|
|
Boot time
|
1 second
|
|

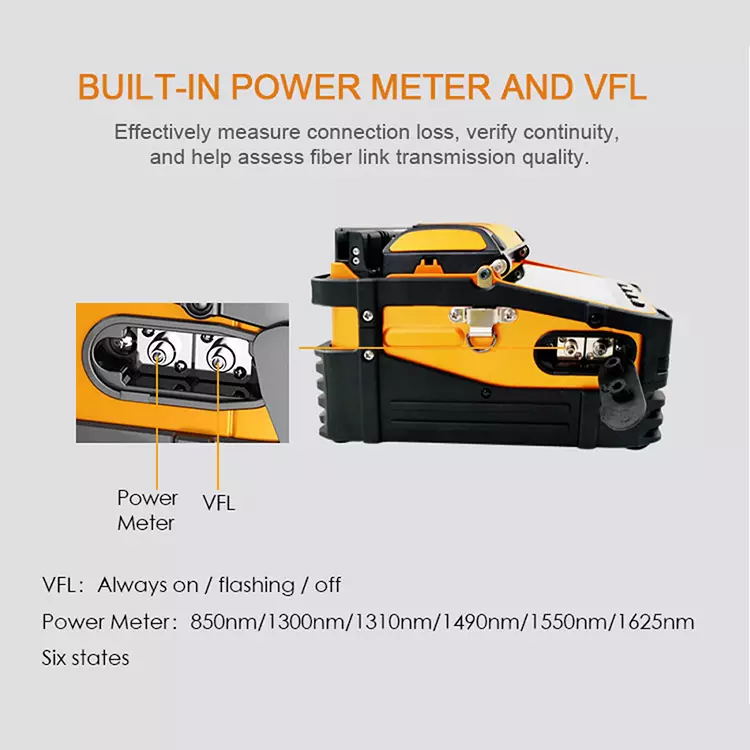

Visual Fault Locator
|
Power:15mw,2hzflashing And Constantly Bright Mode
|
|
Built-in lighting
|
easy for night operation
|
|
Tension Test
|
Standard 2N
|
|
Fiber holders
|
3 in 1 fiber holder, SM, MM, bare fiber, pigtail, rubber-insulated, multi fiber cable
|
|
Magnification
|
300 for X or Y view, 150 for X or Y view
|
|

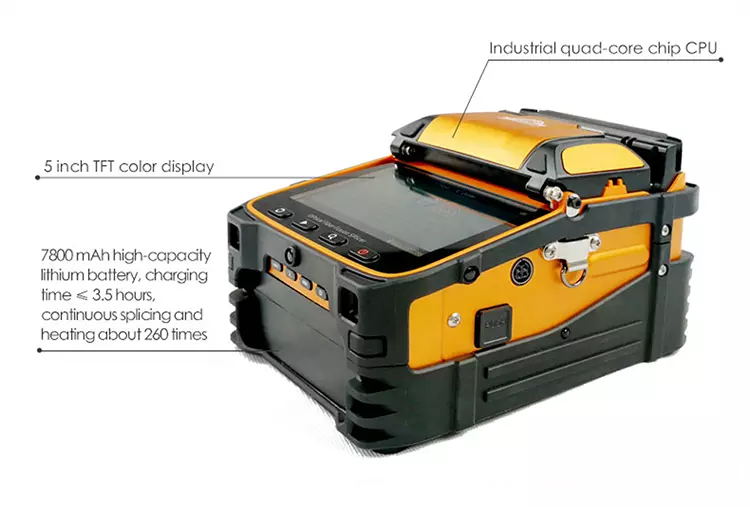

Screen
|
5 inch TFT color display
|
|
Splicing Mode
|
Normal / high precision splicing
|
|
Splicing method
|
Fully automatic,Step by step splicing
|
|
Built-in battery
|
7800 mA high-capacity lithium battery, charging time ≤ 3.5 hours, continuous splicing and heating about 200 times
|
|
Power supply
|
Input AC100-240V 50 / 60HZ, output DC13.5V / 4A, the current power mode can be identified, real-time detection of battery power
|
|
Operating Conditions
|
Temperature -15 ~ +50 ℃, humidity: <95% RH (no condensation)
Working altitude: 0 ~ 5000m. Resist max. wind speed: ≤ 15m / s |
|
Shrinkable tube
|
60mm,50mm,40mm,25mm
|
|
Product protection
|
Waterproof, dust proof, shock-resistant
|
|
Optical Power Meter
|
Wavelength:850nm,1300nm,1310nm,1490nm, 1550nm,1625nm
Measuring Range:-70 ~ +6db Absolute Error:<0.3db(-50dbm ~ +3dbm Range) |
