SPL LL90 Hybrid Pulsed Laser Diode with Integrated Driver Stage 905nm 25W Peak Power

$74.47

981 in stock

SKU: 634562222 Category:

Description

  • Brand Name: Q-BAIHE
  • Model Number: SPLLL90
  • Item Type: Laser Flashlight

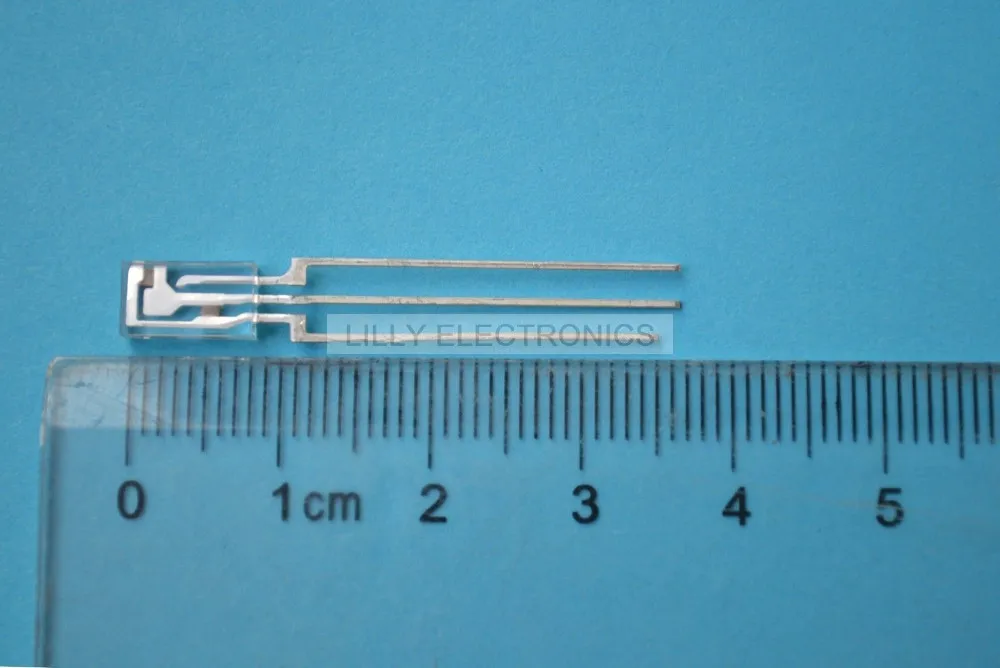

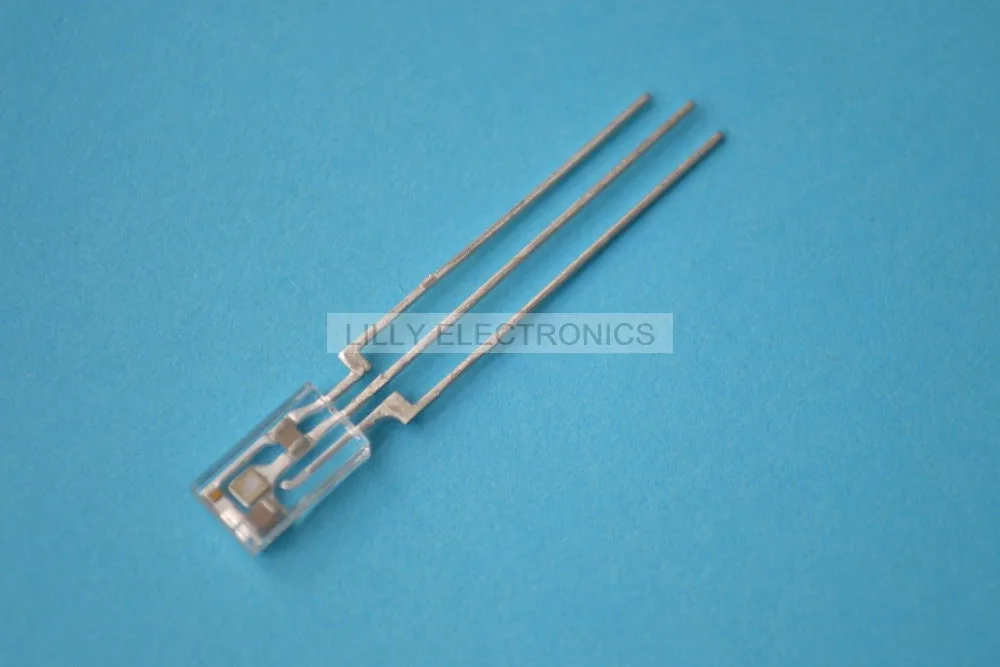

SPL LL90 Hybrid Pulsed Laser Diode with Integrated Driver Stage 905nm 25W Peak Power

Specification:
Type: SPL LL90
Wavelength: 905nm
Opt. Peak Power: 25w

Feature:
Low cost, small size plastic package
Integrated FET and capacitors for pulse control
Strained InAlGaAs/GaAs QW-structures
High power large-optical-cavity laser structure
Laser aperture 200 μm x 2 μm
High-speed operation (< 30 ns pulse width)
Low supply voltage (< 20 V)

Application:
Range finding
Security, surveillance
Illumination, ignition
Test and measurement system

Safety Advice:
Depending on the mode of operation, these devices emit highly concentrated non visible infrared light which can be hazardous to the human eye. Products which incorporate these devices have to follow the safety precautions in IEC 60825-1 "Safety of laser products"
The datasheet can be provided to you, please contact us!

Package:
1X SPL LL90 Hybrid Pulsed Laser Diode with Integrated Driver Stage 905nm 25W Peak Power
