Description
Application
Speedy 355nm 3w 5w uv laser plastic marking machine for medicine bottles milk bottles
UV Laser Marker takes 355nm pumped purple light laser device as the light source and take advantage of previous generations machine to gain smaller diameter of focusing spot and fine marking effect.
The metal absorb purple light higher than infrared and therefore more suitable for marking on metal and glass materials compared with infrared pump machine. Narrower pulse width of laser makes a shorter time of processing on materials, thus the materials avoid being deformed or burnt due to thermal. With smaller heat affected area and more beautiful marking effect, our products can meet customer’s demand of higher marking requirements.
The metal absorb purple light higher than infrared and therefore more suitable for marking on metal and glass materials compared with infrared pump machine. Narrower pulse width of laser makes a shorter time of processing on materials, thus the materials avoid being deformed or burnt due to thermal. With smaller heat affected area and more beautiful marking effect, our products can meet customer’s demand of higher marking requirements.
|
Model
|
DW-3W/5W UV laser marking machine
|
|
Marking scope
|
110*110(175*175)mm
|
|
Power
|
3W(Optional 5W/10W)
|
|
Laser sources
|
Huaray
|
|
Laser Head
|
Sino-Galvo SG7110
|
|
Red light dot
|
From Xi’an
|
|
Wave length of laser
|
355±10nm
|
|
Minimal character
|
0.001mm
|
|
Marking speed
|
7000mm/s
|
|
Support format
|
PLT, BMP, DXF, JPG, TIF, AI etc
|
|
Power supply
|
Taiwan MW
|
|
Power supply
|
110V/220V/ 50Hz/2kVA
|
|
Process Material
|
All kinds of metal and part of Non-metal Materials
|
|
Cooling ways
|
Water Cooling
|
|
Interface
|
USB
|
|
Warranty
|
24 months
|
Detailed Images

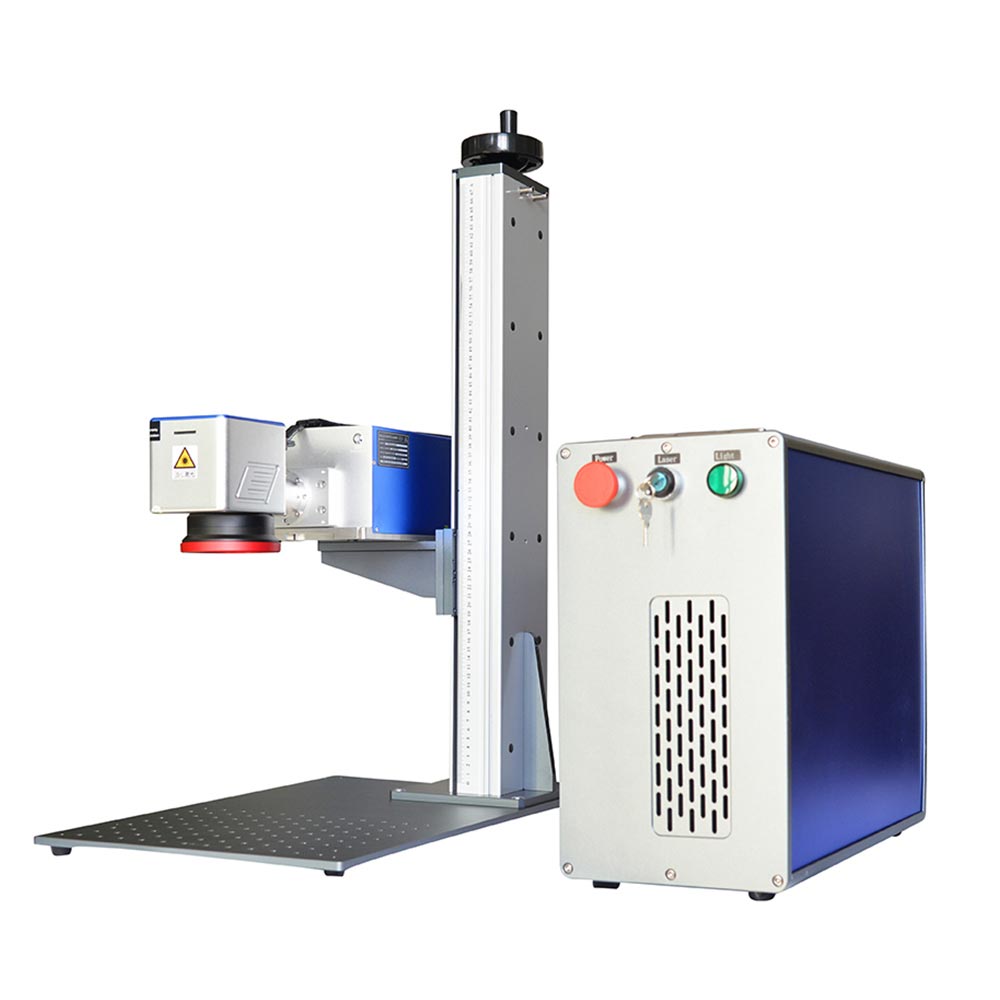

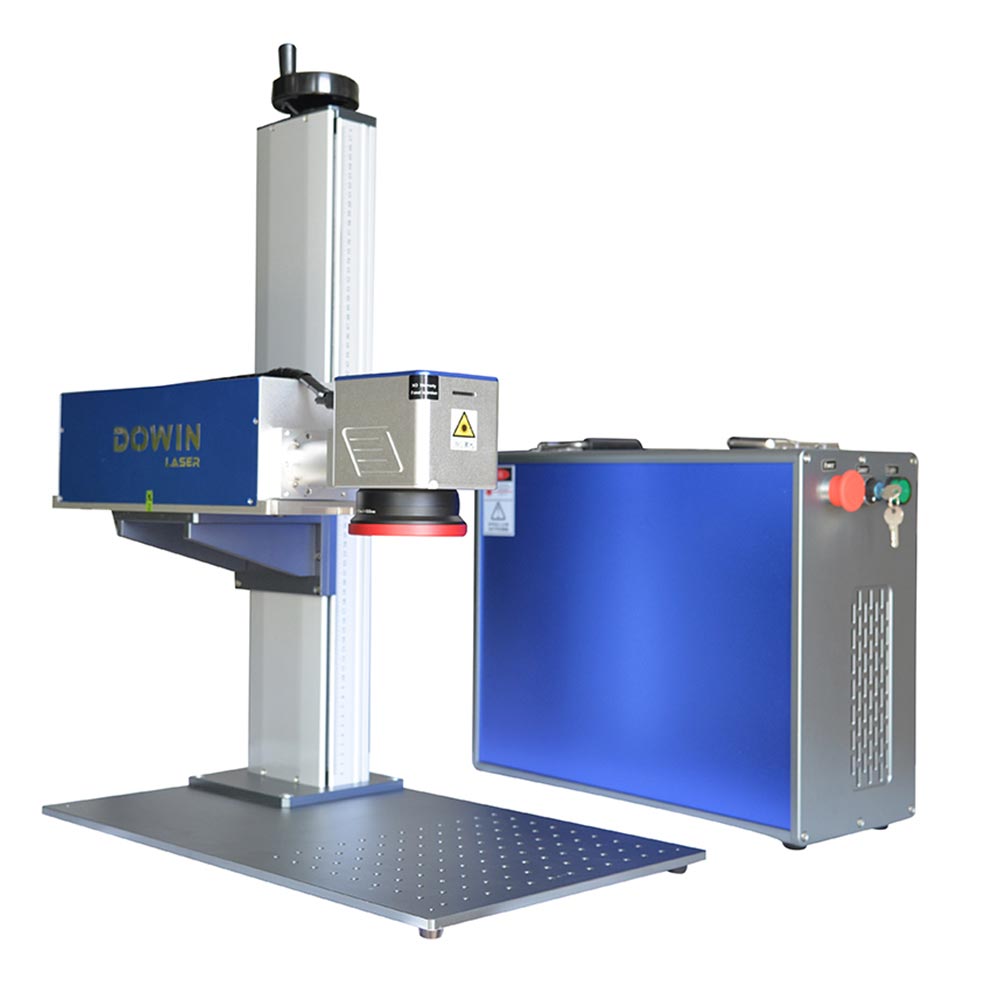

Speedy 355nm 3w 5w uv laser plastic marking machine for medicine bottles milk bottles
Huaray brand 355nm UV laser source ,durable with water cooling system
High speed SG 7110 laser scanner
Taiwan Meanwell power supply
Genuine version EZCAD control system
Rotary :For round or arc workpiece marking ,matched with
adjustable-speed motor.
S&A brand CWUL-05 water chiller
Singapore Opex brand focus lens
Speedy 355nm 3w 5w uv laser plastic marking machine for medicine bottles milk bottles
Samples
Speedy 355nm 3w 5w uv laser plastic marking machine for medicine bottles milk bottles
(1) UV Laser Marker is widely used in electronic components, battery chargers, electric wire, computer accessories, mobile phone accessories (mobile phone screen, LCD screen) and communication products.
(2) Automobile and motorcycle spare parts, auto glass, instrument appliance, optical device, aerospace, military industry
products, hardware machinery, tools, measuring tools, cutting tools, sanitary ware.
(3) Pharmaceutical, food, beverage and cosmetics industry.
(4) Glass, crystal products, arts and crafts of surface and internal thin film etching, ceramic cutting or engraving,clocks andwatches and glasses.
(5) UV Laser Marking Machine can be marked on polymer material, majority of the metal and non-metallic materials for surface processing and coating film processing, pervious to light polymer materials, plastic, fire prevention materials etc..
(2) Automobile and motorcycle spare parts, auto glass, instrument appliance, optical device, aerospace, military industry
products, hardware machinery, tools, measuring tools, cutting tools, sanitary ware.
(3) Pharmaceutical, food, beverage and cosmetics industry.
(4) Glass, crystal products, arts and crafts of surface and internal thin film etching, ceramic cutting or engraving,clocks andwatches and glasses.
(5) UV Laser Marking Machine can be marked on polymer material, majority of the metal and non-metallic materials for surface processing and coating film processing, pervious to light polymer materials, plastic, fire prevention materials etc..
