Description
- Average Noise Level: -89dBm & Under
- Interface: USB
- Model Number: Smart Frequency Spectrometer
- Display Size: 2.9 Inches & Under
- DIY Supplies: ELECTRICAL
- Brand Name: haoba
- SKU: 10835

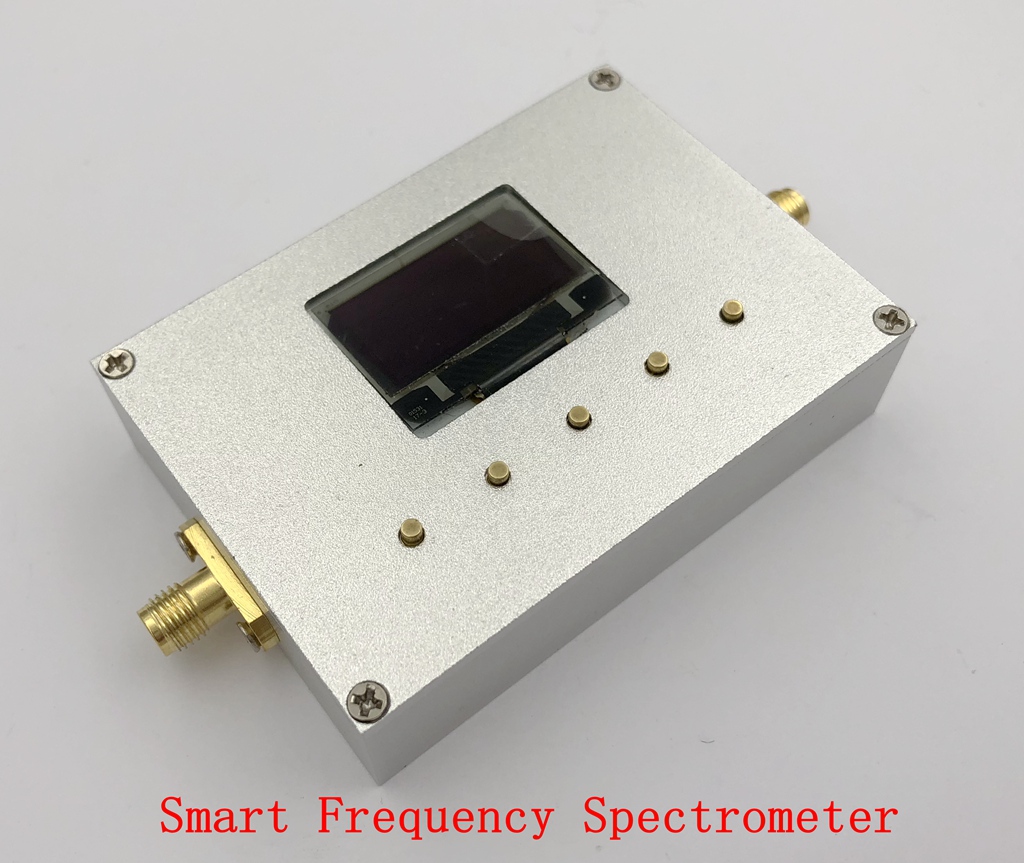

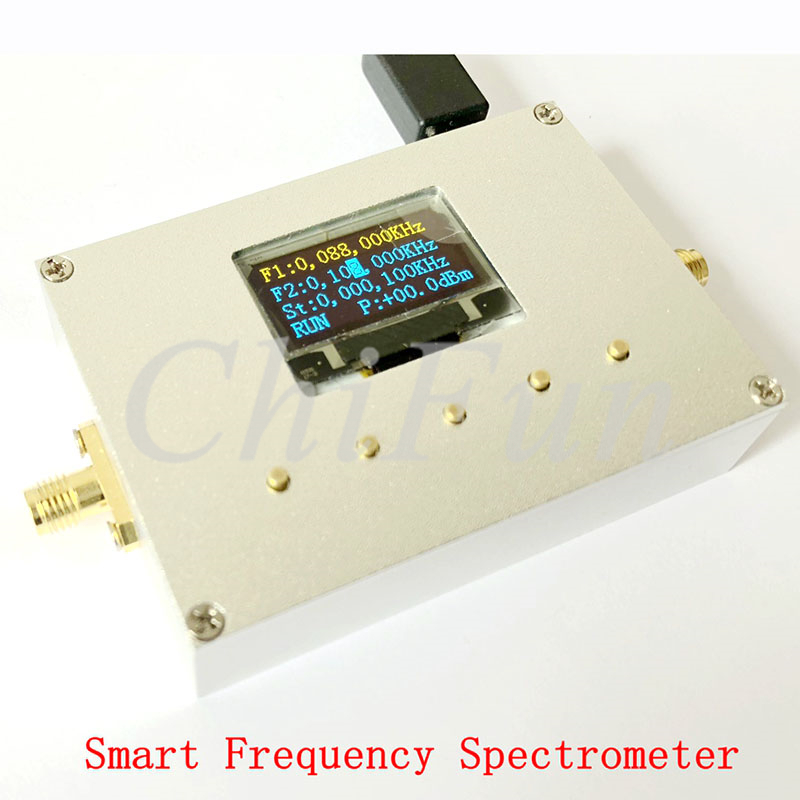

Smart Frequency SpectrometerIt is a hand-held hand-held simple spectrum analyzer, which is displayed by computer computer. It integrates high performance frequency synthesizer and balanced mixer to ensure high performance, small size, low power consumption and high cost performance.

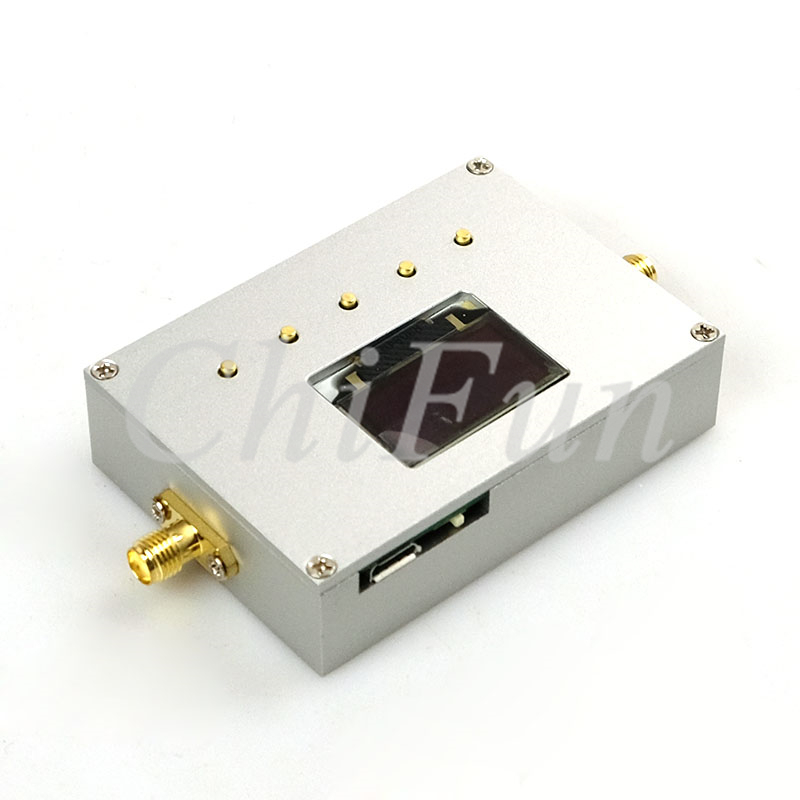

Smart Frequency SpectrometerAdoption of standardsUSB 2.0Joint (miniUSB) equipment communication, suitable for indoor, outdoor and even in the field under different environments; because the equipment is light and small and with its own display, it is especially suitable for carrying.
Smart Frequency SpectrometerThe frequency combinations included can basically cover the current popular wireless bands, includingWiFiBluetooth, wireless audio and video,LTE,GSM,GPRSSatellite communications,CATV……
After replicating, open in a browser
1. Product specifications
1Net weight of the host:90g(Numerical control aluminum alloyCNCShell);
2,USBPower supply current300mA;
3AdoptPL2303SAserial port-USBChip communication;
4With3Big function:

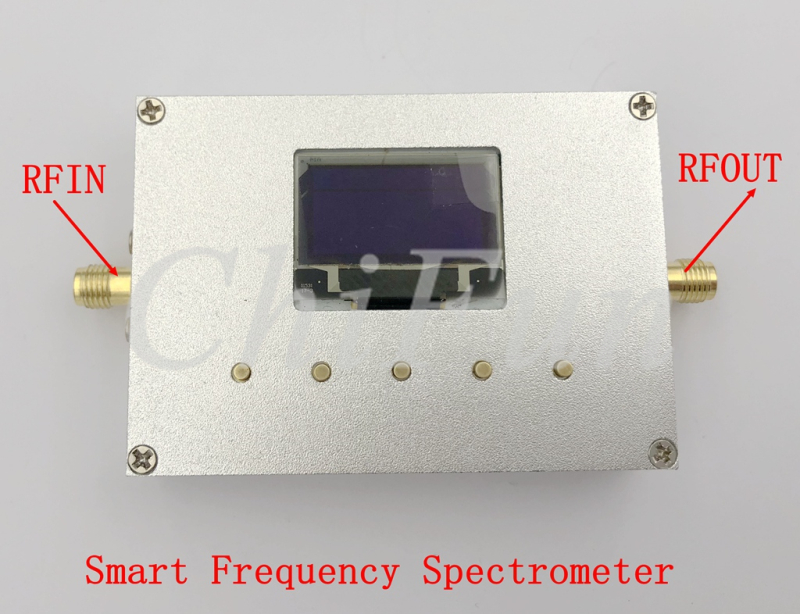

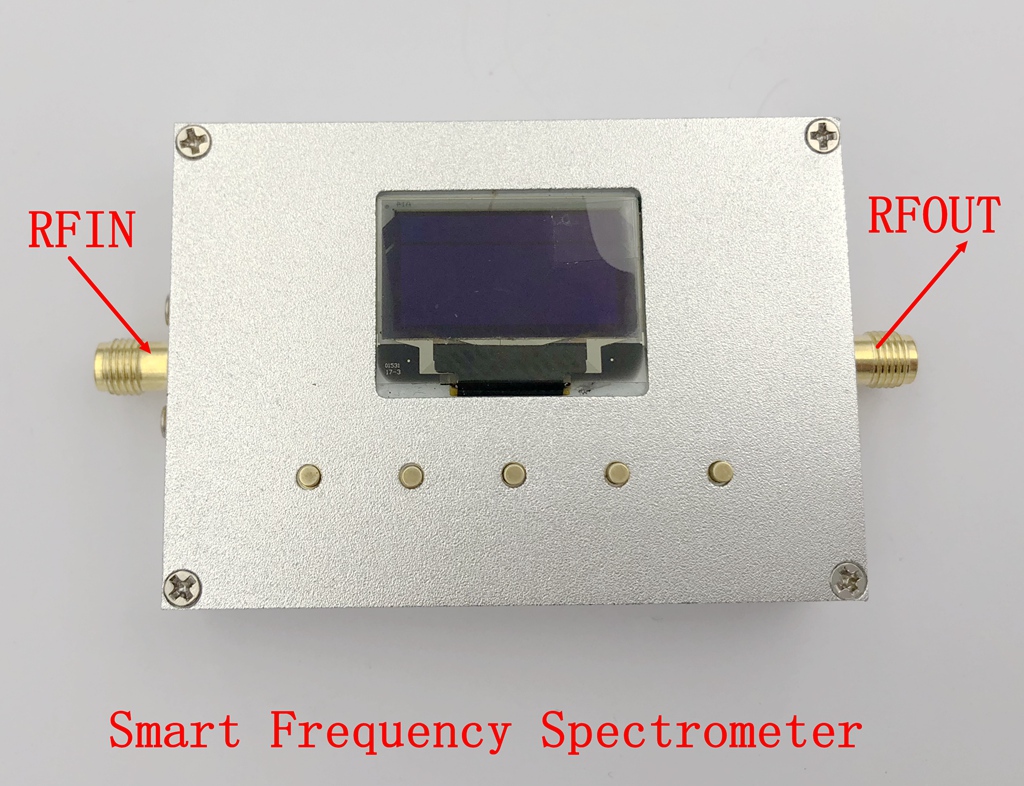

leftSMAMouth, spectrum measurement input signal
RightSMAIt can be used as a point frequency radio frequency source/Scavenging source
leftSMAInput the point frequency signal, set the initial frequency and the termination frequency as the same as when the power meter is used.
Two, part performance index of spectrum analysis
1The frequency range of the measured signal:83.5-3000 MHz
2The power range of the measured signal:-70dBmreach+10dBm
3Frequency resolution:1KHZ
4Resolution bandwidth (RBW) adaptive1kHzto100kHz
5Frequency stability and accuracy (typical values): ±0.5ppm
Three, some performance indexes of RF signal source
1Frequency range:137.5-4400 MHz
2Power:-10dBm
3Frequency resolution:1KHZ
4Frequency stability and accuracy (typical values): ±0.5ppm
Four, application scenarios (different antennas with different frequencies).

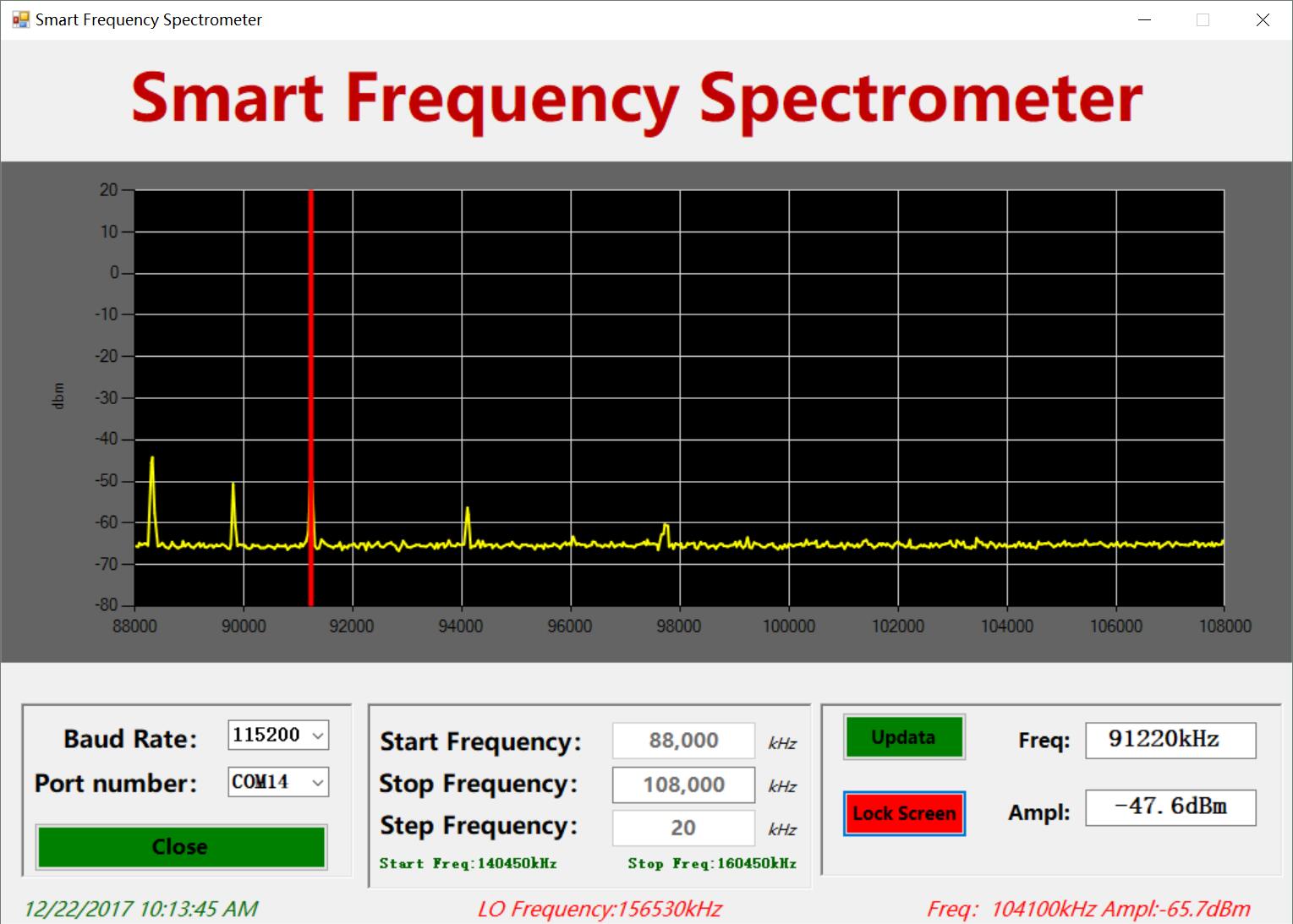

1Frequency band of FM radio(88MHZ-108MHZ)Signal measurement

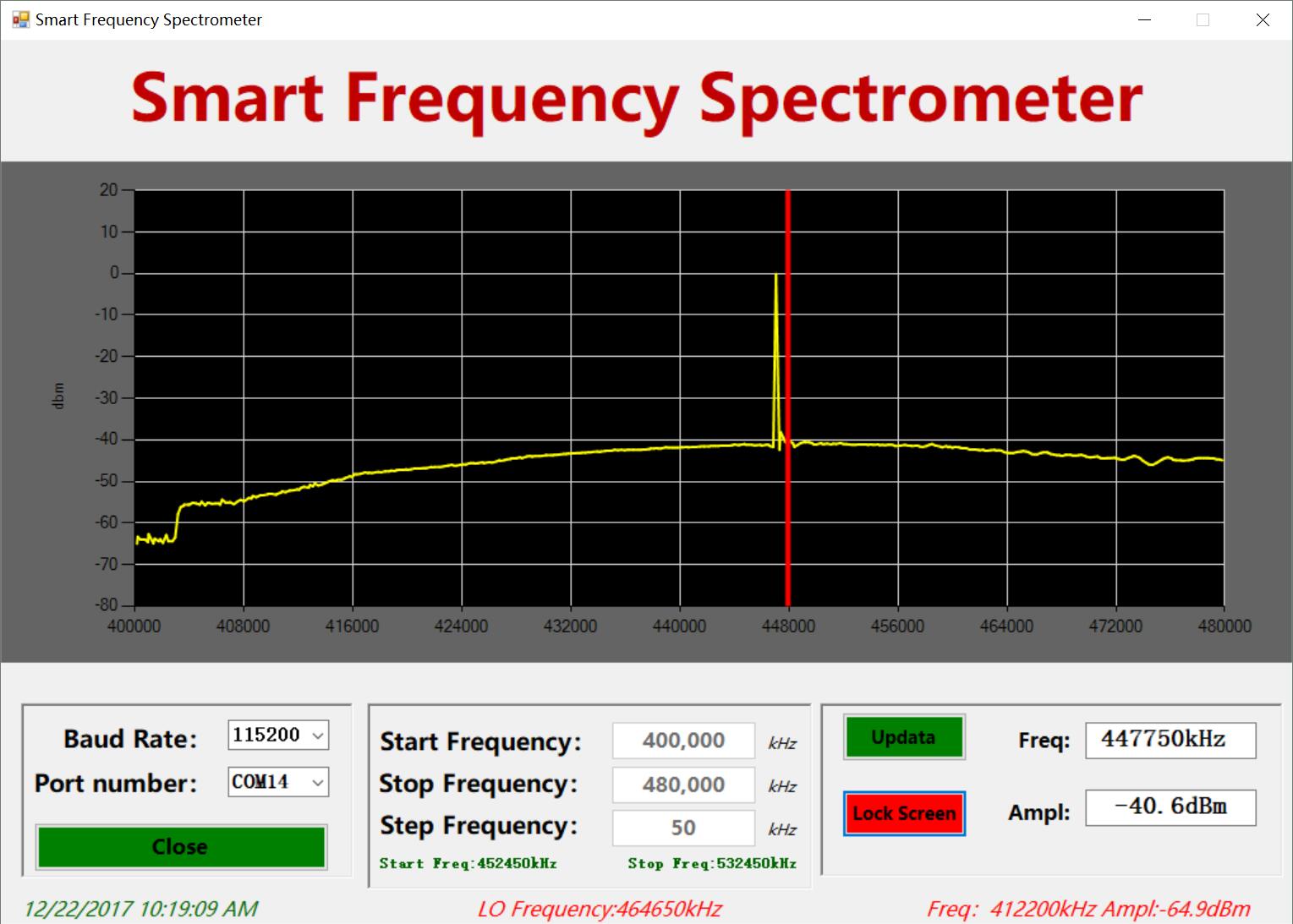

2Interphone frequency band (VHF:136-174MHZ UHF:400MHZ-480MHZ) measurement

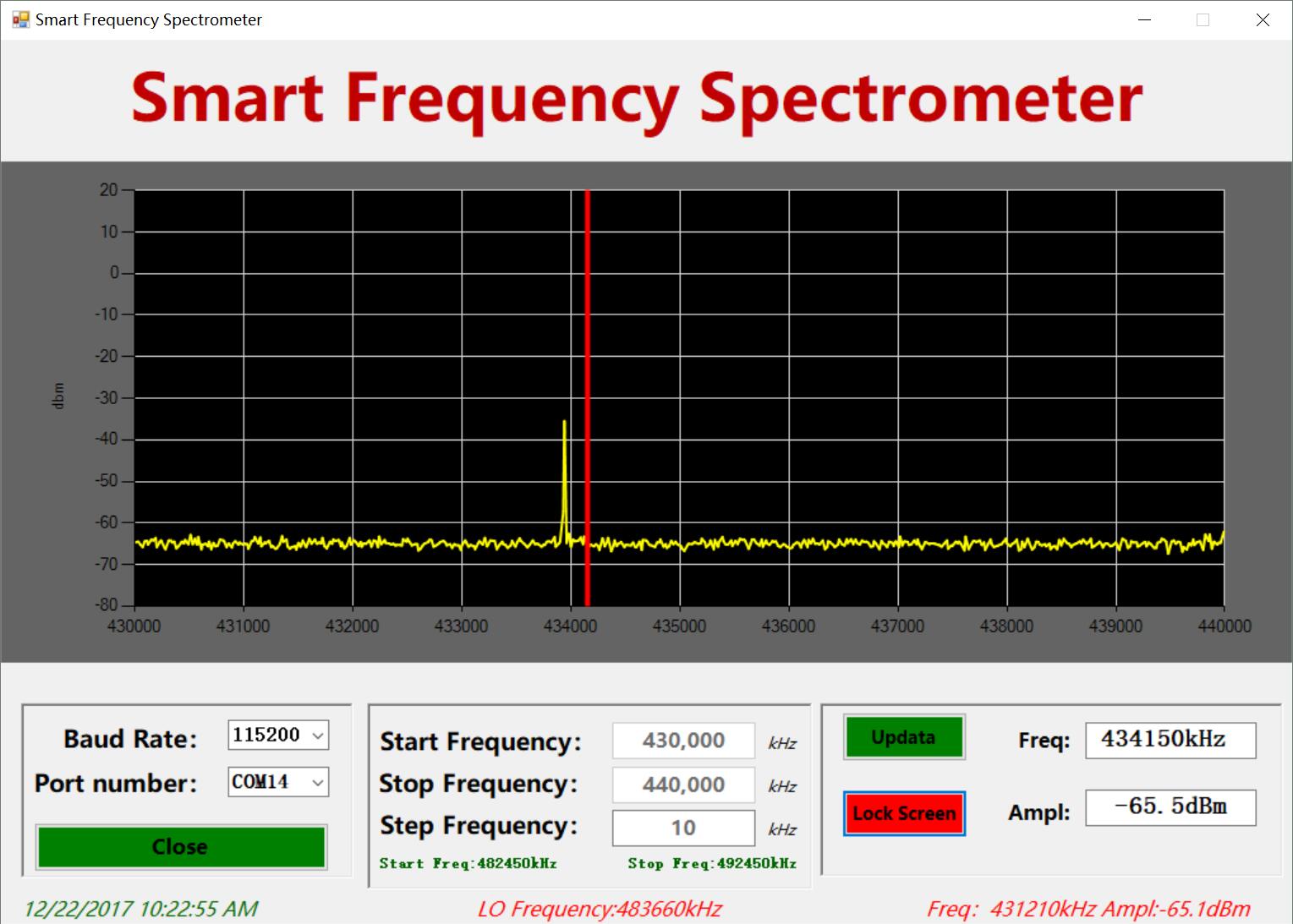

3Wireless remote control frequency band (315MHZ/433.92MHZ) measurement

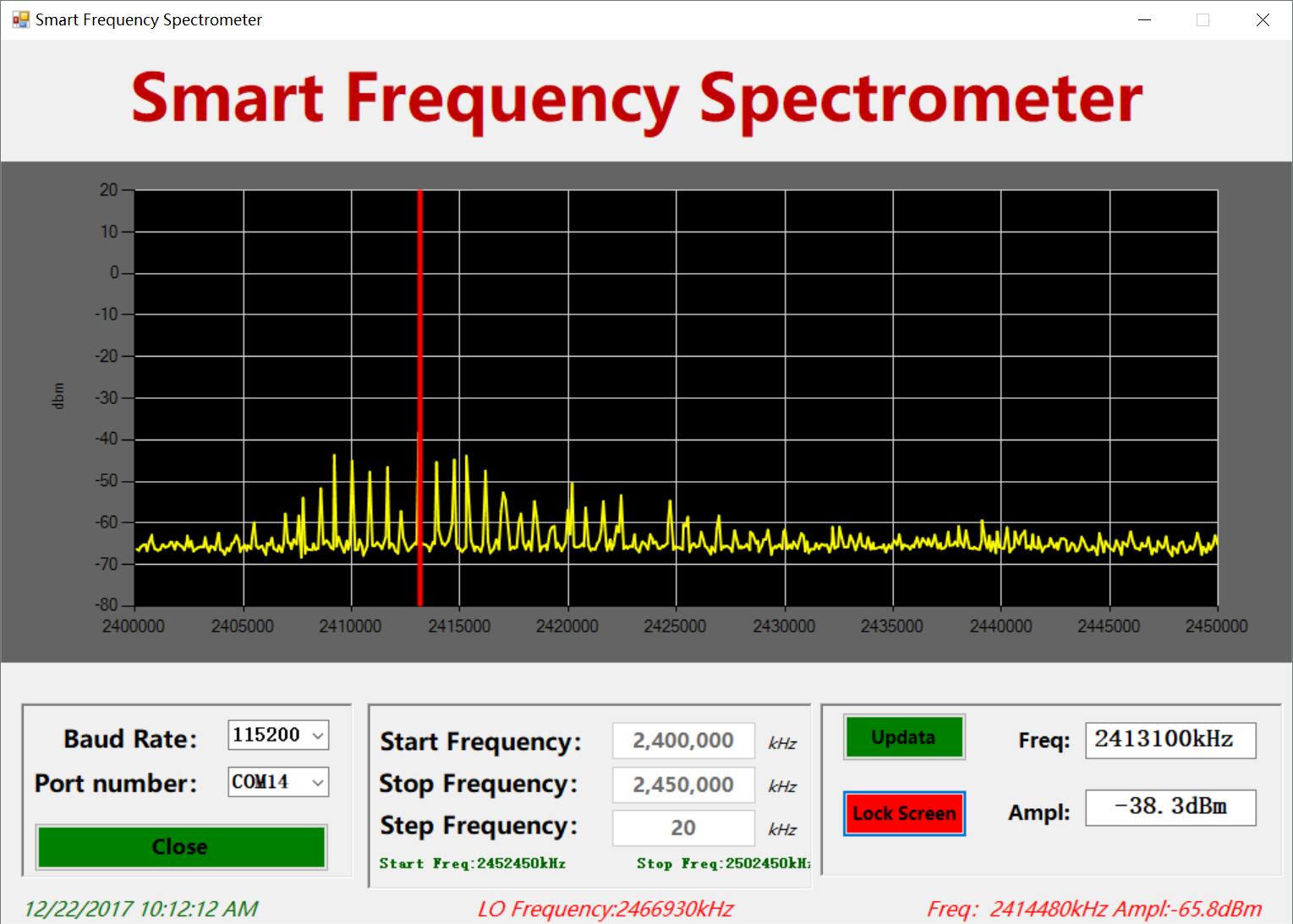

4,WiFiAnd the Bluetooth band (2.4-2.45GHZ) measurement
Five. Operation manual

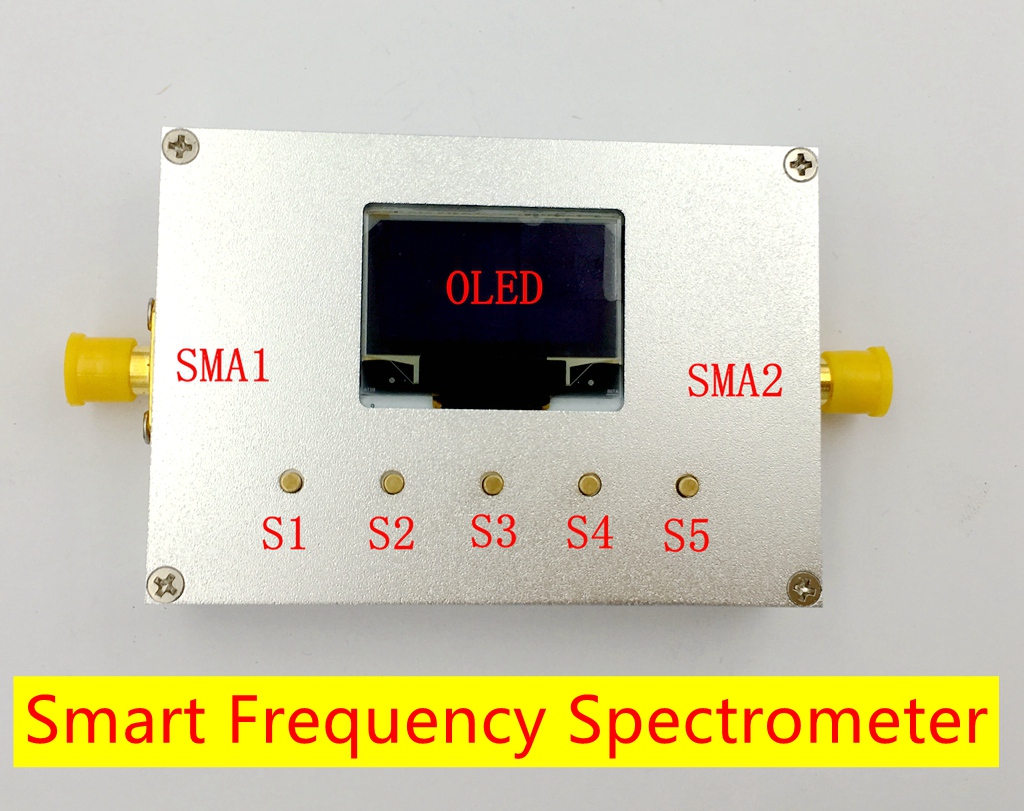

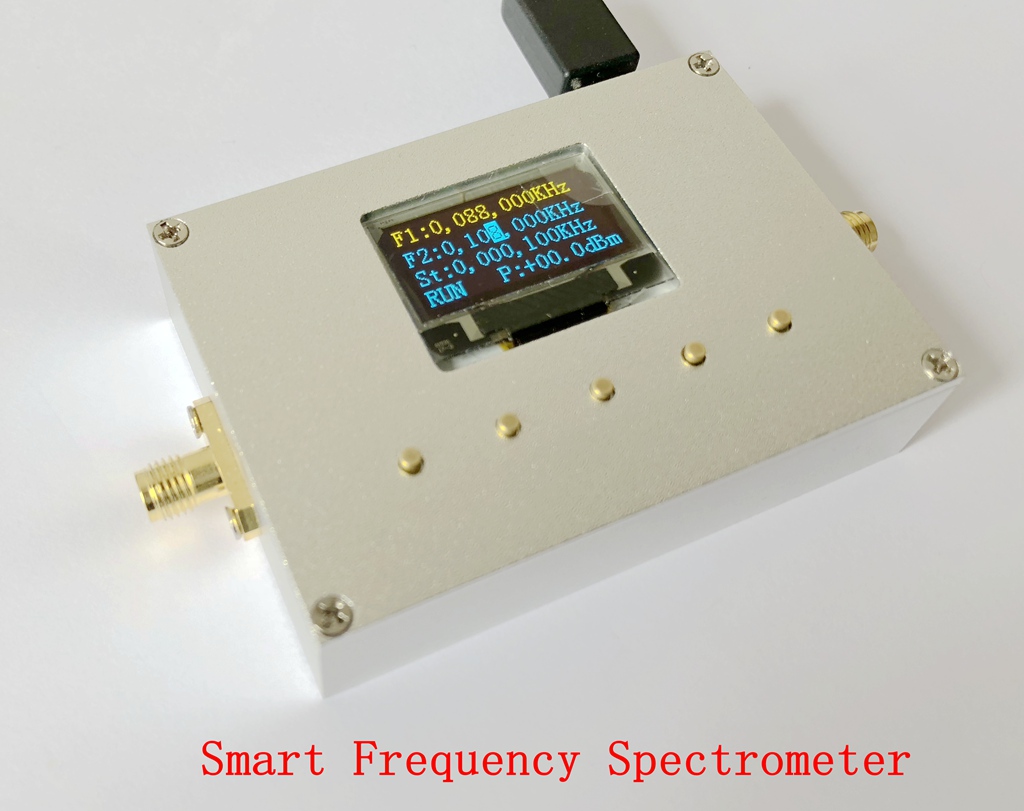

1Hardware physical diagram

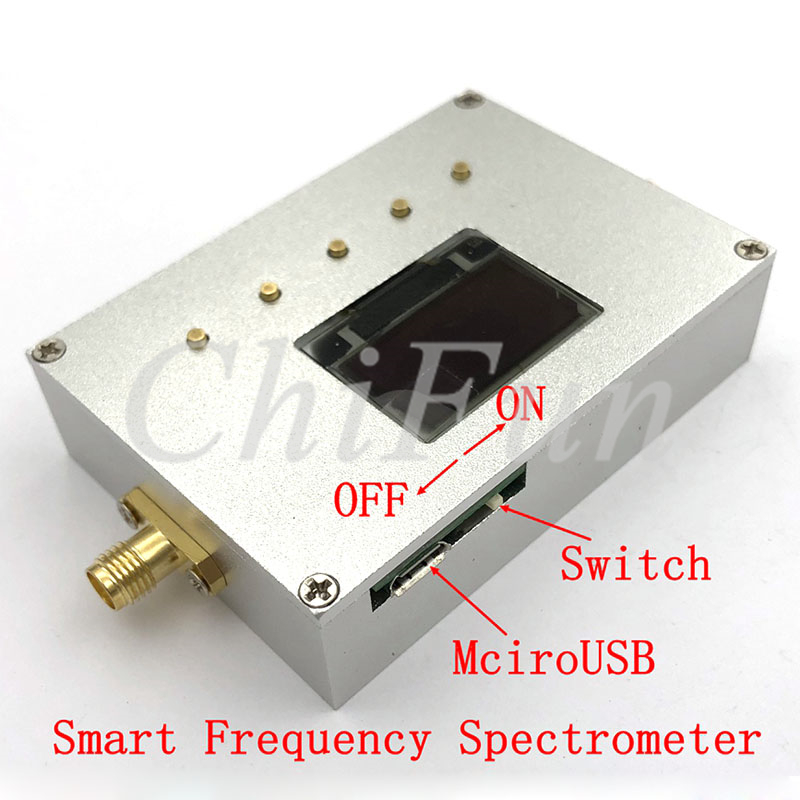

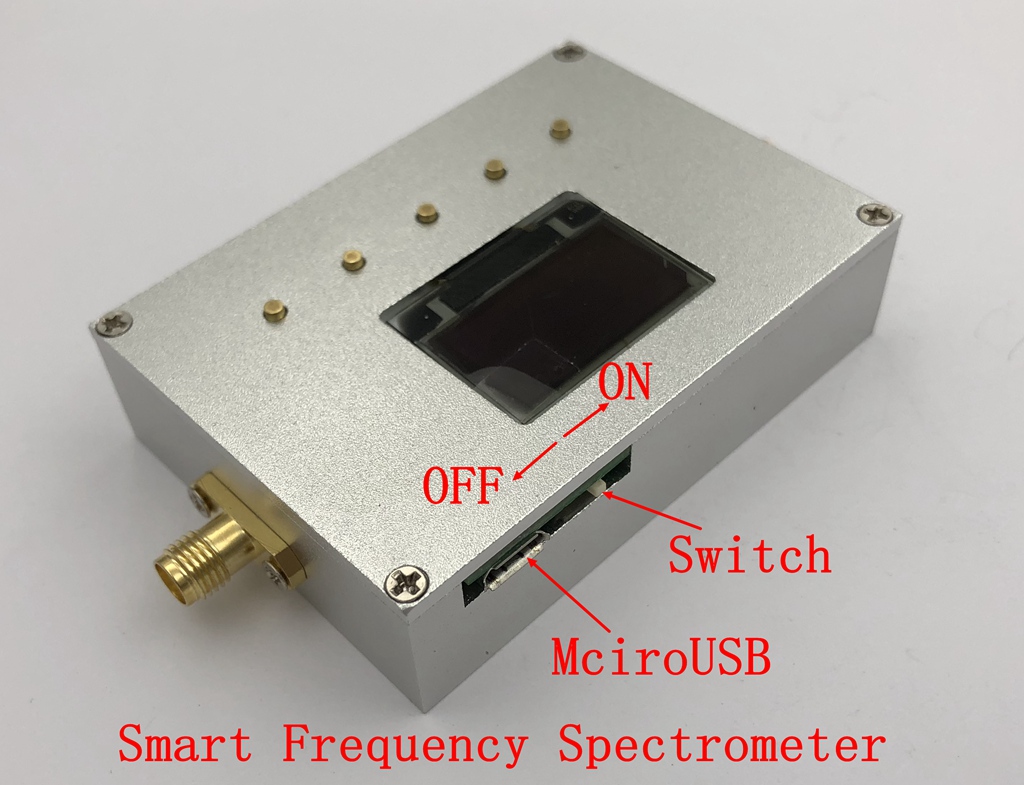

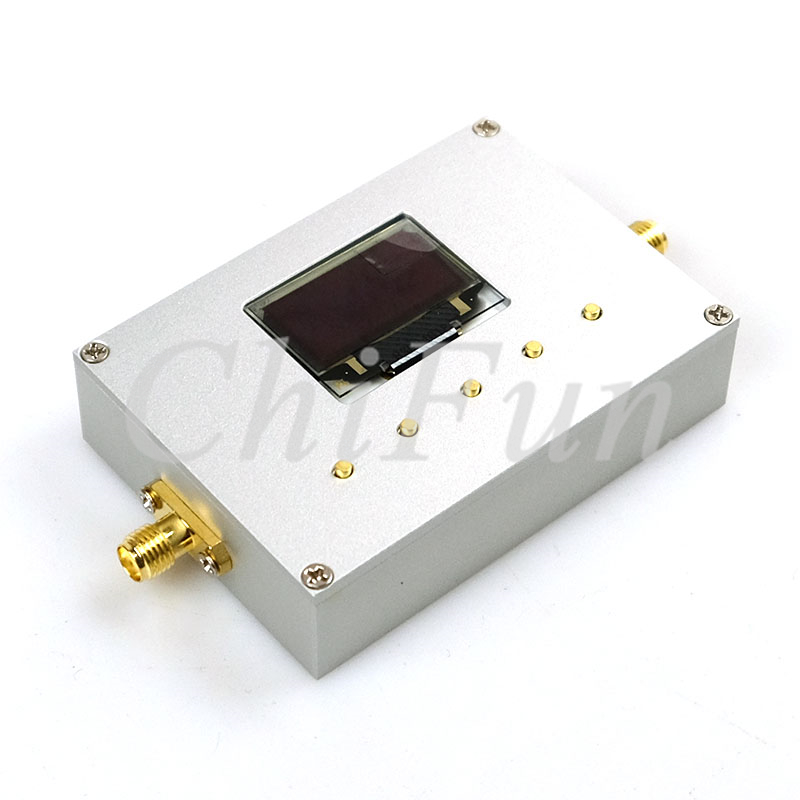

2Hardware panel operation instructions
