Description
- Brand Name: LanYuXuan
- Certification: CE
- Origin: CN(Origin)
- Warranty: 1 year
- Customized support: OEM
- Place of Origin: Zhejiang, China
- Brand Name: CHNSpec
- Model Number: CS600
- Size: 181x73x112mm
- Weight: 550g
- Focal Length: without
- Wavelength Range: 400-700nm
- Illumination Light Source: CLEDs
- Sensor: Dual Light Path Sensor Array
- Wavelength Interval: 10nm
- Reflectivity Range: 0-200%
- Reflectivity Resolution: 0.01%
- Measurement Time Interval: 0.5s
- Interface: USB
- Data Storage: 20000 test results
- Working Temperature: 0-45℃
- Certification: CE
#detail_decorate_root .magic-0{border-bottom-style:solid;border-bottom-color:#fff;font-family:Roboto;font-size:32px;color:#fff;background-color:#000;font-style:normal;font-weight:bold;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-1{vertical-align:top}#detail_decorate_root .magic-2{padding:0;margin:0;color:#333;font-size:14px;padding-left:4px;font-weight:bold;white-space:pre-wrap}#detail_decorate_root .magic-3{text-align:center}#detail_decorate_root .magic-4{font-family:Impact}#detail_decorate_root .magic-5{font-size:32px}#detail_decorate_root .magic-6{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-7{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-8{padding:0;margin:0;white-space:pre-wrap;font-size:14px}#detail_decorate_root .magic-9{font-size:18px}#detail_decorate_root .magic-10{width:750px}#detail_decorate_root .magic-11{overflow:hidden;width:750px;height:900px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-12{margin-top:0;margin-left:0;width:750px;height:900px}#detail_decorate_root .magic-13{margin-bottom:10px;overflow:hidden}#detail_decorate_root .magic-14{vertical-align:top;display:inline-block;padding-right:4px;width:50%;box-sizing:border-box;margin-bottom:-4px;padding-left:0;margin-top:-4px}#detail_decorate_root .magic-15{width:375px;height:379.5568369028007px;overflow:hidden}#detail_decorate_root .magic-16{position:relative;left:0;top:0;width:729.1486603659065px;height:379.5568369028007px}#detail_decorate_root .magic-17{vertical-align:top;display:inline-block;padding-right:4px;width:50%;box-sizing:border-box;margin-bottom:-4px;padding-left:0;margin-top:-4px;margin-left:-3px}#detail_decorate_root .magic-18{width:364px;border-collapse:collapse}#detail_decorate_root .magic-19{min-height:18px;padding:5px 10px;width:85px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-20{min-height:18px;padding:5px 10px;width:238px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-21{min-height:18px;padding:5px 10px;width:84px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-22{display:none}#detail_decorate_root .magic-23{min-height:18px;padding:5px 10px;width:87px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-24{min-height:18px;padding:5px 10px;width:236px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-25{vertical-align:top;display:inline-block;padding-right:4px;width:50%;box-sizing:border-box;margin-bottom:-4px;padding-left:4px;margin-top:-4px}#detail_decorate_root .magic-26{vertical-align:top;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-27{width:371px;height:351.94864864864866px;overflow:hidden}#detail_decorate_root .magic-28{position:relative;left:0;top:0;width:371px;height:351.94864864864866px}#detail_decorate_root .magic-29{padding:0;margin:0;color:#333;font-size:14px;line-height:20px;font-weight:bold;white-space:pre-wrap}#detail_decorate_root .magic-30{width:371px;height:351px;overflow:hidden}#detail_decorate_root .magic-31{overflow:hidden;width:750px;height:2072px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-32{margin-top:0;margin-left:0;width:750px;height:2072px}#detail_decorate_root .magic-33{width:446px}#detail_decorate_root .magic-34{overflow:hidden;width:446px;height:156px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-35{margin-top:0;margin-left:0;width:361px;height:146px}#detail_decorate_root .magic-36{width:300px;display:flex;flex-direction:column;margin-right:0;margin-left:4px}#detail_decorate_root .magic-37{font-size:16px}#detail_decorate_root .magic-38{overflow:hidden;width:750px;height:150.27322404371586px;margin-top:0;margin-bottom:4px;margin-left:0;margin-right:0}#detail_decorate_root .magic-39{margin-top:0;margin-left:0;width:750px;height:150.27322404371586px}#detail_decorate_root .magic-40{overflow:hidden;width:373px;height:280px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-41{margin-top:0;margin-left:0;width:373px;height:280px}#detail_decorate_root .magic-42{overflow:hidden;width:373px;height:280px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-43{width:371px;height:280px;overflow:hidden}#detail_decorate_root .magic-44{position:relative;left:26px;top:-13px;width:304px;height:273px}#detail_decorate_root .magic-45{min-height:18px;padding:5px 10px;width:90px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-46{min-height:18px;padding:5px 10px;width:58px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-47{min-height:18px;padding:5px 10px;width:88px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-48{min-height:18px;padding:5px 10px;width:55px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-49{text-align:left}#detail_decorate_root .magic-50{margin-bottom:10px;line-height:0}#detail_decorate_root .magic-51{margin-bottom:0}#detail_decorate_root .magic-52{position:relative;width:100%}#detail_decorate_root .magic-53{width:300px;display:flex;flex-direction:column;margin-right:4px;margin-left:0}#detail_decorate_root .magic-55{font-size:24px}#detail_decorate_root .magic-56{overflow:hidden;width:446px;height:297.036px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-57{margin-top:0;margin-left:0;width:446px;height:297px}#detail_decorate_root .magic-58{background-color:#ffc36d}
Overview

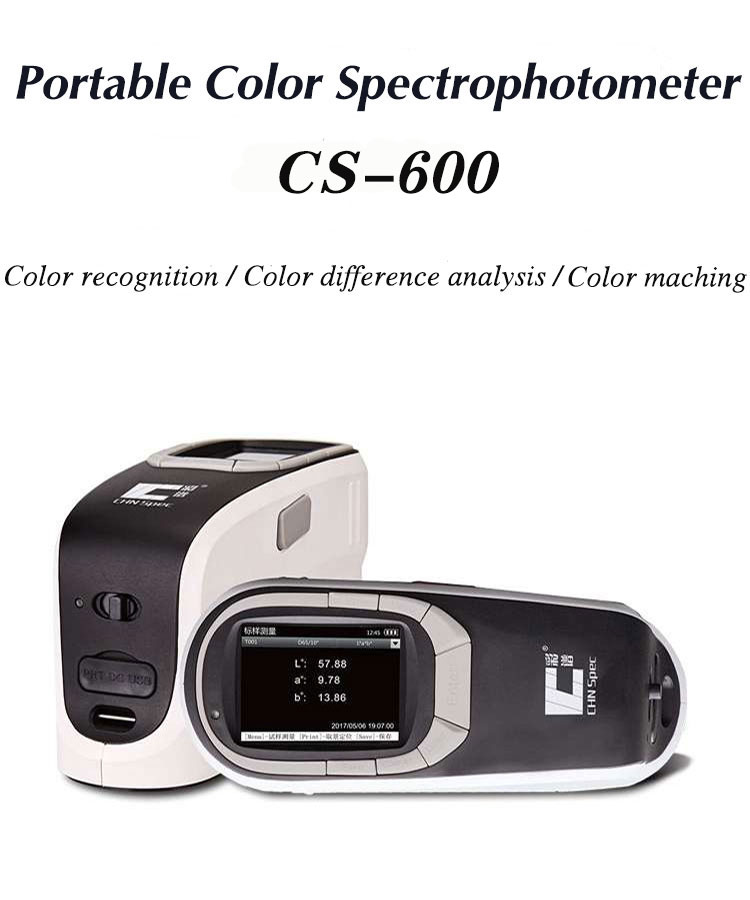

Color Spectrophotometer CS-600
CHN Spec Color spectrophotometer CS-600 is widely used in different industries such as plastic, paint, printing, food, fruit, cement,weaving,dyeing and other material surface color measurement. It measures the sample color data L*a*b*, L*c*h*, color difference ΔE and ΔE*ab according to CIE color space.
Product Paramenters
|
Type
|
CS-600
|
|
Illumination system
|
8/d ( 8°/diffused illumination )
|
|
SCE
|
|
|
Wavelength Range
|
400-700nm
|
|
Wavelength
Pitch
|
10nm
|
|
IIIuminants
|
A, C, D50, D65, D75, F1-F12, CWF, U30, DLF, NBF, TL83, TL84, U35
|
|
Color Spaces
|
CIE-L*a*b*, L*C*h, L*u*v, XYZ, Yxy, Reflectance, Hunter-lab, Munsell MI, CMYK, RGB, HSB
|
|
Repeatability
|
Chromaticity value: ΔE*ab 0.03
|
|
Color Difference
|
ΔE*ab, ΔE*CH,
ΔE*uv, ΔE*cmc(2:1),
ΔE*cmc(1:1), ΔE*94, ΔE*00, ΔE*ab
(Hunter), 555 color shade
|
|
Inter-Instrument agreement
|
ΔE*ab within 0.2(BCRA Series II, average measurement of 12 tiles)
|
|
Data Storage
|
20000 test results
|
|
Other Indices
|
WI, YI, Tint; Metamerism Index Milm, Stainting Fastness, Colorn Fastness, opacity, DS Wavelength, strength
|
|
Interface
|
USB
|
|
Aperture Size
|
10mm/4mm/6mm (one instrument with one aperture)
|
|
Size
|
181×73×112mm
|
Advantages

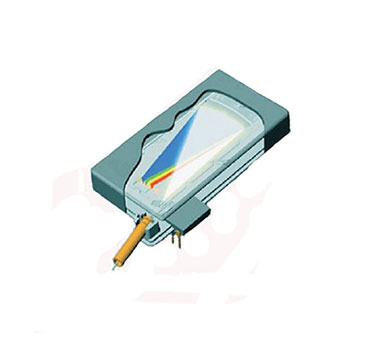

1.SCS opticcal engine
Adopt innovative light splitting system SCS optical engine which creates the best measurement repeatability for portable spectrophotometers,and guarantees accurate measurement of materials surce color.
2.Camera to see the measurement area
In previous spectrophootometer, we can only aim at the testing area approximately,and it may introduce errors.Our new spectrophotometer includes a camera,so the user clearly see the measurement area to avoid measurement errors.
3.Free Color QC Software
Real-time display of qualified or not, generate testing report, save the color data, suitable for the enterprise to evaluate color and control the color data.
4.Pantone Color Number Matching (optional)
The improve the utility and convenience of our instrument,we developt spectrophotometer with buid-in pantone color swatches.After measurement,instrument can help us find three similar colors from the color swatches which can greatly improves working efficiency.
Detailed Images
After Sales Service
a.One Year Guarantee Time.
b. If testing result is not correct, we will refund to you.
c. We will provide testing report for every device to assure the authority of the data and it will save the calibration cost for 1 year.
b. If testing result is not correct, we will refund to you.
c. We will provide testing report for every device to assure the authority of the data and it will save the calibration cost for 1 year.
Application
CS-600 is a portable color measuring instrument, specially developed for high precise color measurement and can be used for guiding color matching. Its high measurement accuracy can meet the needs of conventional color detection. It can be widely used in plastics, inks, paints, printing, food, textile, chemical, auto parts and other fields.
Packing List
|
Name
|
Qty.
|
Name
|
Qty.
|
|
Main Instrument
|
1
|
Power Adapter
|
1
|
|
Carrying Bag
|
1
|
USB Cable
|
1
|
|
Warrarrty Card
|
1
|
Veretification Certification
|
1
|
|
Software CD
|
1
|
Operate Manual
|
1
|
If any interest in our Portable Spectrophotometer CS-600 or any questions, please do not hesitate to contact me.
Contact Name:Ms. Ivy Zhang
E-mail: ivyzhang@colorspec.cn
Tel:+86 (0)571-85888707
Cell Phone:+86 18768499725
Skype: ivyzhang2421
What’s app/We chat:+86 18768499725
Tel:+86 (0)571-85888707
Cell Phone:+86 18768499725
Skype: ivyzhang2421
What’s app/We chat:+86 18768499725
FAQ
p Q: Are you trading company or manufacturer?
A: We are factory located in Hangzhou city. Welcome to come to visit and purchase from us.
Q: What’s your MOQ?
A:Our MOQ is 1 set. If you order more than 5 sets, we will give quantity discount.
A: We are factory located in Hangzhou city. Welcome to come to visit and purchase from us.
Q: How long is your delivery time?
A: Generally it is 1-3 working days if the goods are in stock.If not, we will need 3-15 working days to prepare the products.
Q: Do you provide samples ? is it free or extra?
A: Yes, and customer need to pay for the freight.
Q: What is your terms of payment?
A: Payment is 100% T/T in advance.
Q: What’s your MOQ?
A:Our MOQ is 1 set. If you order more than 5 sets, we will give quantity discount.
