Description
- Brand Name: HKNA
- Origin: CN(Origin)
- Certification: CE
- Place of Origin: Jiangsu, China
- Brand Name: Elecnova
- Model Number: PD195E-5SY1
- Display Type: Digital Only
- Phase: Three Phase
- Measuring Energy Range: 0~99999
- Accuracy Class: 0.5%
- Output Voltage: DC(0-5)V/DC(1-5)V
- Operating Temperature: -10~55℃

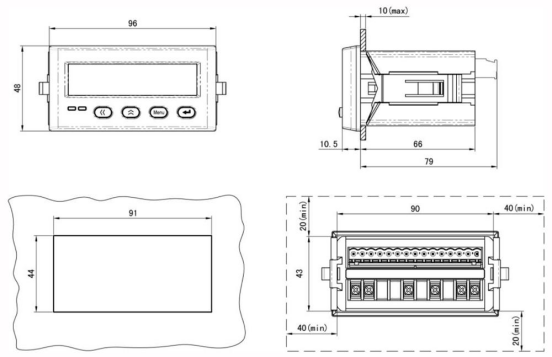

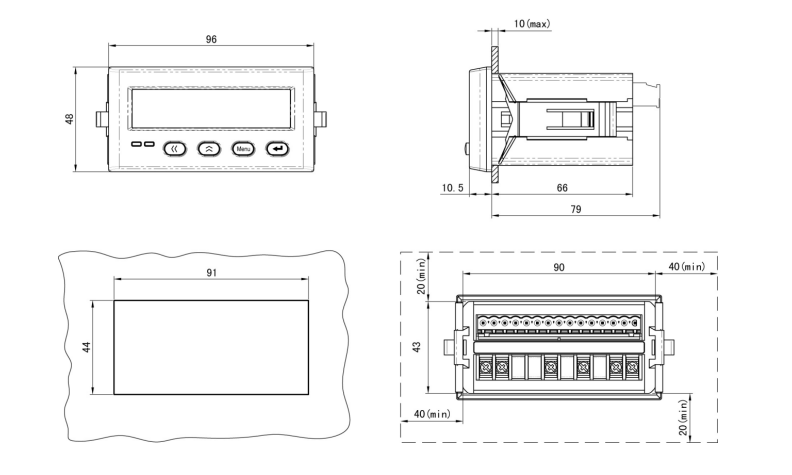

- Dimensions: 96*49mm
- Product name: Solar energy system multifunctional DC volt/current energy meter
- Certificate: CE, ISO9001
- Display: LCD
- Type: DC multifunction panel meter
- Frequency: 45-65Hz
- Protection: Front panel IP65
- Communication: RS-485/Modbus
- Data update rate: 1S
- Storage temperature: -25℃~70℃
- Relative Humidity: ≤93%
#detail_decorate_root .magic-0{border-bottom-style:solid;border-bottom-color:#53647a;font-family:Roboto;font-size:24px;color:#53647a;background-color:#bacbec;font-style:normal;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-1{vertical-align:top}#detail_decorate_root .magic-2{padding:0;margin:0;color:#333;font-size:14px;padding-left:4px;font-weight:bold;white-space:pre-wrap}#detail_decorate_root .magic-3{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-4{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-5{padding:0;margin:0;white-space:pre-wrap;font-size:14px}#detail_decorate_root .magic-6{width:750px}#detail_decorate_root .magic-7{overflow:hidden;width:373px;height:240px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-8{margin-top:-40px;margin-left:17px;width:319px;height:319px}#detail_decorate_root .magic-9{overflow:hidden;width:373px;height:240px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-10{margin-top:-3px;margin-left:0;width:373px;height:241.2336956521739px}#detail_decorate_root .magic-11{width:750px;border-collapse:collapse}#detail_decorate_root .magic-12{min-height:18px;padding:5px 10px;width:342px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-13{display:none}#detail_decorate_root .magic-14{min-height:18px;padding:5px 10px;width:160px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-15{min-height:18px;padding:5px 10px;width:363px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-16{min-height:18px;padding:5px 10px;width:161px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-17{width:446px}#detail_decorate_root .magic-18{overflow:hidden;width:446px;height:285.44px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-19{margin-top:1.1893333333333334px;margin-left:-52.330666666666666px;width:535px;height:283px}#detail_decorate_root .magic-20{width:300px;display:flex;flex-direction:column;margin-right:0;margin-left:4px}#detail_decorate_root .magic-21{overflow:hidden;width:750px;height:404.9202127659575px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-22{margin-top:0;margin-left:0;width:750px;height:404.9202127659575px}#detail_decorate_root .magic-23{overflow:hidden;width:373px;height:300px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-24{margin-top:-98px;margin-left:0;width:373px;height:497.209px}#detail_decorate_root .magic-25{overflow:hidden;width:373px;height:300px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-26{margin-top:0;margin-left:0;width:400px;height:300px}#detail_decorate_root .magic-27{overflow:hidden;width:750px;height:328.125px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-28{margin-top:0;margin-left:0;width:750px;height:328.125px}
Product Description

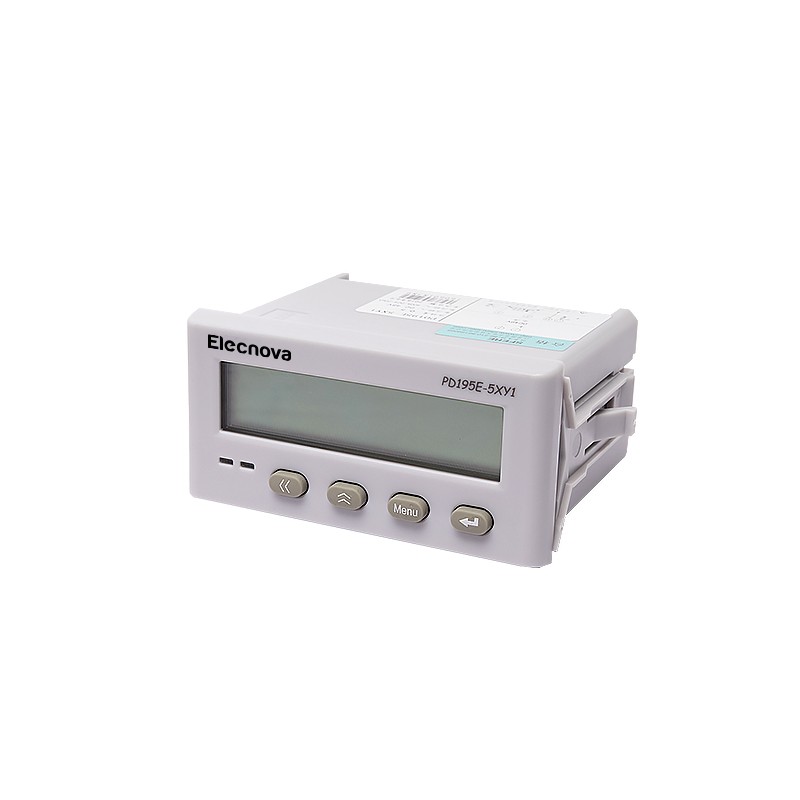

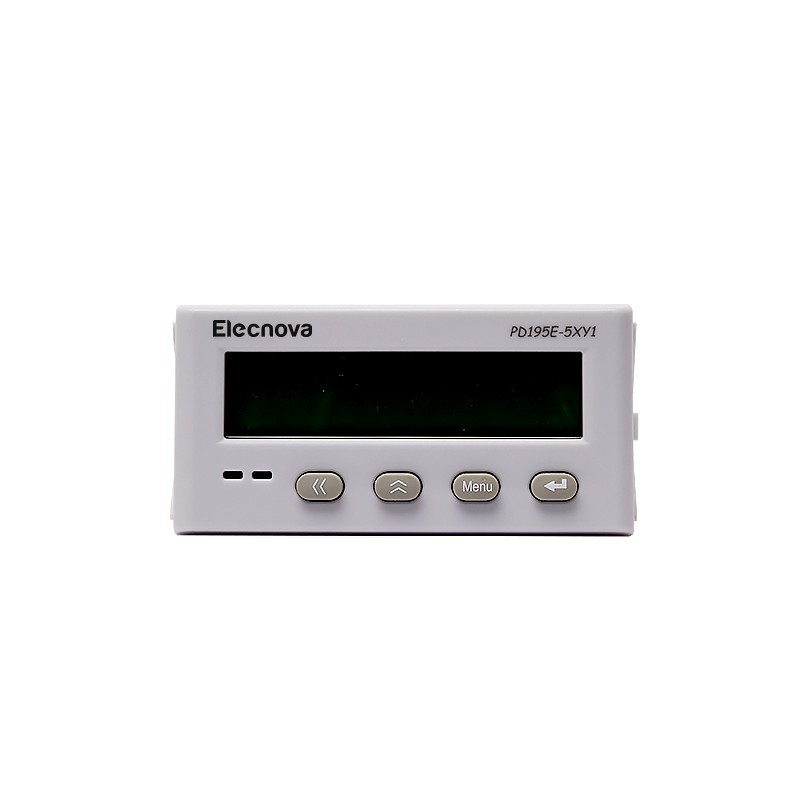

Product Name: Solar energy system multifunctional high accuracy DC volt/current energy meter
PD195E-5SY1 DC multi-function power meter can be widely used in DC working conditions. It can measure DC voltage, current, power, electric energy and other parameters. It can be used for continuous monitoring and control of DC system. Support switch state quantity monitoring, the same can be controlled remotely through the relay.
Technical Parameter
|
Aaccuracy
|
0.5%
|
||
|
Date Update Rate
|
1s
|
||
|
Input |
Current
|
DC ±4V、10A、75mV
|
|
|
Voltage
|
DC 1000V、1500V
|
||
|
Overload
|
Continuous:1.2 times of rated value
|
||
|
Frequency
|
45~65Hz
|
||
|
Auxiliary power |
Range
|
AC、DC (80-270)V
|
|
|
Consumption
|
≤5VA
|
||
|
Digital Input
|
Dry contact inputs,Isolation:2kVAC
|
||
|
Relay Output
|
Contact capacity (resistive)
AC 5A/250V、DC 5A/30V |
||
|
Analog Output
|
DC 4~20mA, DC 0-20mA, load ≤350Ω
DC 0~5V, DC 1-5V, load≥20kΩ
|
||
|
Communication Port
|
RS485,Modbus-RTU,2-WIRE,up tp 9600bps
|
||
|
Degree of Protection
|
Front:IP64,Rear :IP20
|
||
|
Operating Temperature
|
-10℃~55℃
|
||
|
Storage Temperature
|
-25℃~70℃
|
||
|
Relative Humidity
|
≤93%RH
|
||
|
Insulation
|
≥AC 2kV
|
||
|
Altitude
|
≤2500m
|
||

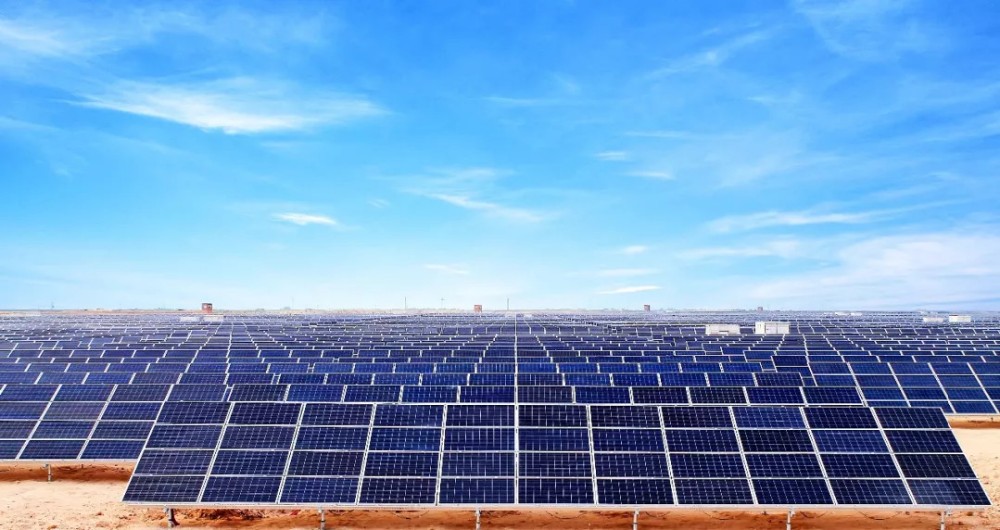

Application
■ Programmable
■ High DC voltage input
■ Wide range of working temperature
■ High protection level
■ High DC voltage input
■ Panel Meter
■ DC parameter measuring

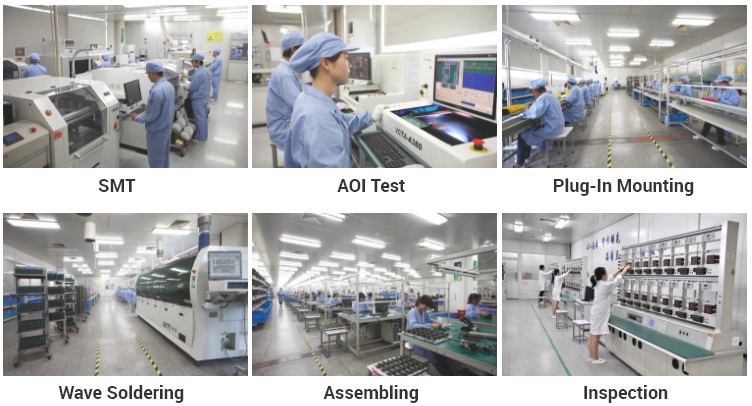

Production Process
Packing & Delivery
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory located in Jiangyin Jiangsu Province.
A: We are factory located in Jiangyin Jiangsu Province.
Q: Does your company provide customized manufacturing?
A: We provide OEM/ODM service to our customers. Our experienced R&D team will give our customer solution in a high efficiency way.
Q: How long is your delivery time?
A: 3-5 working days for the items were in stock, 15-21days for the items out of stock.
Q: Do you provide samples ? Is it free or extra ?
A: You need to pay for the sample and cover the freight as well.
Q: What is your terms of payment ?
A: Order amount less than $3000, 100% paid before shipment, order amount more than $3000,30% as deposit, 70% before shipment, or by negotiated for the both parties.
