Description
- Brand Name: HKNA
- Origin: CN(Origin)
- Certification: CE
- Place of Origin: Shanghai, China
- Brand Name: MEATROL
- Model Number: MQ21
- Display Type: Digital Only
- Phase: Three Phase
- Measuring Energy Range: 10mA-7200A
- Accuracy Class: Class 0.5S
- Operating Temperature: -25℃~ 55℃
- Dimensions: 13*9.5*5.6CM
- Type: Three phase power quality analyzer
- Mounting: DIN RAIL
- Supported types of current sensor: Rogowski coil, Voltage-output current clamp
- Storage: 16GB Micro SD card,USB data download
- Display screen: 1.3-inch color OLED
- Power supply: Electricity from major loop, 90~528VAC
- Application: Power analysis,Solar generation, Event data record,Fault record
- Communication: Standard Modbus TCP and Modbus RTU protocols
- Port: RJ45, RS485,SATA interface, terminals
- Optional service: On-Line Power Quality Monitoring Platform
#detail_decorate_root .magic-0{width:750px}#detail_decorate_root .magic-1{overflow:hidden;width:750px;height:421.77914110429447px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-2{margin-top:0;margin-left:0;width:750px;height:421.77914110429447px}#detail_decorate_root .magic-3{vertical-align:top}#detail_decorate_root .magic-4{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-5{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-6{padding:0;margin:0;white-space:pre-wrap;font-size:14px}#detail_decorate_root .magic-7{text-align:right}#detail_decorate_root .magic-8{font-size:20px}#detail_decorate_root .magic-9{text-align:center}#detail_decorate_root .magic-10{border-bottom-style:solid;border-bottom-color:#a8aaac;font-family:Roboto;font-size:24px;color:#000;background-color:#b1b0b0;font-style:normal;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-11{font-size:16px}#detail_decorate_root .magic-13{width:446px}#detail_decorate_root .magic-14{overflow:hidden;width:446px;height:390.46474074074075px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-15{margin-top:0;margin-left:0;width:446px;height:446px}#detail_decorate_root .magic-16{width:300px;display:flex;flex-direction:column;margin-right:0;margin-left:4px}#detail_decorate_root .magic-17{box-sizing:border-box;margin:0;padding:0;font-family:Arial,”Microsoft YaHei”,”5FAE软雅黑”,”5B8B体”,”Malgun Gothic”,Meiryo,sans-serif;font-style:normal;font-variant:normal;letter-spacing:normal;line-height:14px;text-align:start;text-indent:0;text-transform:none;white-space:normal;word-spacing:0;-webkit-text-stroke-width:0;background-color:#fff}#detail_decorate_root .magic-18{color:#2e3033;box-sizing:border-box;margin:0 0 10px;padding:0;list-style:none}#detail_decorate_root .magic-19{box-sizing:border-box;margin:0;padding:0;color:#666;line-height:20px}#detail_decorate_root .magic-20{font-size:18px}#detail_decorate_root .magic-21{box-sizing:border-box;margin:0 0 10px;padding:0;list-style:none}#detail_decorate_root .magic-22{box-sizing:border-box;margin:0;padding:0;line-height:20px}#detail_decorate_root .magic-23{font-family:”Helvetica Neue”,Helvetica,Arial,sans-serif,宋体;font-style:normal;font-variant-ligatures:normal;font-variant-caps:normal;letter-spacing:normal;orphans:2;text-align:start;text-indent:0;text-transform:none;white-space:normal;widows:2;word-spacing:0;-webkit-text-stroke-width:0;background-color:#fff;text-decoration-style:initial;text-decoration-color:initial;float:none;display:inline !important}#detail_decorate_root .magic-24{width:750px;border-collapse:collapse}#detail_decorate_root .magic-25{min-height:28px;padding:5px 10px;width:727px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-26{display:none}#detail_decorate_root .magic-27{min-height:28px;padding:5px 10px;width:453px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-28{min-height:28px;padding:5px 10px;width:254px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-29{min-height:28px;padding:5px 10px;width:452px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-30{overflow:hidden;width:247.33333333333334px;height:247.33333333333337px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-31{margin-top:0;margin-left:0;width:247px;height:247px}#detail_decorate_root .magic-32{overflow:hidden;width:247.33333333333334px;height:247.33333333333337px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-33{margin-top:47.06342780026991px;margin-left:-13.017543859649125px;width:345px;height:152px}#detail_decorate_root .magic-34{vertical-align:top;display:inline-block;padding-right:4px;width:33.33%;box-sizing:border-box;margin-bottom:-4px;padding-left:4px;margin-top:-4px}#detail_decorate_root .magic-35{white-space:pre-wrap;font-size:14px}#detail_decorate_root .magic-36{min-height:28px;padding:5px 10px;width:451px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-37{min-height:28px;padding:5px 10px;width:256px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-38{min-height:28px;padding:5px 10px;width:450px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-39{min-height:28px;padding:5px 10px;width:726px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-40{min-height:28px;padding:5px 10px;width:198px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-41{min-height:28px;padding:5px 10px;width:363px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-42{min-height:28px;padding:5px 10px;width:125px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-43{min-height:28px;padding:5px 10px;width:362px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-44{min-height:28px;padding:5px 10px;width:37px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-45{min-height:28px;padding:5px 10px;width:344px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-46{min-height:28px;padding:5px 10px;width:581px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-47{min-height:28px;padding:5px 10px;width:55px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-48{min-height:28px;padding:5px 10px;width:237px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-49{min-height:28px;padding:5px 10px;width:142px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-50{min-height:28px;padding:5px 10px;width:152px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-51{min-height:28px;padding:5px 10px;width:236px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-52{min-height:28px;padding:5px 10px;width:153px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-53{text-align:left}#detail_decorate_root .magic-54{overflow:hidden;width:184.5px;height:184.5px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-55{margin-top:0;margin-left:0;width:184px;height:184px}#detail_decorate_root .magic-56{overflow:hidden;width:184.5px;height:184.5px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-57{margin-top:21.057065217391305px;margin-left:3.008152173913044px;width:176px;height:148px}#detail_decorate_root .magic-58{margin-top:15.040760869565219px;margin-left:19.05163043478261px;width:148px;height:148px}#detail_decorate_root .magic-59{margin-top:11.029891304347826px;margin-left:1.002717391304348px;width:192px;height:174px}#detail_decorate_root .magic-60{margin-bottom:10px;overflow:hidden}#detail_decorate_root .magic-61{overflow:hidden;width:373px;height:279.75px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-62{margin-top:16px;margin-left:17px;width:336px;height:251px}#detail_decorate_root .magic-63{overflow:hidden;width:373px;height:279px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-64{margin-top:8px;margin-left:95px;width:198px;height:263px}#detail_decorate_root .magic-65{overflow:hidden;width:446px;height:298.597px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-66{margin-top:0;margin-left:0;width:446px;height:298px}#detail_decorate_root .magic-67{margin-bottom:10px;line-height:0}#detail_decorate_root .magic-68{margin-bottom:0}#detail_decorate_root .magic-69{position:relative;width:100%}#detail_decorate_root .magic-70{overflow:hidden;width:750px;height:421.875px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-71{margin-top:0;margin-left:0;width:750px;height:421.875px}#detail_decorate_root .magic-72{overflow:hidden;width:750px;height:423.21428571428567px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-73{margin-top:0;margin-left:0;width:750px;height:423.21428571428567px}#detail_decorate_root .magic-74{overflow:hidden;width:750px;height:433.25px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-75{margin-top:0;margin-left:0;width:750px;height:433.25px}
Technical consultant
Susan
info@meatrol.cn
Product Description

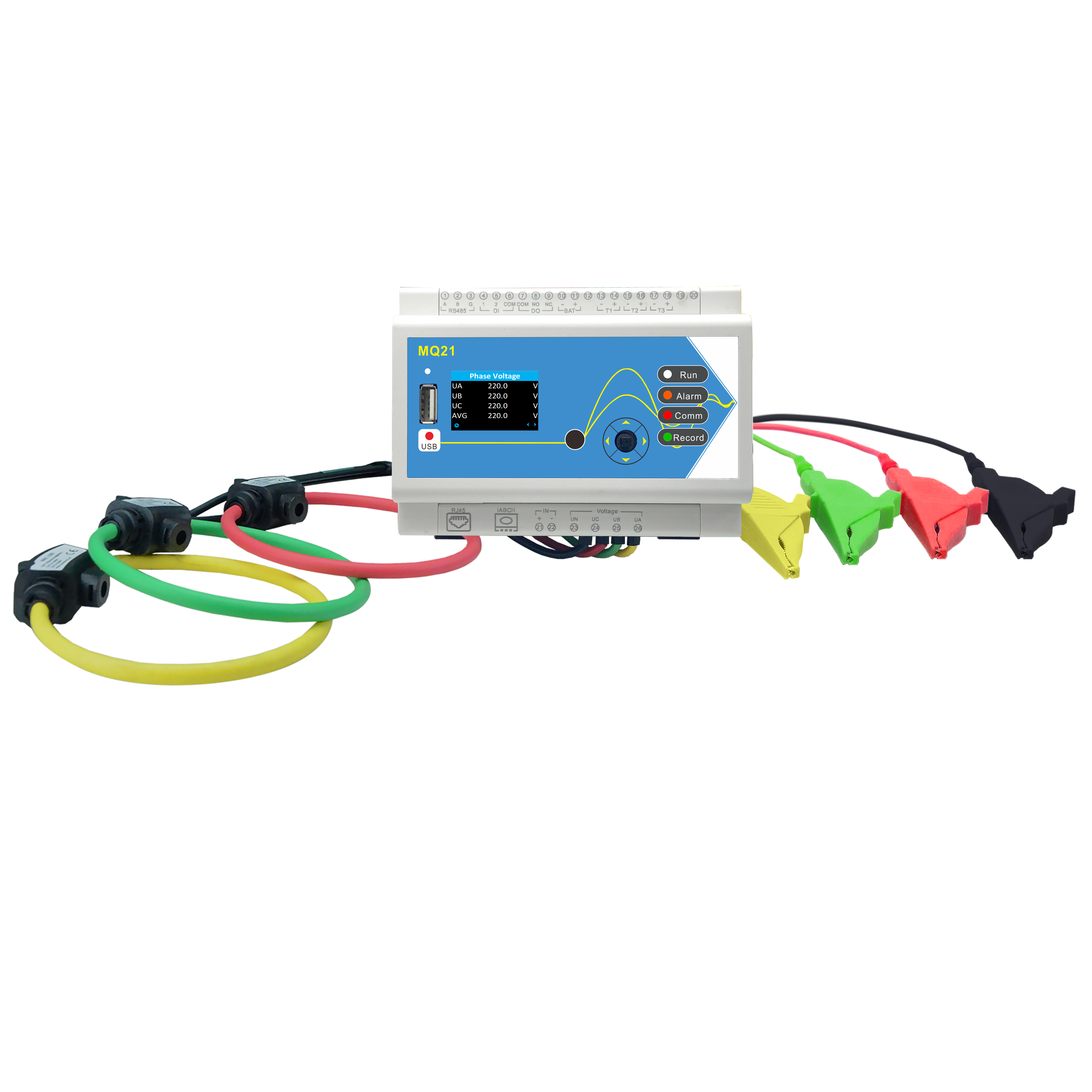

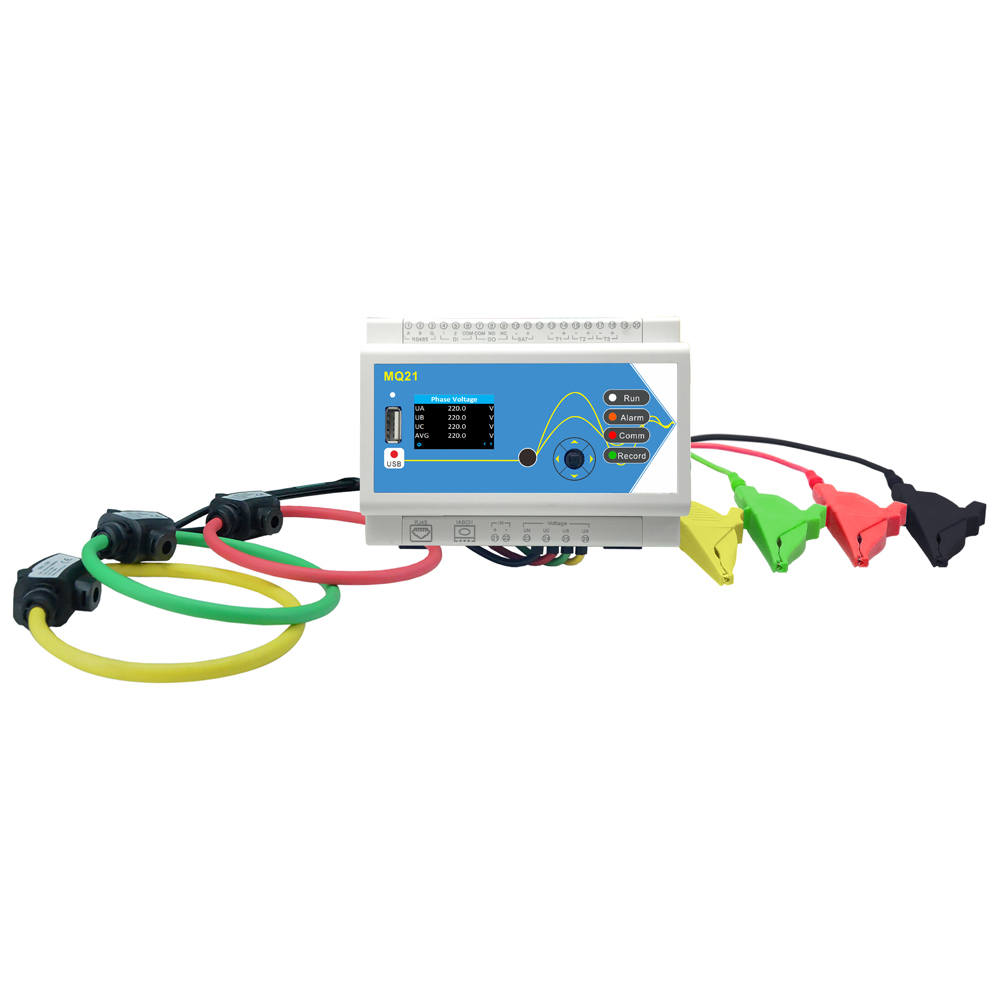

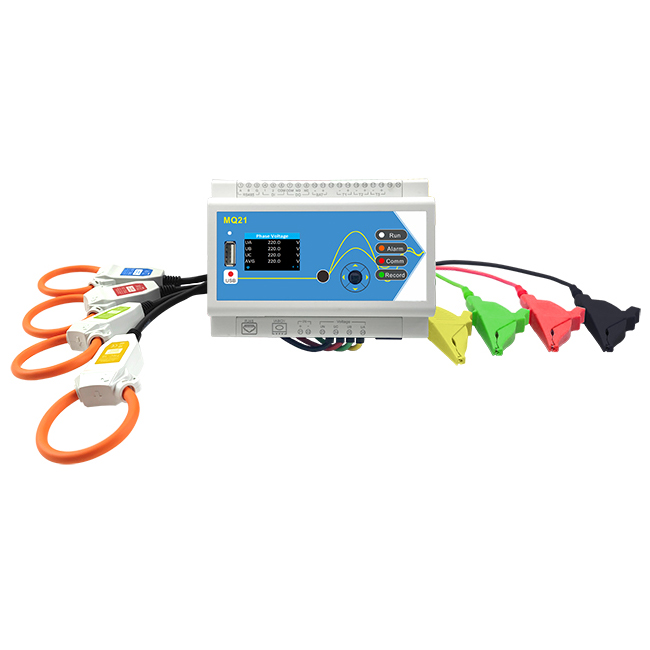

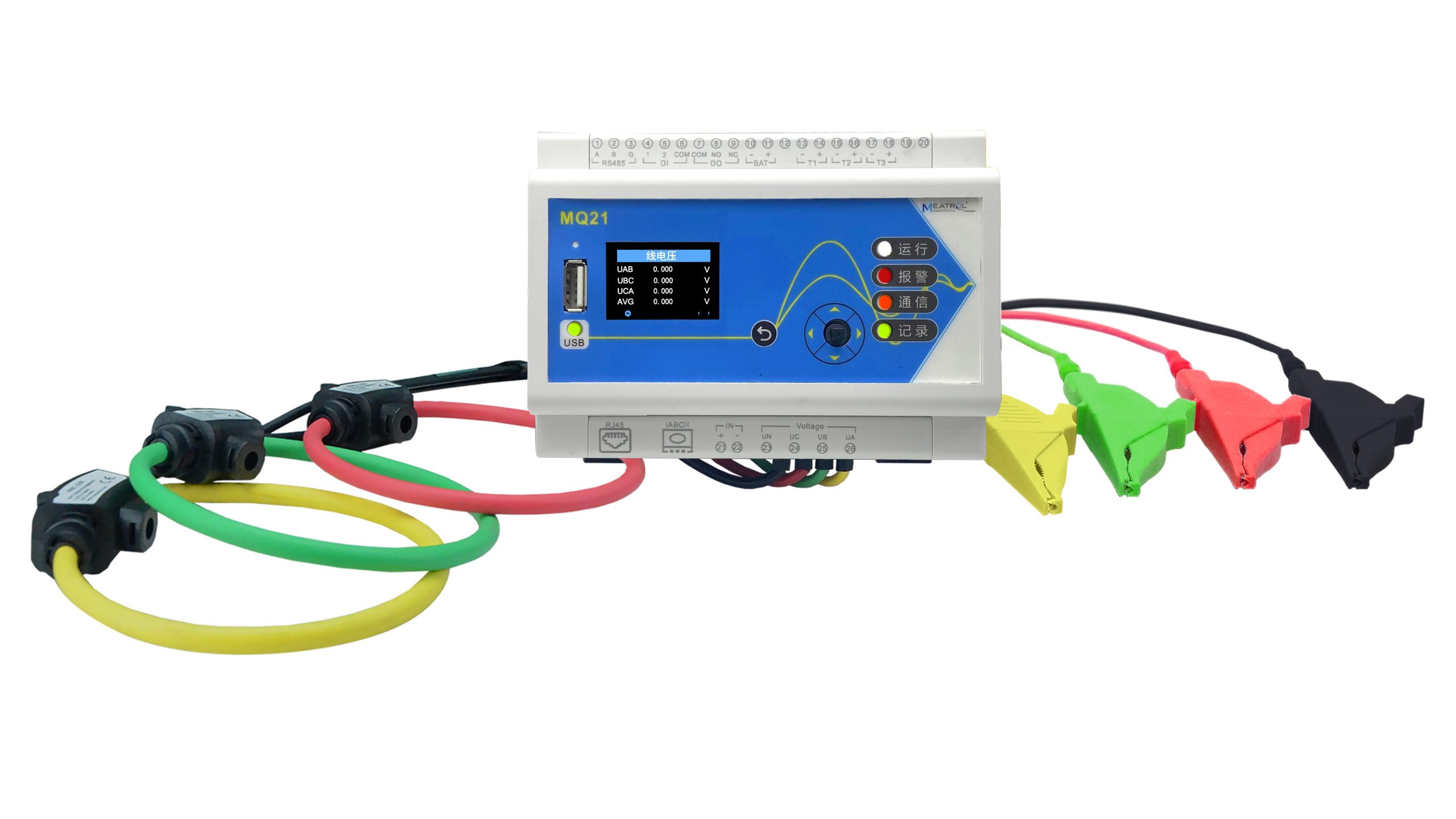

MQ21, the power quality analyzer externally connected with open type Rogowski coil or voltage CT, it can realize no dismantling wire test, facilitate engineering test, simplify test steps, save construction cost, and is also more convenient for the inspection and maintenance of distribution system.
MQ21 supports systems of single-phase and three-phase: it can measure multiple electrical parameters such as voltage, current, harmonic, energy, power factor and active power on the power grid of phase A, B, C and phase N.
With standard configuration of RJ45 and RS485 communication interfaces, through standard Modbus TCP and Modbus RTU protocols, it can be compatible with various configuration systems and transmit the electrical parameters collected by the front end to the system data center in real time.
-
-

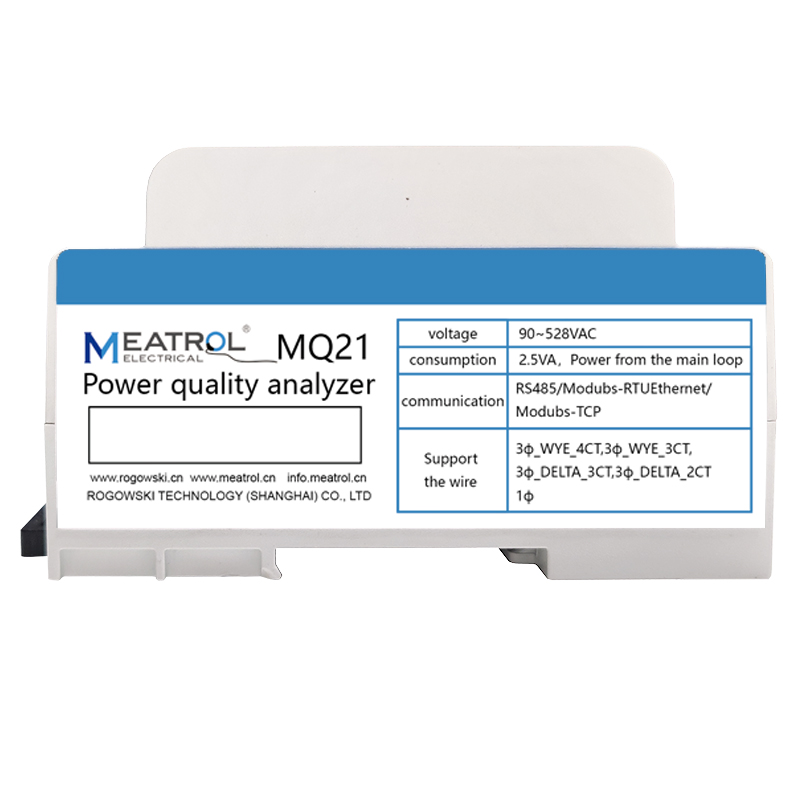

MQ21 DIN-Rail Three phase
-
Power quality analyzer
-
Multifunction Fault Recorder
Application:
Power analysis
Energy measurement

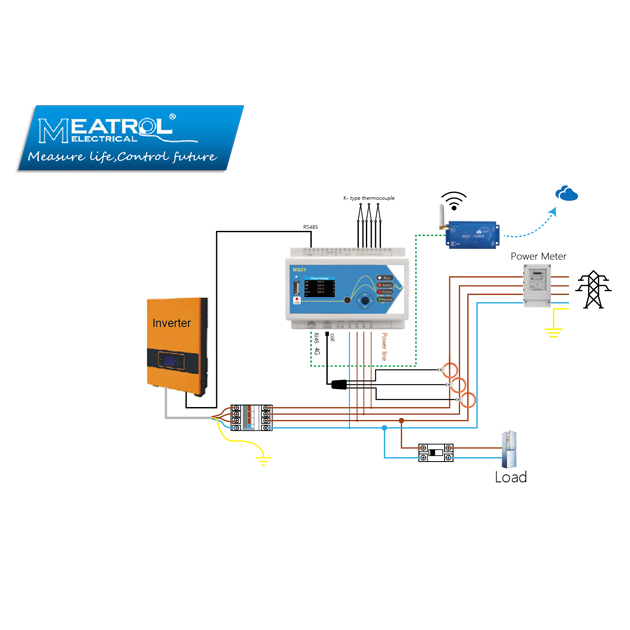

Solar power generation system
Grid connected PV generation system
Event data record
Fault record
Non countercurrent power generation system
Power analysis
Energy measurement
Solar power generation system
Grid connected PV generation system
Event data record
Fault record
Non countercurrent power generation system
|
Description
|
||
|
Model No.
|
MQ21
|
|
|
Type
|
Three phase power quality analyzer
|
|
|
Supported types of current sensor
|
Rogowski coil, Voltage-output current clamp
|
|
|
Wiring mode
|
3ф_WYE_4CT, 3ф_WYE_3CT, 3ф_DELTA_3CT,3ф_DELTA_2CT,1ф
|
|
|
Storage
|
16GB Micro SD card，USB data download
(default storage interval: 1 minute) |
|
|
Harmonic
|
51 times
|
|
|
Application
|
power analysis, energy measurement
|
|
|
Display screen
|
1.3-inch color OLED
|
|
|
Weight
|
Approx 400g
|
|
|
Dimension
|
L*W*D：13*9.5*5.6CM
|
|
|
Color
|
White
|
|
|
Input current
|
||
|
Primary side current range
|
600A 0.5A ～ 720A
3kA 0.5A ～ 3600A 6kA 0.5A ～ 7200A |
|
|
Secondary side current range
(ST08 current clamp or the same type）
|
1mA～10A
|
|
|
Input voltage value
|
1/225mV～707mV
|
|
|
Overload capacity
|
2V，10s/hours
|
|
|
Power supply
|
||
|
Electric source
|
Electricity from major loop, 90～528VAC
|
|
|
External battery
|
External 18650 lithium battery
|
|
|
Power consumption
|
||
|
Max power consumption
|
2.5W
|
|
|
Connecting terminal type
|
||
|
ABC phase current input
|
SATA interface
|
|
|
N-phase current input
|
5.08 terminal
|
|
|
Voltage input
|
7.62 spacing terminals
|
|
|
Power supply
|
Electricity from major loop, 90～528V
|
|
Products Advantages
MQ21 Power quality analyzer:
* Temperature and Humidity supervision
* Event data record
* Fault Record
* Record Voltage Swell and Voltage Dip
* Record Interruptions Flickers Three-Phase Unbalance
* High speed Ethernet transmission
* Support customized Power quality Monitoring Platform
SATA interface
Support Rogowski coil ,
Voltage-output current clamp
16GB Micro SD card
USB data download
(default storage interval: 1 minute)
(default storage interval: 1 minute)
Power supply：
Electricity from major loop,
90～528VAC
Function
|
Measurement
|
||
|
Voltage
|
UA，UB，UC，and average value
|
|
|
Current
|
IA，IB，IC，IN and average value
|
|
|
Power
|
Active power, reactive power, apparent power (each phase, sum value of three phases)
|
|
|
energy
|
Active energy, reactive energy, apparent energy(each phase, sum value of three phases)
Exceeds 999.9GWh, energy value cleared to “0” automatically |
|
|
Line voltage
|
Between phases
|
|
|
Angle between line voltages
|
Between phases
|
|
|
Angle between currents
|
Between phases
|
|
|
Power factor
|
Including harmonic power factor PF and fundamental power factor DPF(each phase, average value of three phases)
|
|
|
Max / Min.
|
||
|
Voltage
|
Each phase, average value of three phases
|
|
|
Current
|
Each phase, average value of three phases
|
|
|
Power
|
Active power, reactive power, apparent power(each phase, sum value of three phases)
|
|
|
Unbalance degree
|
||
|
Voltage
|
Each phase, the max unbalance degree of three phases
|
|
|
Current
|
Each phase, the max unbalance degree of three phases
|
|
|
Demand / Max Demand
|
||
|
Current
|
Each phase, average value of three phases
|
|
|
Power
|
Active power, reactive power, apparent power(each phase, sum value of three phases)
|
|
|
Temperature and Humidity
|
||
|
Temperature
|
3 channels(optional)
|
|
|
Humidity
|
1 channel
|
|
|
Power quality
|
||
|
Voltage swell
|
Start time, end time, amplitude value
|
|
|
Voltage dip
|
Start time, end time, amplitude value
|
|
|
Voltage harmonic value and percentage
|
Total harmonic, 1, 2, 3, 4… 51 (51st) harmonics
|
|
|
Current harmonic value and percentage
|
Total harmonic, 1, 2, 3, 4… 51 (51st) harmonics
|
|
|
General data record
|
||
|
Record interval setting
|
5 ~ 9999s (default 60s)
|
|
|
Data format
|
CSV
|
|
|
Storage capacity
|
Micro SD card: 16GB
|
|
|
Storage duration: 3 years (using 16GB SD card, once / 60s)
|
||
|
Recorded data
|
Basic data
Voltage harmonic Current harmonic |
|
|
Event data record
|
||
|
Data format
|
CSV
|
|
|
Recorded data
|
Event type
Start time Duration Amplitude value Voltage RMS 1 / 2 value of each phase Voltage waveform of each phase |
|
Accuracy and certification
|
Measurement accuracy
|
||||
|

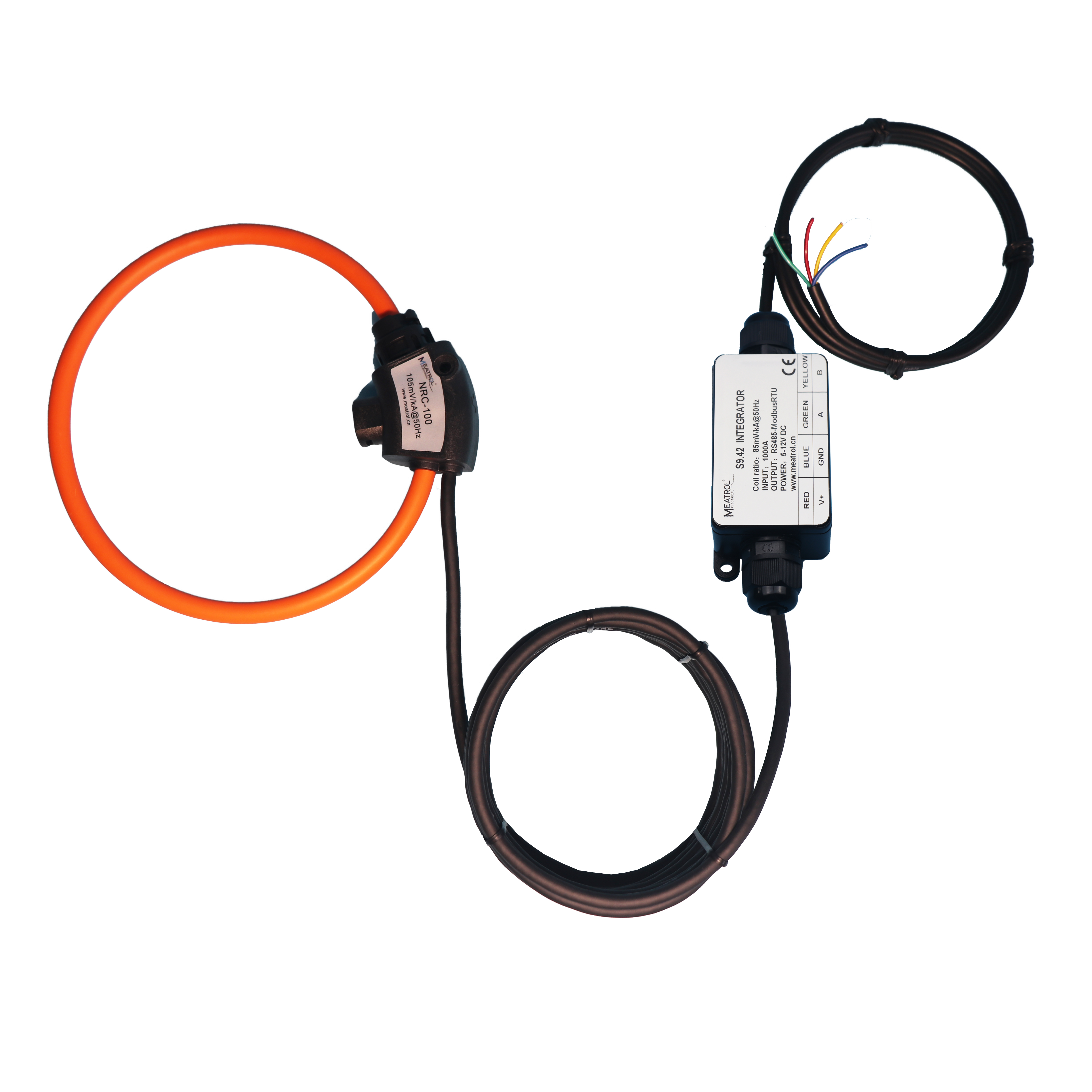

Rogowski coil
|
Current measurement accuracy
|
0.5%(1%～120% rated current)
(＜10A, accuracy not guaranteed) |
||
|
Current gear
|

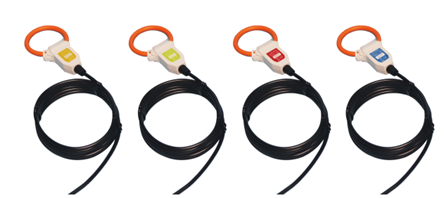

600A(6A～720A): TRC-36 (50mV/kA@50Hz)
|
|||
|

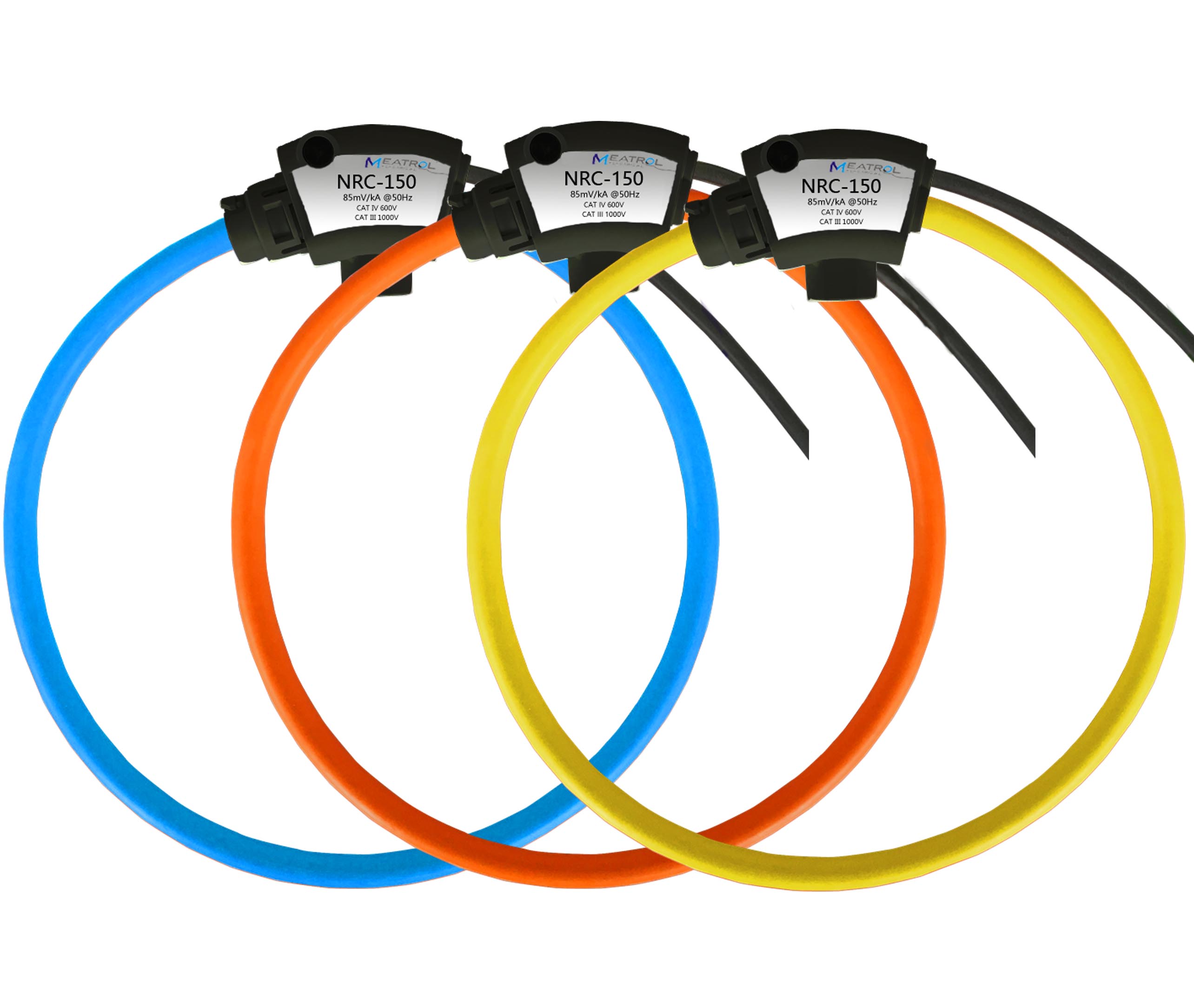

3000A(10A～3600A): NRC-150 (85mV/kA@50Hz)
|
||||
|
6000A(20A～7200A): NRC-200 (50mV/kA@50Hz)
|
||||
|
ST08 current clamp
|
Current measurement accuracy
|
0.5%(100mA～10A)
|
||
|
1%(10mA～100mA), (＜10mA, accuracy not guaranteed)
|
||||
|
ABC Voltage measurement accuracy
|
0.2%(5～528V AC)
|
|||
|
Power factor
|
±0.005
|
|||
|
Active and apparent power
|
IEC62053-22 Class 0.5S
|
|||
|
Reactive power
|
IEC62053-21 Class 2S
|
|||
|
Frequency
|
0.01%(45～65Hz)
|
|||
|
Active energy
|
IEC62053-22 Class 0.5S
|
|||
|
Reactive energy
|
IEC62053-21 Class 2S
|
|||
|
Environment condition
|
||||
|
Operating temperature
|
-25℃～+55℃
|
|||
|
Storage temperature
|
-40℃～+85℃
|
|||
|
Humidity range
|
5～95% RH, 50℃ (non-condensing)
|
|||
|
Pollution Level
|
2
|
|||
|
Overvoltage capacity
|
III, applicable to the distribution system below 277/480VAC
|
|||
|
Insulation strength
|
IEC61010-1
|
|||
|
Altitude
|
3000m Max
|
|||
|
Anti-pollution level
|
IP20（conforming to IEC 60629）
|
|||
|
Products expiry
|
24 months
|
|||
|
EMC（Electromagnetic compatibility）
|
||||
|
Electrostatic discharge
|
Level IV(IEC61000-4-2)
|
|||
|
Radiation Immunity
|
Level III (IEC61000-4-3)
|
|||
|
EFT Electrical Fast Burst Immunity
|
Level IV (IEC61000-4-4)
|
|||
|
Surge immunity
|
Level IV (IEC61000-4-5)
|
|||
|
Immunity to Conducted Disturbance
|
Level III (IEC61000-4-6)
|
|||
|
Power frequency magnetic field immunity
|
0.5mT (IEC61000-4-8)
|
|||
|
Conduction and radiation
|
Class B (EN55022 )
|
|||
|
Standard compliance
|
||||
|
EN 62052-11, EN61557-12, EN 62053-21, EN 62053-22, EN 62053-23, EN 50470-1, EN 50470-3, EN 61010-1, EN 61010-2, EN 61010-031
|
||||

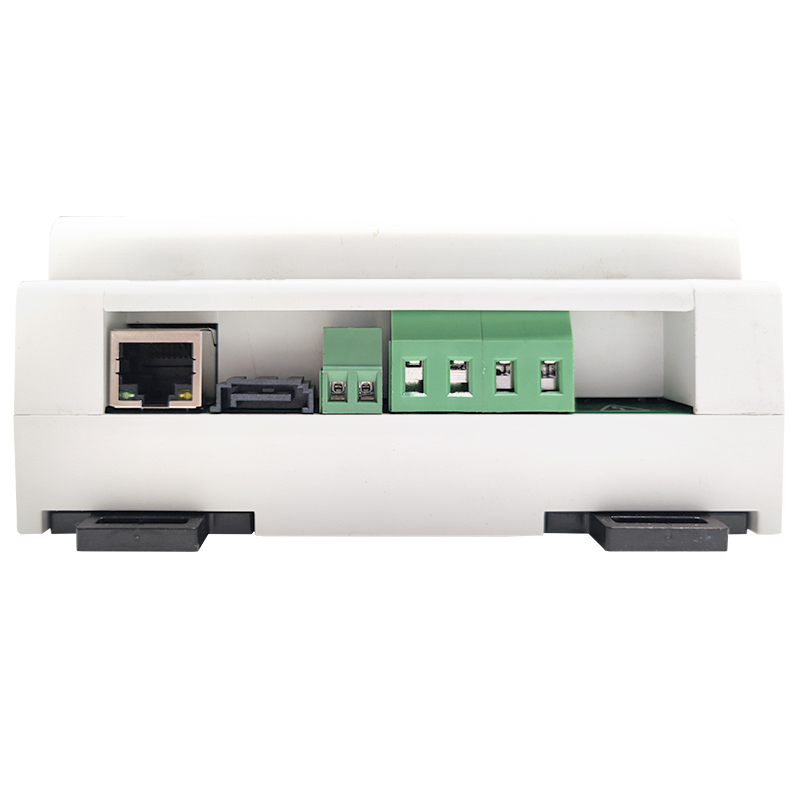

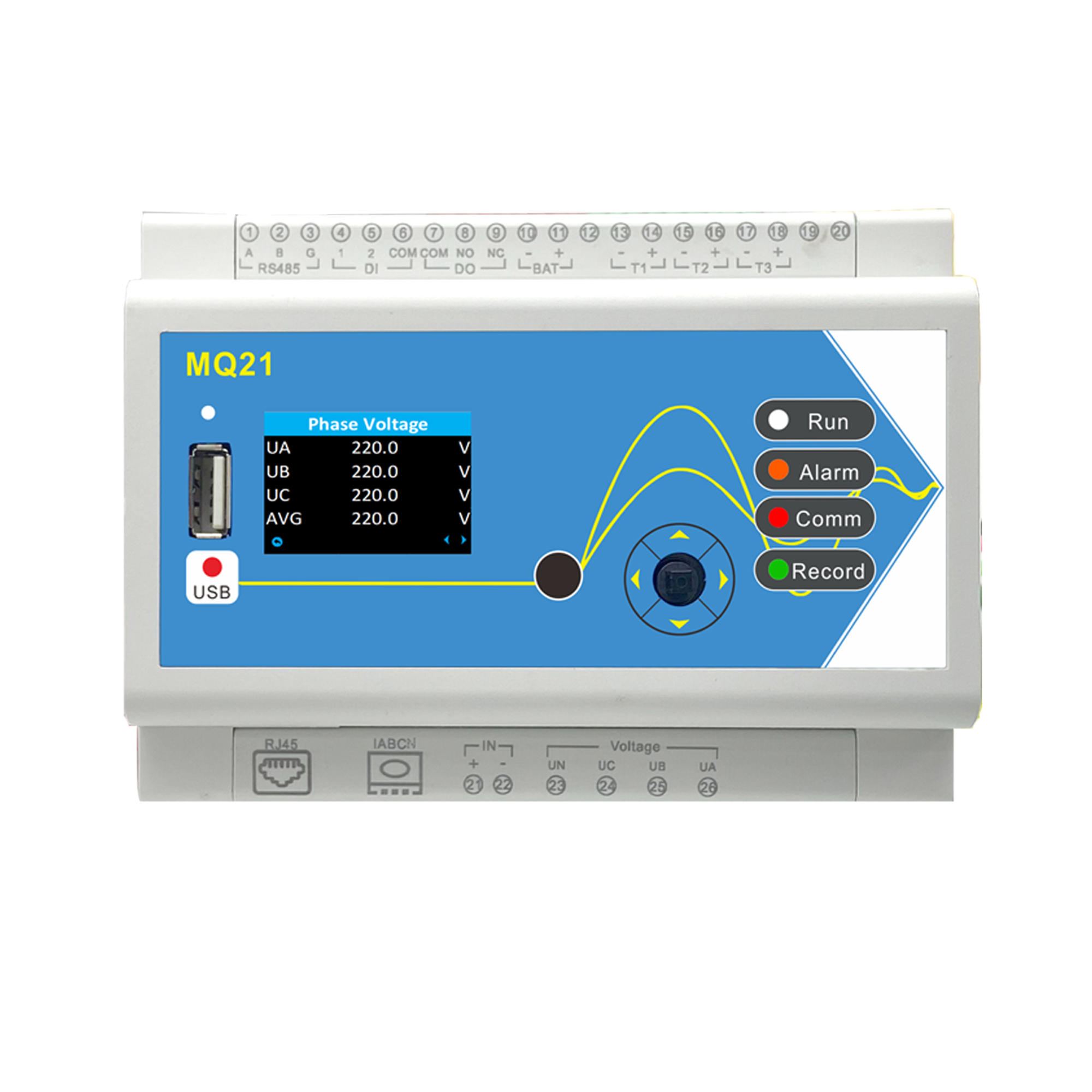

MQ21 is equipped with abundant interfaces to realize different functions.
Port definition
|
Interface No.
|
Interface name
|
Interface definition
|
Interface function
|
Remarks
|
|
1
|
A
|
RS485 A
|
RS485 Interface
|
RS485 Interface
|
|
2
|
B
|
RS485 B
|
||
|
3
|
G
|
RS485 GND
|
||
|
4
|
1
|
Digital input channel 1
|
Digital input interface
|
Dry contact input
|
|
5
|
2
|
Digital input channel 1
|
||
|
6
|
COM
|
Common terminal of digital input channel
|
||
|
7
|
COM
|
Digital output common terminal
|
Digital output interface
|
Digital output interface
|
|
8
|
NO
|
Digital output normally open terminal
|
||
|
9
|
NC
|
Digital output normally closed terminal
|
||
|
10
|
BAT-
|
3.7V rechargeable lithium battery –
|
External connecting 3.7V rechargeable lithium battery
|
Non rechargeable lithium battery is forbidden.
|
|
11
|
BAT+
|
3.7V rechargeable lithium battery +
|
||
|
12
|
Reserve
|
|||
|
13
|
T1-
|
Temperature sensor channel 1 input-
|
Temperature sensor channel 1 input
|
External K-type thermocouple
|
|
14
|
T1+
|
Temperature sensor channel 1 input+
|
||
|
15
|
T2-
|
Temperature sensor channel 2 Input-
|
Temperature sensor channel 2 Input
|
External K-type thermocouple
|
|
16
|
T2+
|
Temperature sensor channel 2 Input+
|
||
|
17
|
T3-
|
Temperature sensor channel 3 input-
|
Temperature sensor channel 3 input
|
External K-type thermocouple
|
|
18
|
T3+
|
Temperature sensor channel 3 input+
|
||
|
19
|
Reserve
|
Reserve
|
||
|
20
|
Reserve
|
Reserve
|
||
|
21
|
IN+
|
Phase N current input+
|
Phase N current input channel
|
The phase N current can be connected to the sensor separately.
|
|
22
|
IN-
|
Phase N current input-
|
||
|
23
|
UN
|
Phase N voltage input
|
Voltage input channel
|
Voltage input channel
|
|
24
|
UC
|
Phase C voltage input
|
||
|
25
|
UB
|
Phase B voltage input
|
||
|
26
|
UA
|
Phase A voltage input
|
||
|
RJ45
|
RJ45
|
Ethernet interface
|
Ethernet interface
|
Ethernet interface
|
|
IABCN
|
IABCN
|
ABCN current input
|
ABCN current input
|
SATA interface
N-phase current can be connected to this port or (IN+,IN-) |

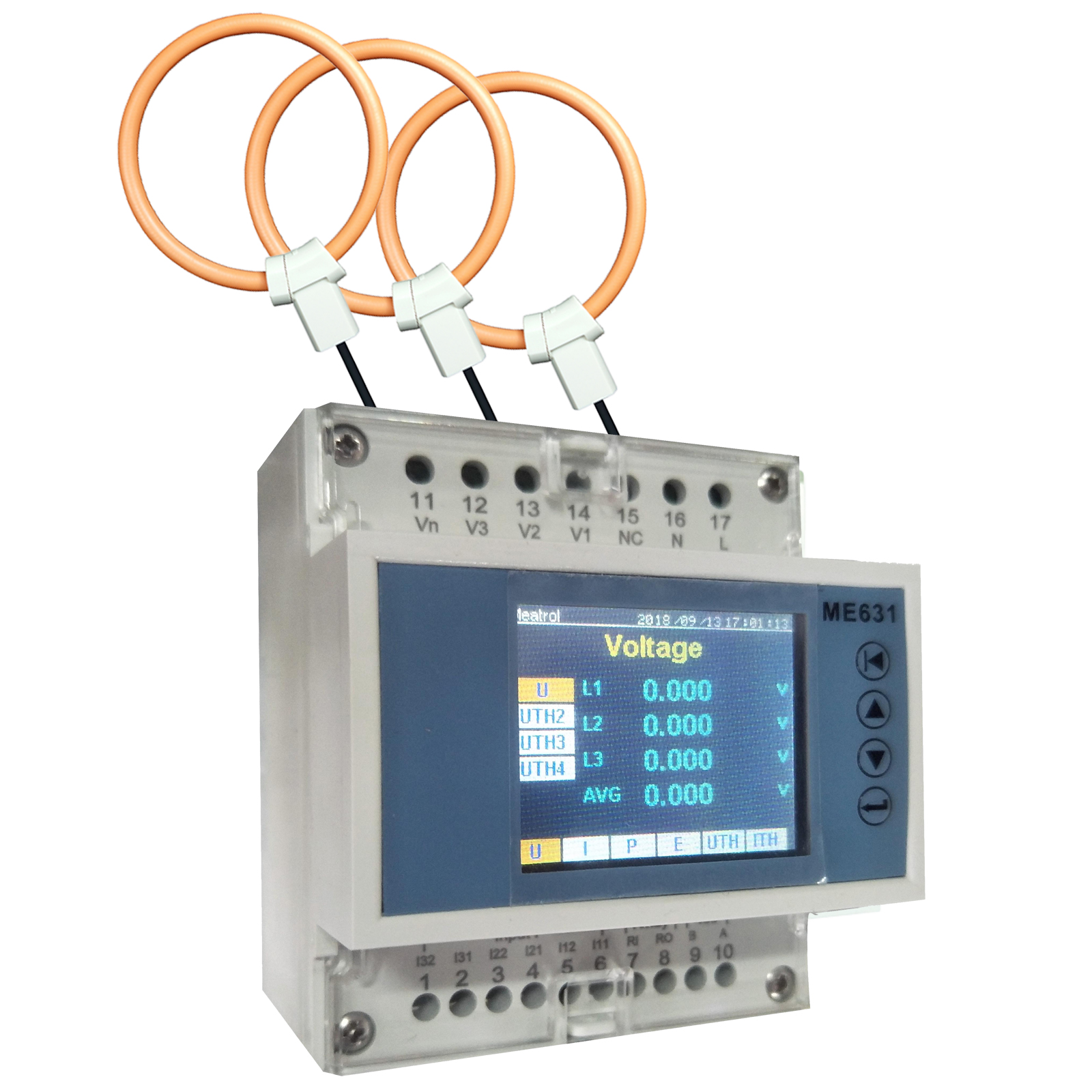

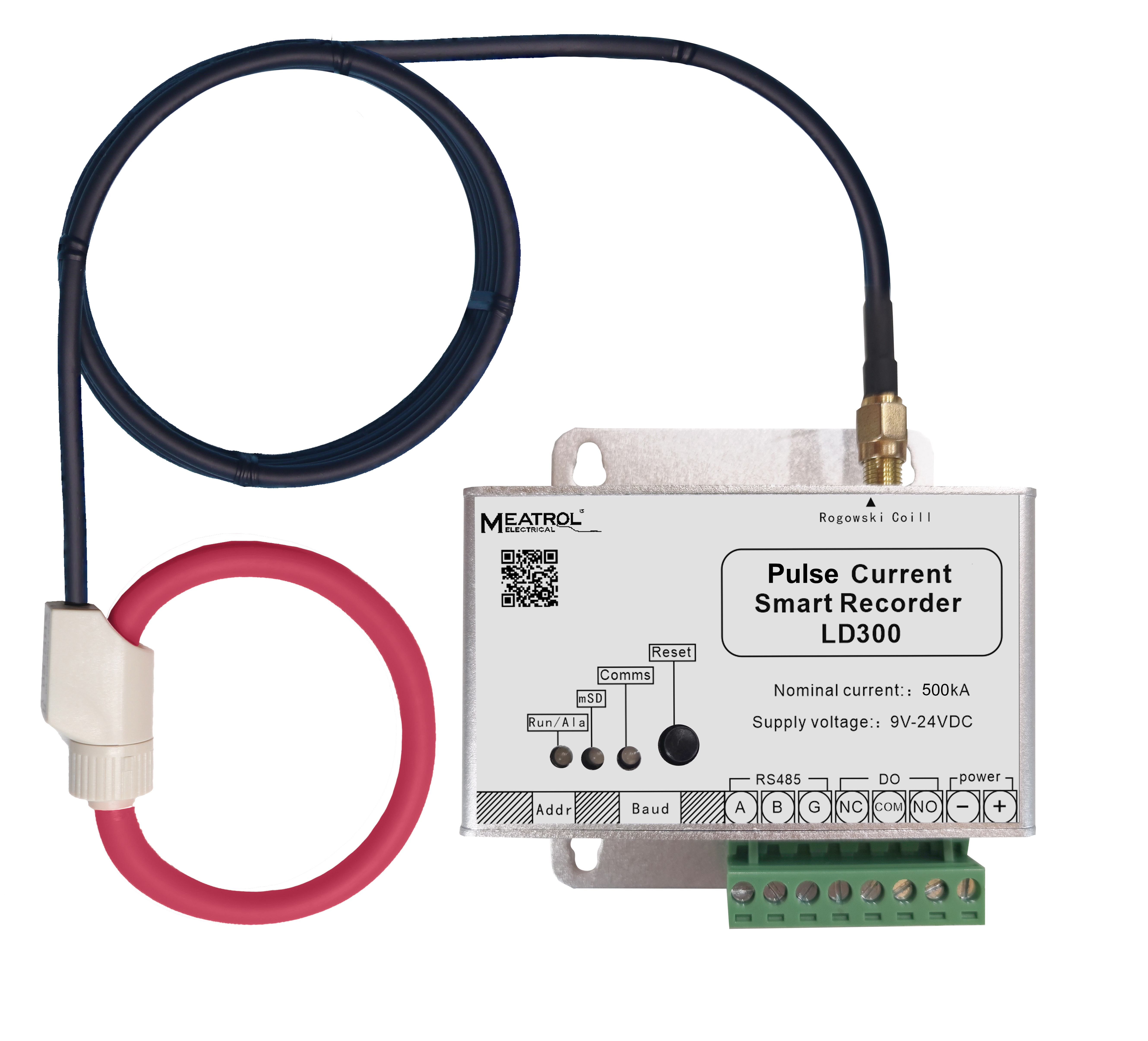

Related Products
